MetaFlex

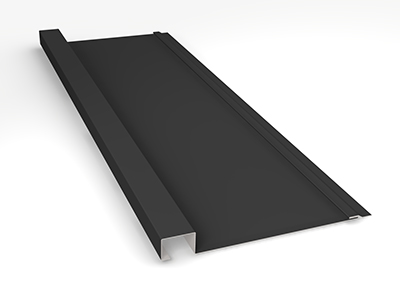

MetaFlex is a rain screen wall panel system. The flexibility of these metal box-style panels allows for creativity and enhanced aesthetics for any building façade. Combining colors and finishes, rib spacing, solid and perforated surfaces, in a variety of panel sizes, MetaFlex can bring your vision to life. The panels are available in aluminum and steel, in a variety of thicknesses. MetaFlex is ideal for all types of commercial, educational, and healthcare buildings, as well as multi-family residential and mixed-use buildings.

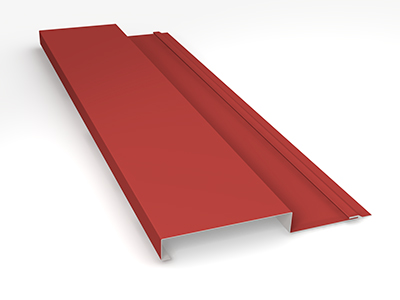

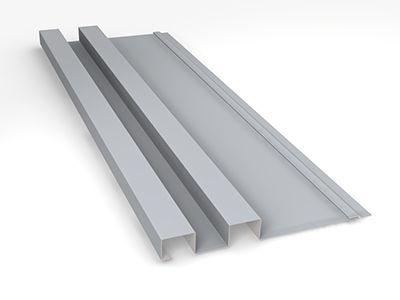

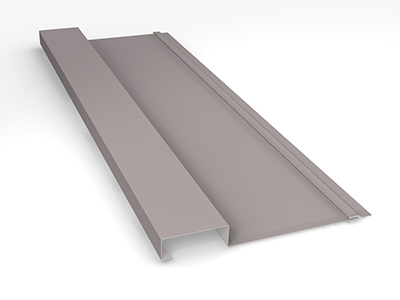

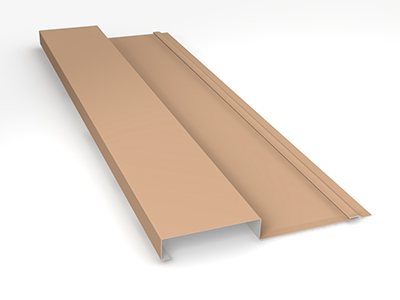

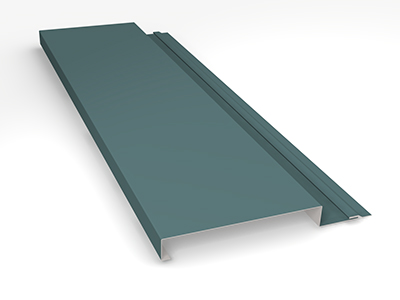

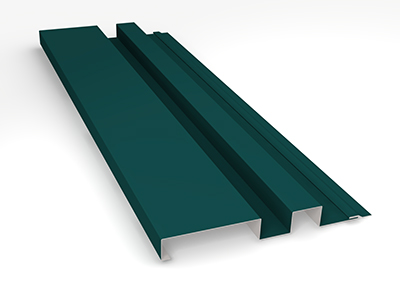

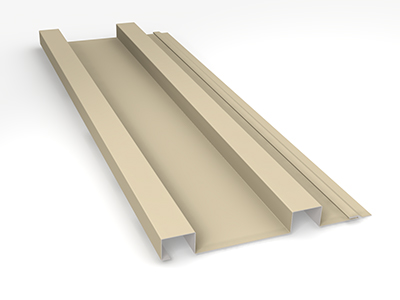

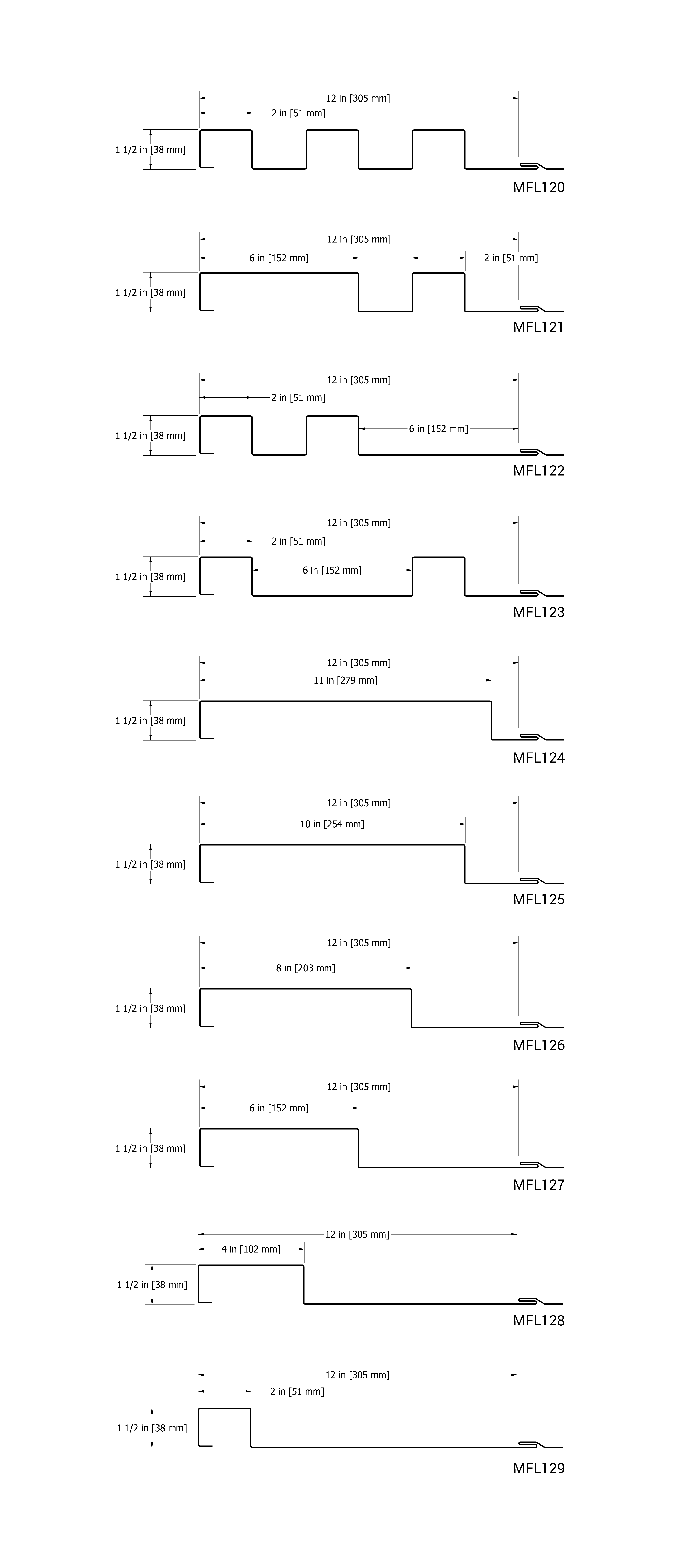

Line Drawing
Product Info
CAD Details
Gallery
Documents

Line Drawing

Product Info

SKU:

MFL

Material

.032, .040, & .050 aluminum

24, 22 & 20 gauge steel

.8, 1.0 mm zinc*

Panel Coverage:

12″

Minimum Panel Length:

4’0″

Maximum Panel Length:

26′-4″

Panel Depth:

1 ½”

Texture:

Smooth

Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze
LA Extra Dark Bronze Anodized
BlackMatt Anodized

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Vertical Application

PDF File Format - Horizontal Application

DWG File Format - Vertical Application

MetaFlex ALL Vertical Details

DWG File Format - Horizontal Application

MetaFlex ALL Horizontal Details

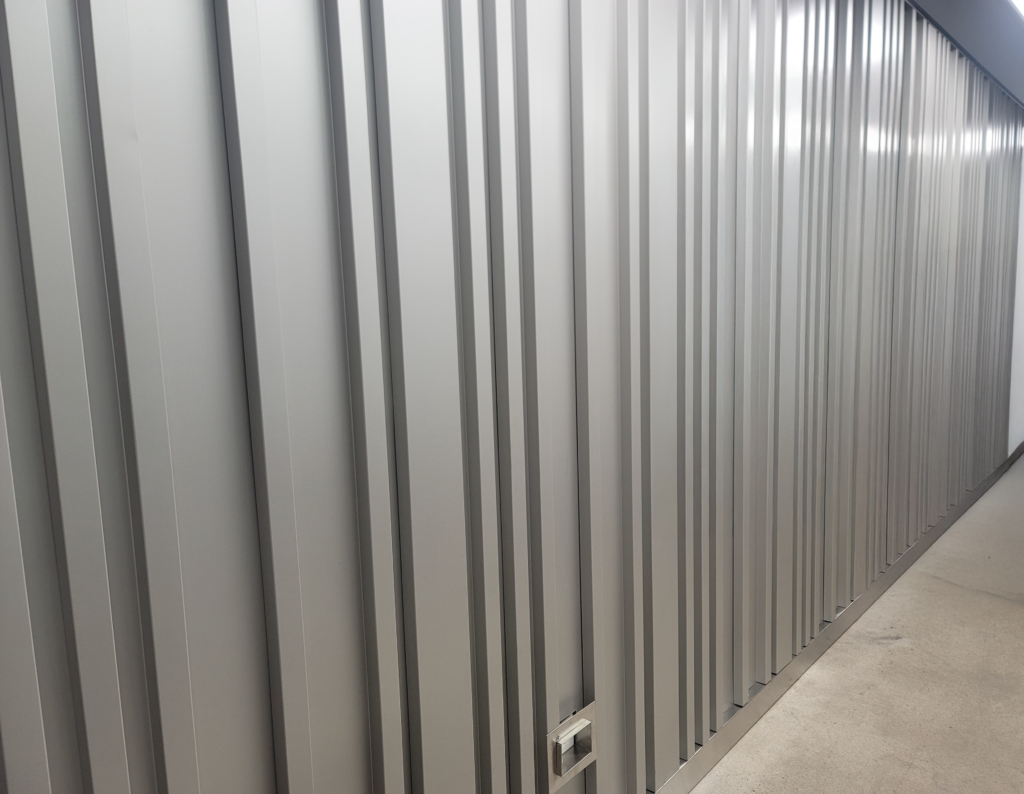

Gallery
