Profile Options

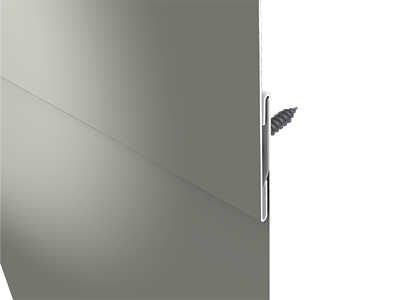

Interlock Detail

Interlock

Shingle

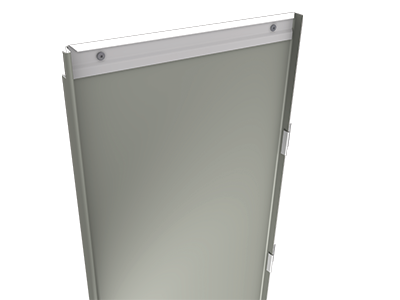

Standing Seam Shingle

Standing Seam Shingles are elegant in their style and feature a four-way interlock to ensure weathertightness. These panels are installed with concealed fasteners over a solid substrate. Transverse seams are staggered to provide clean lines running up the wall. Traditionally a roof panel, use ATAS’ Standing Seam Shingles on your next wall application for a unique vertical shingle look.

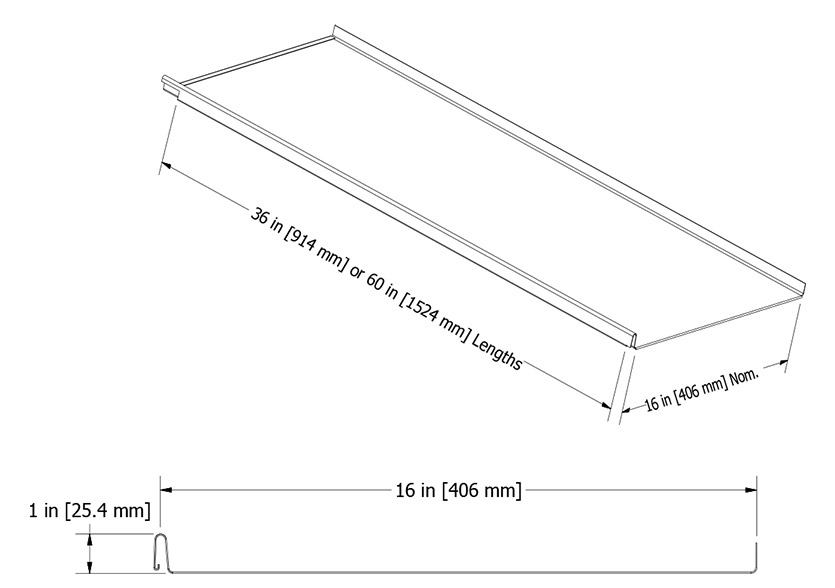

Line Drawing
Product Info
SKU:

HSS168 (36”)
HSS169 (60”)

Material:

.032 aluminum
16 oz. copper*

Shingle Size:

16 ⅜” x 36”
16 ⅜” x 60”

Panel Depth:

1″

Texture:

Smooth

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

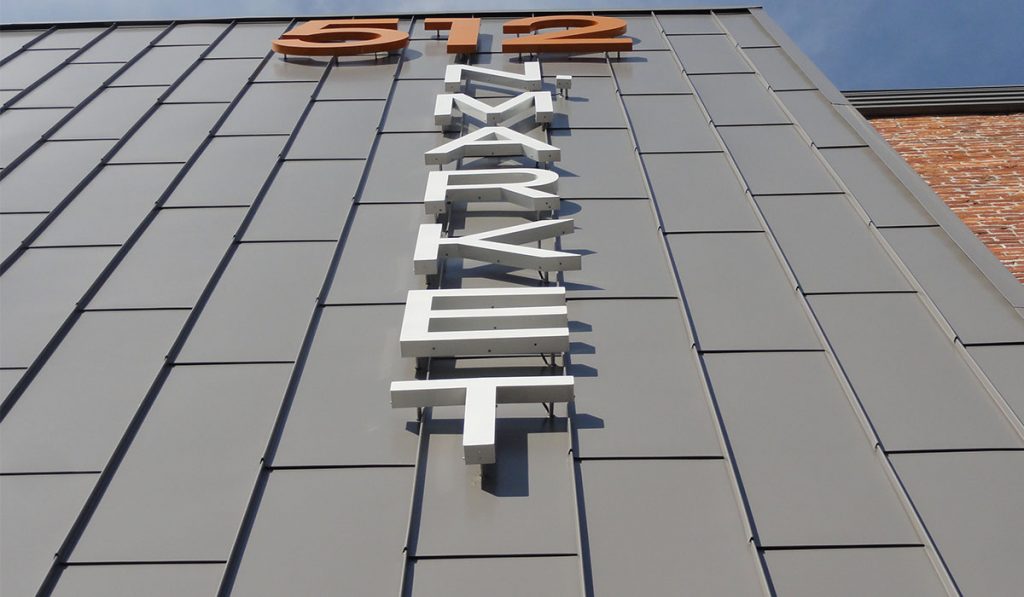

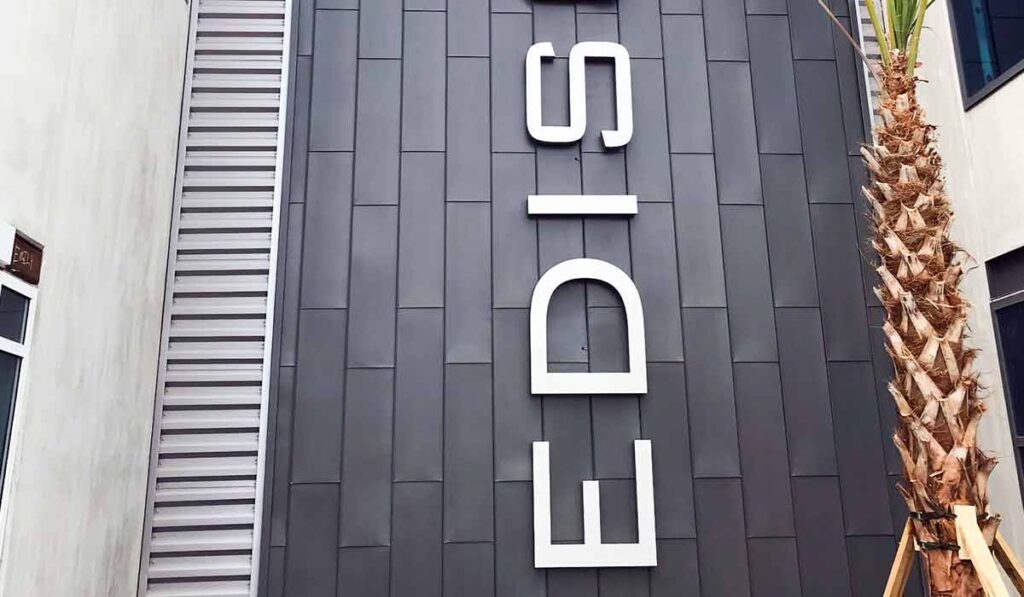

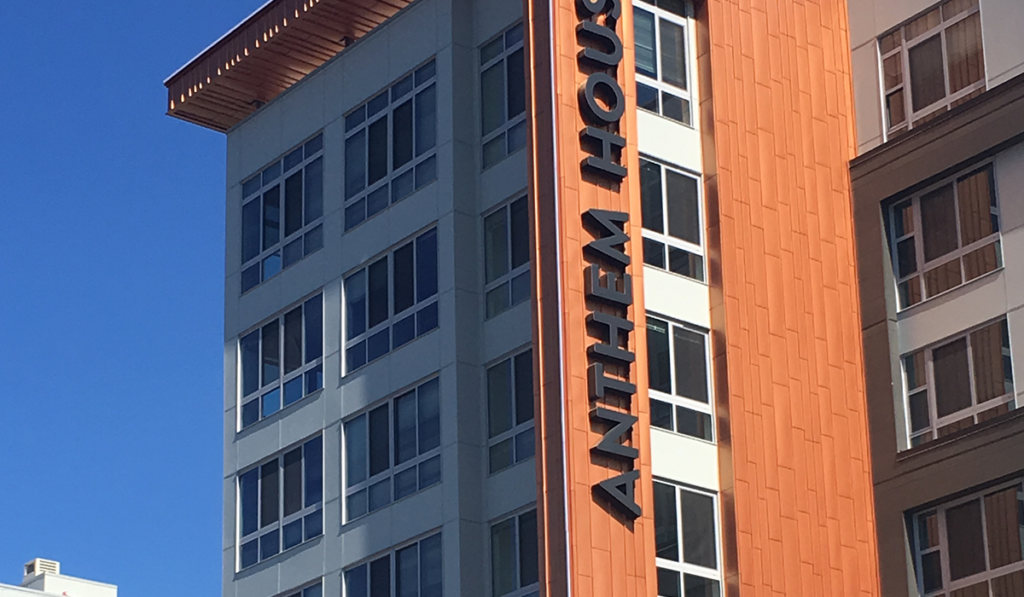

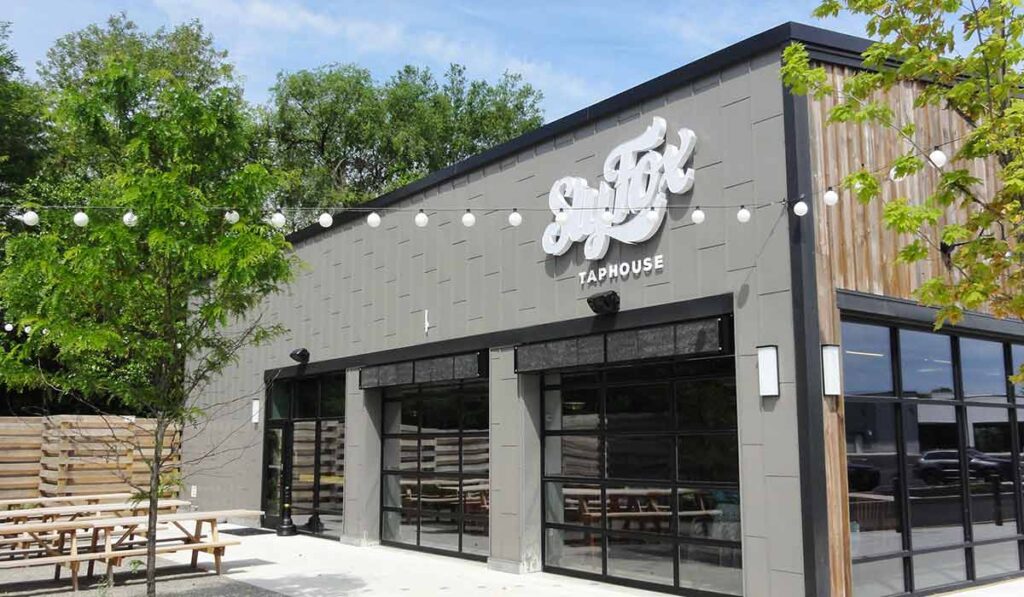

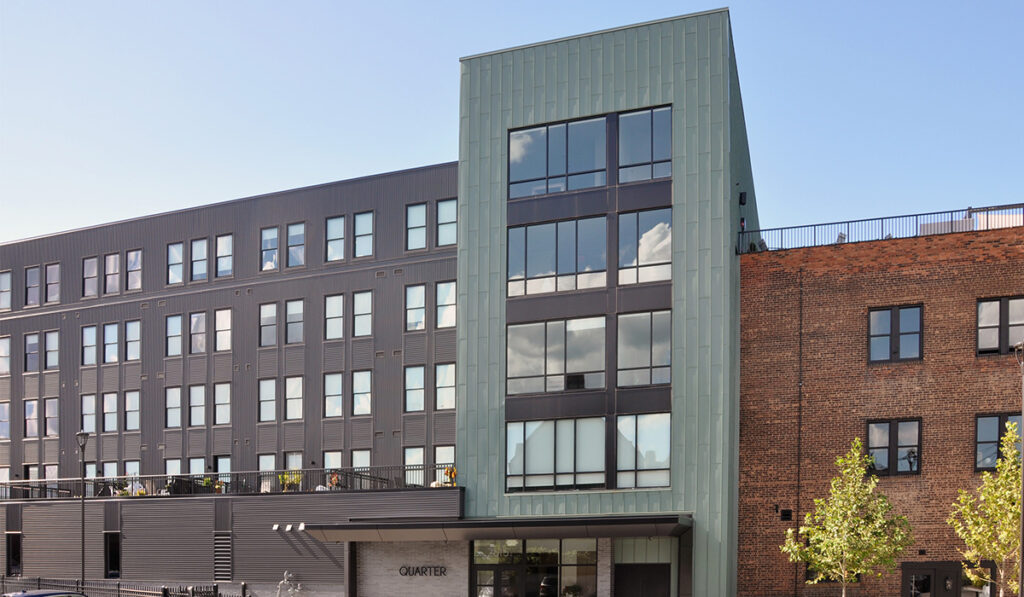

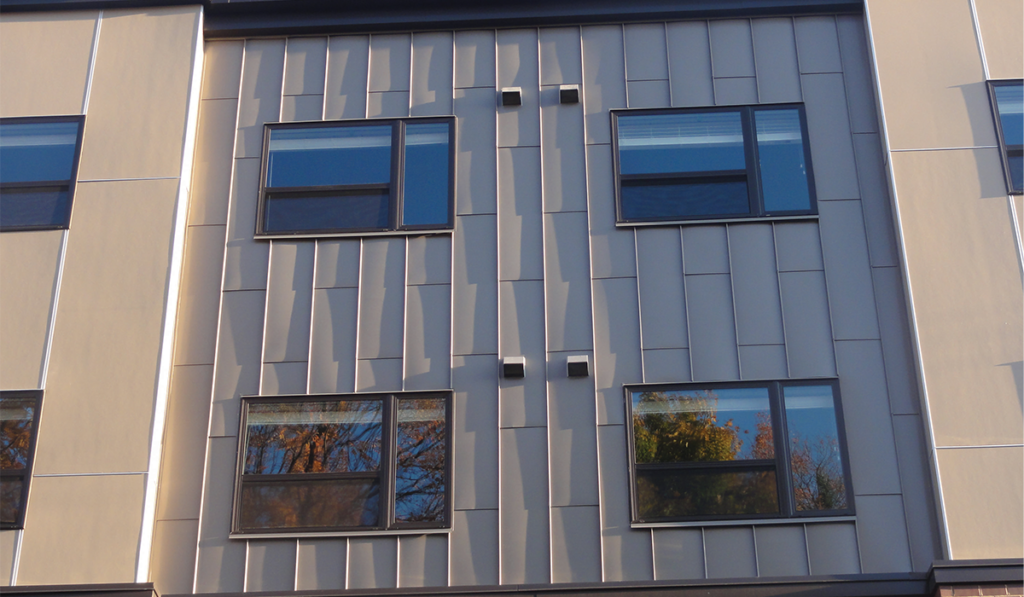

Gallery
