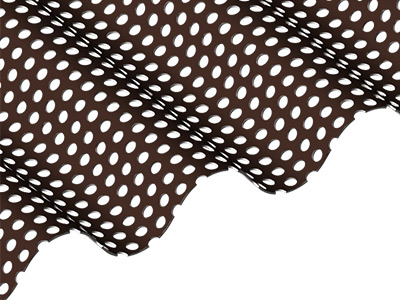

Perforated

Elite Trims

Z Box

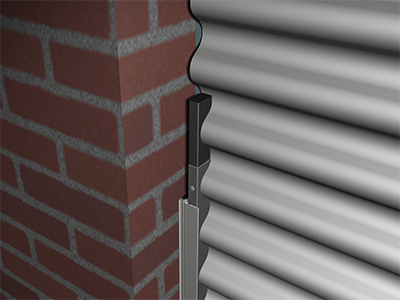

Closure Angle

Corrugated Panel

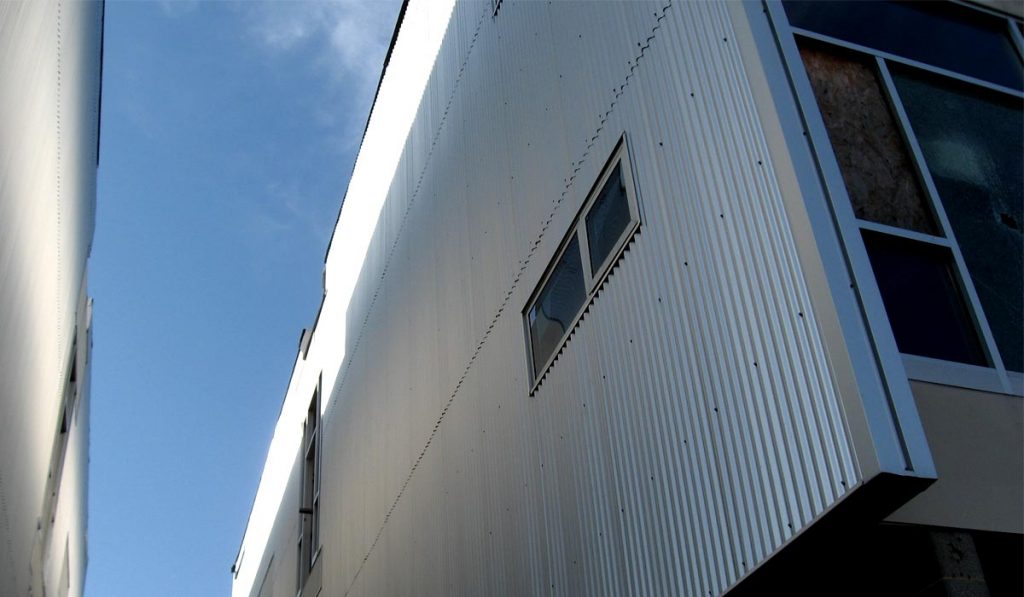

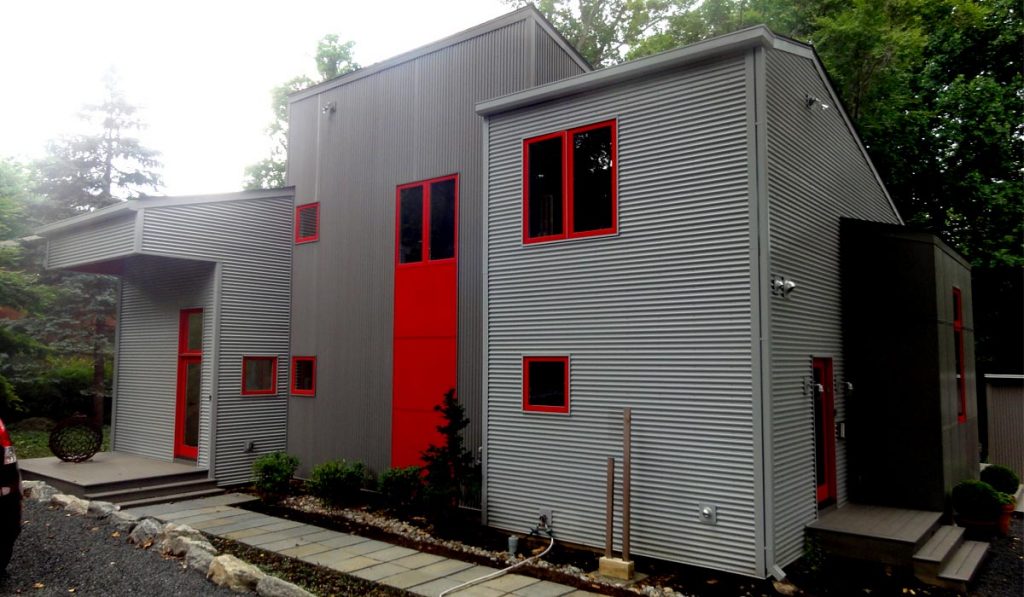

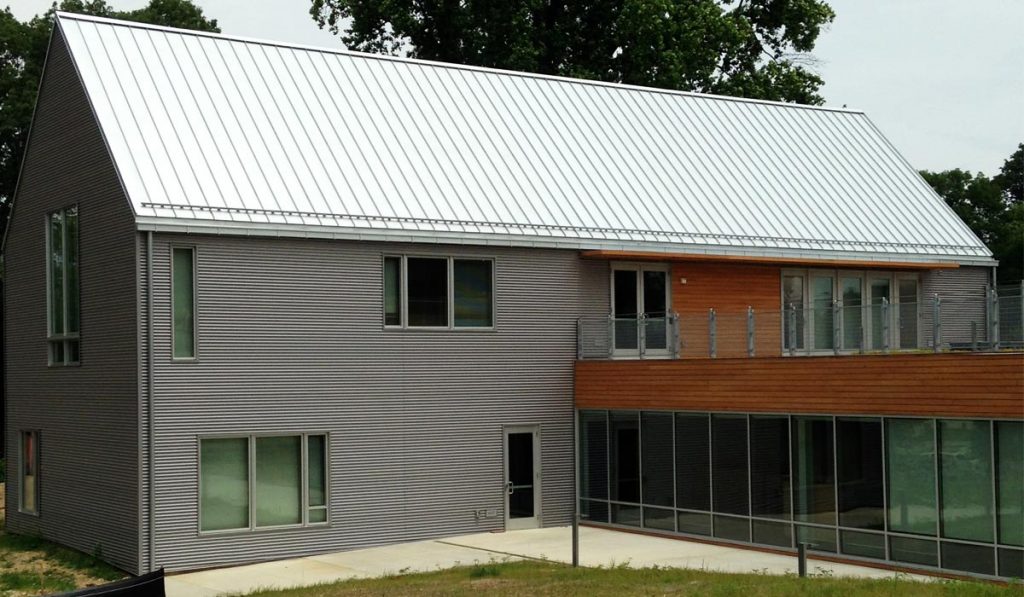

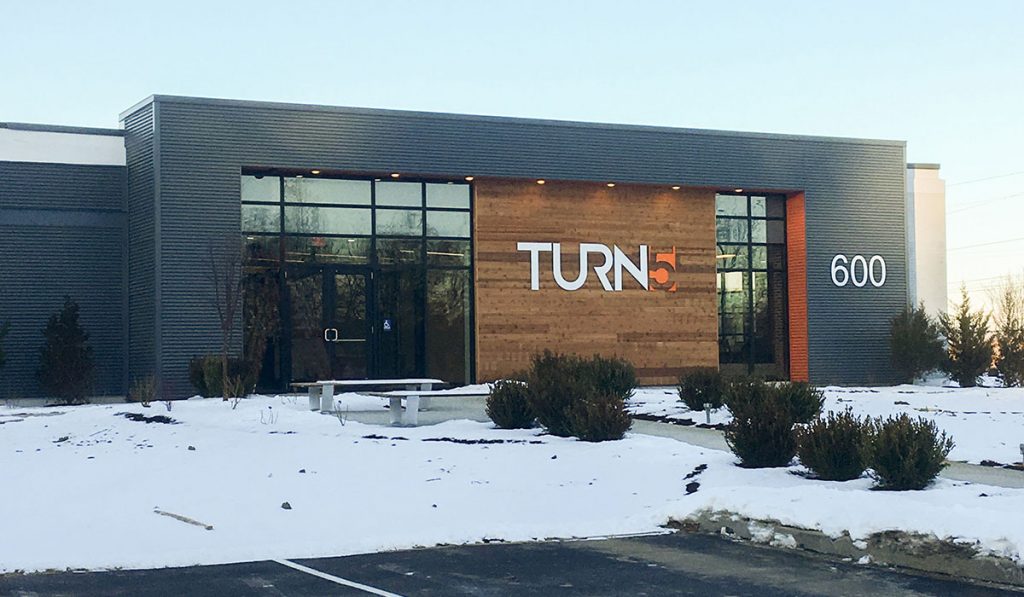

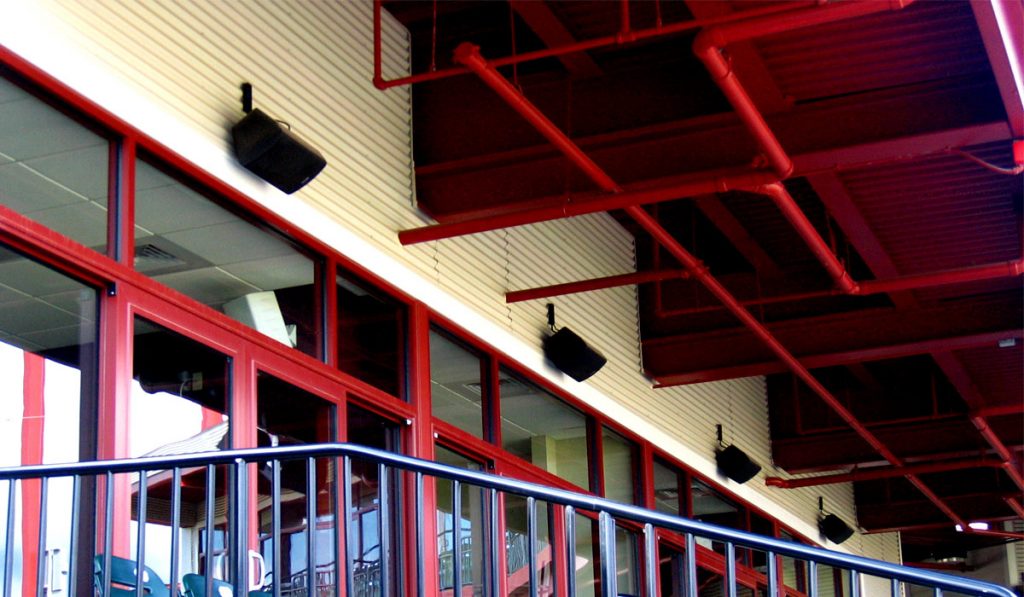

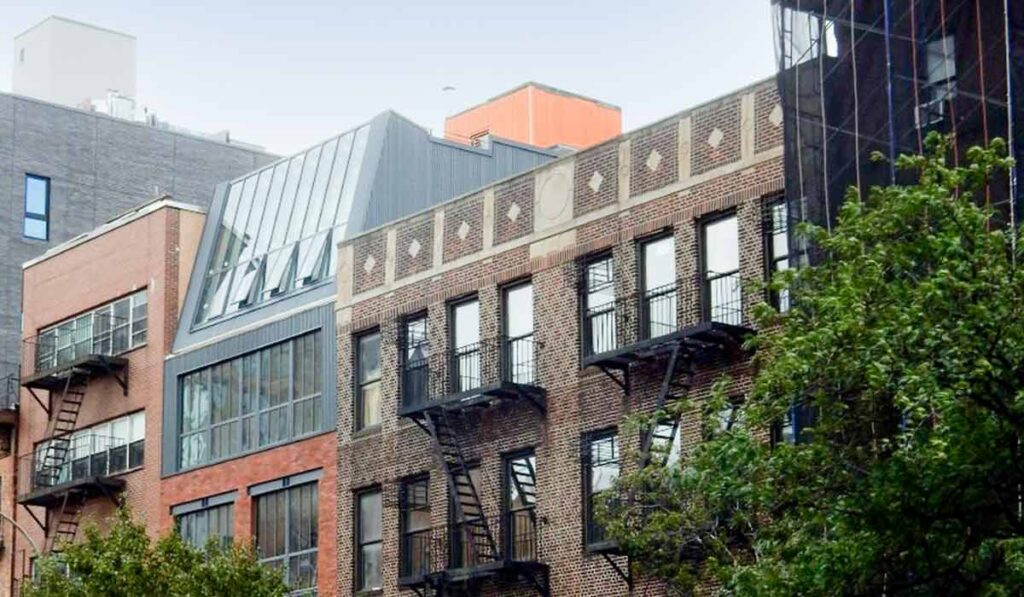

The Corrugated Panel is a traditional, economical wall or roof panel. It is installed horizontally or vertically with exposed fasteners. The panel is available in smooth or stucco embossed texture, depending on material. Ideal applications are walls, mansards and equipment screens.

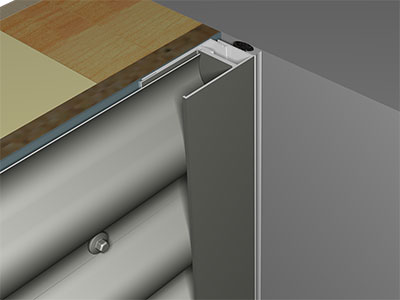

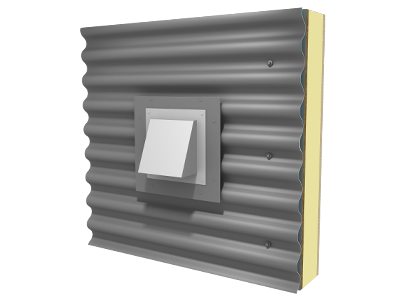

You can also enhance aesthetics of Corrugated Panel by using factory fabricated Elite Series, including the Z Box and Closure Angle shown.

Line Drawing
Product Info
SKU:

BWC374

Material:

.032, .040, .050 aluminum
24, 22*, 20*, 18* ga. metallic coated steel
16, 20 oz. copper*^
24, 22*, 20* ga. 55% Al-Zn alloy coated steel with acrylic coating
0.8, 1.0, 1.2 mm zinc*^

Panel Coverage:

37¼”

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

⅞”

Texture:

Smooth
Stucco Embossed

Perforations Available:
Curving Available:

Curved
Crimp-Curved (convex & concave)

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze
LA Extra Dark Bronze
BlackMatt

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

^Inquire for available widths

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

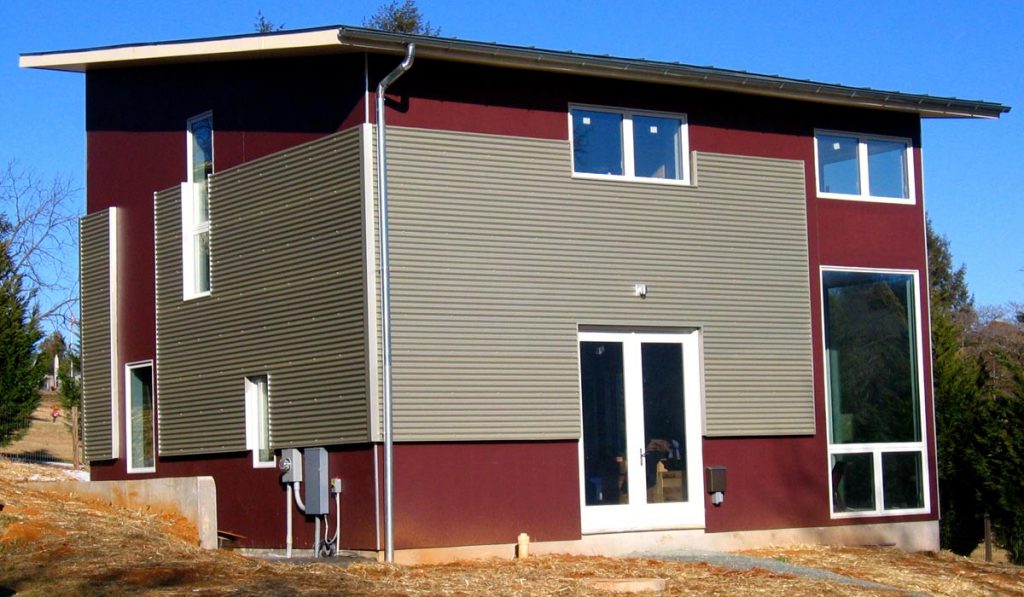

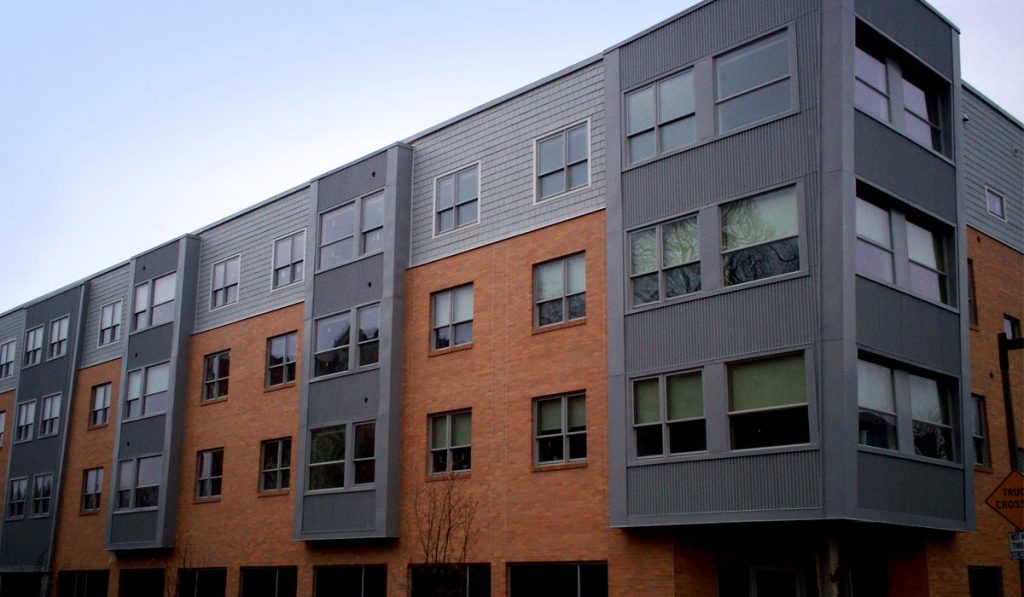

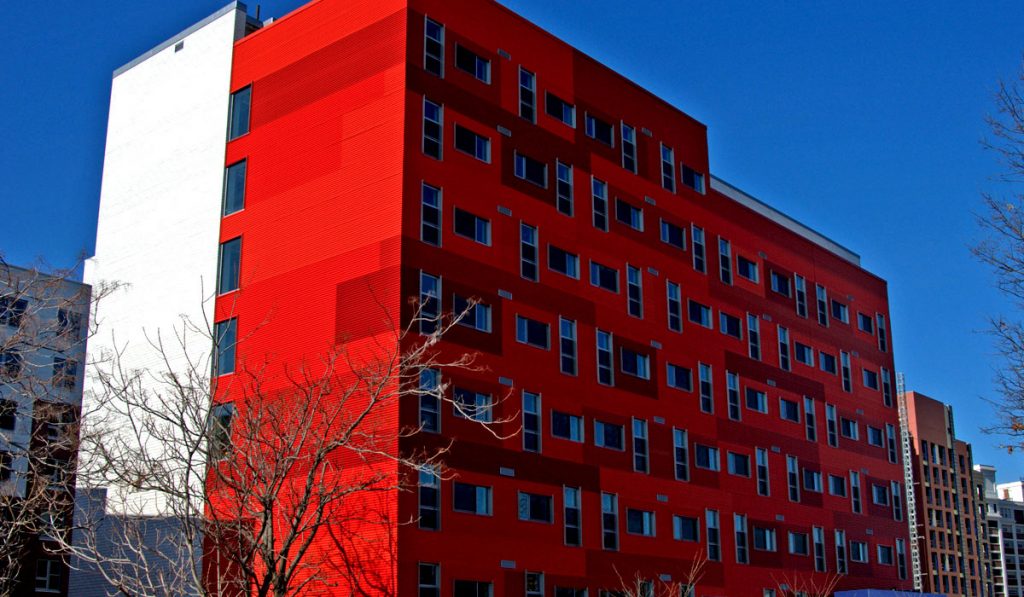

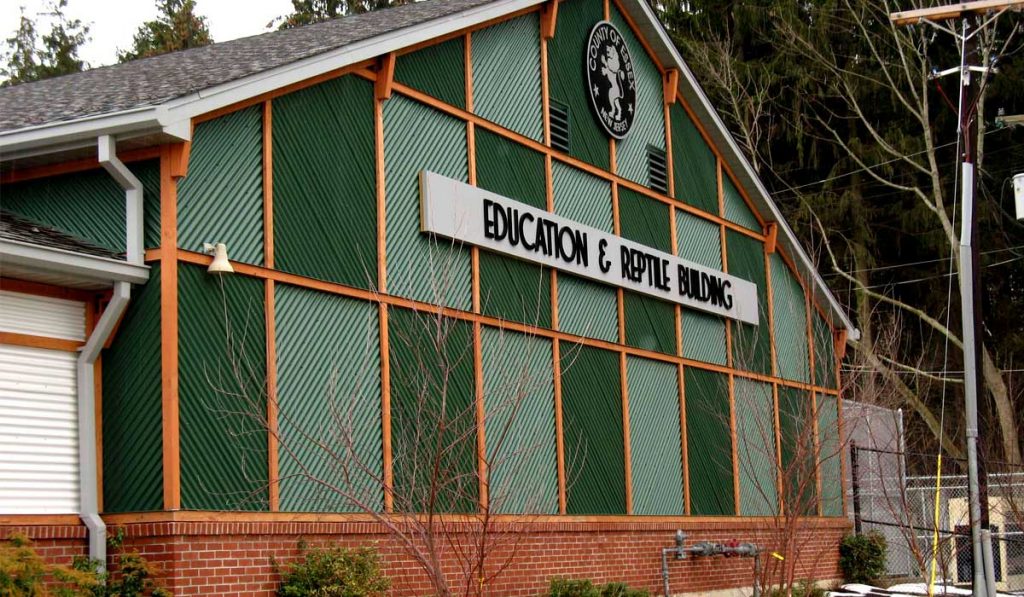

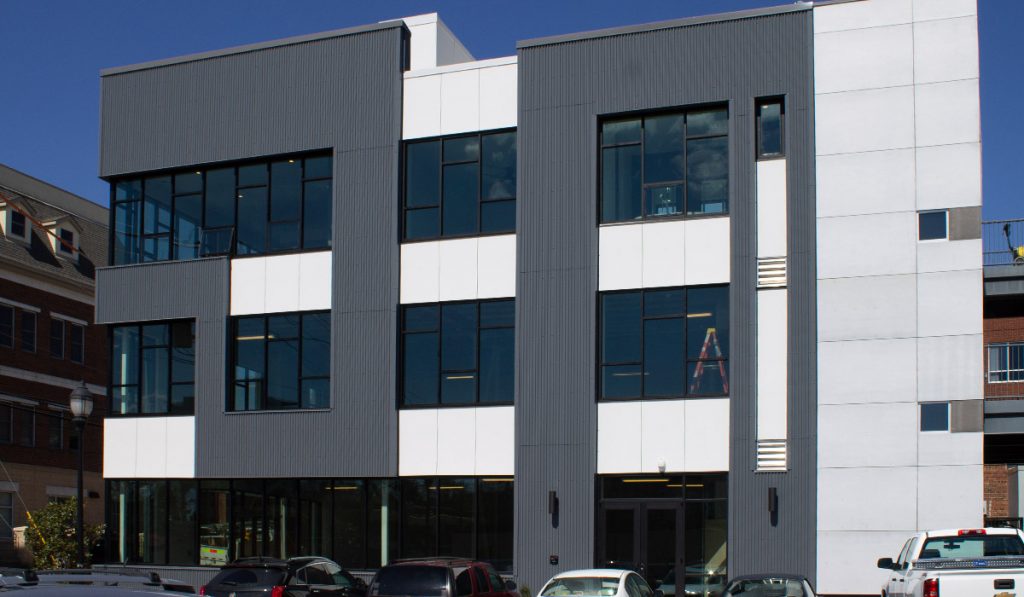

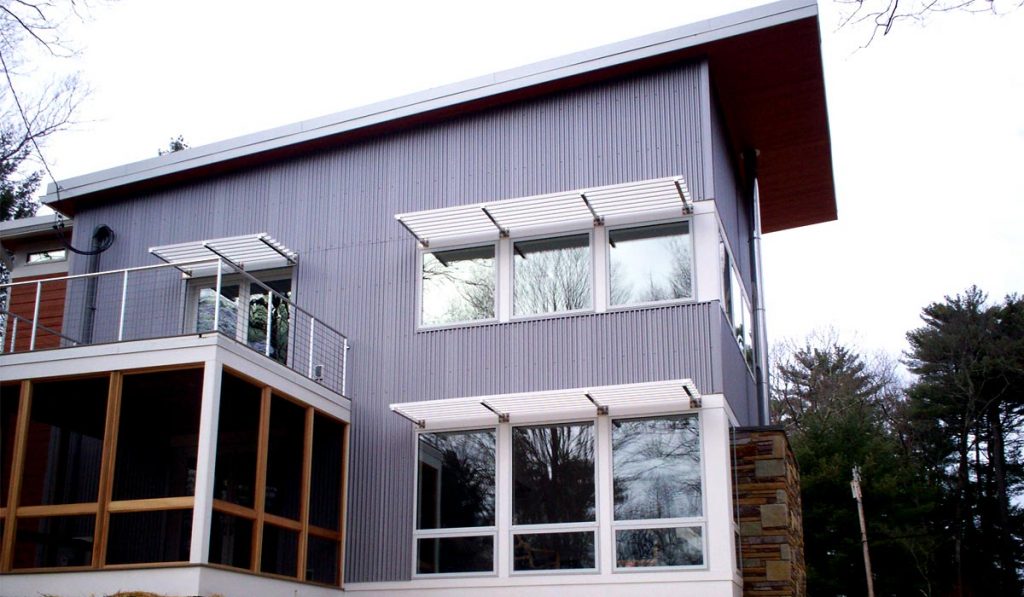

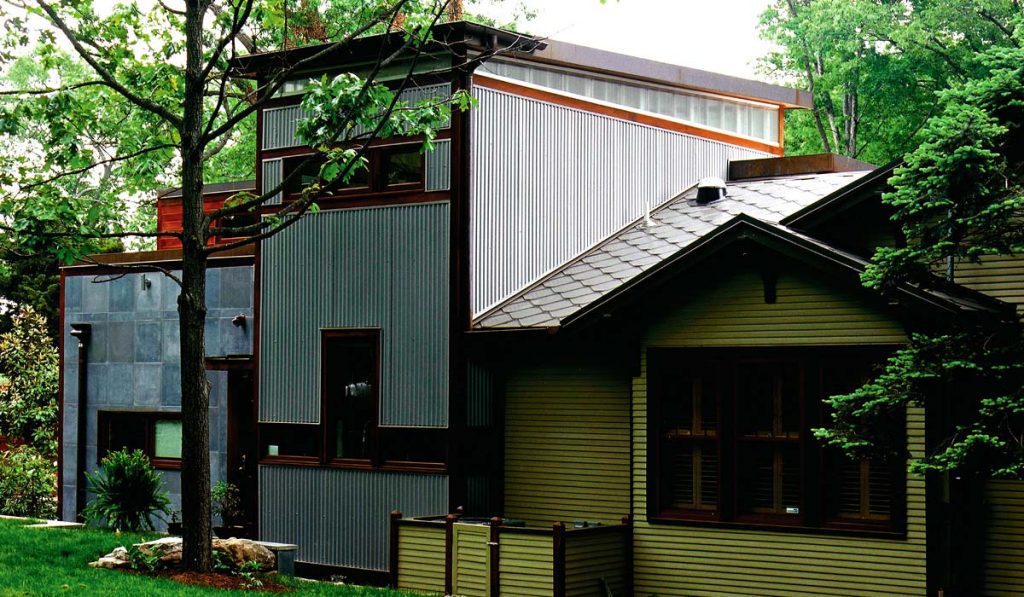

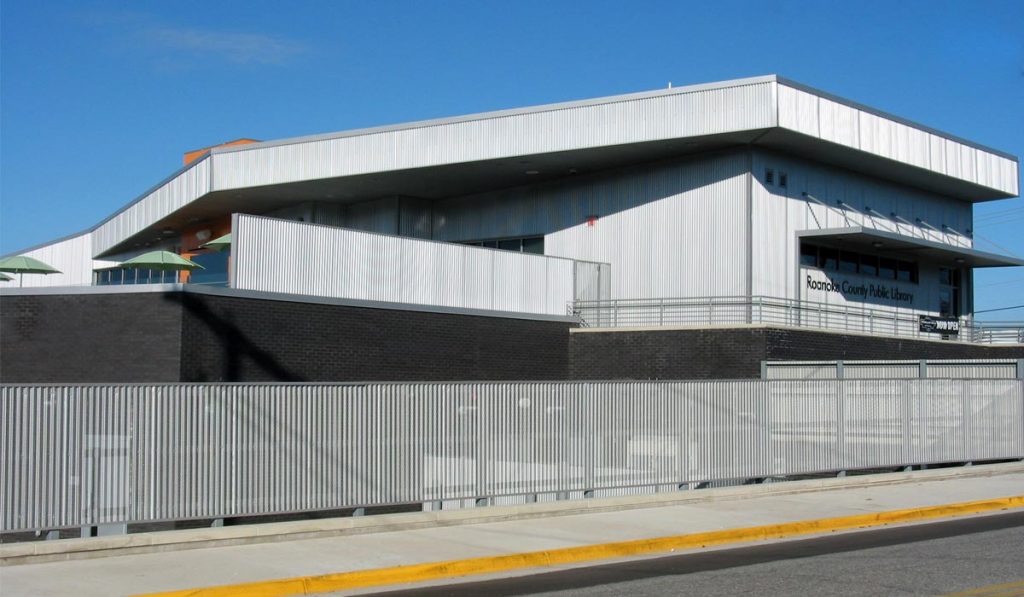

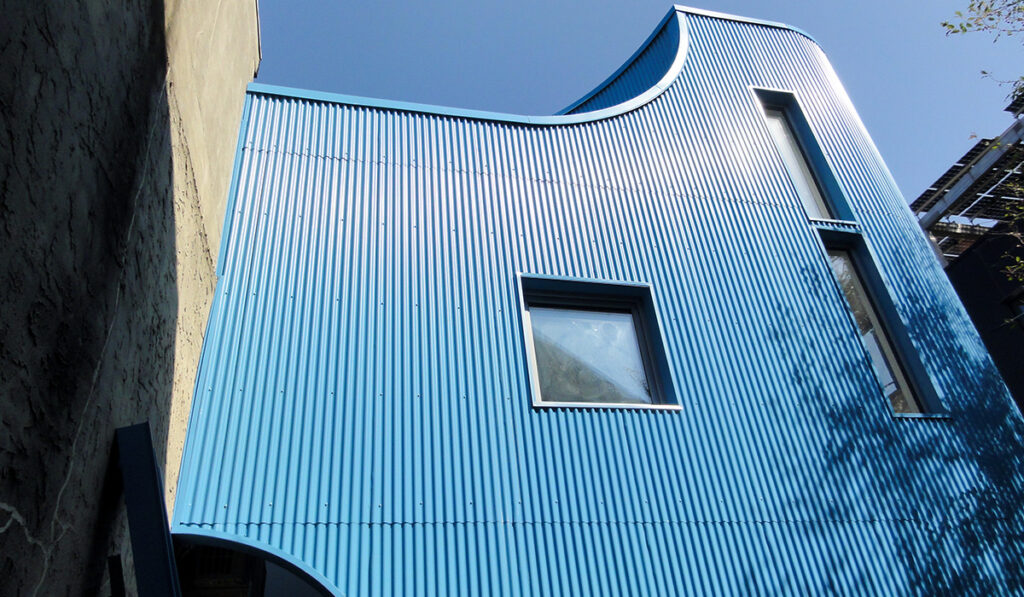

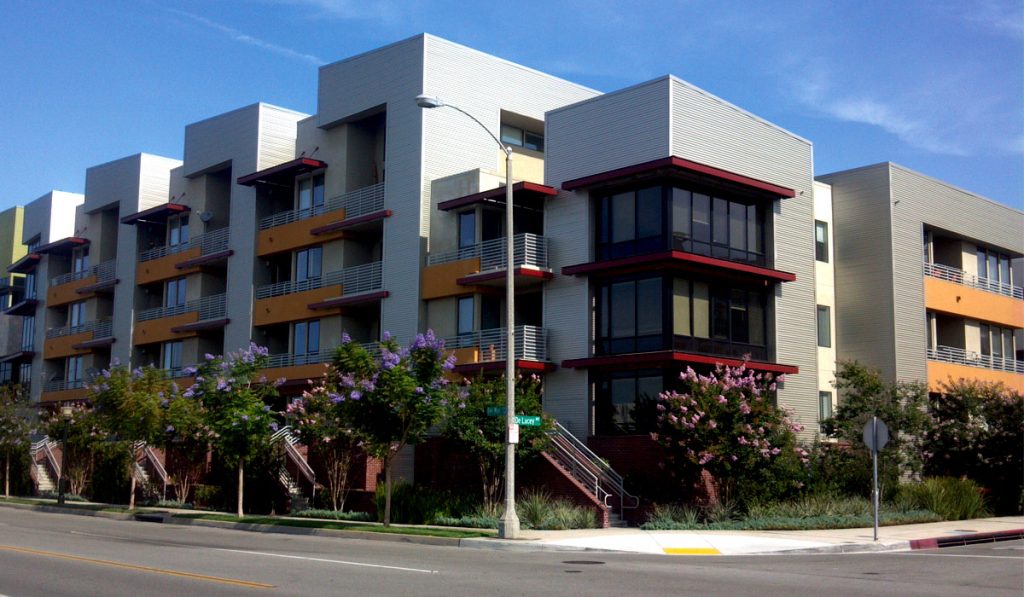

Gallery
