Curved Corrugated Panel

This panel has 37 ¼” wide coverage and can be curved convex, concave, horizontal or vertical. Convex and concave styles are machine curved. Vertical styles are simple wrap-arounds, overlapping or nesting at sides. Contact ATAS for horizontal curving applications. Curved trims available.

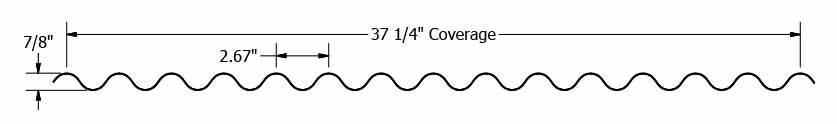

Line Drawing
Product Info
SKU:

BWX374 (convex)
BWV374 (concave)

Material:

.032, .040, .050 aluminum
24, 22* ga. metallic coated steel
24, 22* ga. 55% Al-Zn alloy coated steel with acrylic coating
.8, 1.0, 1.2 mm zinc*

Panel Coverage

37¼”
29⅜” (curved zinc panels)

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

⅞”

Curve:

Convex
Concave

Minimum Radius:

10′-0″

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of curved trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

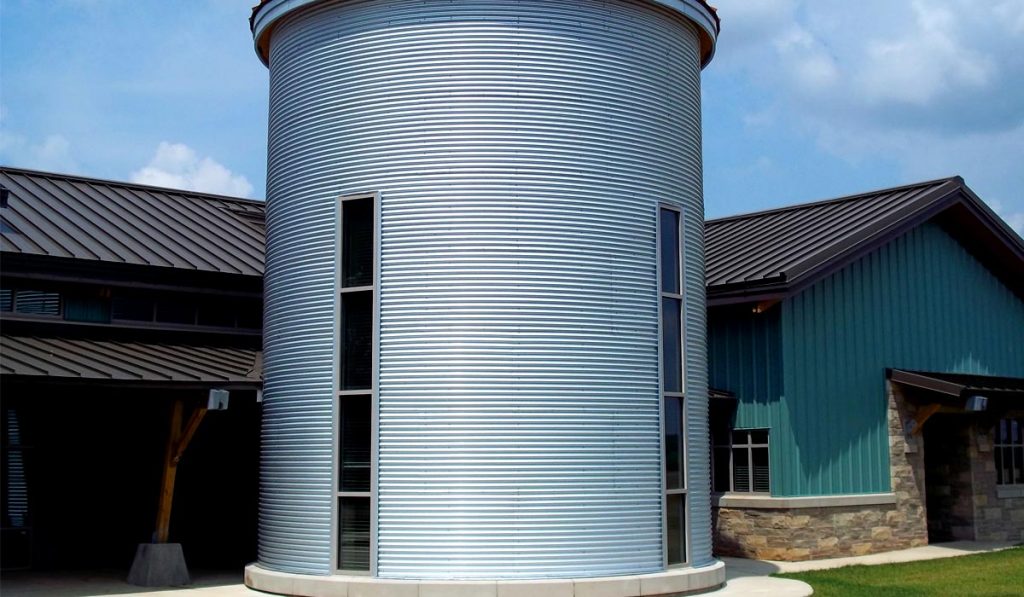

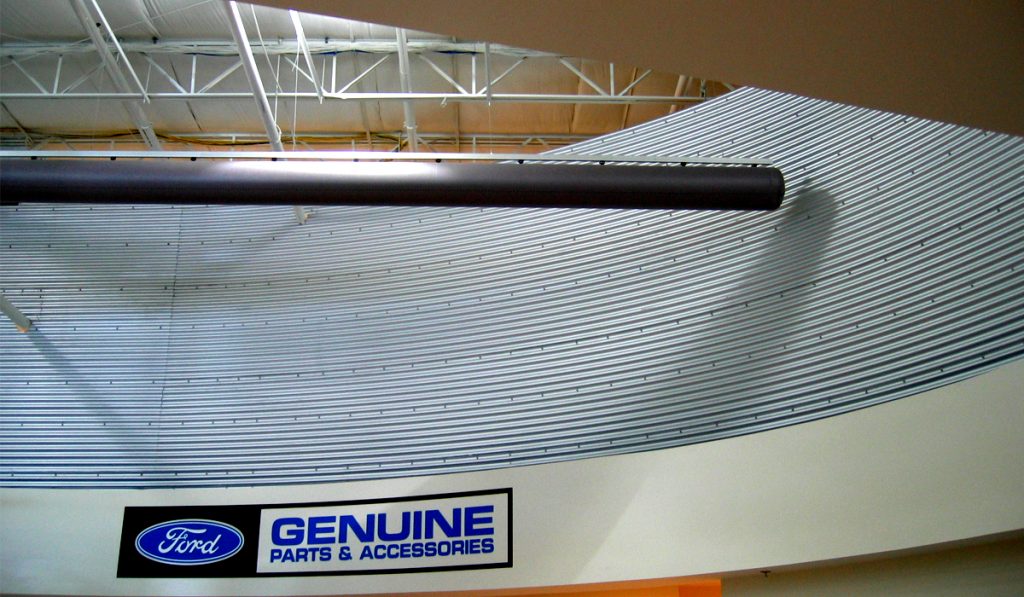

Gallery
Documents
