Belvedere Grand R

Belvedere™ Grand R panels are structural in nature and can be installed either on solid substrate or open framing. This panel can be installed vertically or horizontally with exposed fasteners.

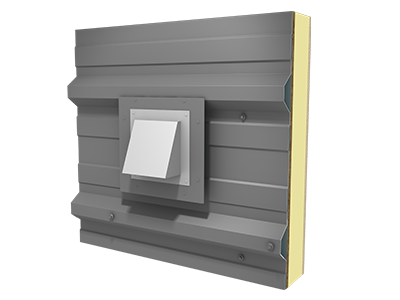

You can also enhance aesthetics of Belvedere™ Grand R by using factory fabricated Elite Series, including the Z Box and Closure Angle shown.

Line Drawing
Product Info
CAD Details
Gallery
Documents

Line Drawing

Product Info

SKU:

BWG390

Material:

.032, .040, .050 aluminum
24, 22*, 20*, 18* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn alloy coated steel with acrylic coating

Panel Coverage:

39″

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

1½”

Texture:

Smooth
Stucco Embossed

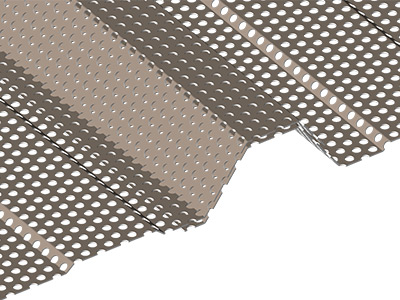

Perforations Available:

Yes

Finish:

70% PVDF, Anodized

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate

PDF File Format - Vertical Application - Solid Substrate

PDF File Format - Horizontal Application - Open Framing

PDF File Format - Vertical Application - Open Framing

DWG File Format - Horizontal Application - Solid Substrate

DWG File Format - Vertical Application - Solid Substrate

DWG File Format - Horizontal Application - Open Framing

DWG File Format - Vertical Application - Open Framing

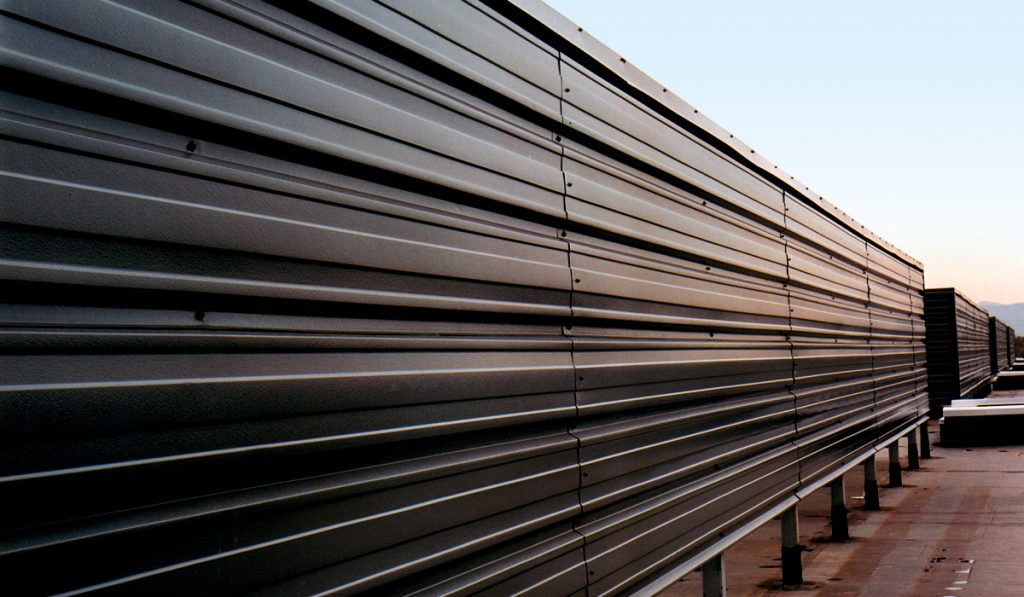

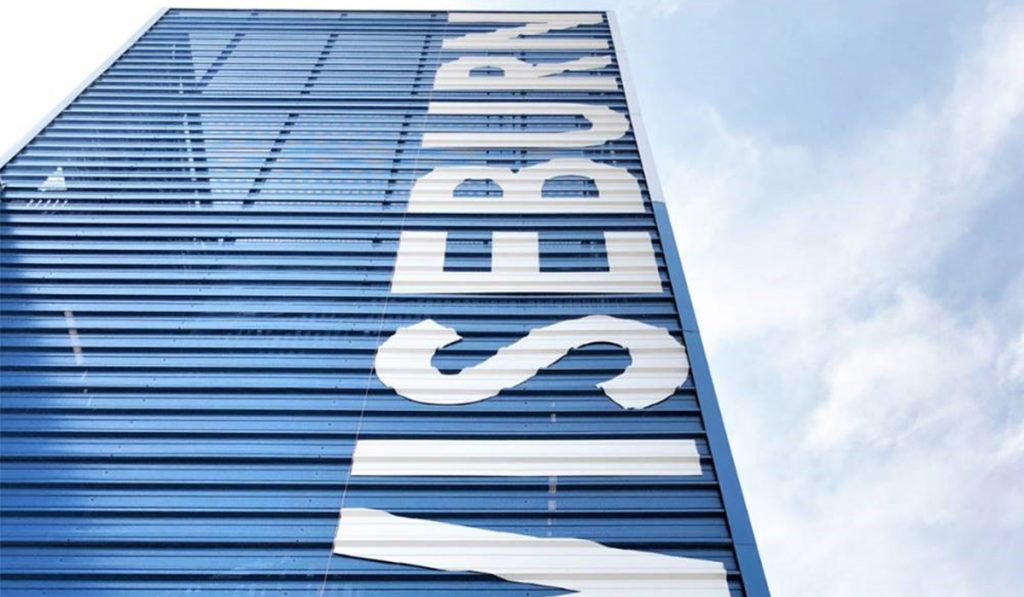

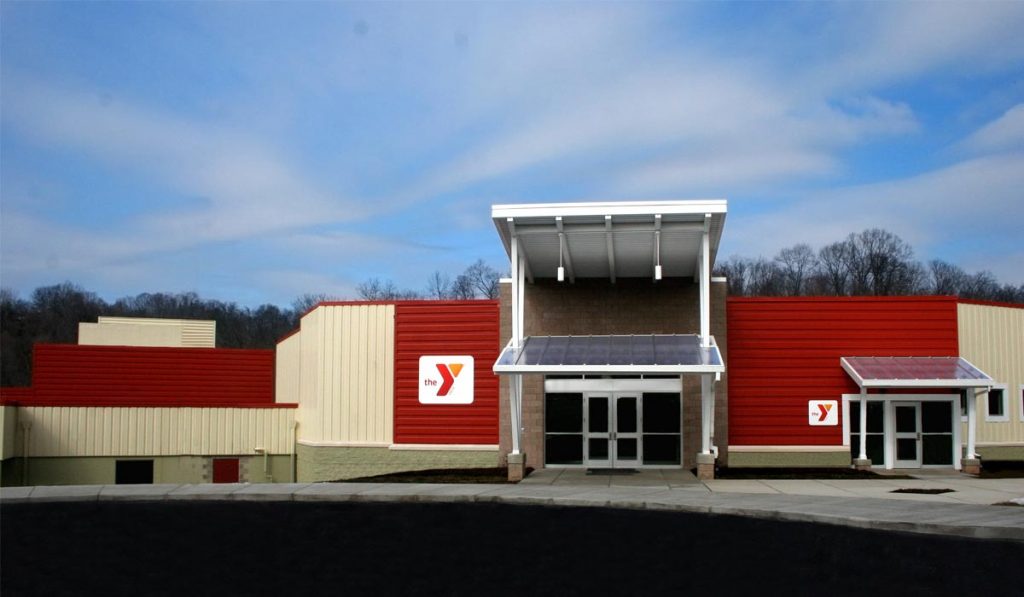

Gallery
