Belvedere 6″ Short Rib

Belvedere™ 6″ Short Rib wall panels are structural in nature and can be installed either on solid substrate or open framing. The Belvedere™ 6″ Short Rib wall panel is a 1½” deep ribbed panel that features six broad low and six narrow high cells. This panel can be installed horizontally and vertically with exposed fasteners.

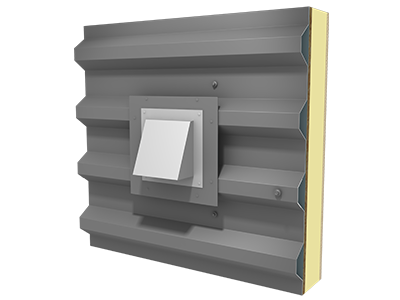

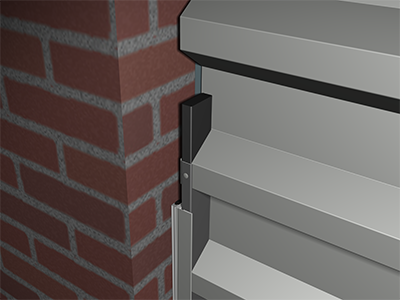

You can also enhance aesthetics of Belvedere™ 6″ Short Rib by using factory fabricated Elite Series, including the Z Box and Closure Angle shown.

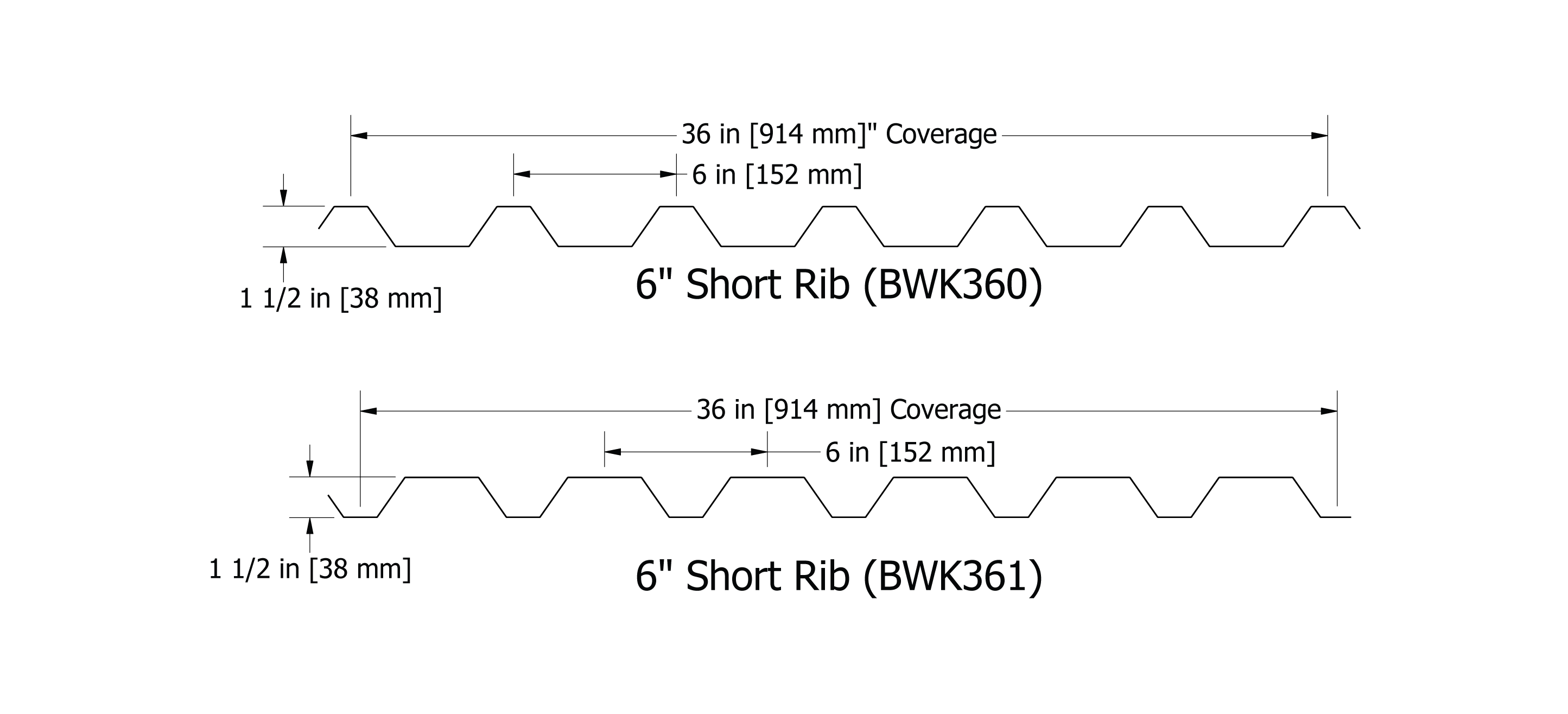

Line Drawing
Product Info
SKU:

BWK360

BWK361

Material:

.032, .040, .050 aluminum
24, 22*, 20*, 18* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn coated steel with acrylic coating

Panel Coverage:

36″

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

1½”

Texture:

Smooth
Stucco Embossed

Perforations Available:
Curving Available:

Crimp-Curved (convex & concave)

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate

PDF File Format - Vertical Application - Solid Substrate

DWG File Format - Horizontal Application - Solid Substrate

DWG File Format - Vertical Application - Solid Substrate

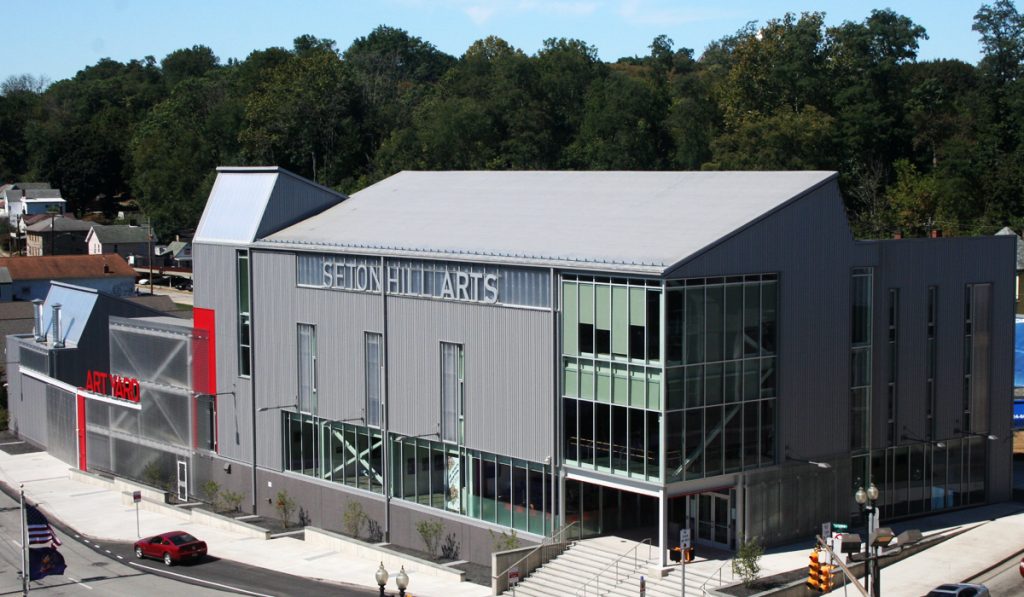

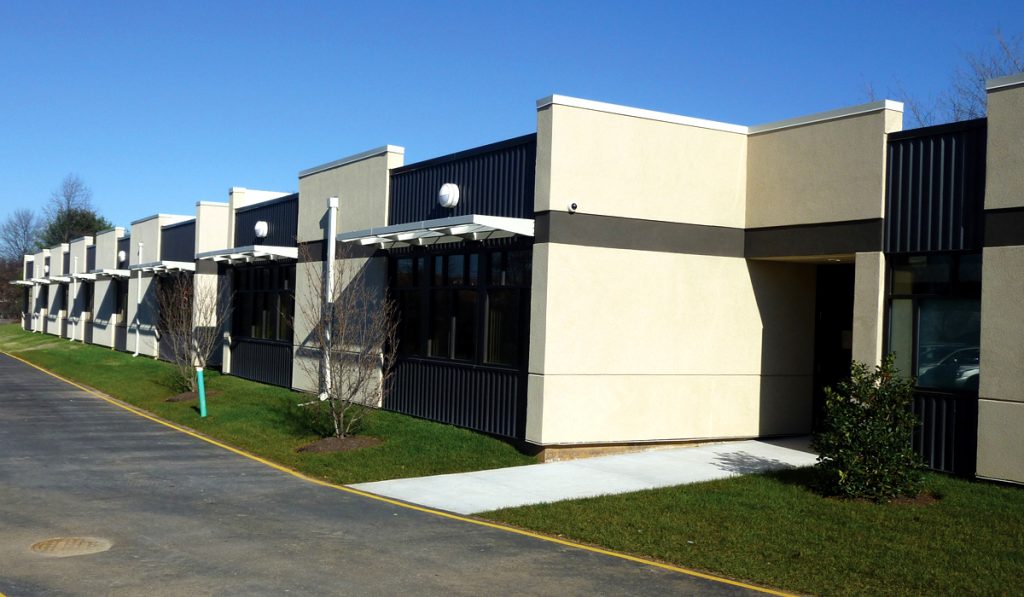

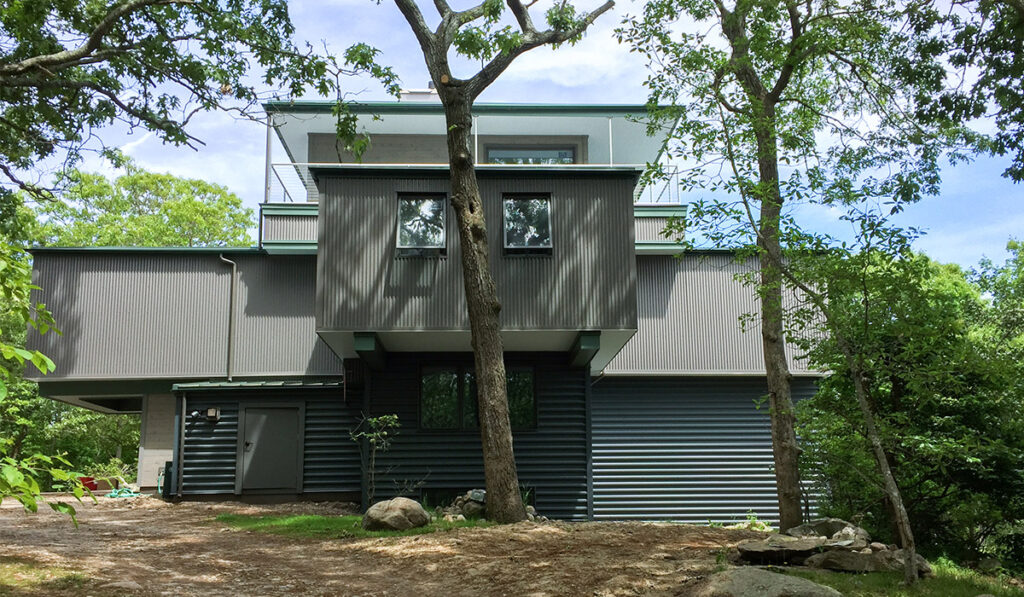

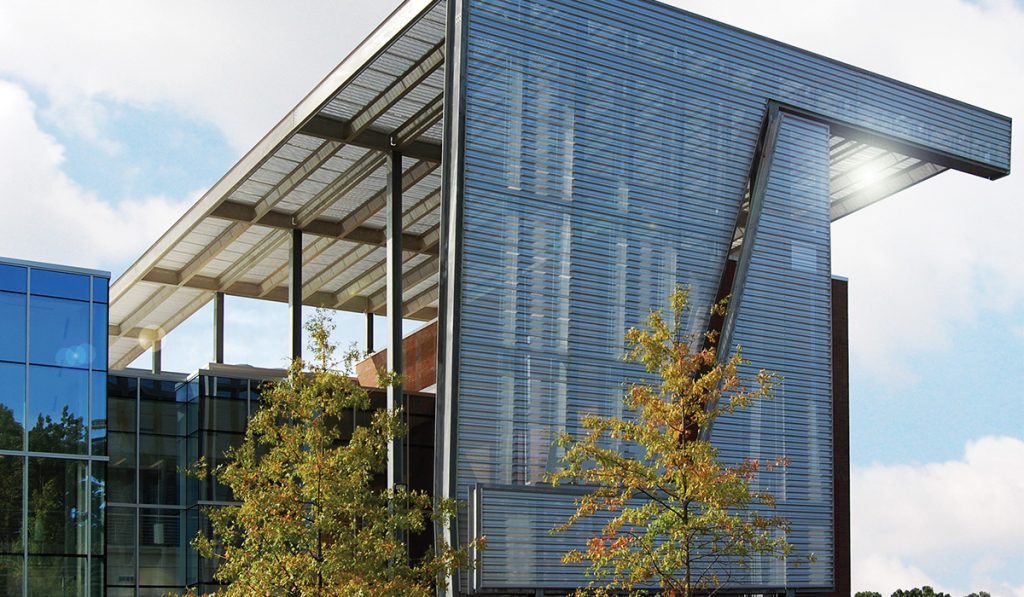

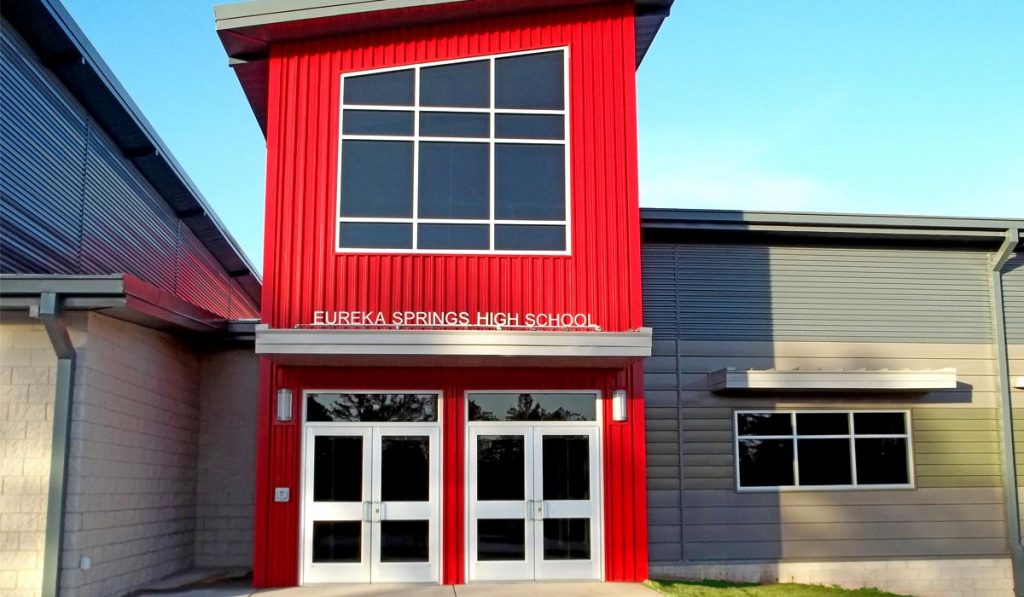

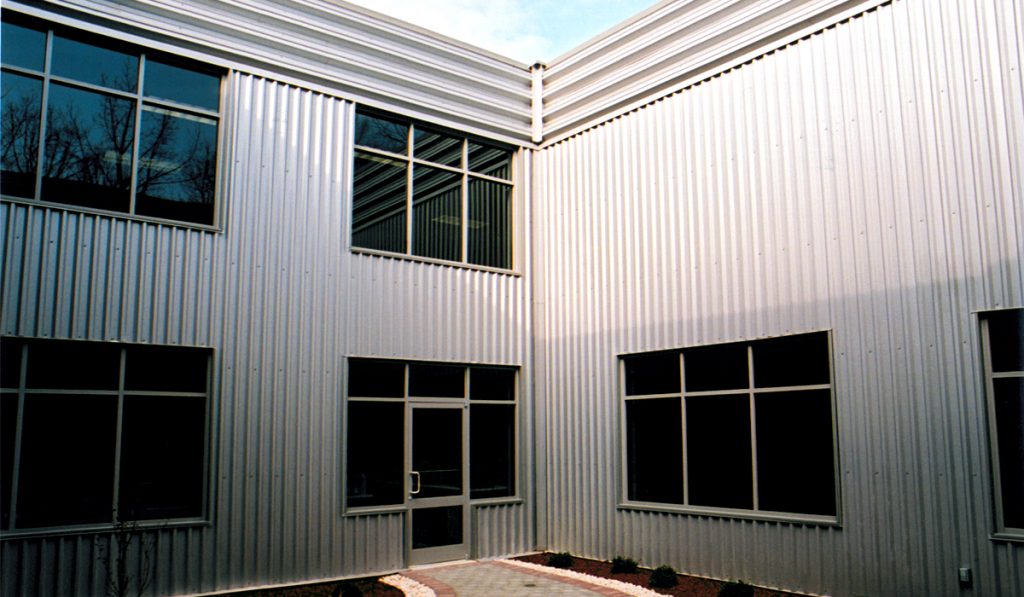

Gallery
Documents

    Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Belvedere 6" Short Rib Product Brochure

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Belvedere 6" Short Rib Spec Data Sheet

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Color Chart

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Belvedere 6" Short Rib Load Table

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Finish Warranty

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • LEED v4

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Aluminum Recycled Contents

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Steel Recycled Contents

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Solar Reflectance & Thermal Emittance Chart

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Manufacturer Qualification Statement
