Crimp Curved Belvedere 6″ Short Rib

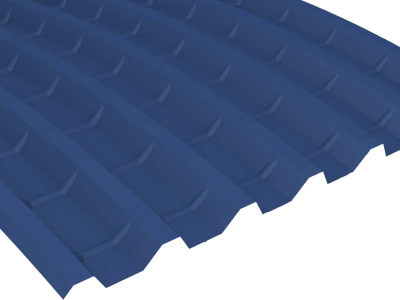

Belvedere™ 6″ Short Rib wall panels are structural in nature and can be installed either on solid substrate or open framing. The Belvedere™ 6″ Short Rib wall panel is a 1½” deep ribbed panel that features six broad low and six narrow high cells. This panel can be installed horizontally and vertically with exposed fasteners. Curved trims are available.

Line Drawing
Product Info
CAD Details
Gallery
Documents

Line Drawing

Product Info

SKU:

BWK360

Material:

.032, .040 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn coated steel with acrylic coating

Panel Coverage:

36″

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

1½”

Curving Parameters:

36″ W x 1½” D x 6″ Pitch
Convex and/or Concave
1 ft O.S. rad. min. 24 ga.
3 ft O.S. rad. min. 22 ga.
6 ft O.S. rad. min. 18 ga.

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 35 stock colors.
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of curved trims available in matching colors, gauge, and finish or as specified.

View the list of Crimp Curved Accessories.

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

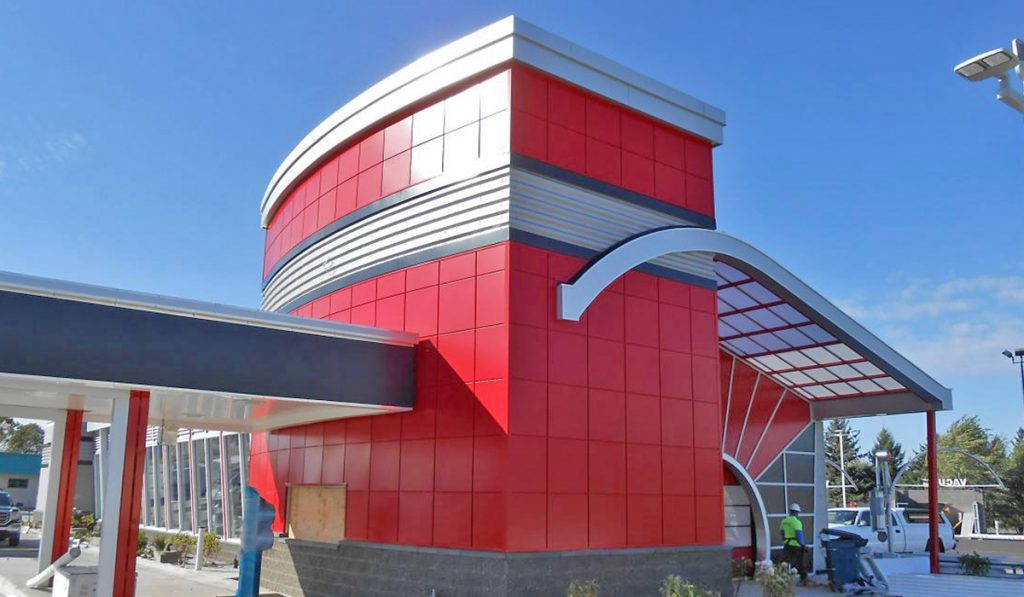

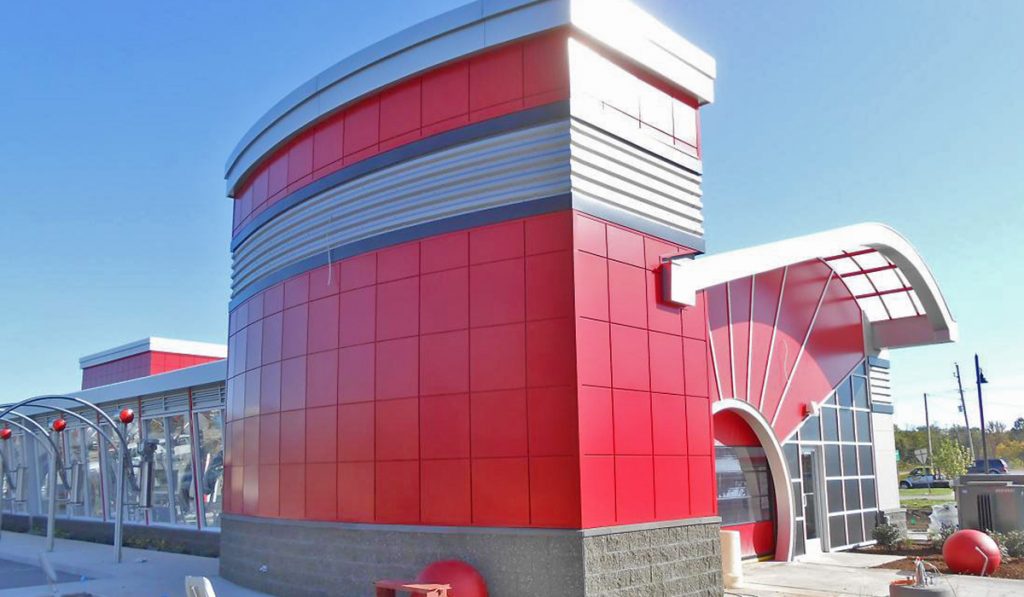

Gallery
