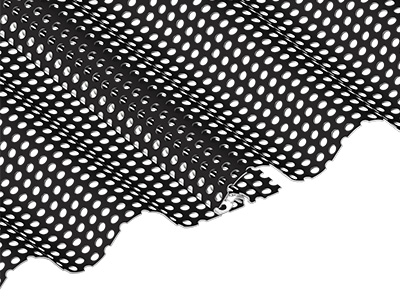

Perforated

Elite Trims

Z Box

Closure Angle

Corra-Lok

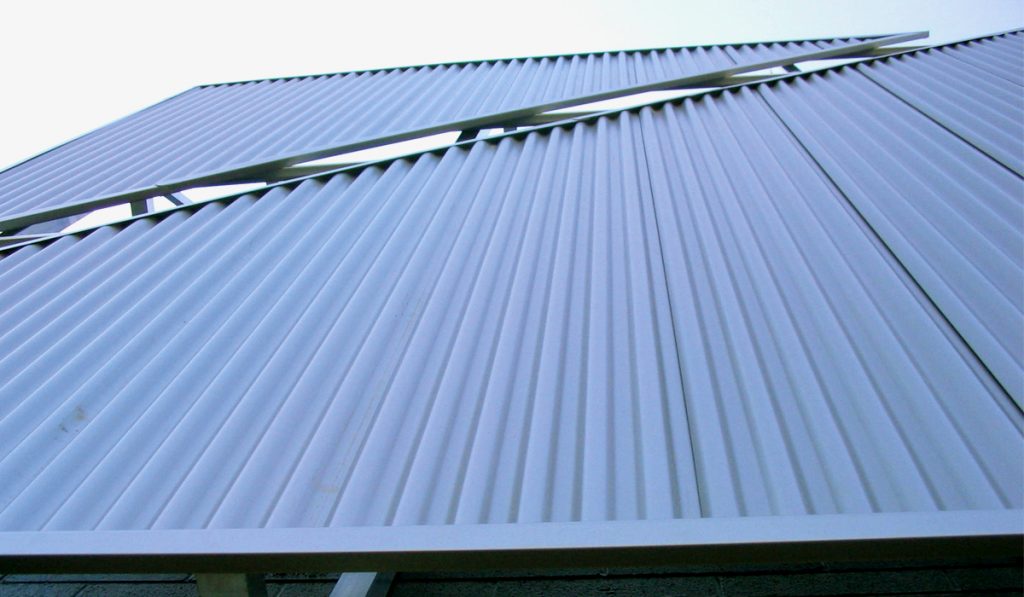

Corra-Lok™ is a concealed fastener corrugated metal panel. Finally, there is a panel with the beauty of a traditional corrugated line without utilizing exposed fasteners! Corra-Lok™ panels have the Wind-Lok® interlock which guards against wind-driven rain and wind uplift. This interlock also allows the Corra-Lok™ panels to be combined with Metafor™, the Multi-Purpose™ system, and Rigid Wall II™ for the ability to create interesting patterns and breaks. The fasteners are hidden by the consecutive panel. Accessories and fasteners increase the longevity of your project.

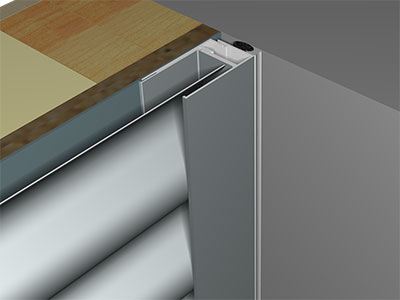

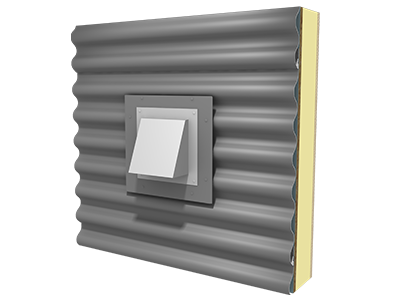

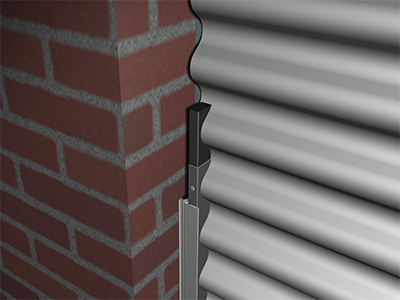

You can also enhance aesthetics of Corra-Lok™ by using factory fabricated Elite Series accessories, including the Z Box and Closure Angle shown.

Florida Building Product Approval: 35063.1 (Aluminum) & 35063.2 (Steel)

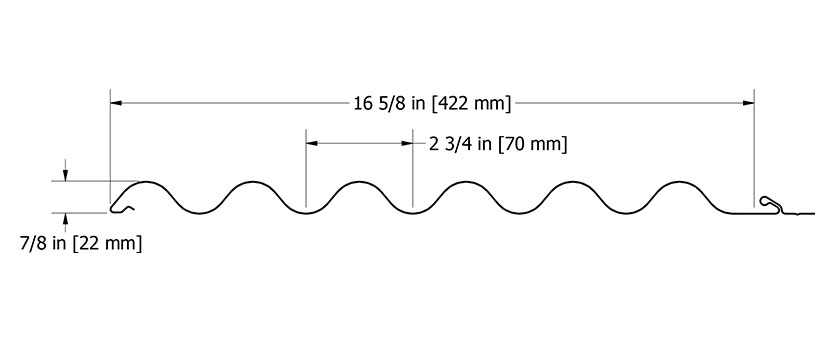

Line Drawing
Product Info
SKU:

MFC160

Material:

.032, .040, .050 aluminum
24, 22* ga. metallic coated steel
24, 22* ga. 55% Al-Zn alloy coated steel with acrylic coating
20 oz. copper*
1 mm zinc*
.0197 classic & tin matte stainless steel*

Panel Coverage:

16⅝”

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

⅞”

Texture:

Smooth
Stucco Embossed

Perforations Available:
Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Florida Building Code Approval:

FL 35063.1 (Aluminum)

FL 35063.2 (Steel)

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate

PDF File Format - Vertical Application - Solid Substrate

DWG File Format - Horizontal Application - Solid Substrate

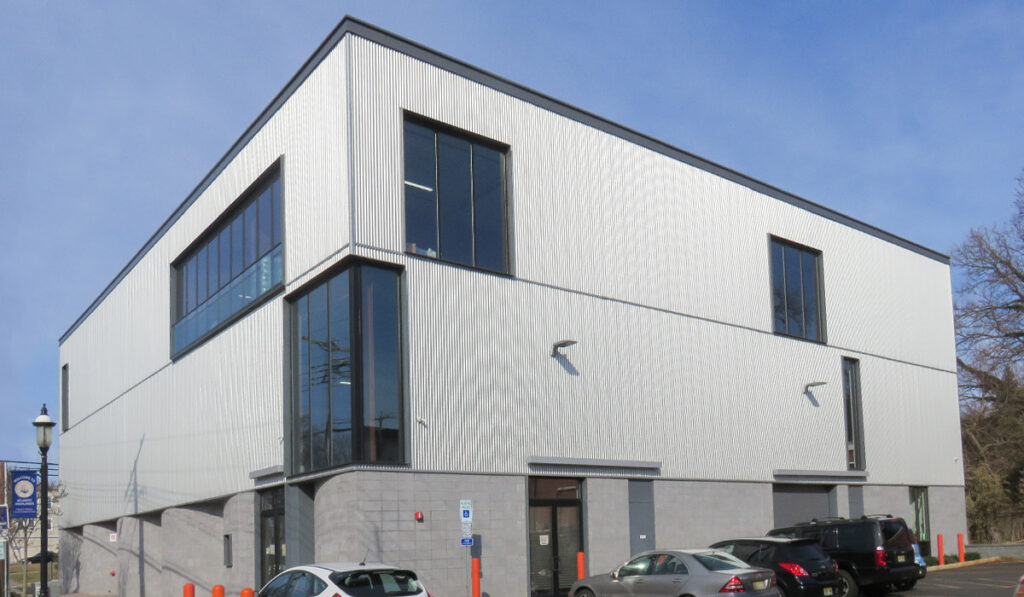

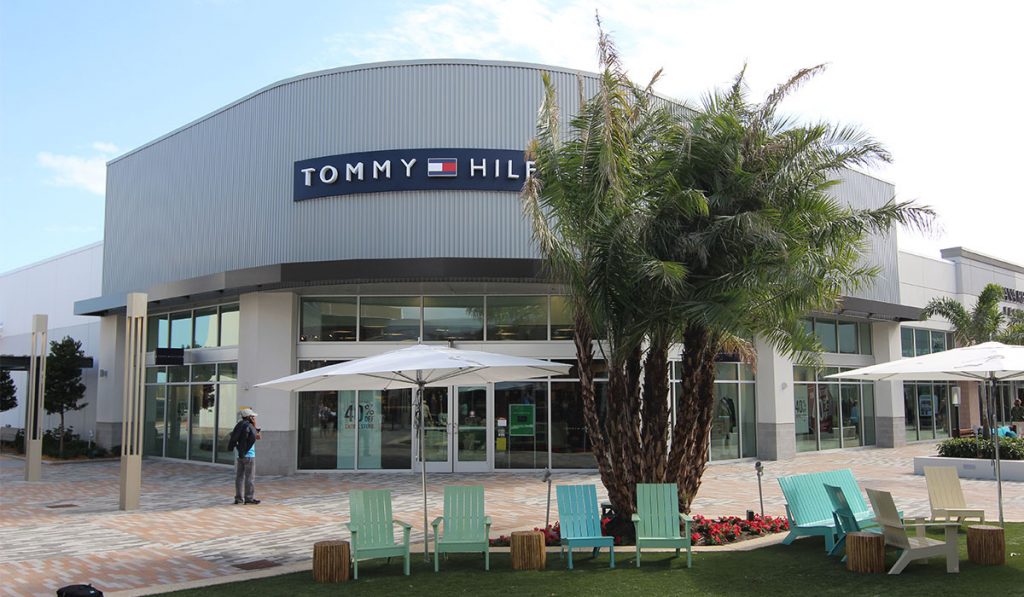

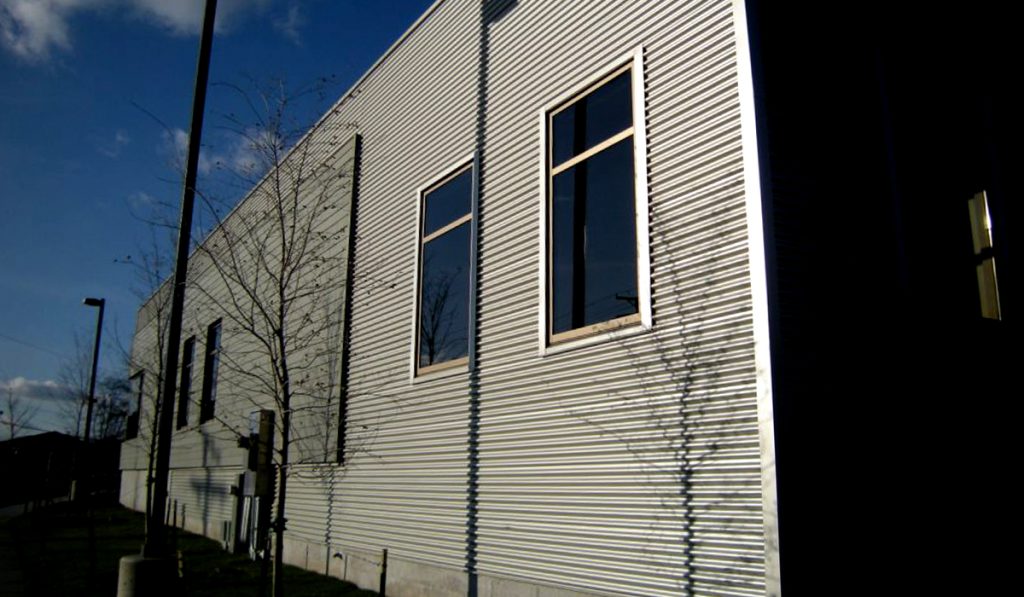

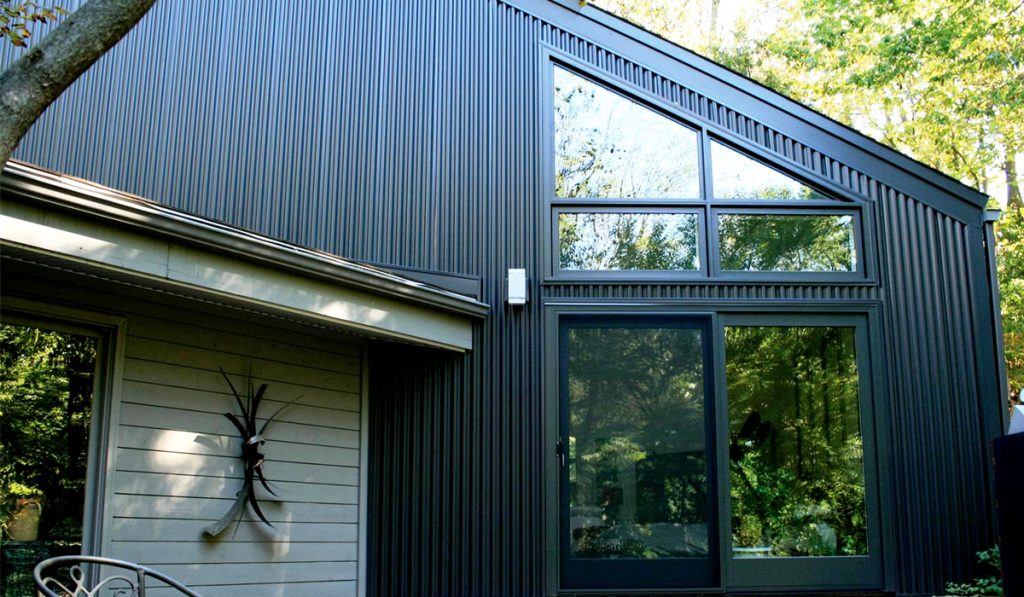

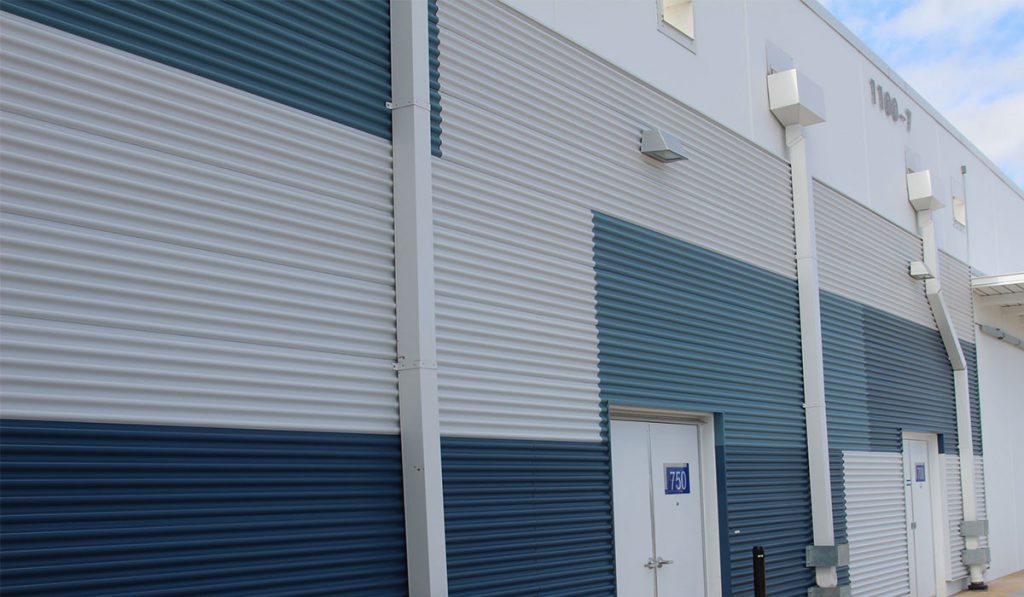

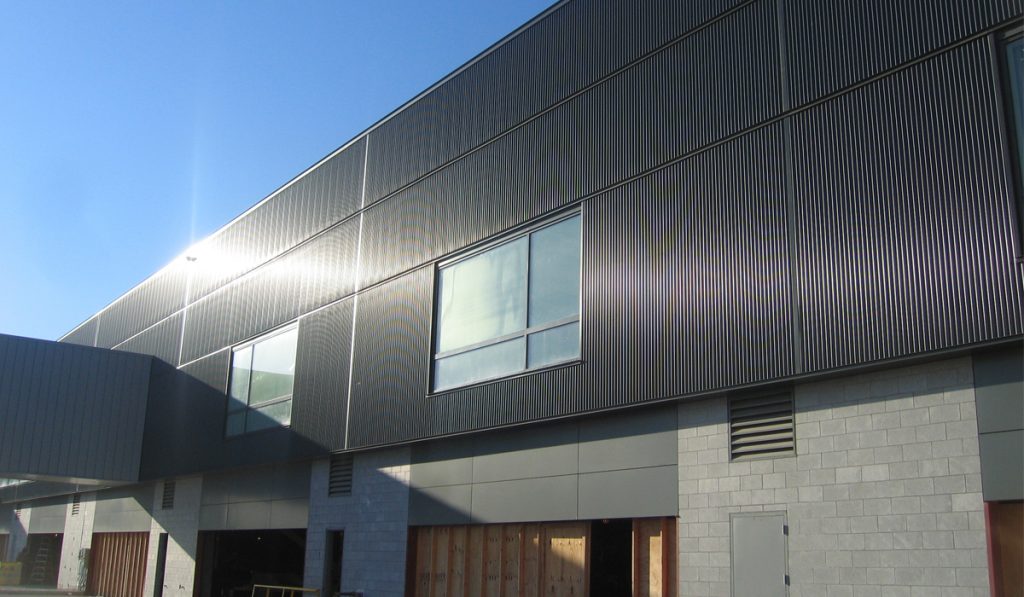

Gallery
Documents

    Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Corra-Lok Product Brochure

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Corra-Lok Spec Data Sheet

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Color Chart

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Corra-Lok Load Table

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Finish Warranty

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • LEED v4

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Aluminum Recycled Contents

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Steel Recycled Contents

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Florida Building Code Approval

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ASTM E330 Testing (aluminum)

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ASTM E330 Testing (steel)

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Solar Reflectance & Thermal Emittance Chart

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Manufacturer Qualification Statement
