Techo Tile

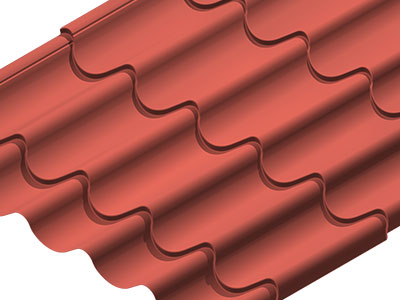

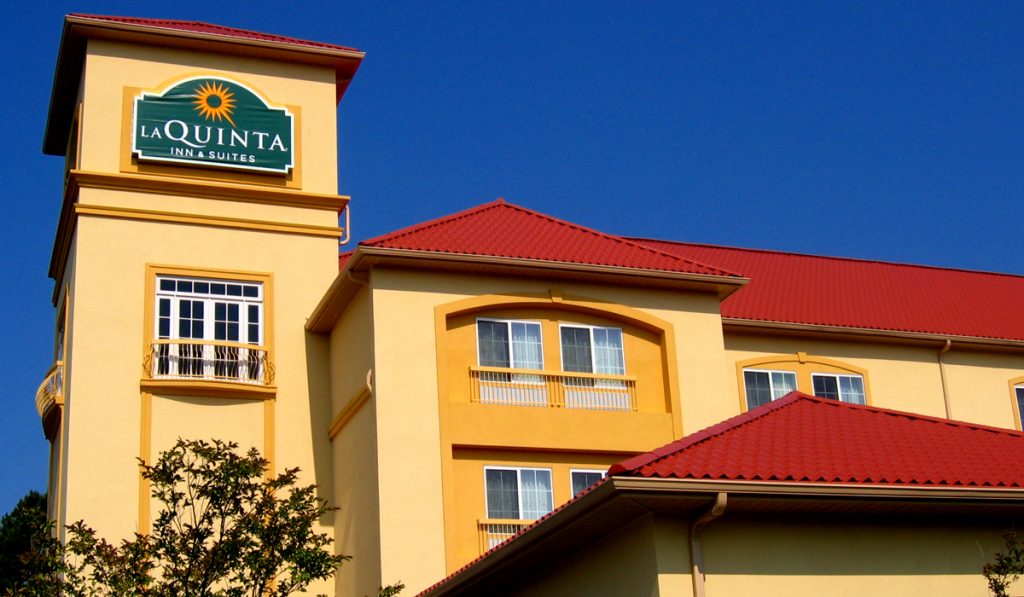

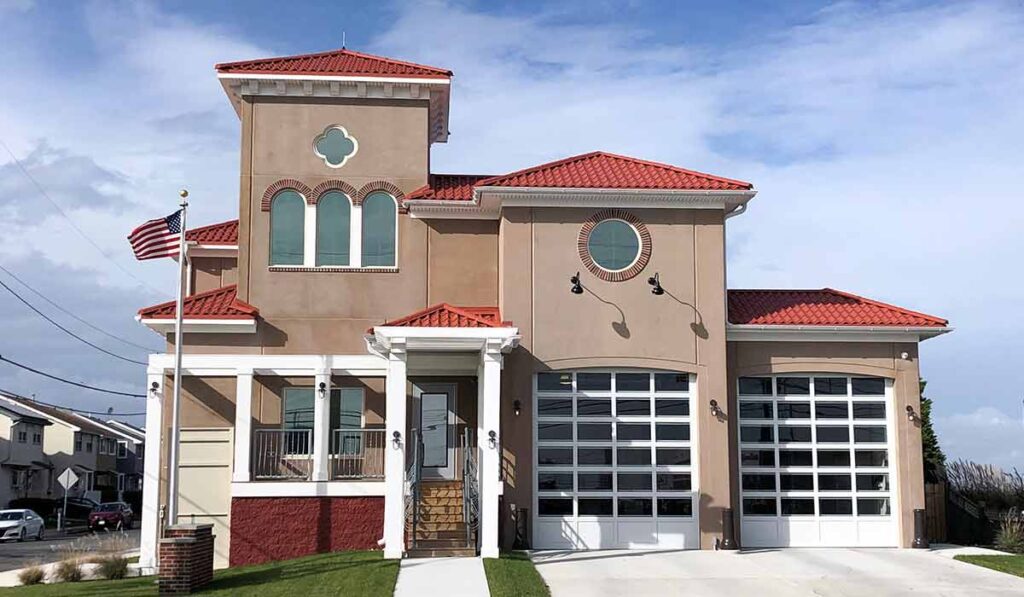

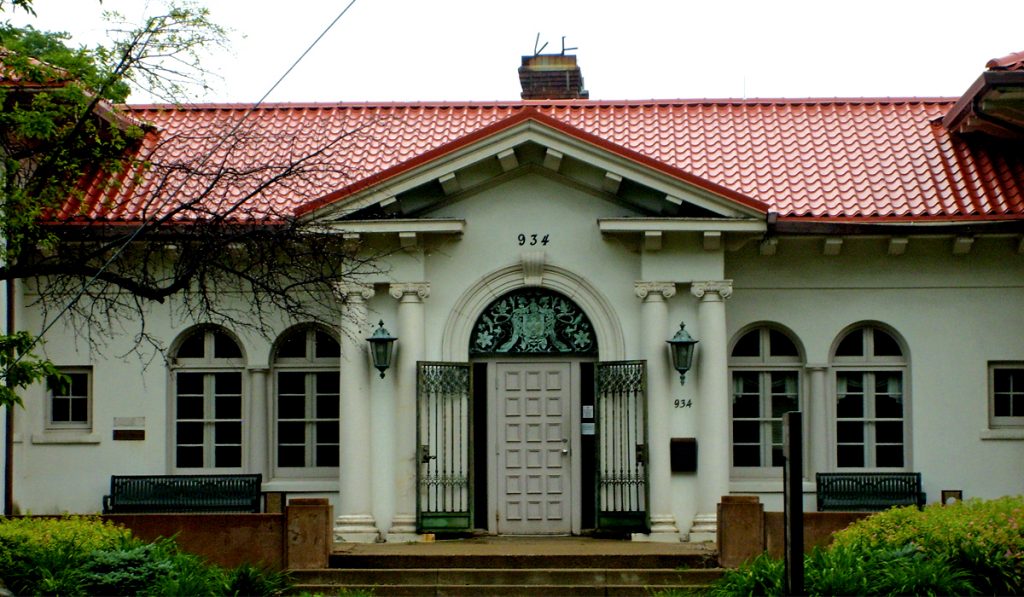

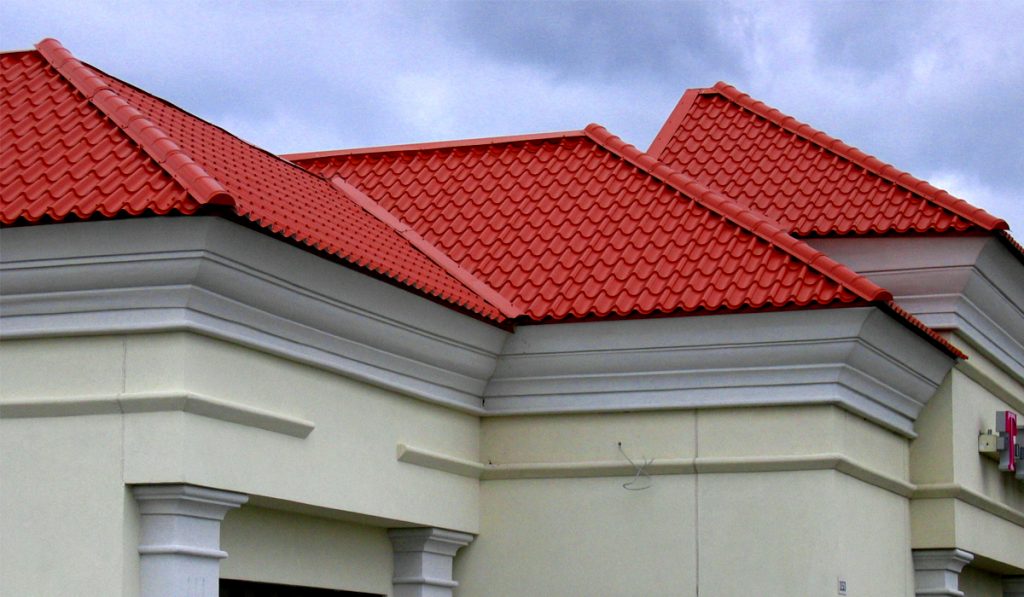

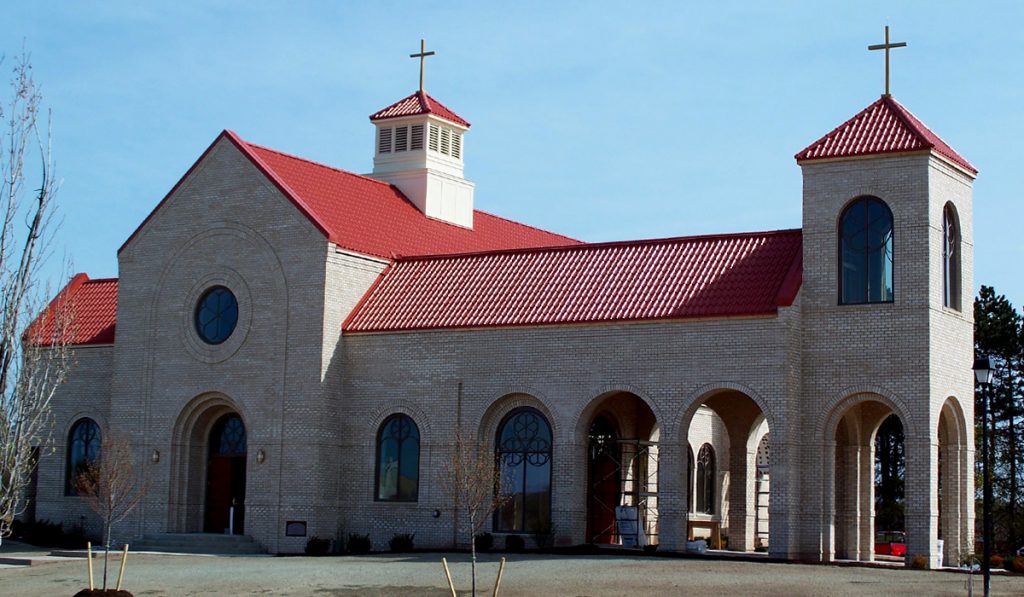

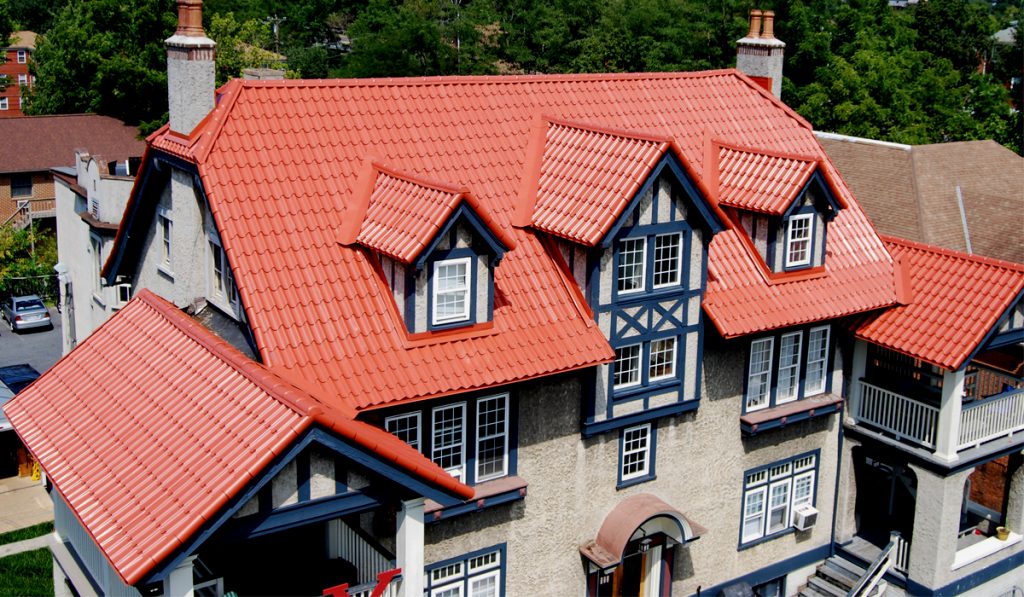

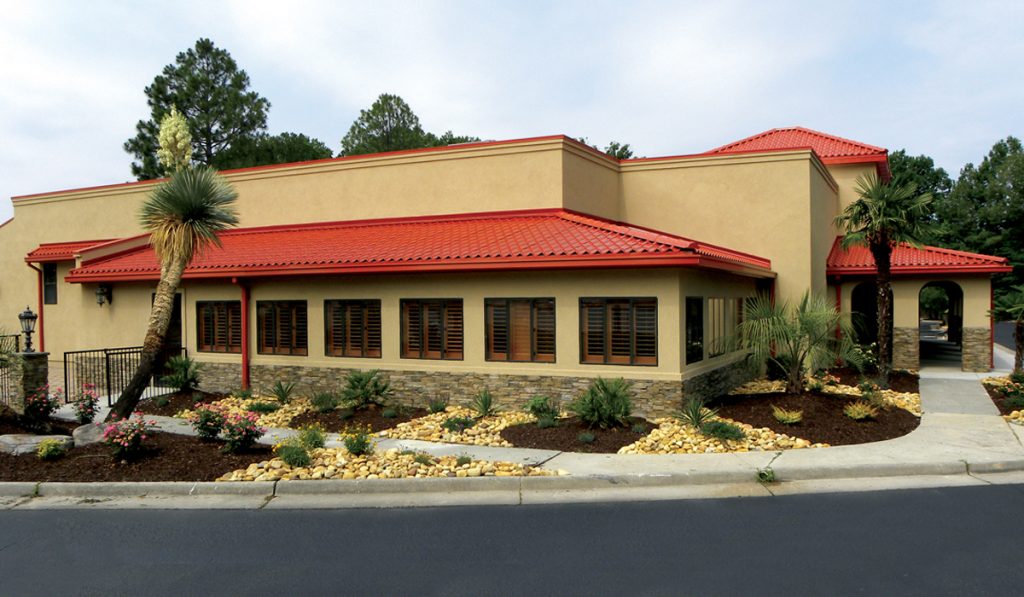

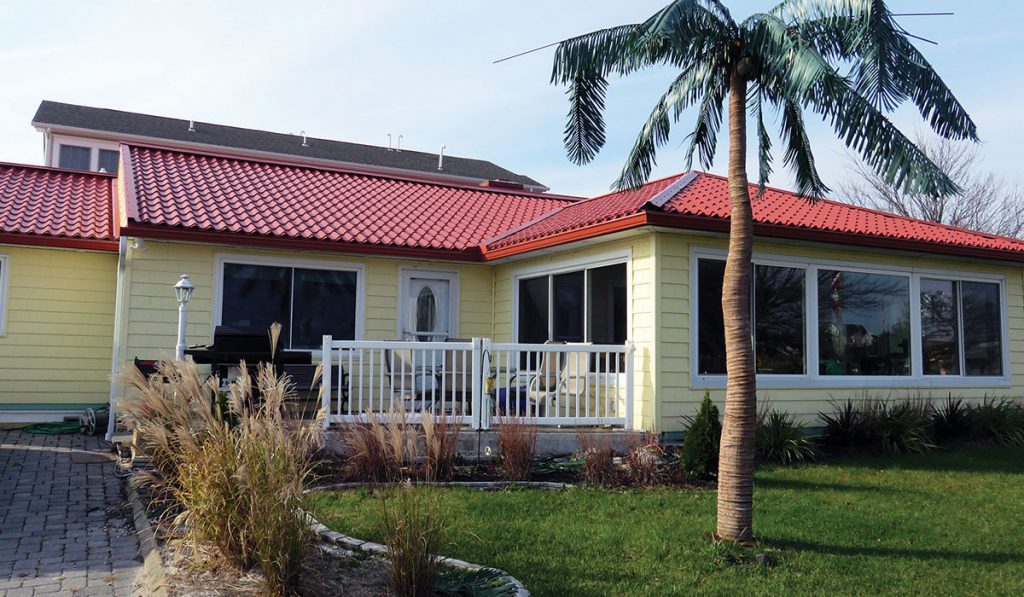

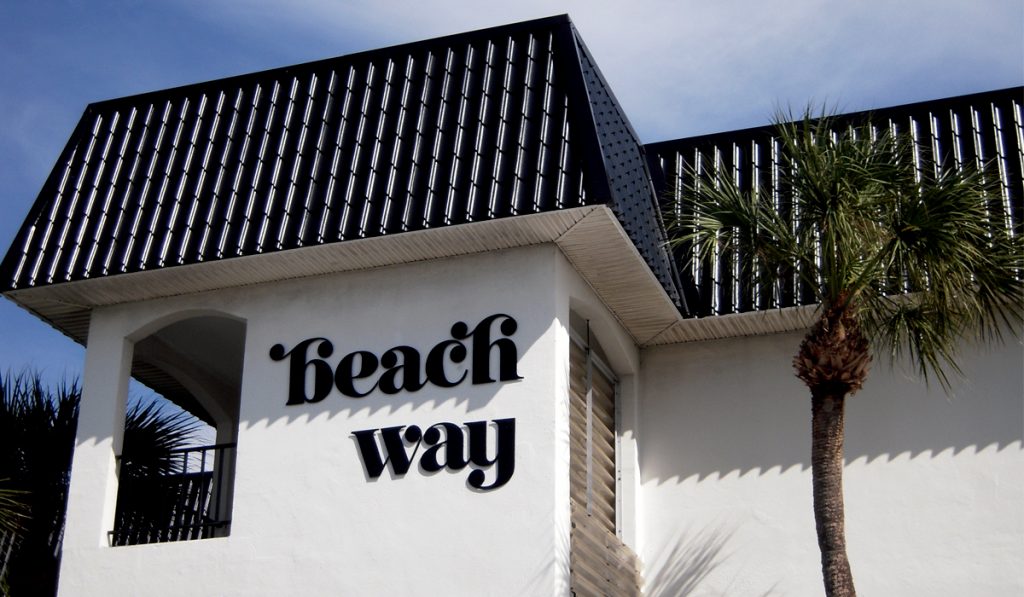

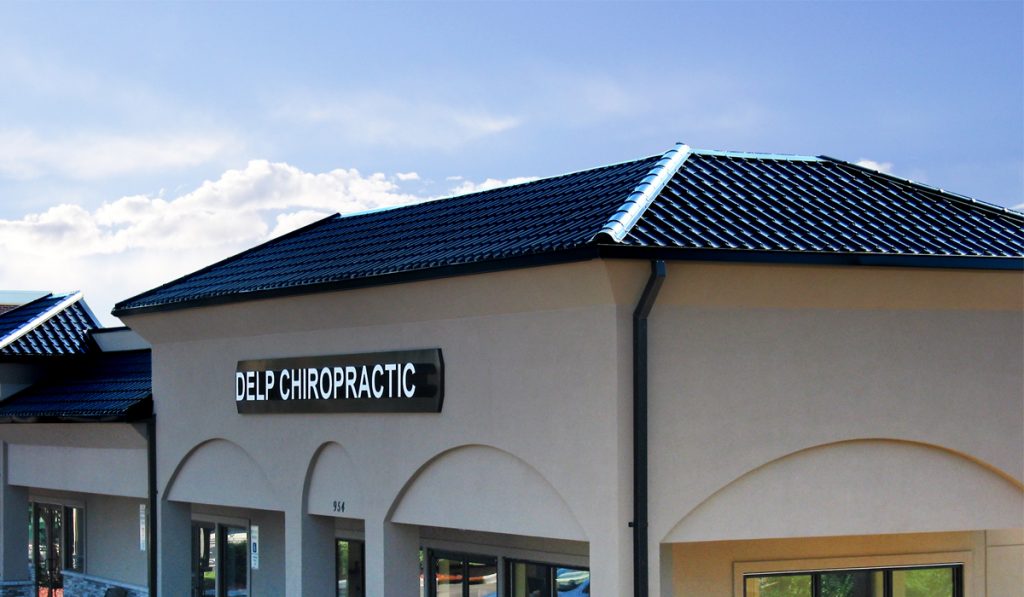

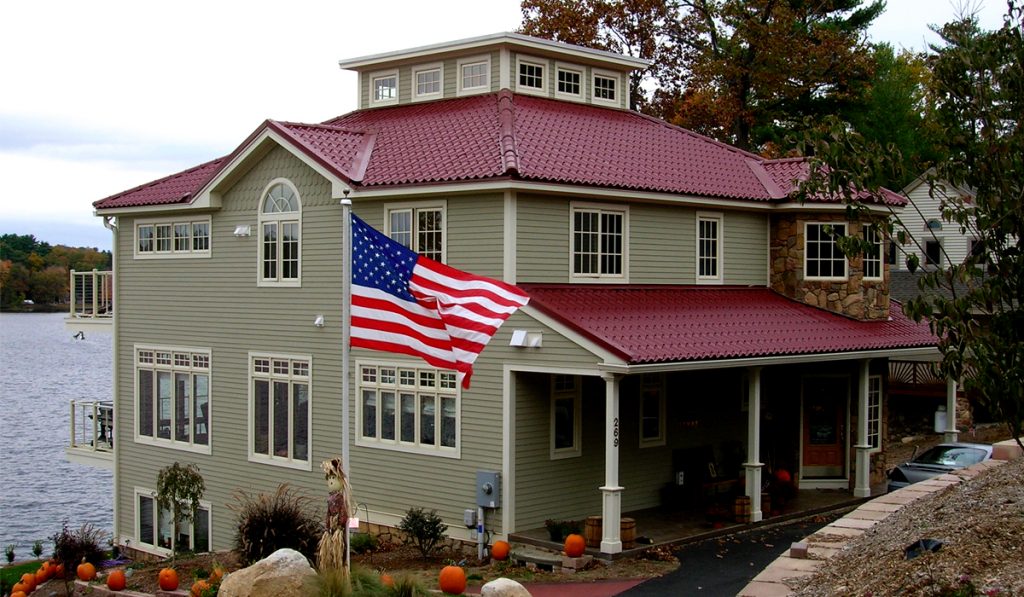

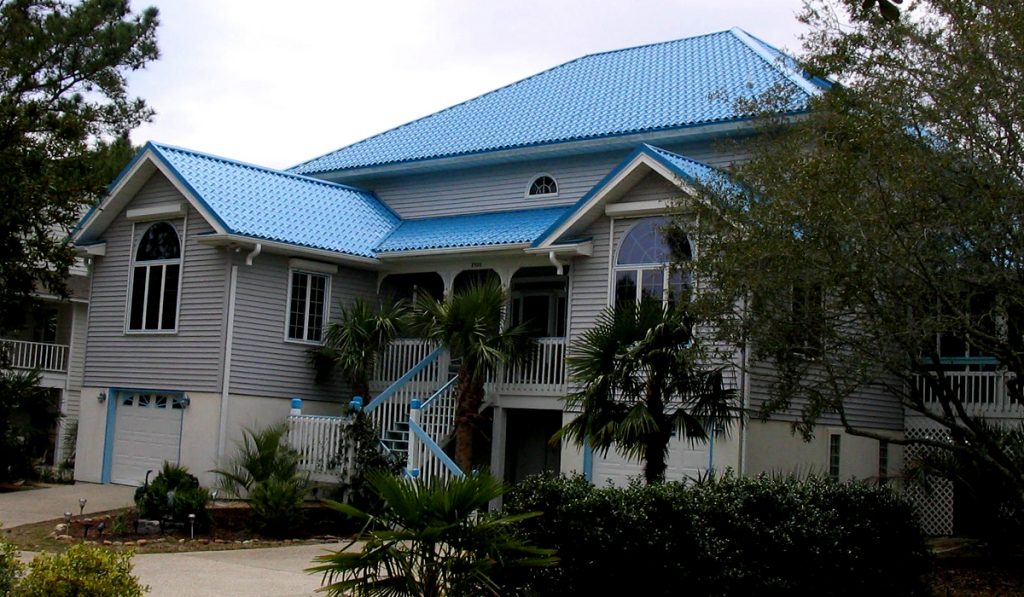

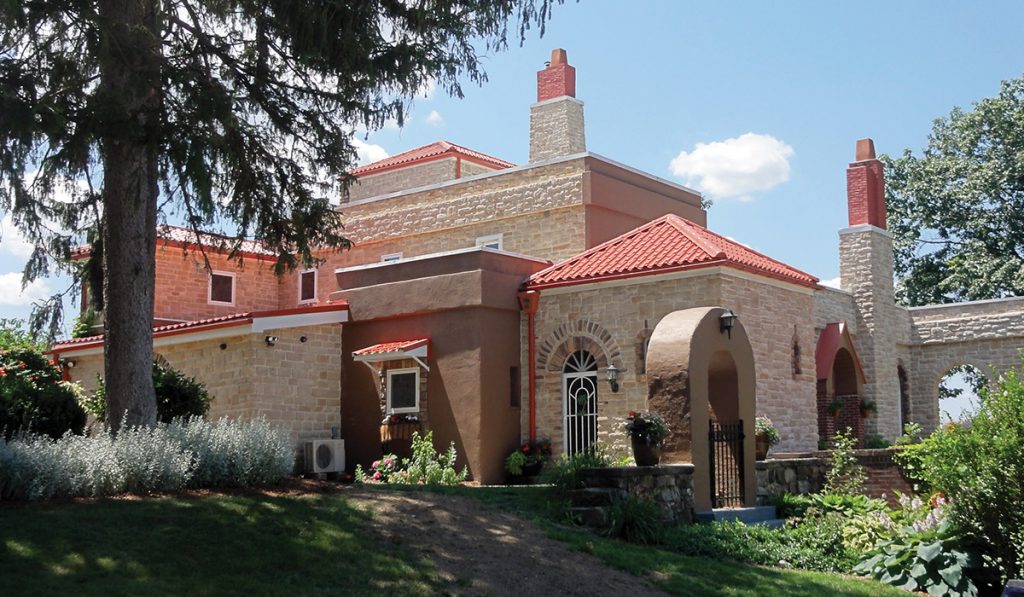

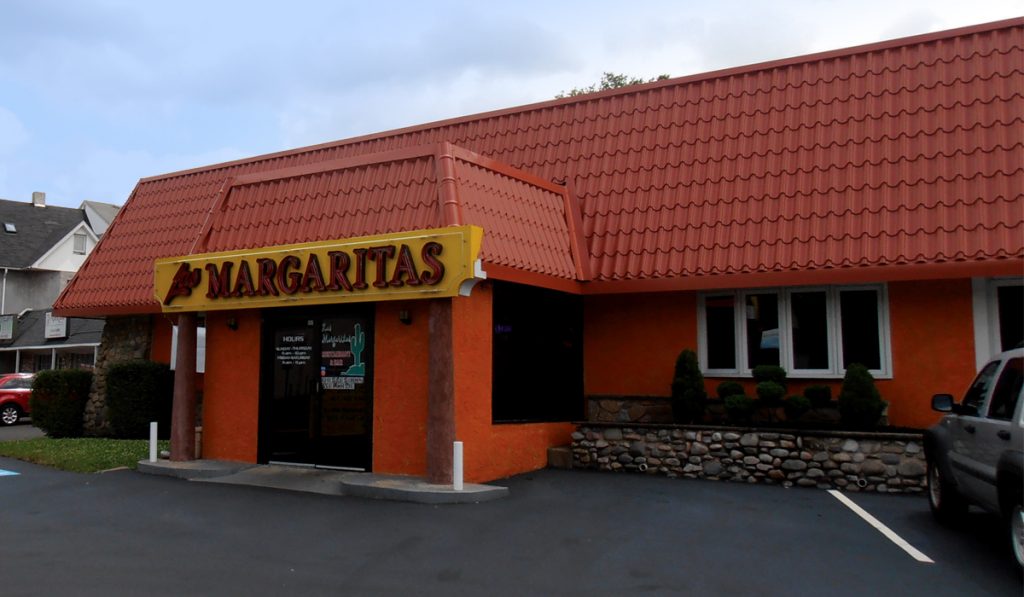

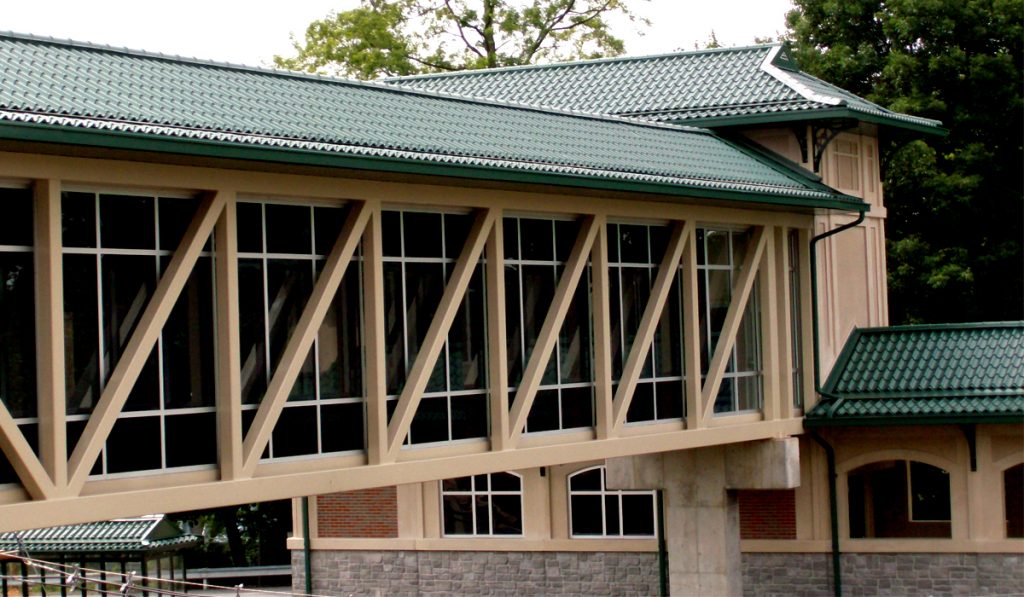

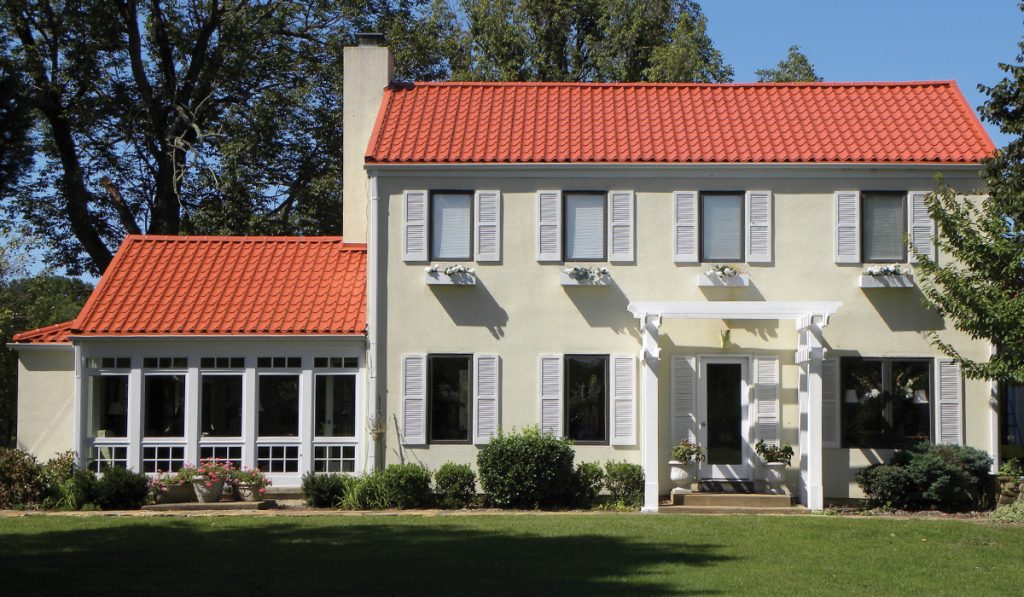

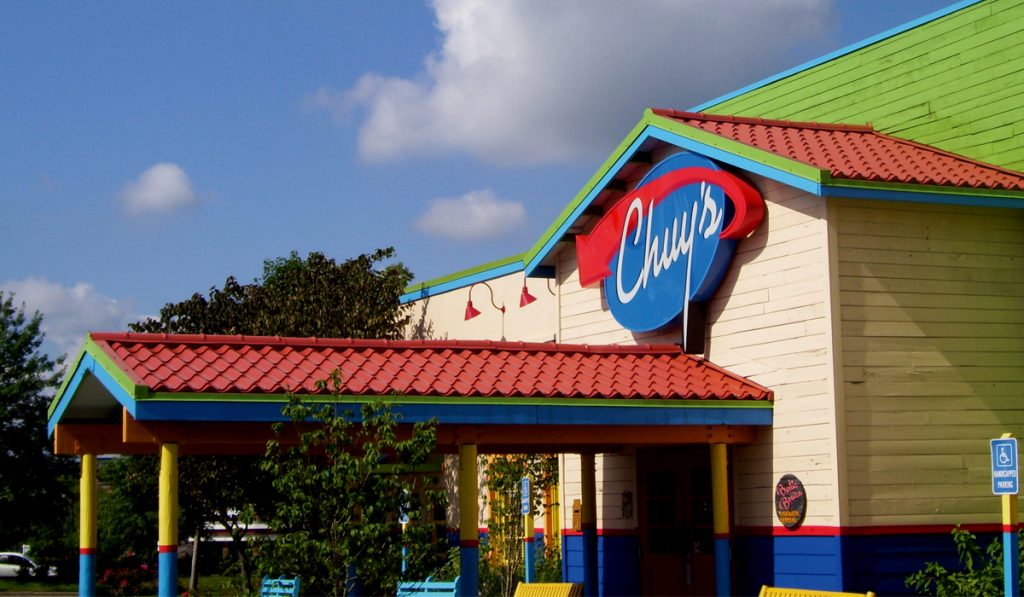

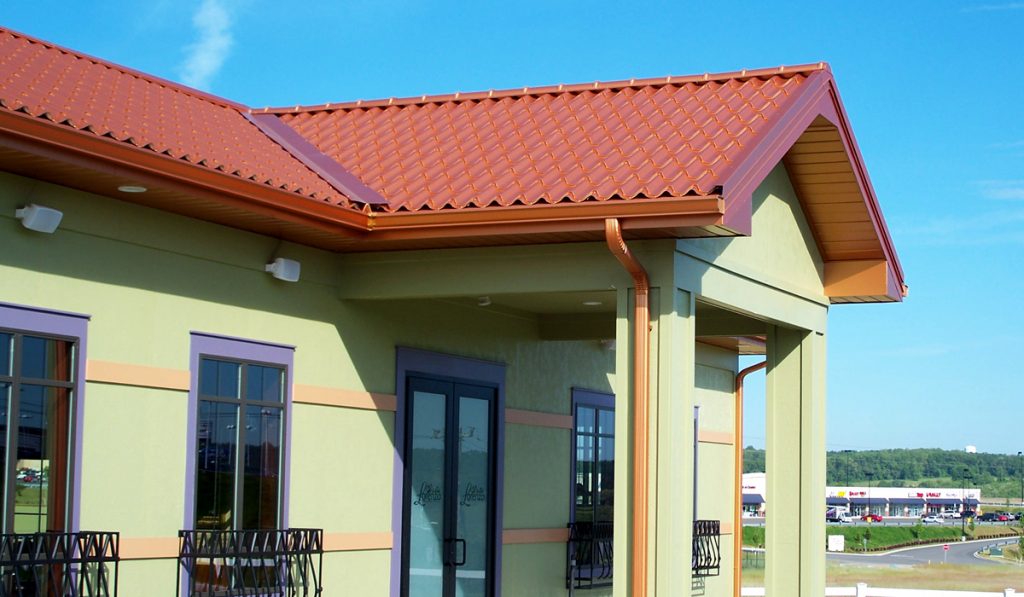

Techo Tile™ is a metal roof panel with a deep configuration in the form of an “S” or Spanish tile. The panel is installed vertically up the slope of the roof, with exposed fasteners and on a solid substrate. It is lightweight, allowing installation over an existing roof without the need for tear-off and disposal*. Typical applications for Techo Tile™ are commercial and residential roofing with a recommended minimum slope of 3:12. The tile also is suitable for mansards. Techo Tile™ has the look of a clay tile roof without the problems associated with its care.
*Subject to local codes
Florida Building Code Product Approval: FL 3162
SCT400
.032 aluminum

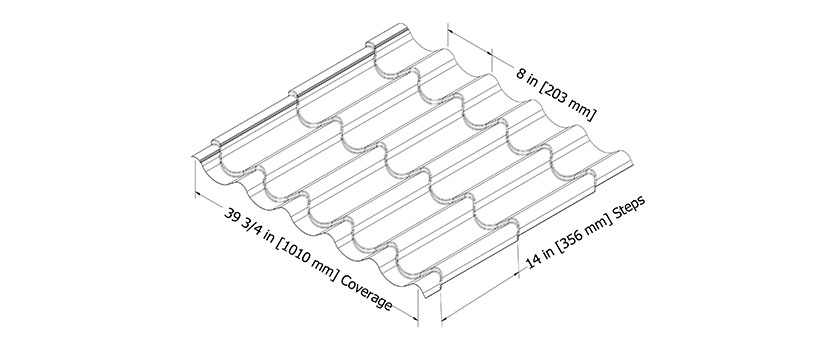

14″ tile step x 39¾” coverage
18½”
Transportation limitations and/or product and project design consideration
Smooth
Stucco Embossed
70% PVDF
Choice of over 40 stock colors
Custom colors and finishes available*
A complete line of trims available in matching colors, gauge, and finish or as specified
3:12
FL 3162.2
0057TECH
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format
- Techo Tile - All Details
- Techo Tile - Cutoff Detail
- Techo Tile - Panel Fastener Detail
- Techo Tile - Eave Detail
- Techo Tile - Vented Eave Detail
- Techo Tile - Gable Detail
- Techo Tile - Sidewall Detail
- Techo Tile - Hip Detail
- Techo Tile - Valley Detail
- Techo Tile - Headwall Detail
- Techo Tile - Vented Headwall Detail
- Techo Tile - Ridge Detail
- Techo Tile - Vented Ridge Detail
- Techo Tile - Shed Ridge Detail
- Techo Tile - Vented Shed Ridge Detail
DWG File Format
