Belvedere Grand R

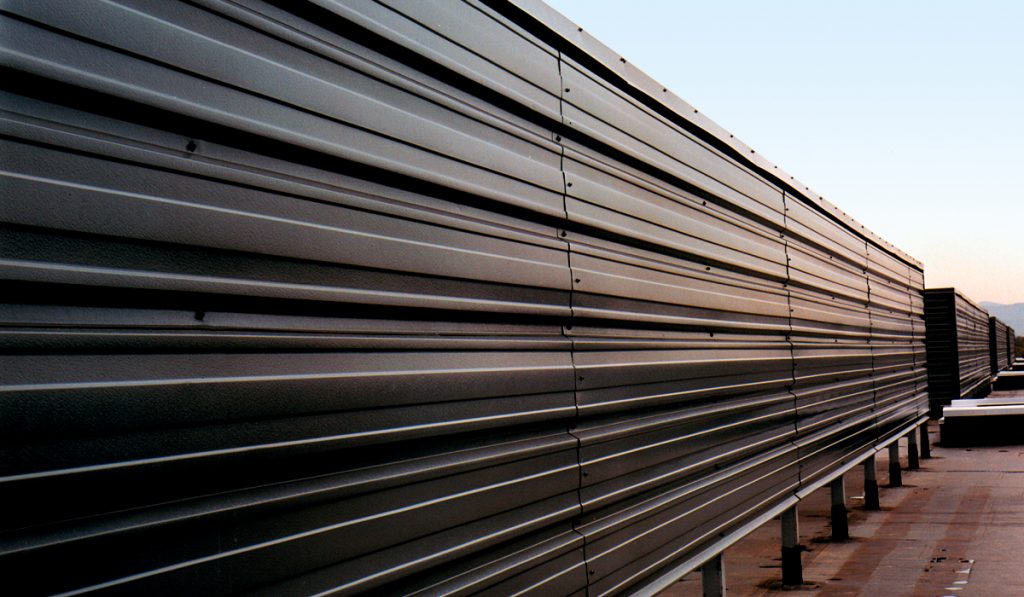

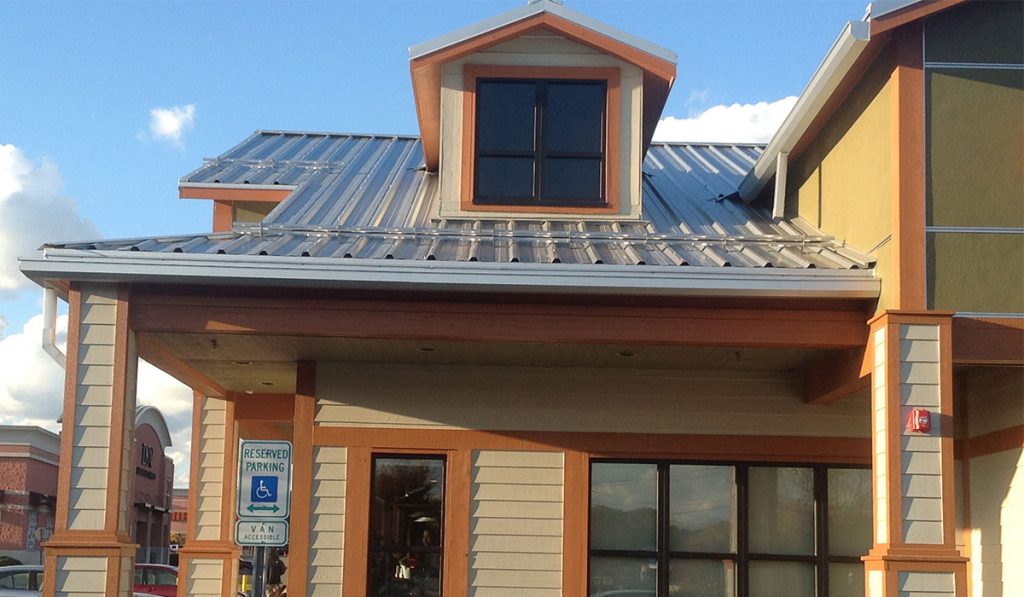

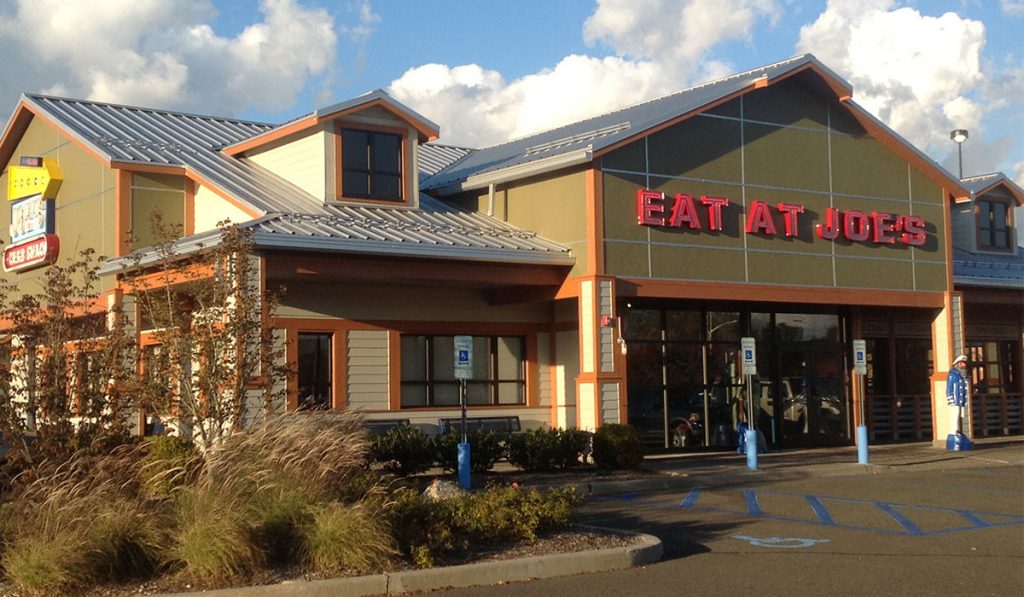

Belvedere Grand R panels are structural in nature and can be installed either on solid substrate or open framing. This panel can be installed vertically or horizontally with exposed fasteners.

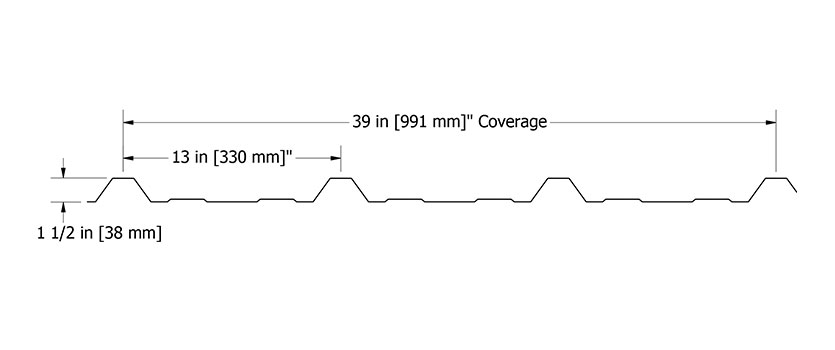

Line Drawing
Product Info
SKU:

BWG390

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn alloy coated steel with acrylic coating

Panel Coverage:

39”

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Seam Height:

1½”

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF, Anodized

Colors:
Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Minimum Slope:

3:12

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
