Colonial Seam

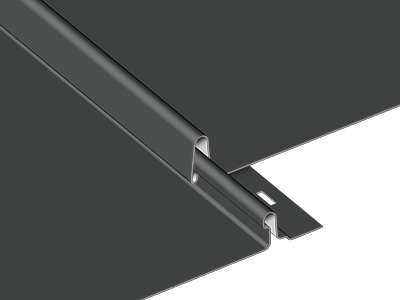

The Colonial Seam® panel is a clipless, one-piece, positive-locking, standing seam panel that provides a timeless roof appearance. Installation is accomplished by hooking the panel into the previous panel and fastening with mechanical fasteners through pre-punched slots to allow for expansion and contraction. The fasteners are covered by the adjacent panel. The positive locking action makes it virtually impossible for the panels to slide apart.

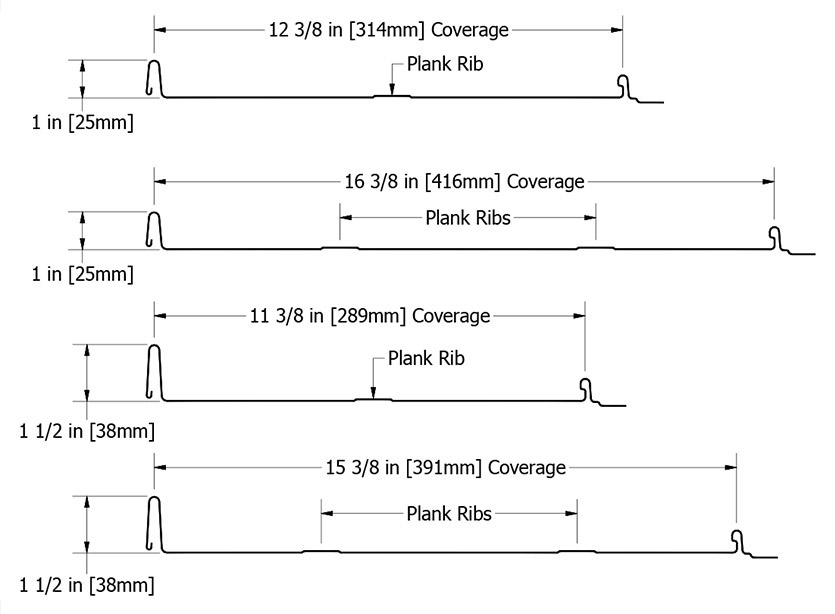

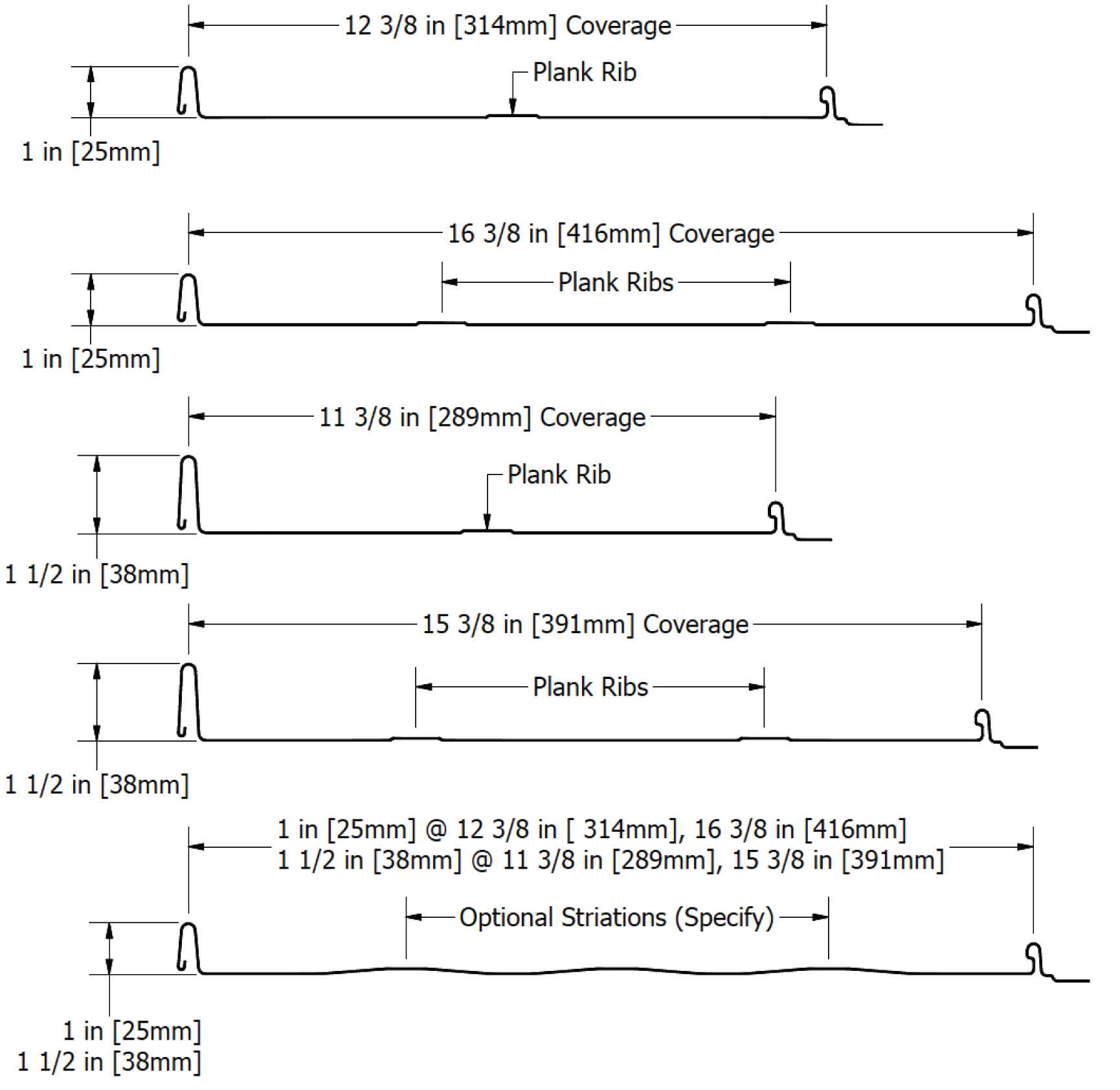

Line Drawing
Product Info
SKU:

HCS120
HCS160
HCH110
HCH150

Material:

.032 aluminum
24 ga. metallic coated steel

Panel Coverage:

12⅜”
16⅜”
11⅜”
15⅜”
(plank ribs or striations optional)

Minimum Panel Length:

3′-0″

Maximum Panel Length:

20′-0″ (aluminum)
25′-0″ (steel)

Seam Height:

1″
1½”

Available:

Factory panel pre-notching available.
Contact ATAS for specifics.

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified.

Minimum Slope:

3:12

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

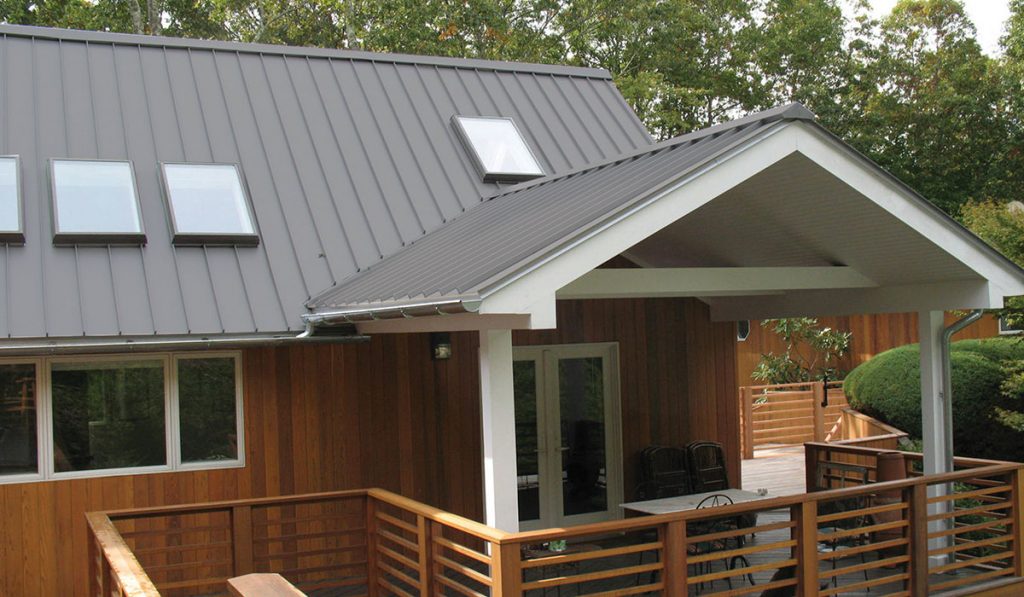

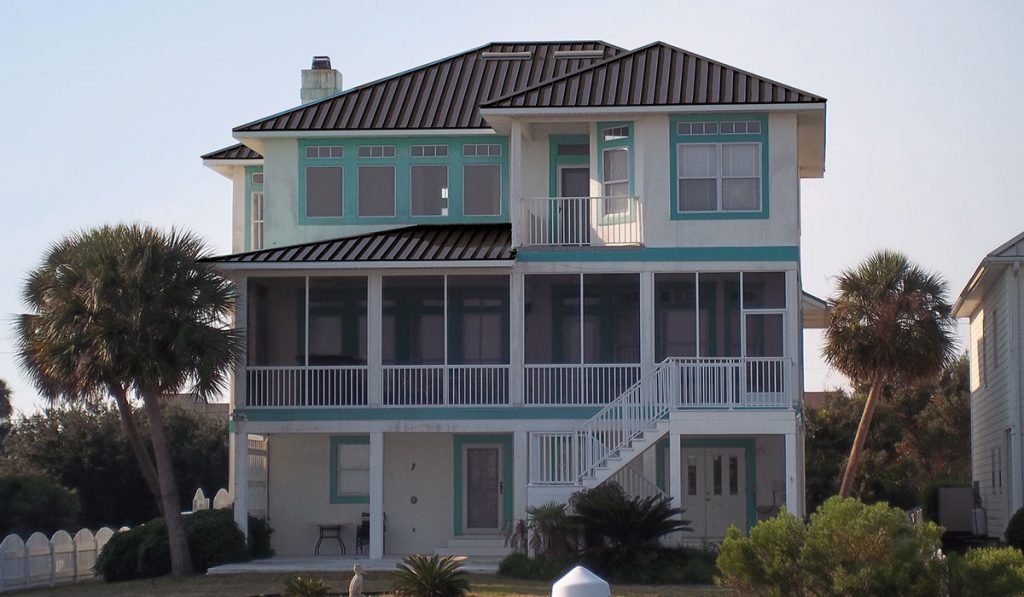

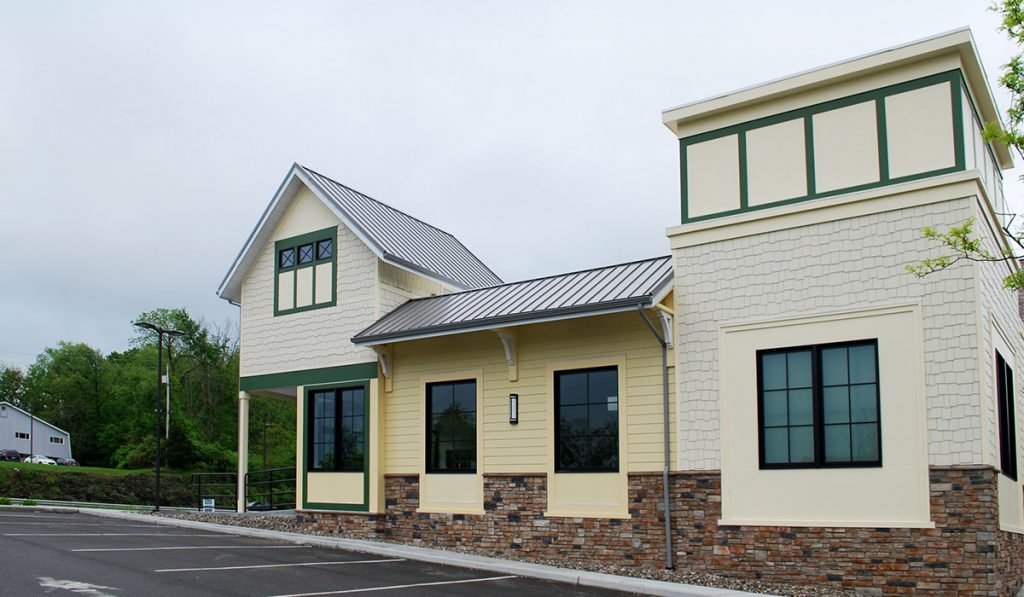

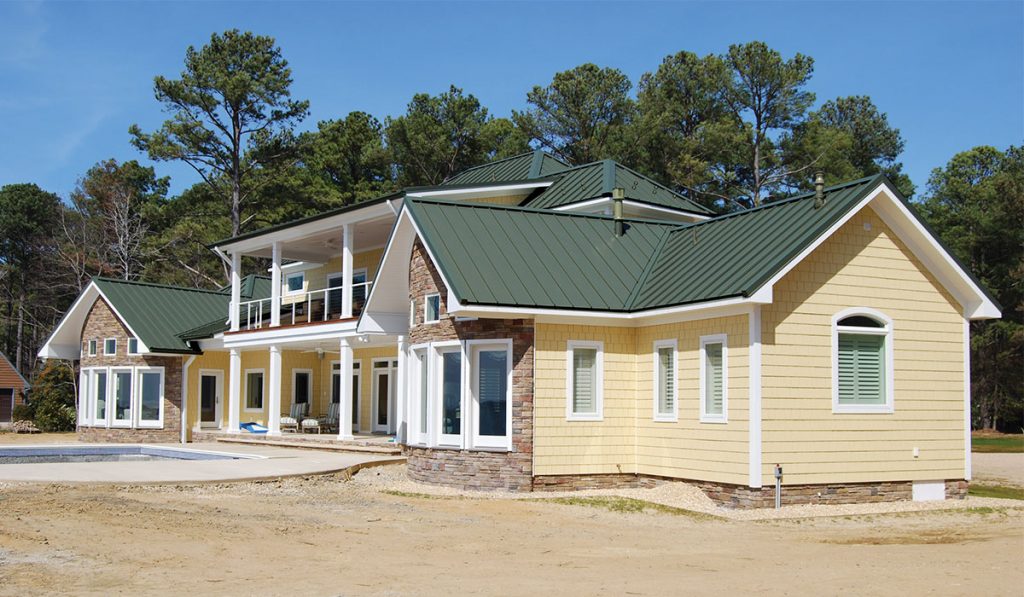

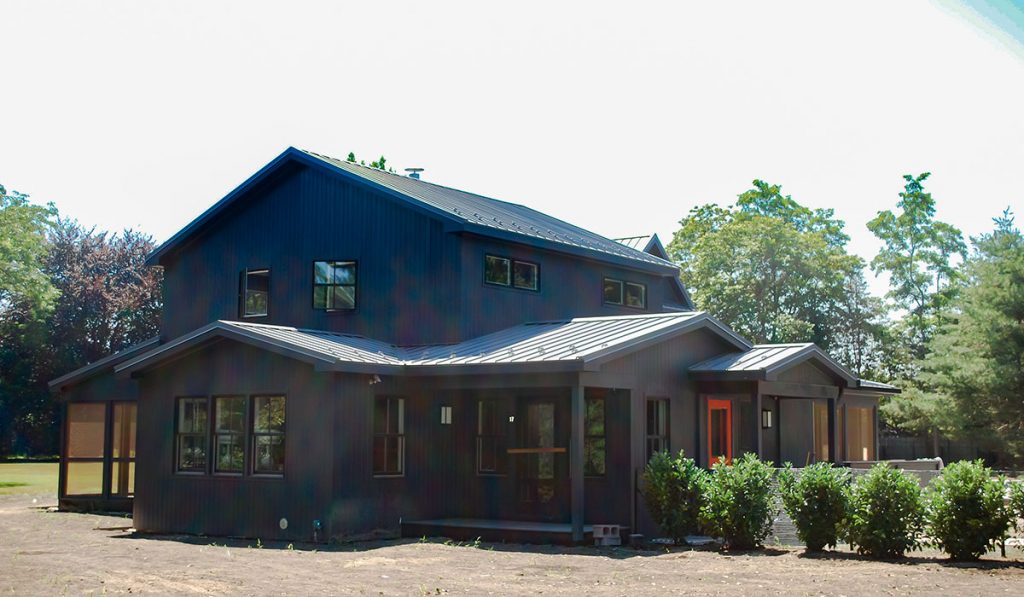

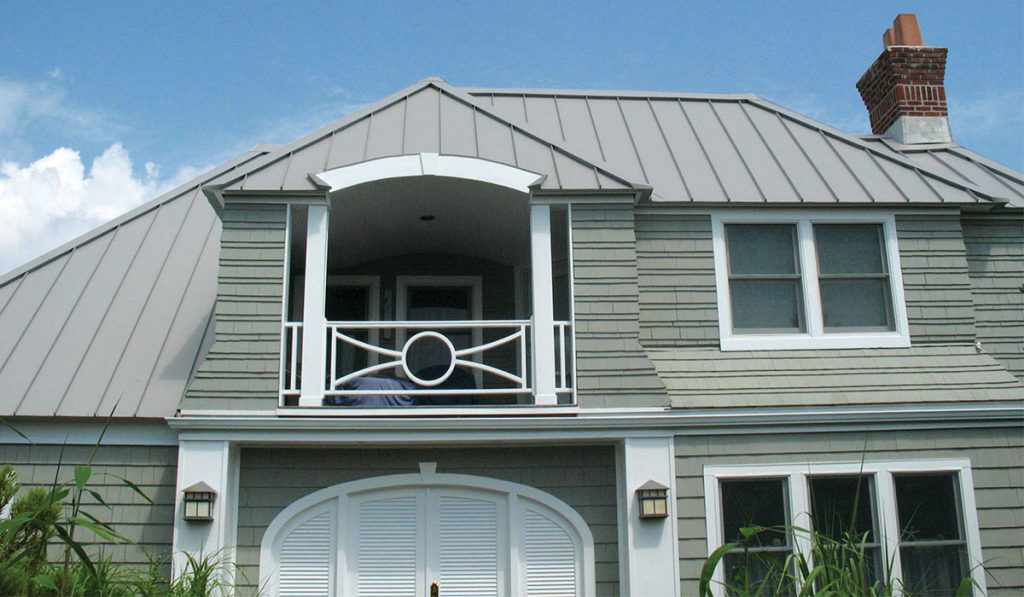

Gallery
