Profile Options

Overview

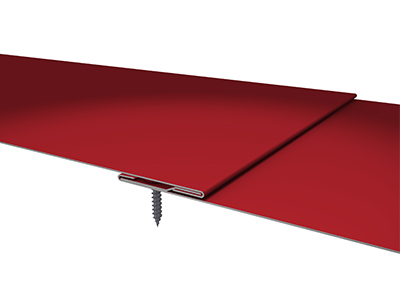

Interlock

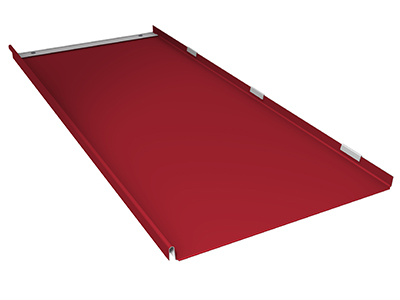

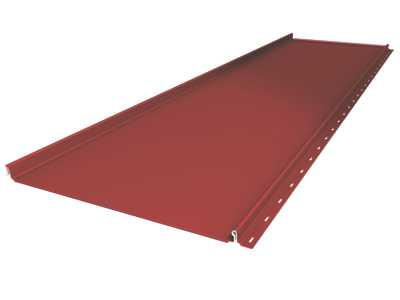

Shingle

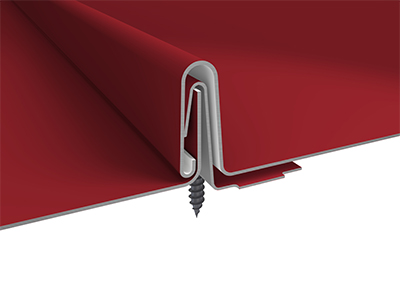

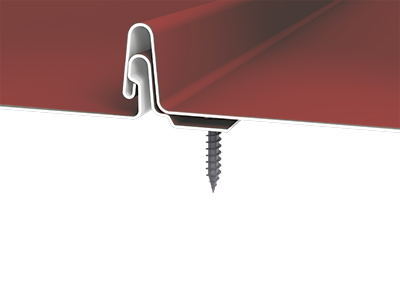

Interlock Detail

Standing Seam Shingle

Standing Seam Shingles are elegant in their style and feature a four-way interlock to ensure weathertightness. These panels are installed with concealed fasteners from eave to ridge and over a solid substrate. Transverse seams are staggered to provide a historic standing seam appearance. The metal roof allows for snow and ice to slide off easily, preventing damage from freeze and thaw cycles. Typical applications for the Standing Seam Shingle are mansards, entryways, commercial and residential roofs with a minimum recommended slope of 4:12.

Line Drawing
Product Info
SKU:

HSS168 (36”)
HSS169 (60”)

Material:

.032 aluminum
16 oz. copper*

Shingle Size:

16 ⅜” x 36”
16 ⅜” x 60”

Seam Height:

1″

Texture:

Smooth

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Fasteners:

Concealed fasteners and clips

Minimum Slope:

4:12

MCA Certification:

0057STAN

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

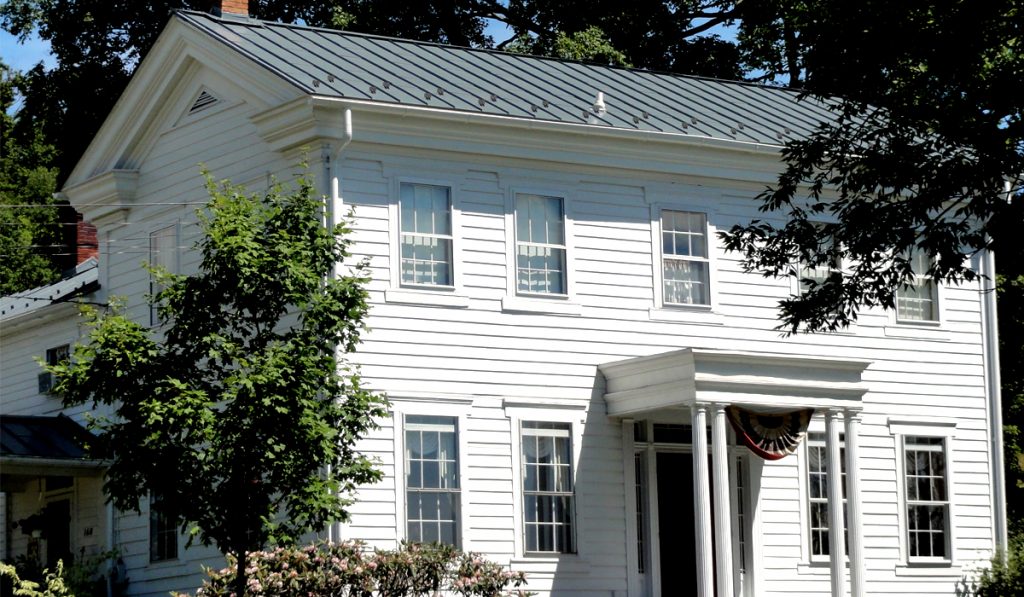

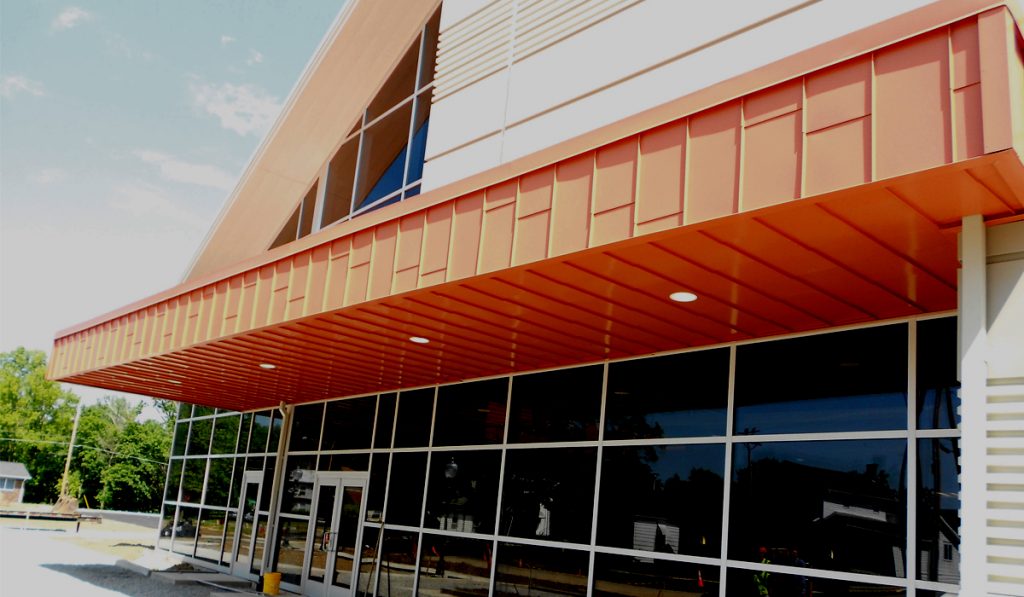

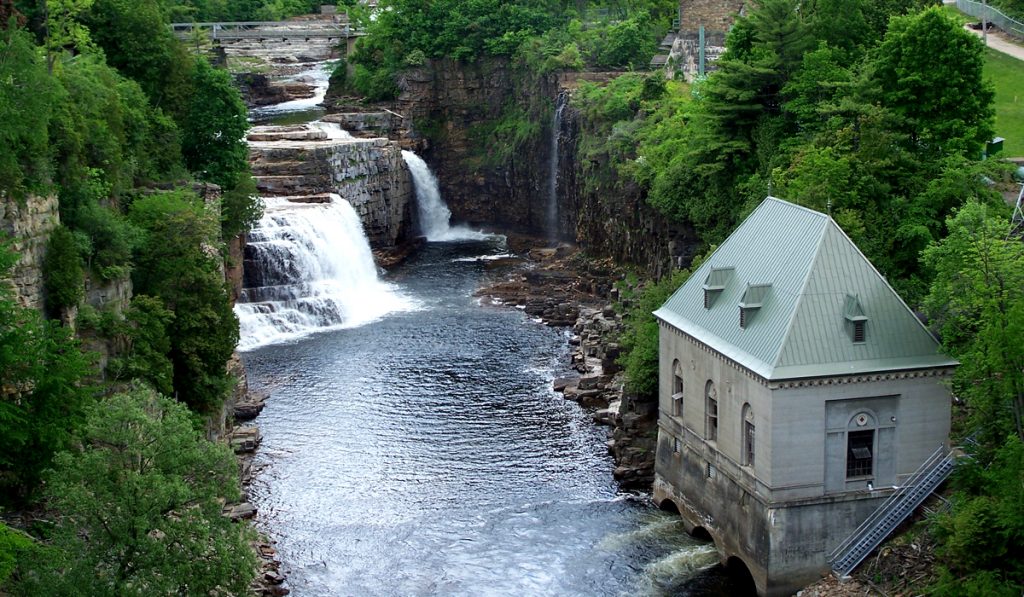

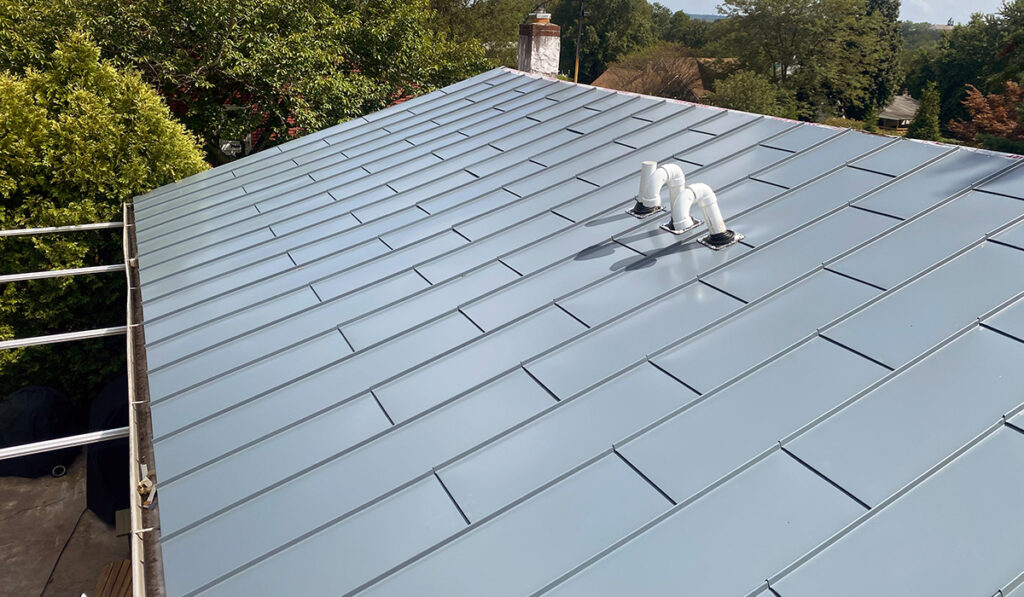

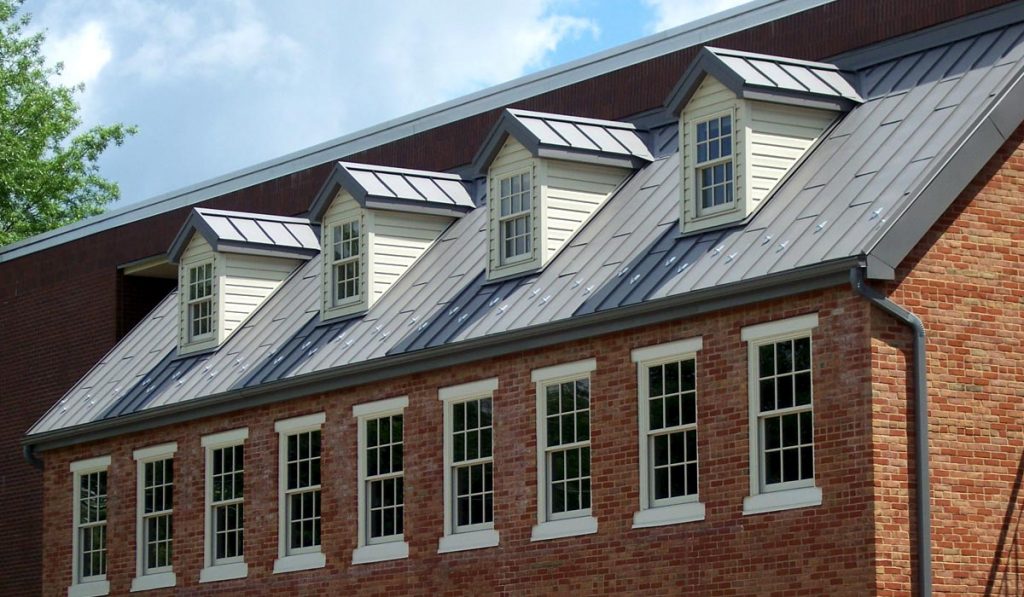

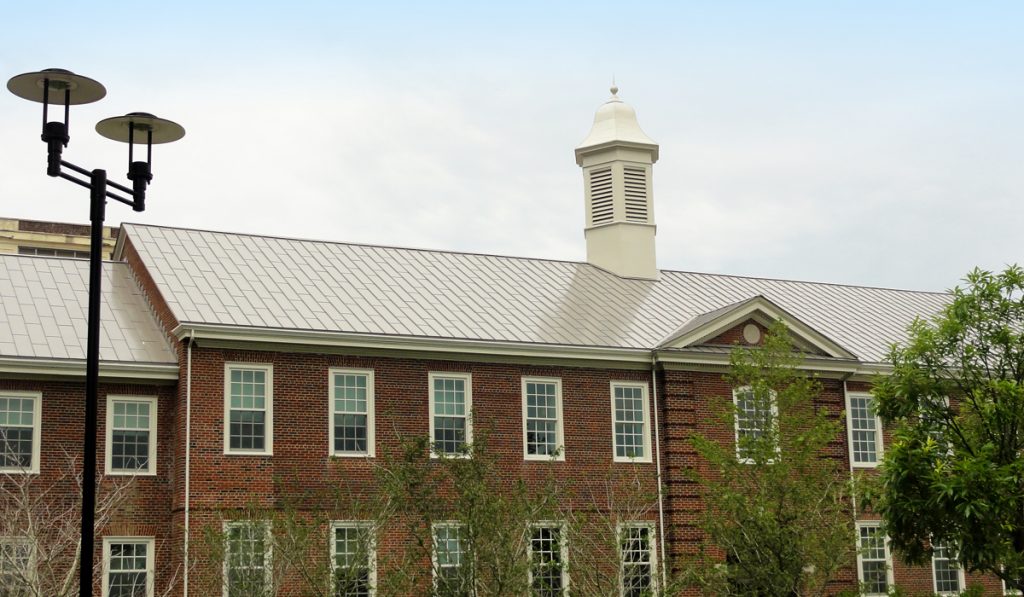

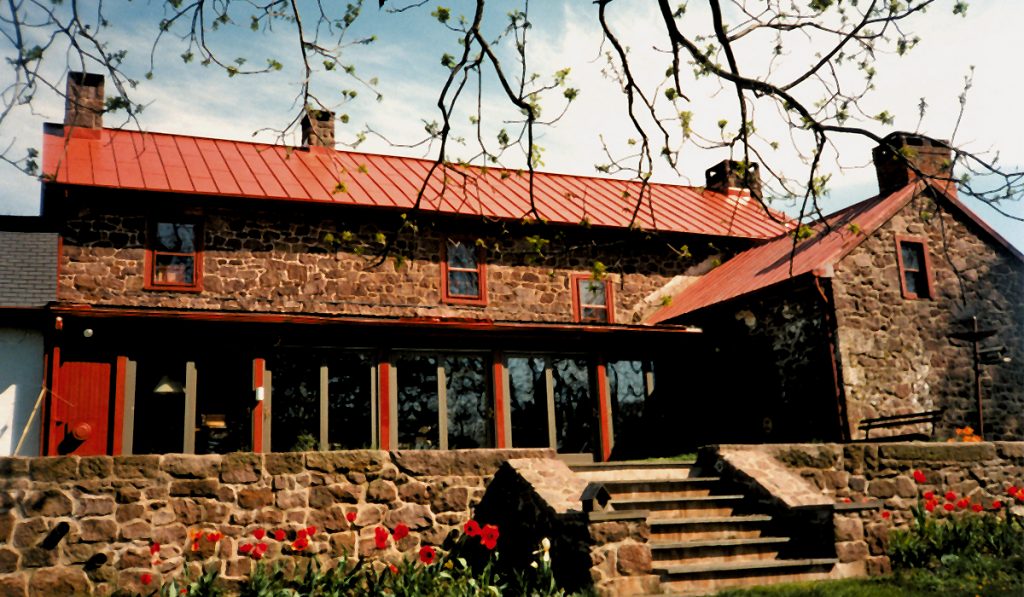

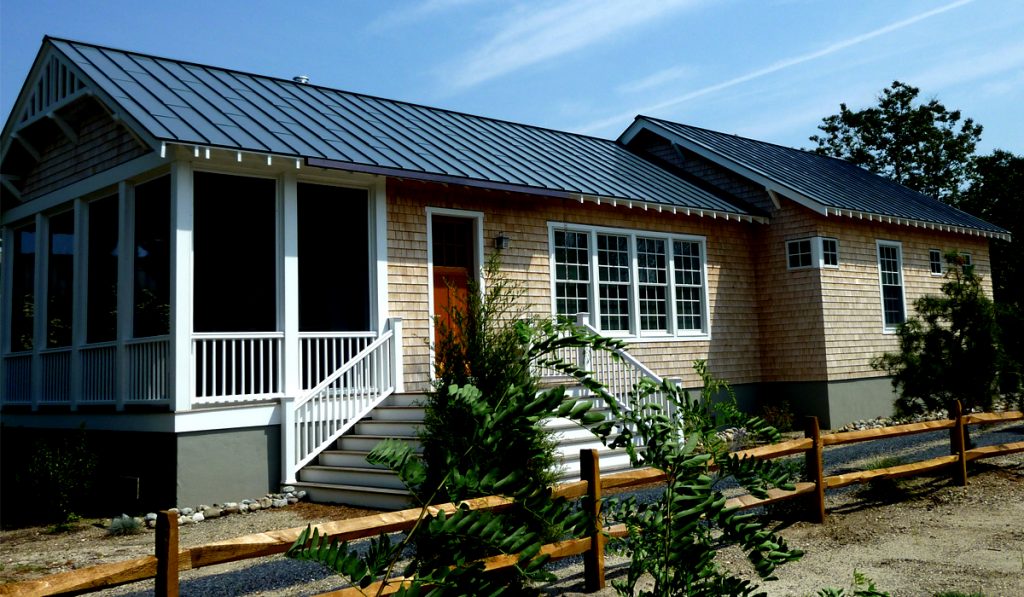

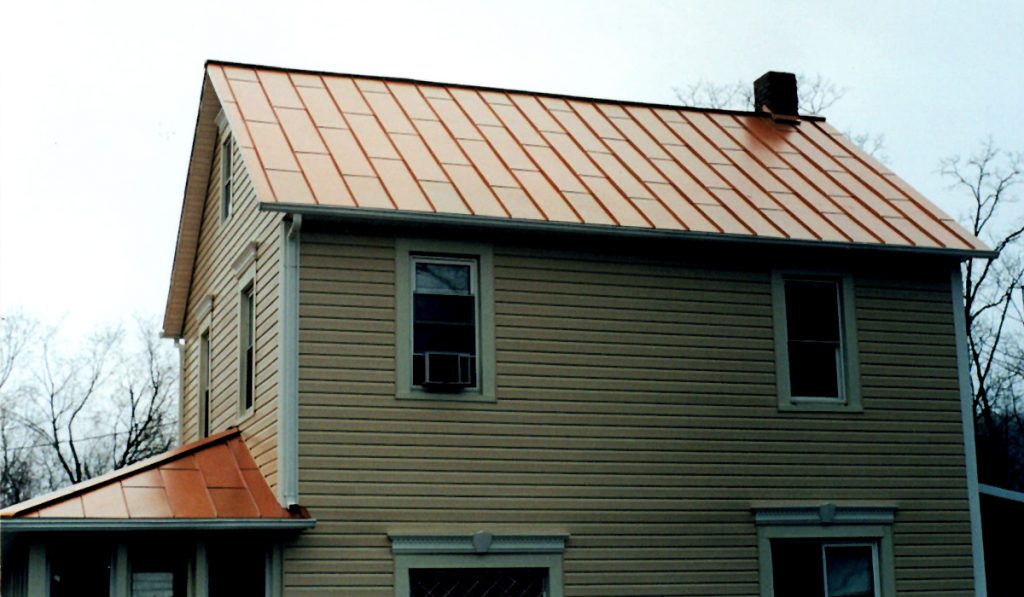

Gallery
Documents

    Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Standing Seam Shingle Product Brochure

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Standing Seam Shingle Spec Data Sheet

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Color Chart

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Standing Seam Shingle Estimating Sheet

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • Finish Warranty

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • LEED v4

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Aluminum Recycled Contents

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • SRI Values Chart

    • Warning: Undefined array key "promotional_document_url" in /var/www/vhosts/atas.staging.ksand.com/httpdocs/wp-content/themes/ksand-boilerplate/single-products_post_type.php on line 161
  • ATAS Manufacturer Qualification Statement
Product Pricing View Current Pricing
Submittal Builder Build PDF Packet
Literature Download Product Brochure
BIM Model Download BIM File
