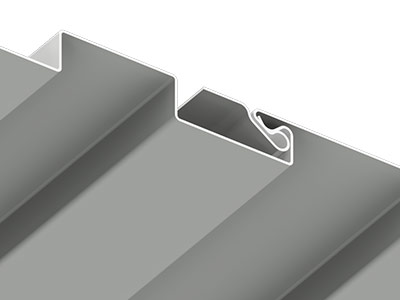

Interlock

Metafor | MFP

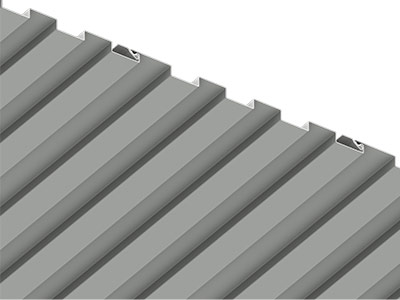

Metafor™ is a structural panel with a ribbed appearance and a concealed fastening system. The architectural ribbed panel has 4-up, 4-down ribs. The texture of the panel is either smooth or stucco embossed. Metafor™ may be installed horizontally or vertically. This panel is lightweight, but it also is strong. It can be applied directly to solid decking or open framing. Typical applications for this panel are walls, ceilings, fascias, mansards, equipment screens and soffits. It may also be used for walkways, balconies, entrances and vestibules.

Florida Building Product Approval: FL 30777.3

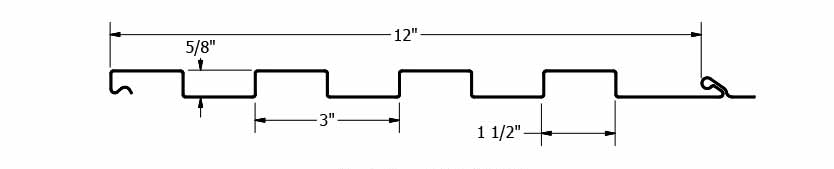

Line Drawing
Product Info
SKU:

MFP120

Material:

.032, .040, .050 aluminum
16, 20 oz. copper*
.0197 classic & terne coated stainless steel*

Panel Coverage:

12″

Minimum Panel Length:

3′

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

⅝”

Texture:

Smooth
Stucco Embossed
Perforated

Finish:

70% PVDF

Color:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Florida Building Product Approval:

FL 30777.3

Accessories:

A complete line of trims available in matching colors, gauge and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
