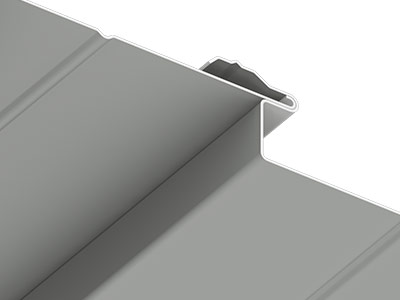

DSH Interlock

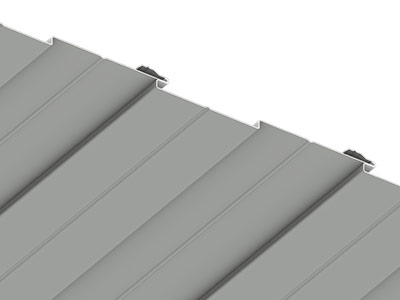

DWH

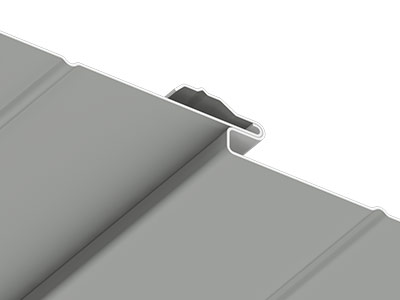

DWH Interlock

Design Wall | DSH, DWH

The Design Wall™ System is a structural panel with optional louvered style venting.  The “board” panel has an upside of 2” that may extend in 1” increments. It may be installed horizontally or vertically. Typical applications for this panel are walls, soffits, fascia or equipment screens.

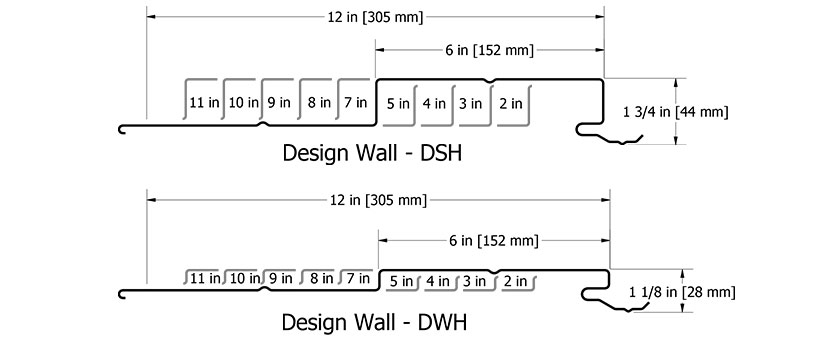

Line Drawing
Product Info
SKU:

DSH
DWH

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22* ga. 55% Al-Zn alloy coated steel with acrylic coating
.8, 1.0 mm zinc* (DWH only)
16, 20 oz. copper*

Panel Coverage:

12”
(Stiffening ribs standard, specify without)

Minimum Panel Length:

3’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Height:

1¾”
1⅛”

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed (DWH only)

Available:

Louvered/Vented

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details
