Profile Options

Without End Folds

Close-Up (Without)

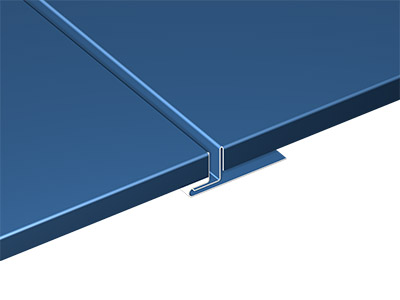

With End Folds

Close-Up (With)

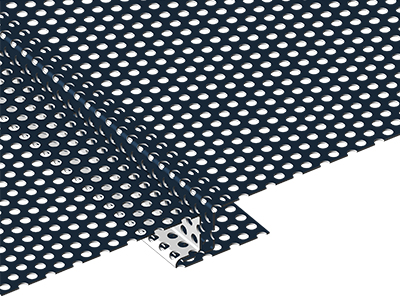

Perforated

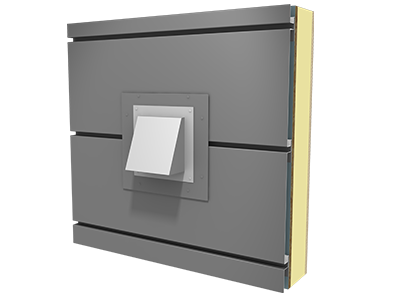

Z Box

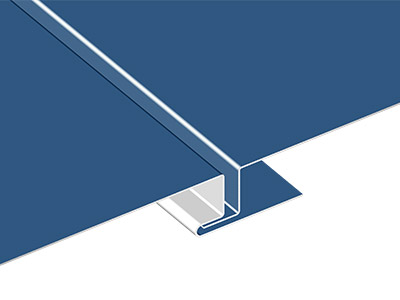

Versa-Seam

Versa-Seam™ is a rainscreen style system that requires a waterproof building envelope behind it. The panel forms architectural shadow lines in its horizontal installation and is available with three optional reveal or shadow line configurations and optional end folds. Pair accessories & fasteners with Versa-Seam™ to increase the longevity of your project.

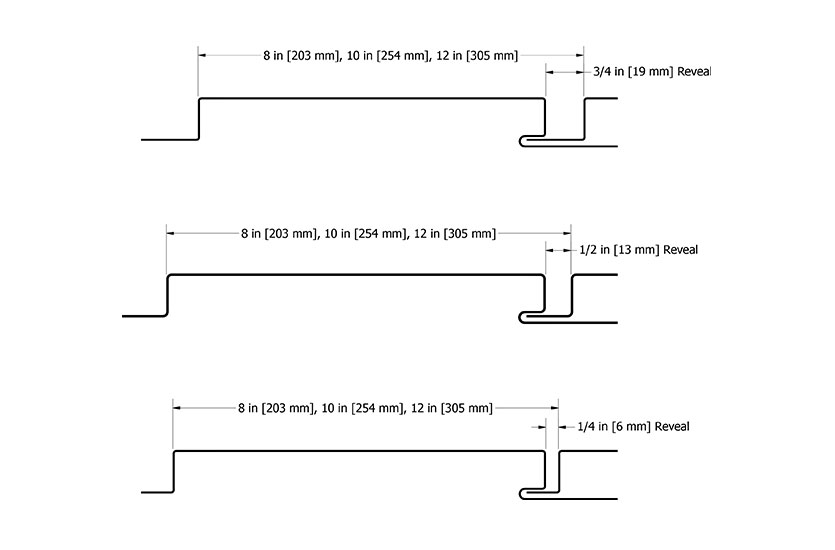

Line Drawing
Product Info
SKU:

VSS080
VSS100
VSS120

Material:

.032, .040 aluminum
.8, 1.0 mm zinc*^
16, 20 oz. copper*^
.0197 classic & tin matte stainless steel*^

Panel Coverage:

8″
10″
12″
Custom widths available*

Minimum Panel Length:

3’-0”

Maximum Panel Length:

20’-0”

Panel Depth:

1″

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed (.032 aluminum & .040 aluminum only)

Available:

Louvered

Optional end folds

Perforations Available:
Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

^Inquire for available widths

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate

PDF File Format - Vertical Application - Solid Substrate

DWG File Format - Horizontal Application - Solid Substrate

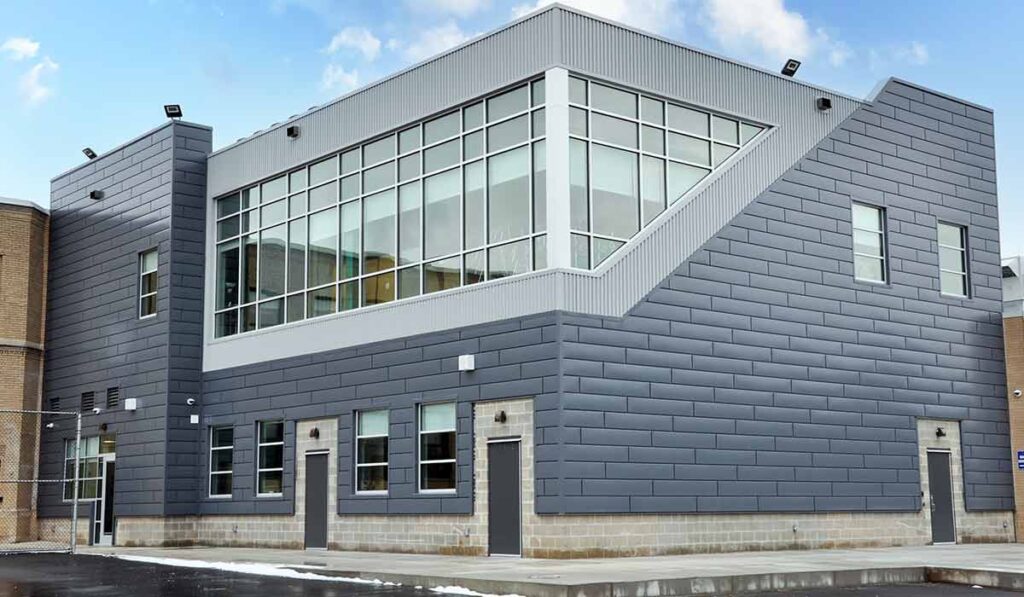

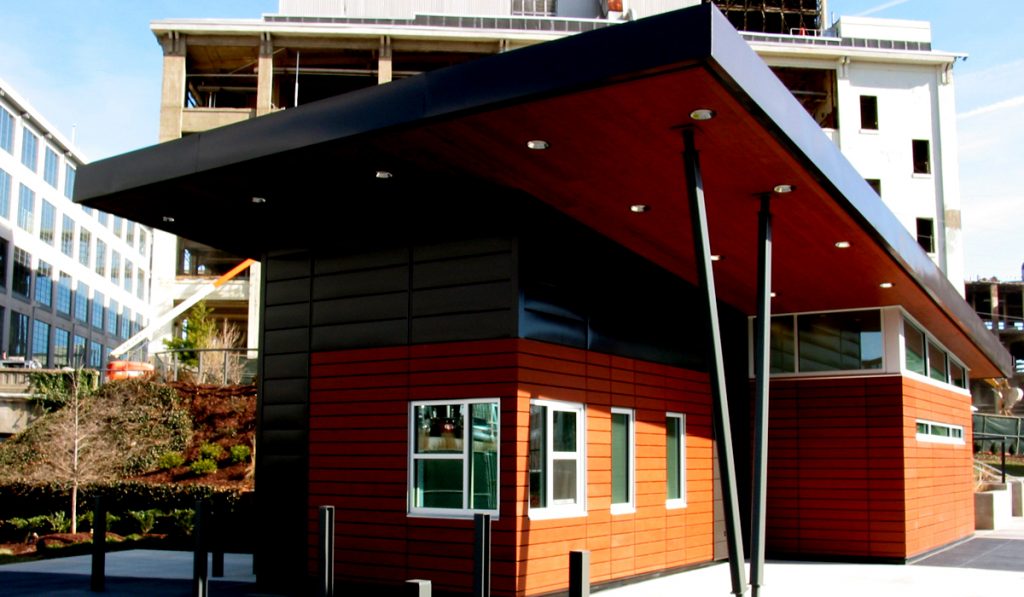

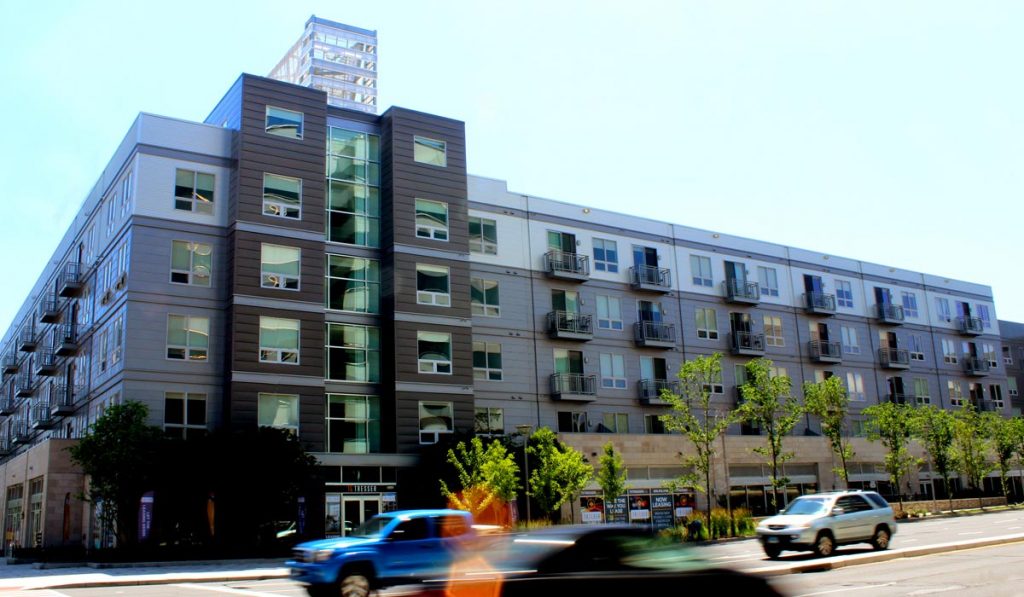

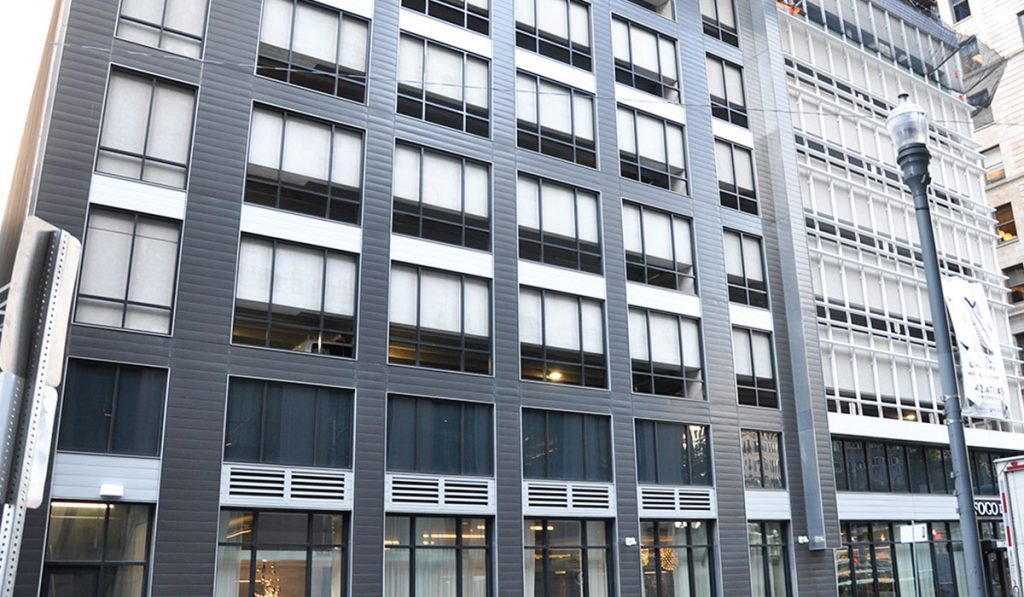

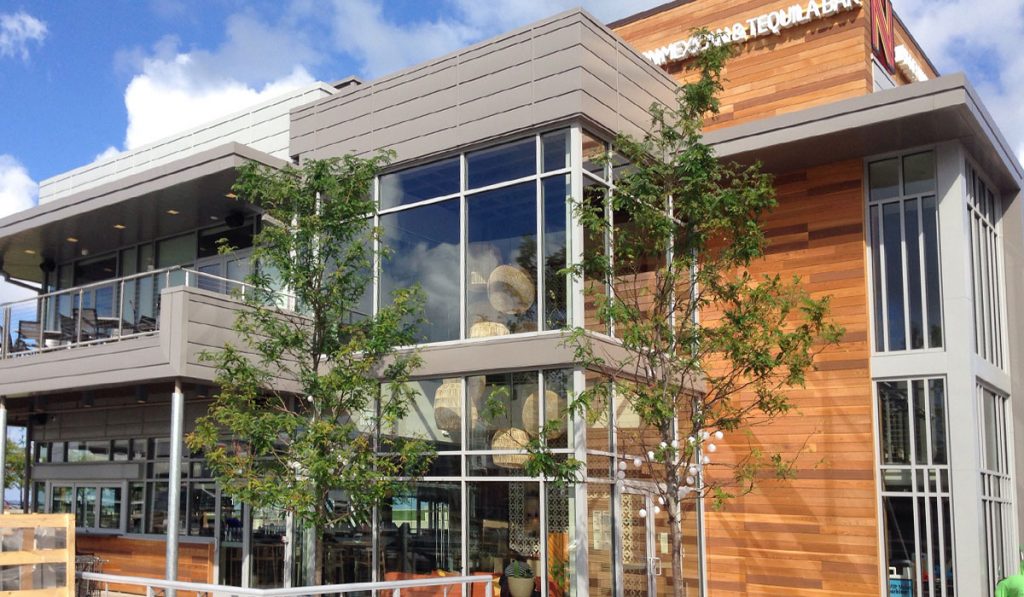

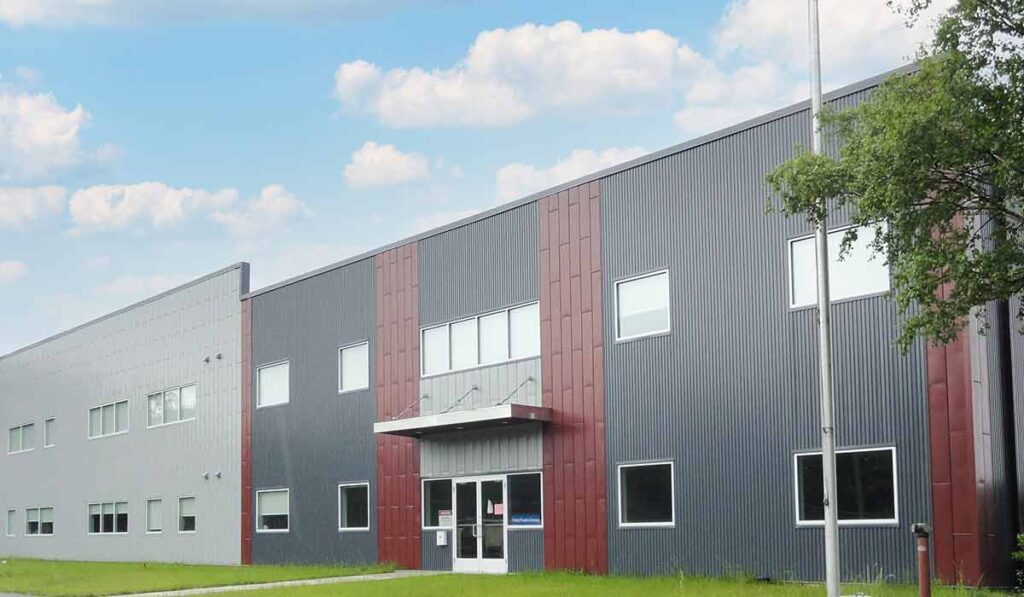

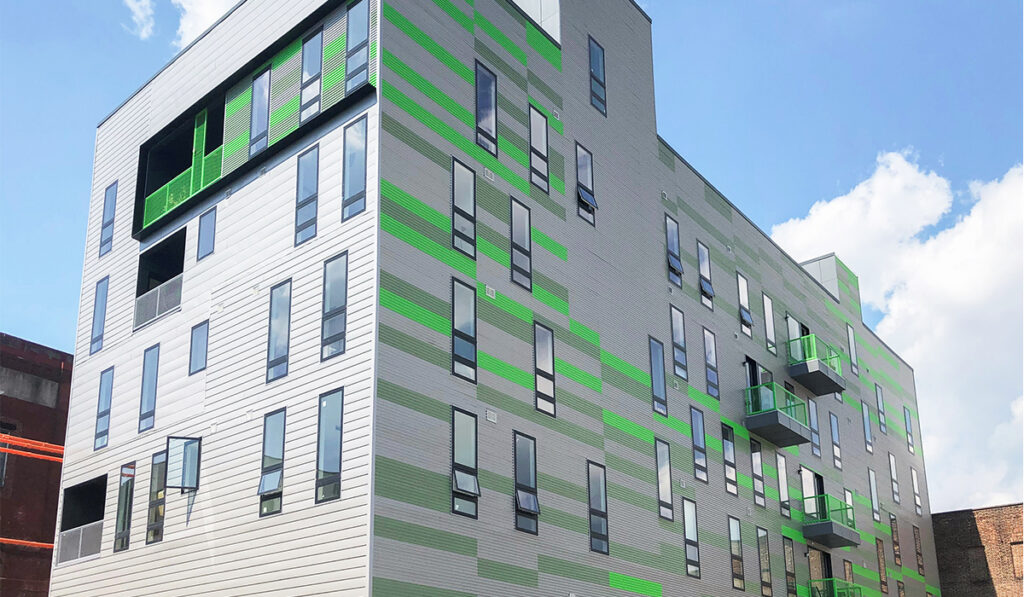

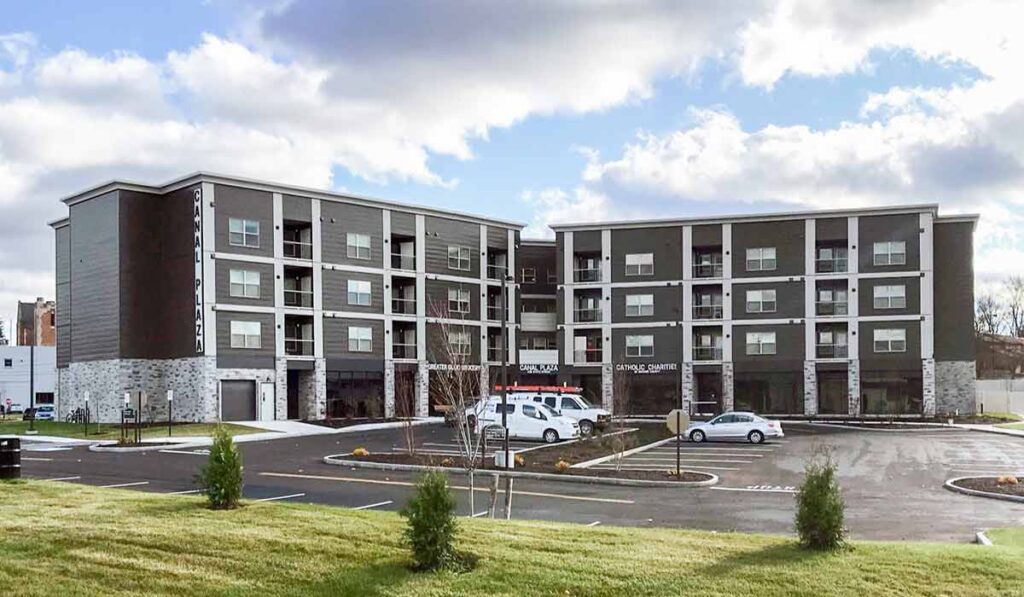

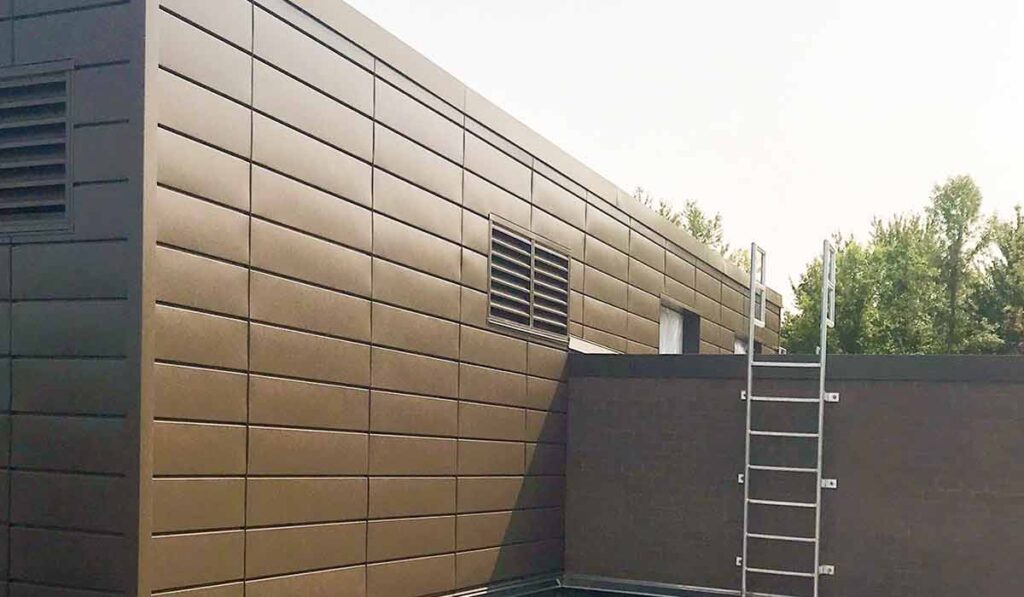

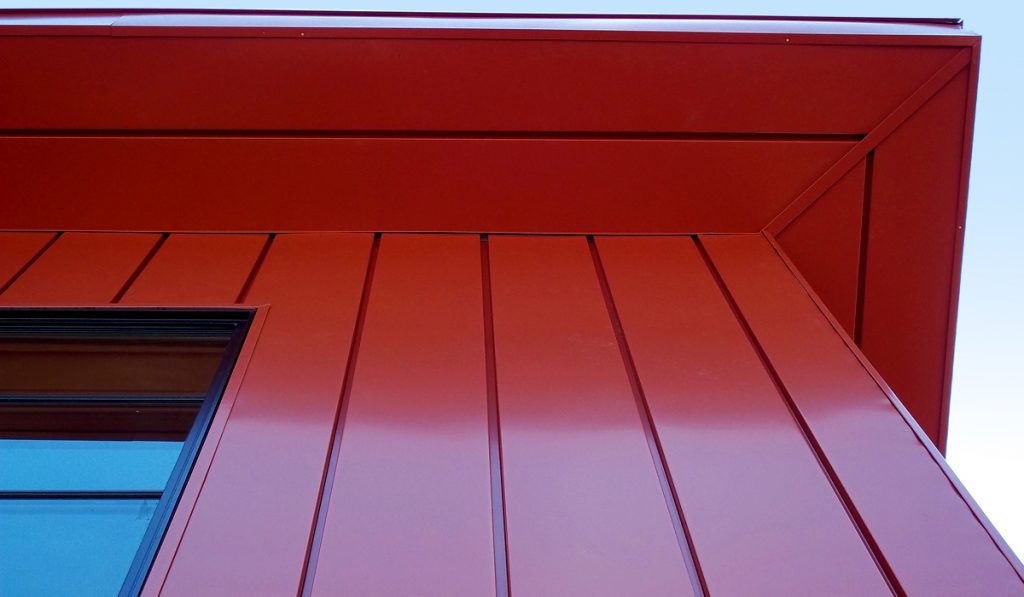

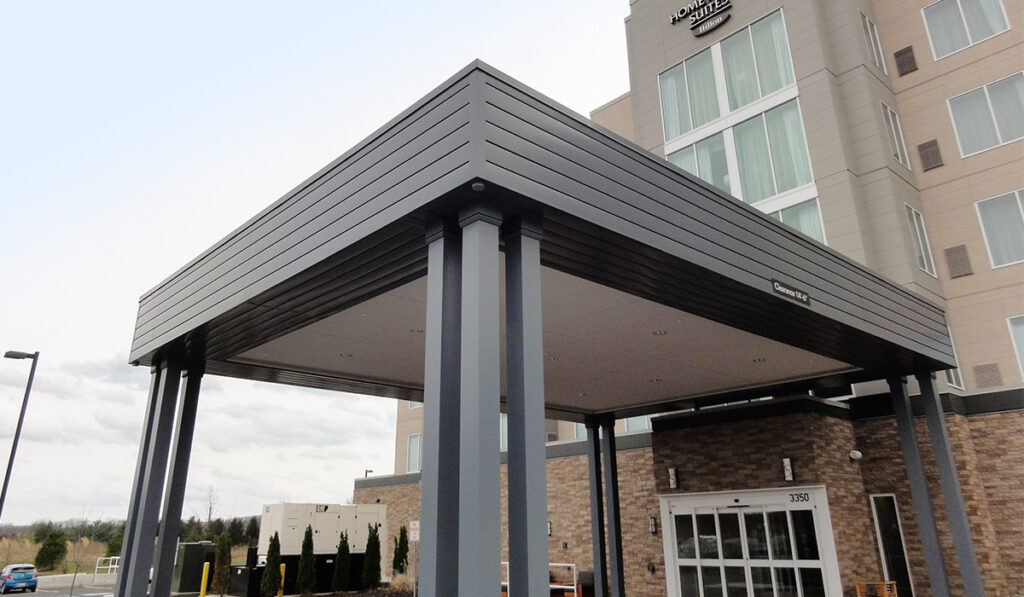

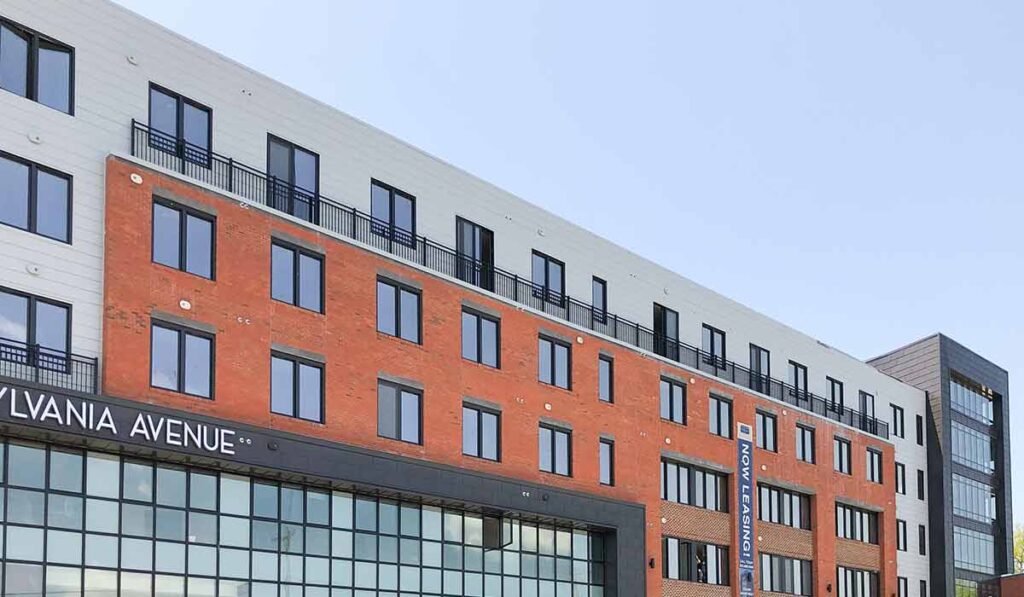

Gallery
