Profile Options

Overview

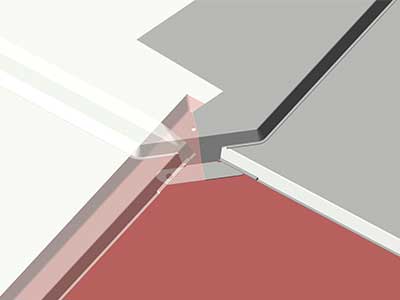

Interlock

Z Box

CastleTop (Wall)

CastleTop® is a diamond-shaped flat shingle for a unique roof or wall appearance. The shingle offers easy install with concealed fasteners.  Different colors may be combined to create interesting patterns. CastleTop® may be used for commercial or residential roof and wall applications with a recommended minimum slope of 3:12.

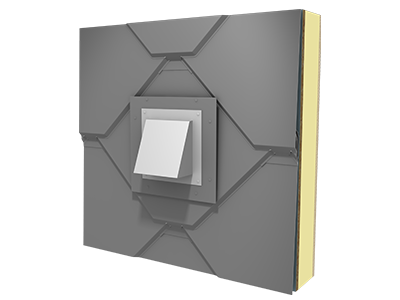

You can also enhance aesthetics of CastleTop® by using factory fabricated Elite Series accessories, including the Z Box shown.

Florida Building Product Approval: FL 2905.2

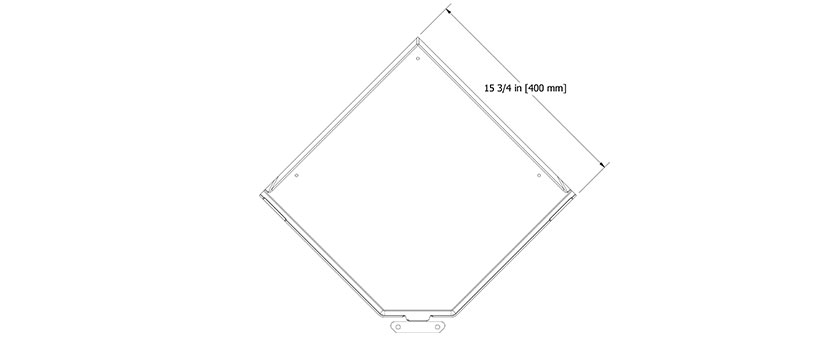

Line Drawing
Product Info
SKU:

HCT160

Material:

.032 aluminum
.8 mm zinc*
16 oz. copper*

Shingle Size:

15¾” x 15¾”

Shingle Coverage:

13½” x 13½”

Texture:

Stucco Embossed (aluminum only)
Smooth (copper and zinc only)

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors (aluminum only)
Custom colors and finishes available*

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Florida Building Product Approval:

FL 2905

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

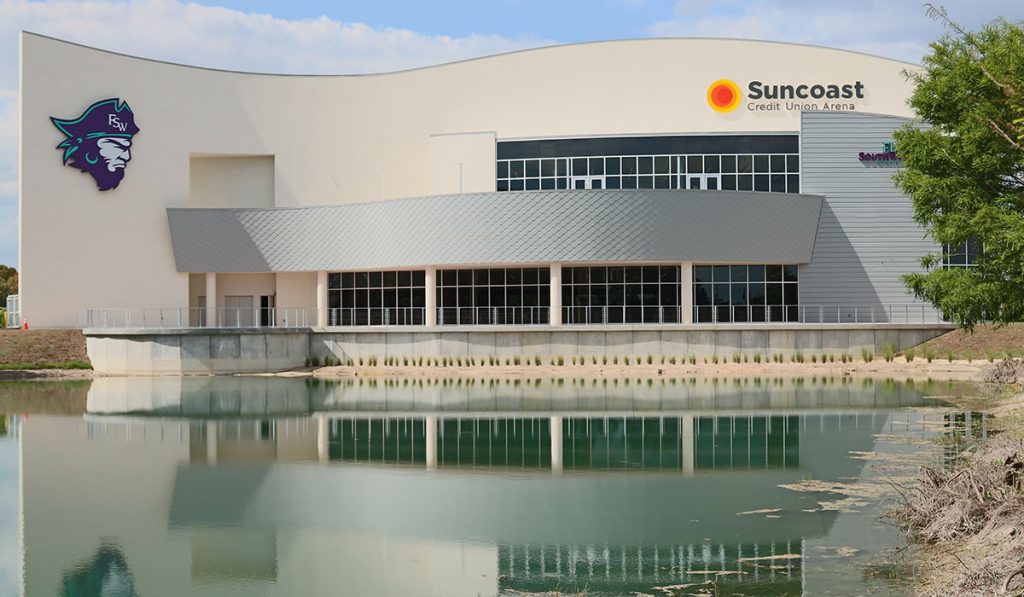

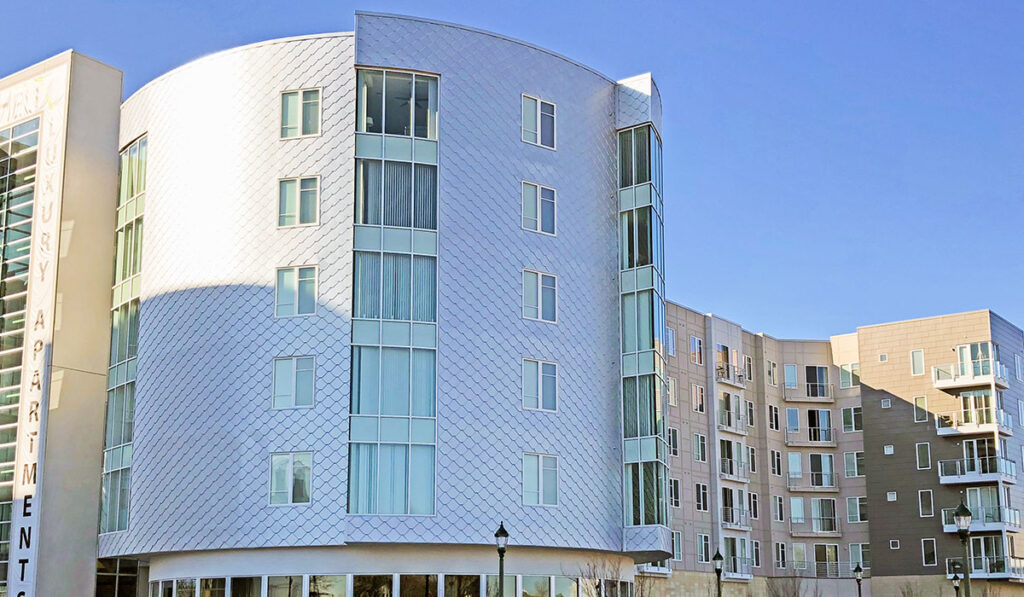

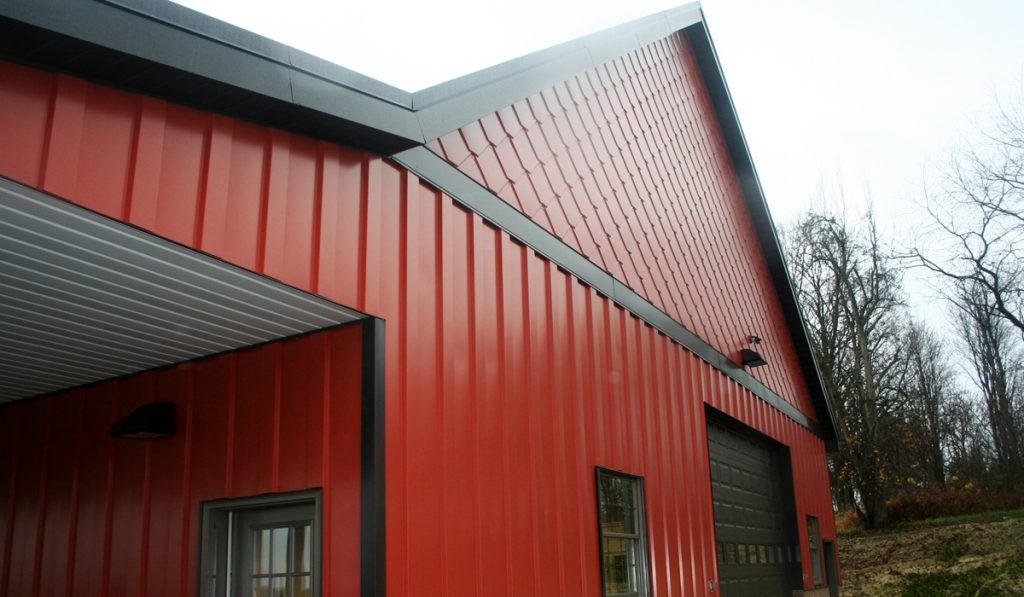

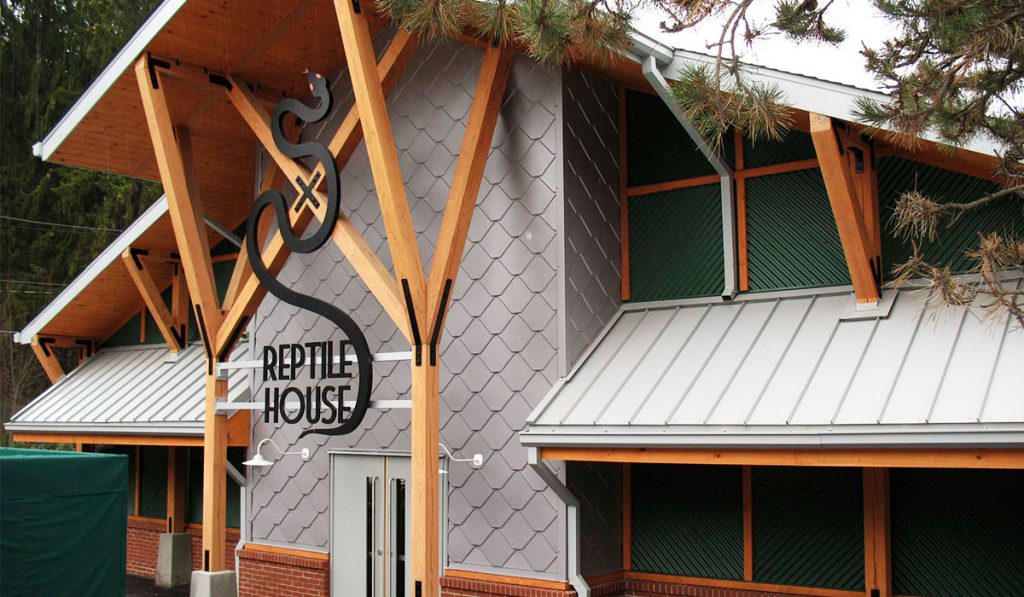

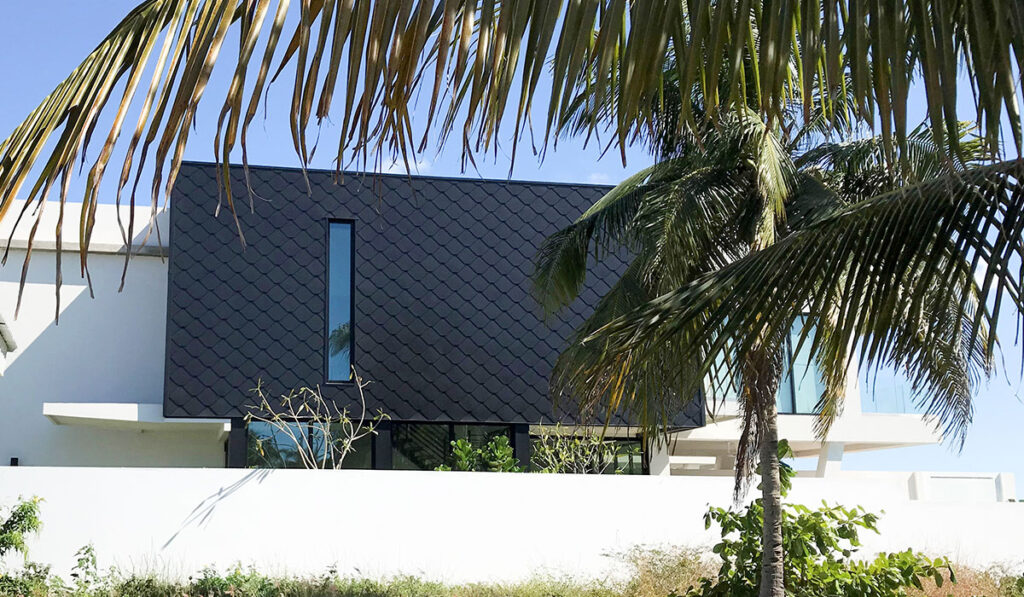

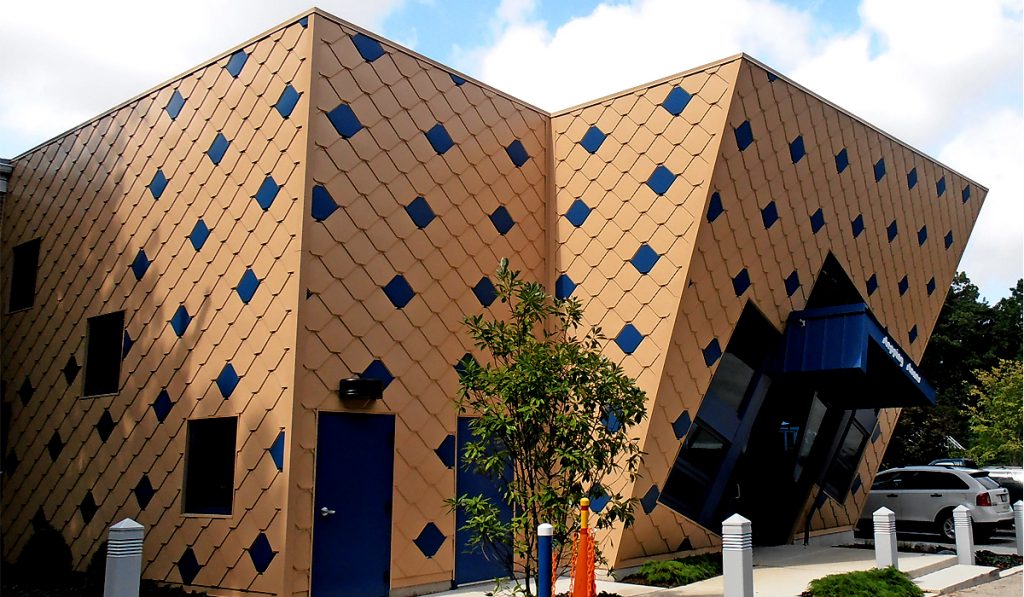

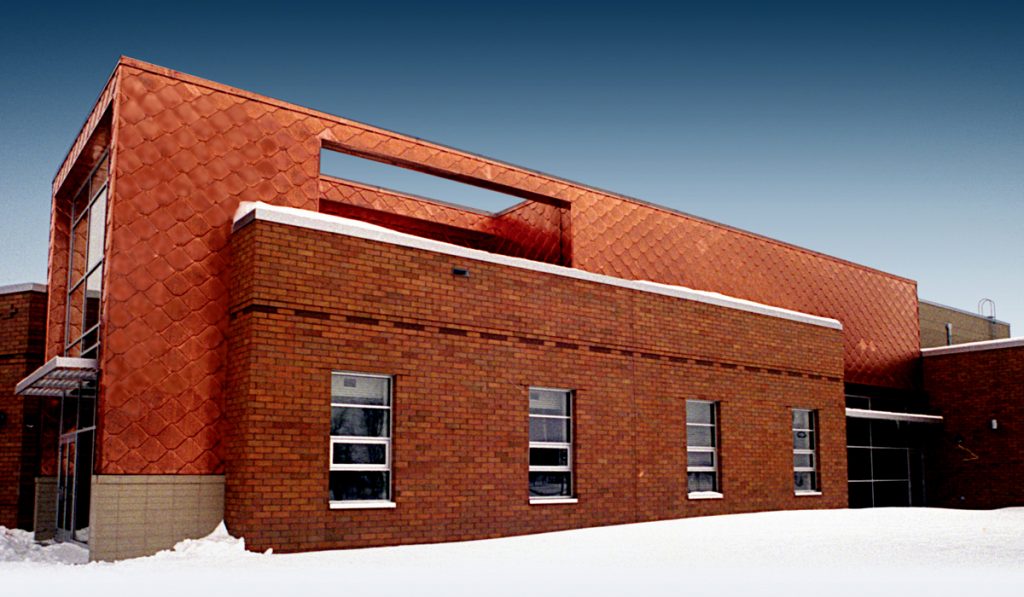

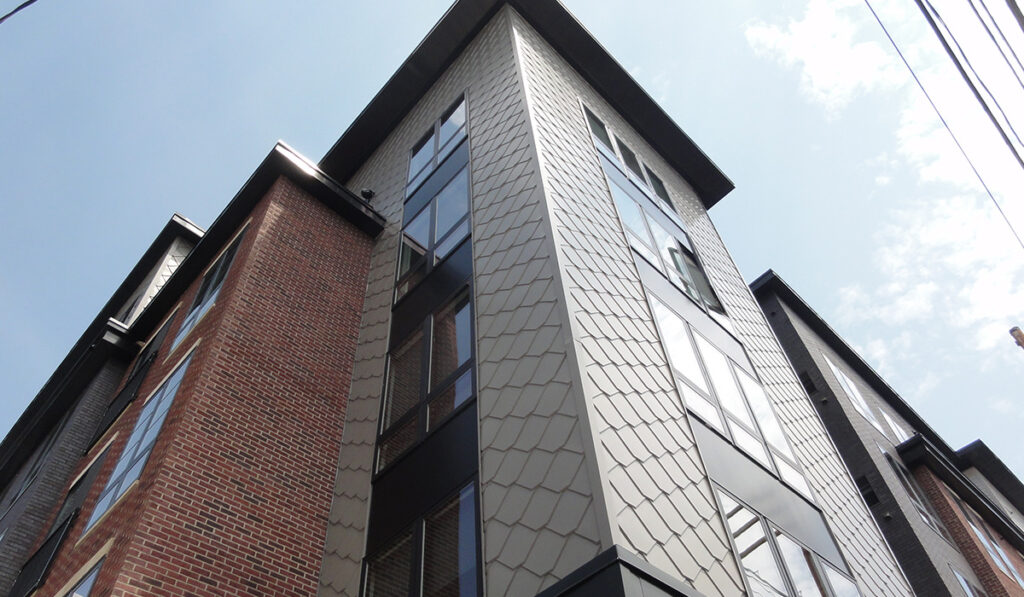

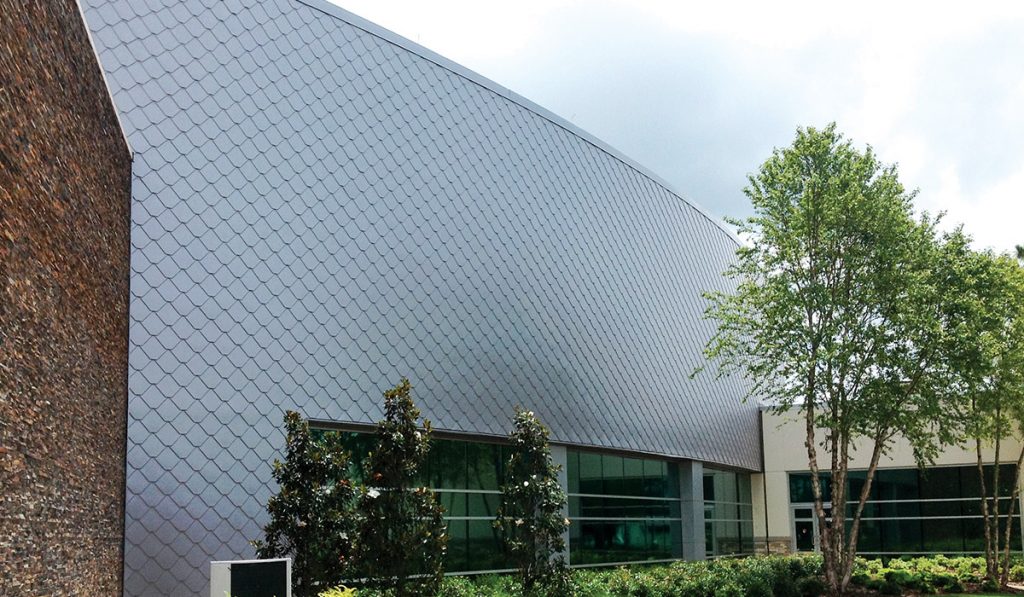

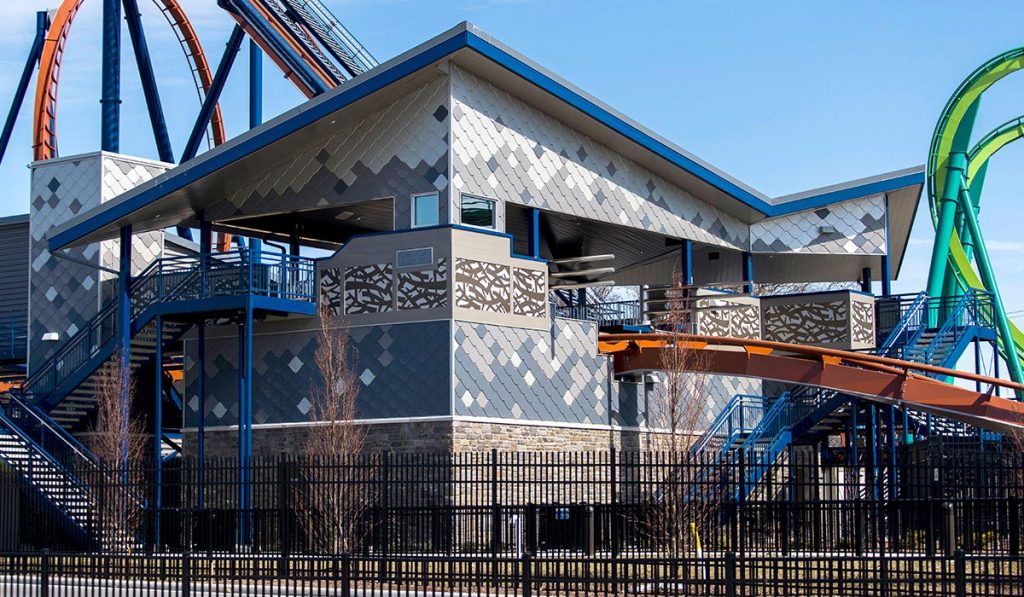

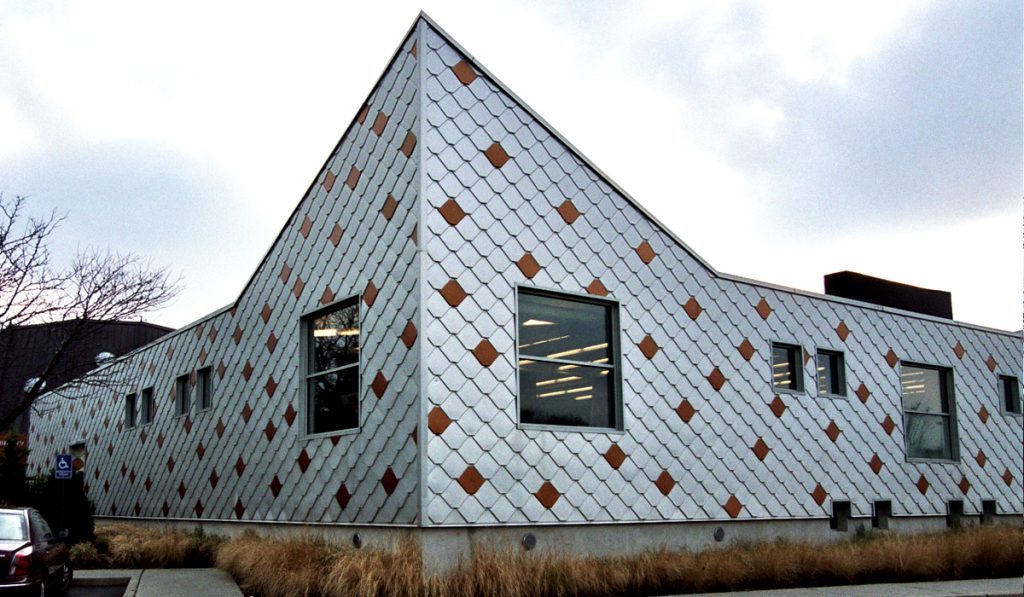

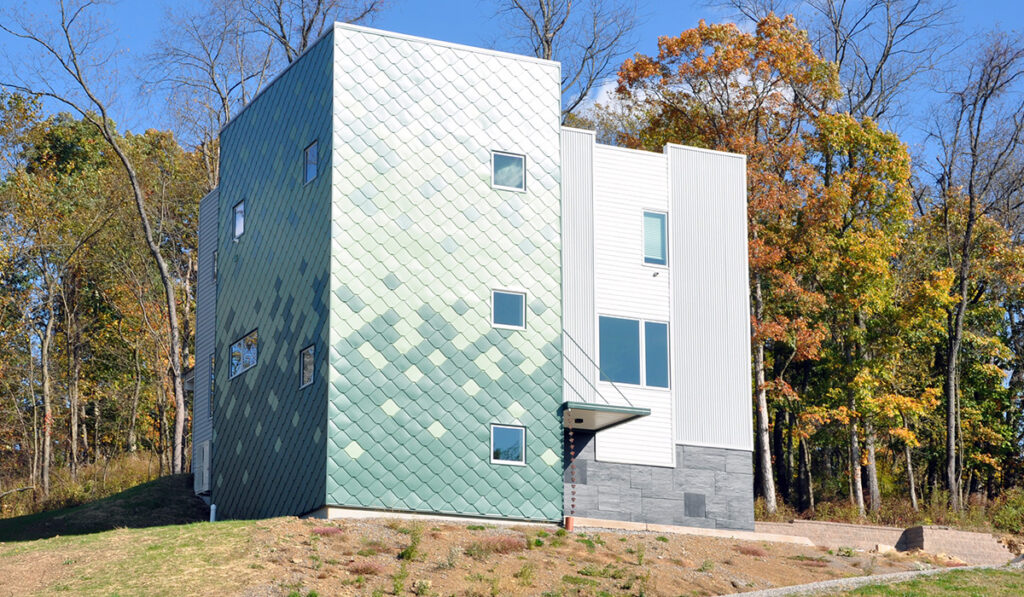

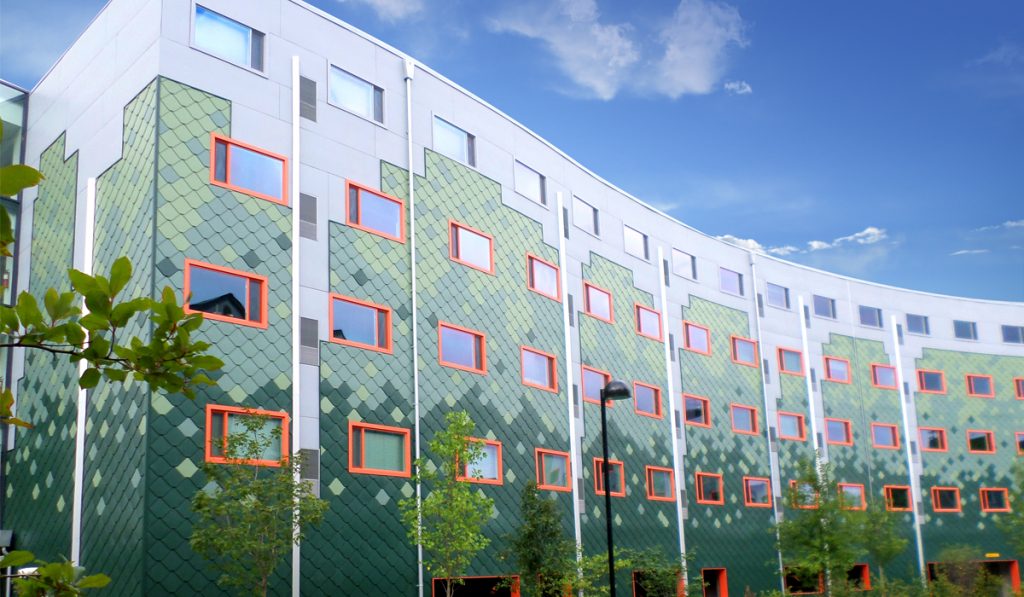

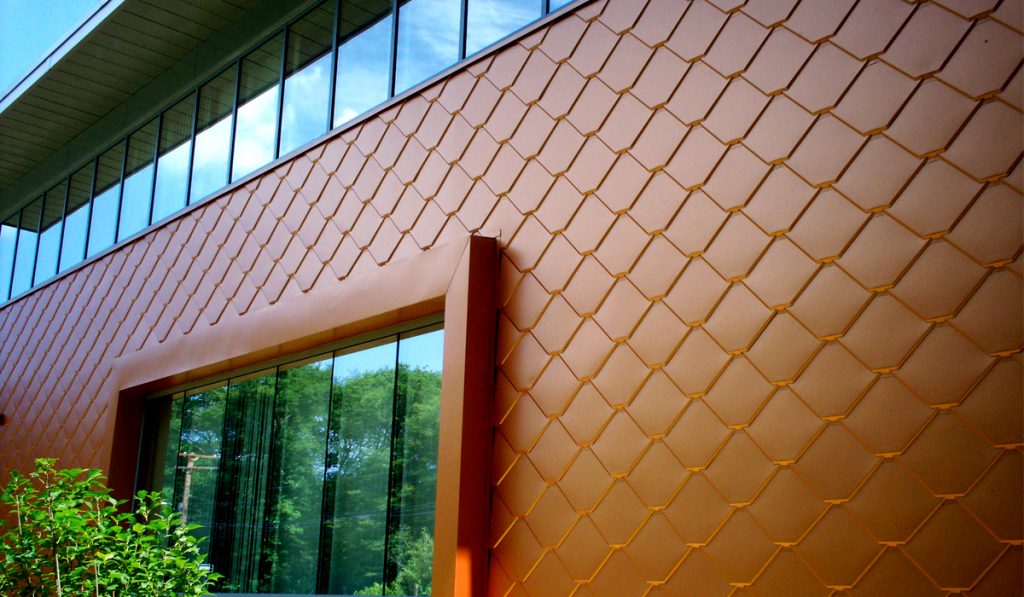

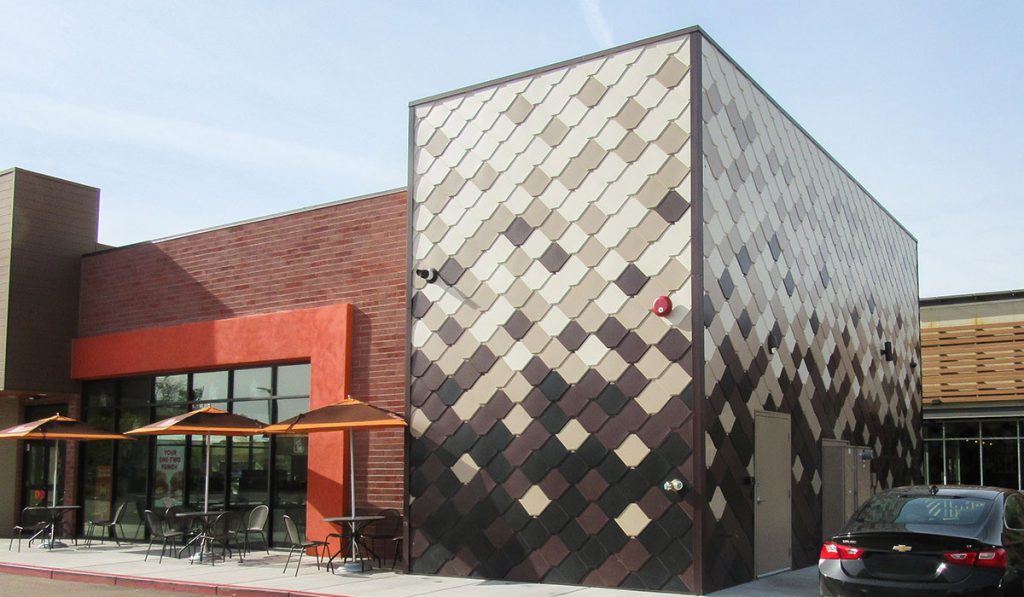

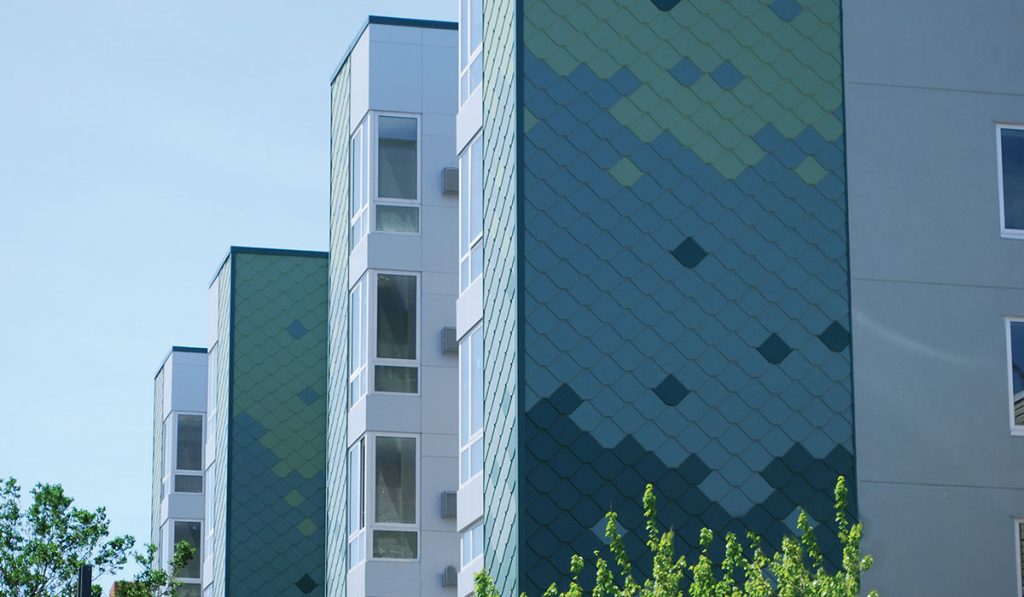

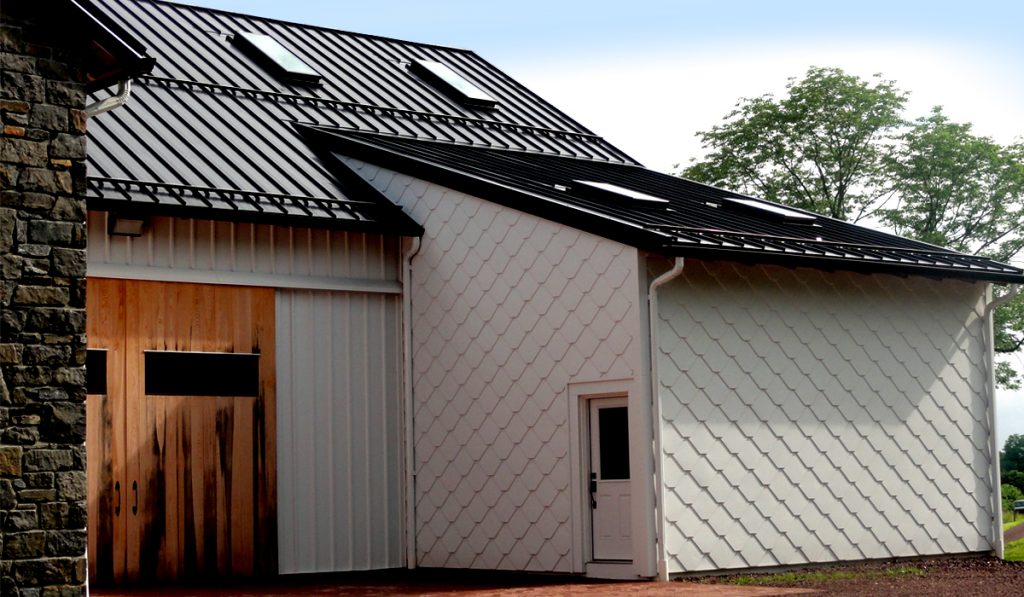

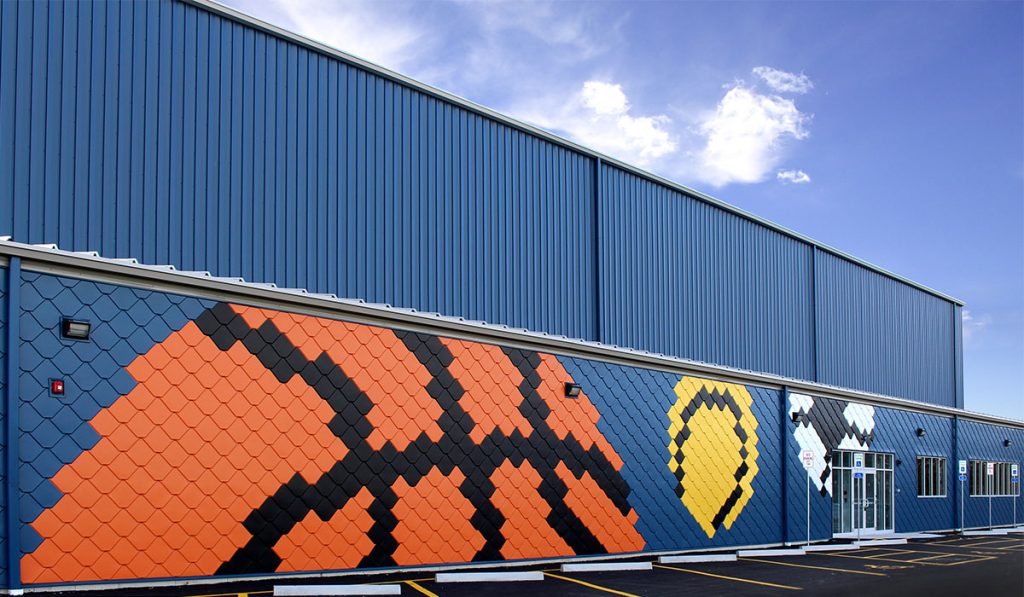

Gallery
