Omawall PL with EVO

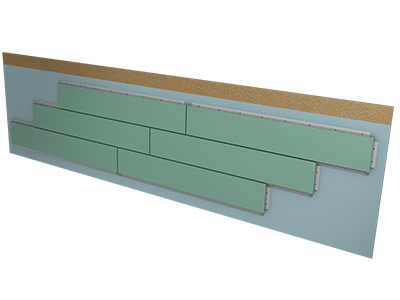

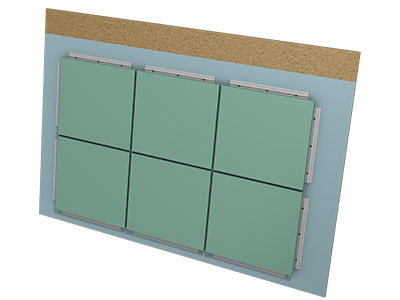

Omawall™ PL with EVO™ is an architectural plate panel and made fully of non-combustible materials. EVO™ is a patented panel extrusion attachment developed by Carter Architectural. Panels are prefabricated and field-cut, saving on installation time and costs by avoiding field-fabrication. It installs quickly and easily in horizontal or vertical orientation with a dry joint design incorporating metal splines to create the reveal appearance. This panel is ideal for all types of commercial, educational, and healthcare buildings, as well as multi-family residential and mixed-use buildings.

Line Drawing
Product Info
CAD Details
Gallery
Documents

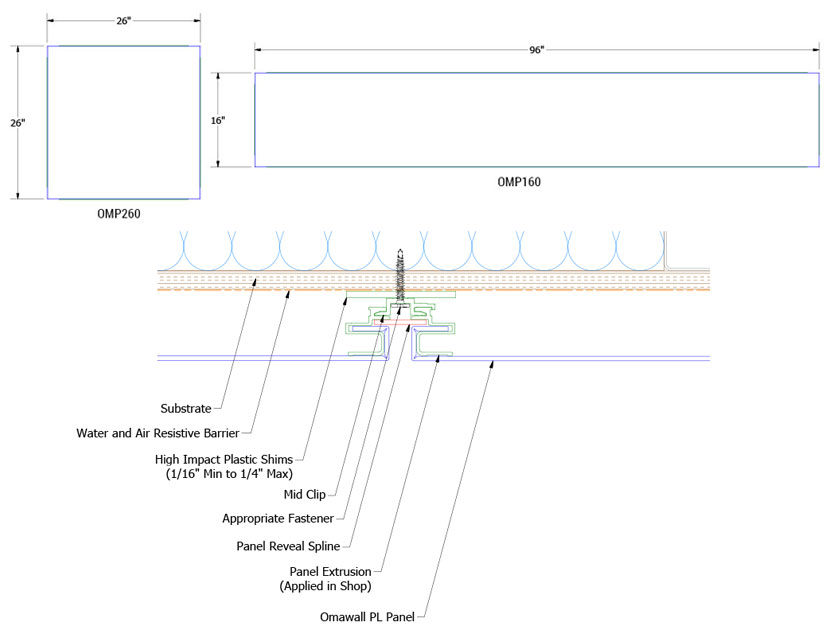

Line Drawing

Product Info

SKU:

OMP260
OMP160

Material:

.10 aluminum

Panel Size:

26″ x 26″
16″ x 96″
custom sizes available*

System Depth:

1¾”

Reveal Width:

9/16″

Texture:

Smooth

Finish:

70% PVDF

Colors:

Choice of over 40 standard colors
Custom colors and finishes available*

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

DWG File Format

Omawall PL - All Details

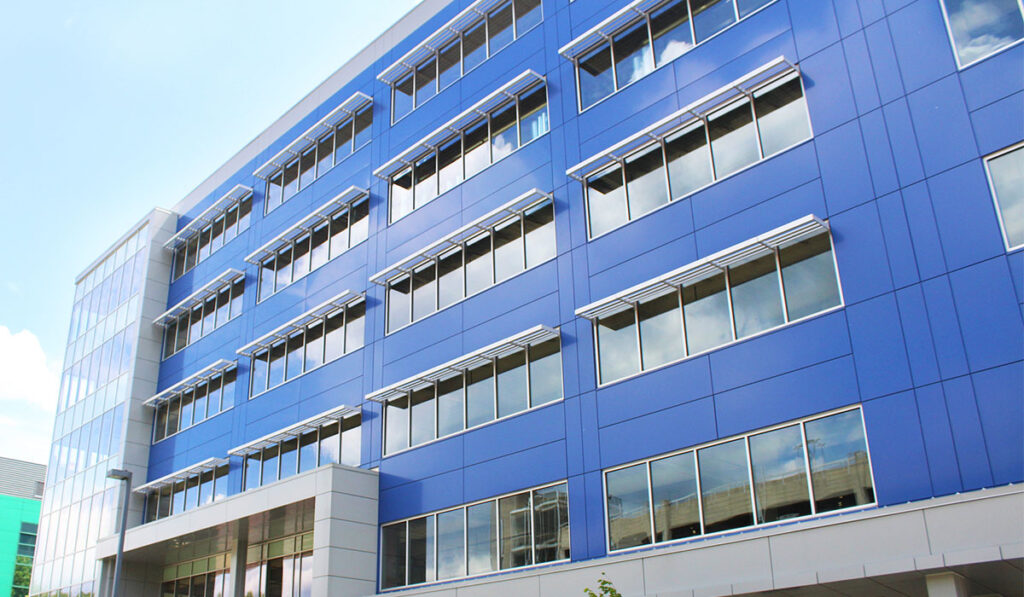

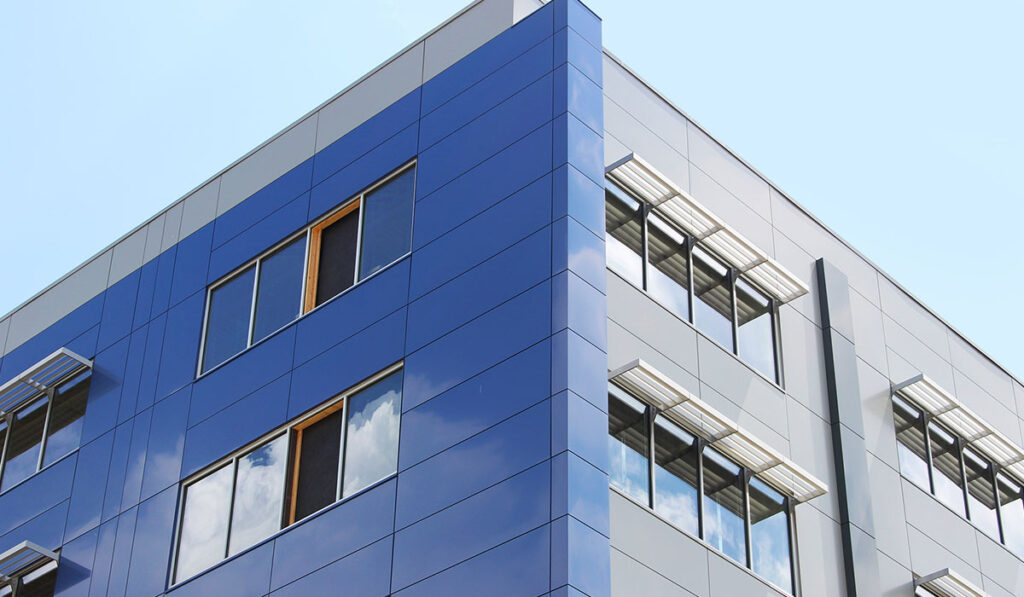

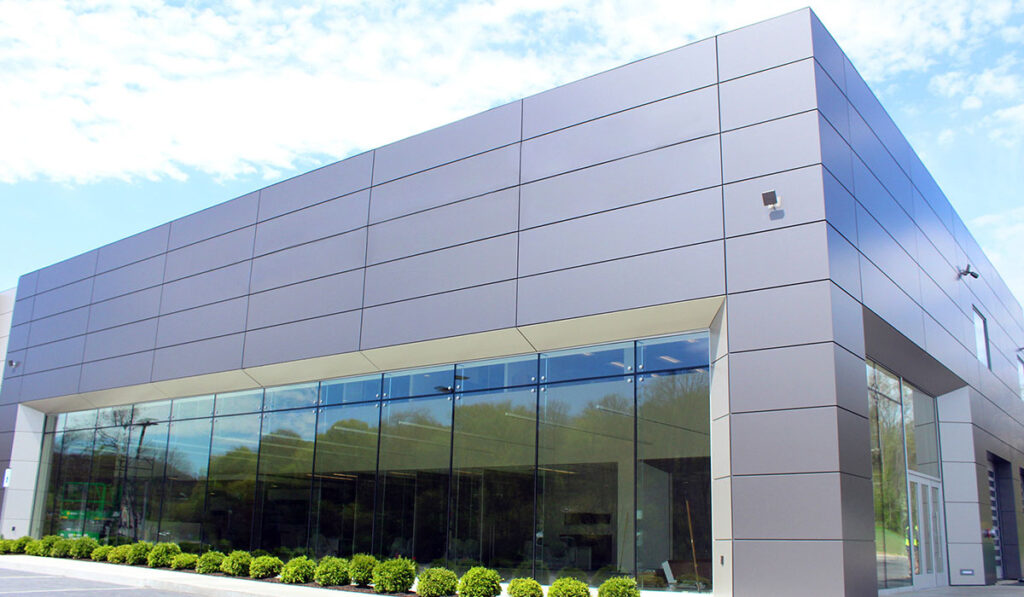

Gallery
