Profile Options

Overview

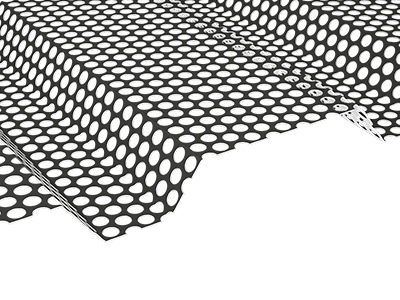

Perforated

Z Box

Belvedere PenumWall

Belvedere™ PenumWall panels can be installed either on solid substrate or open framing. Belvedere™ PenumWall is a structural wall panel that offers design freedom for all types of buildings. Shadow lines create architectural detail. The panel can be installed either on a solid substrate or spaced framing. It is through-fastened using color-matched, exposed fasteners.

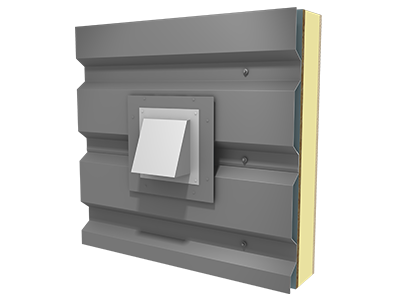

You can also enhance aesthetics of Belvedere™ PenumWall by using factory fabricated Elite Series, including the Z Box shown.

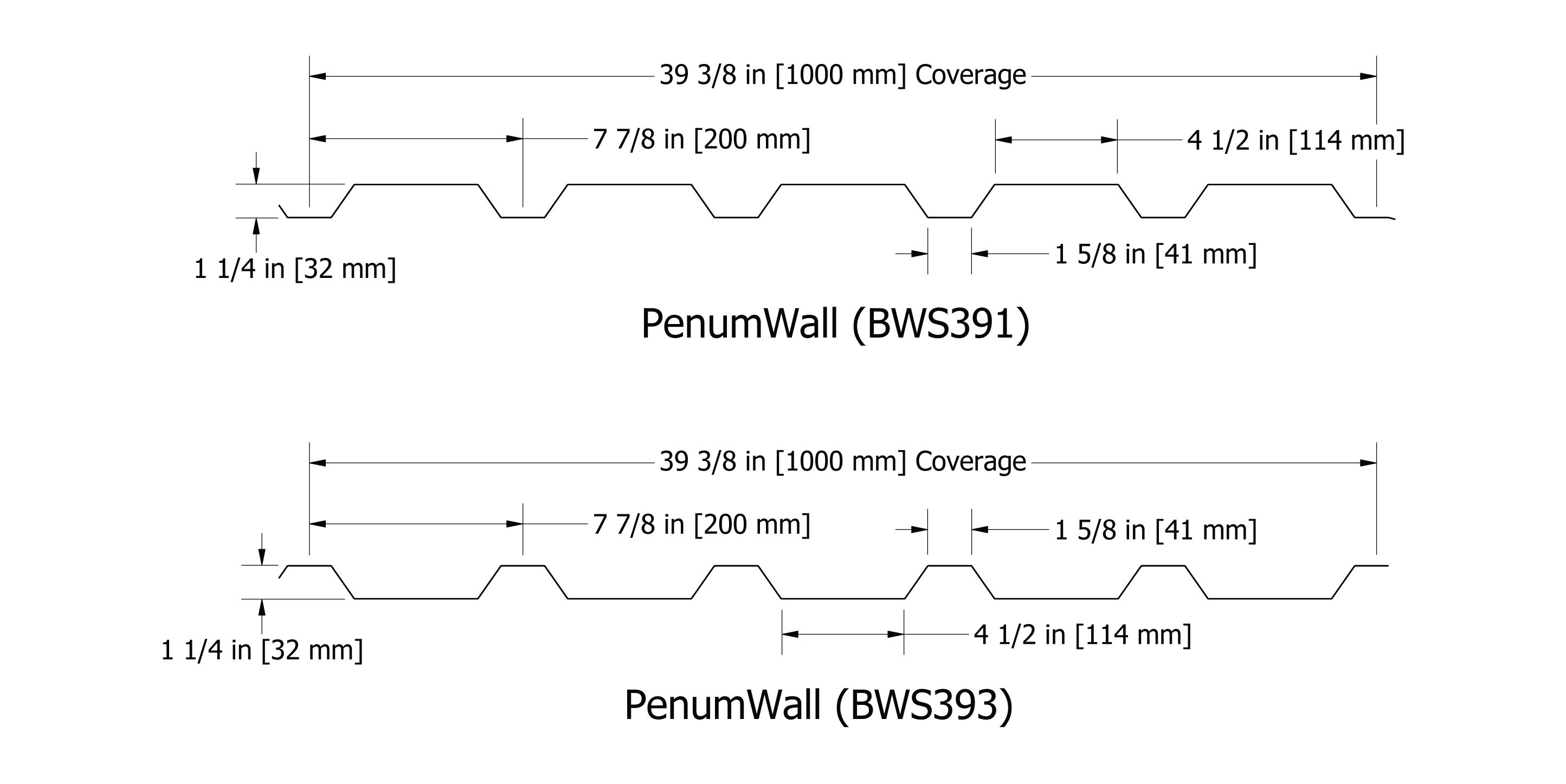

Line Drawing
Product Info
SKU:

BWS391

BWS393

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn coated steel with acrylic coating

Panel Coverage:

39⅜”

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

1¼”

Texture:

Smooth
Stucco Embossed

Perforations Available:
Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Florida Building Code Approval:

FL 35063.3 (Aluminum)
FL 35063.4 (Steel)

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
