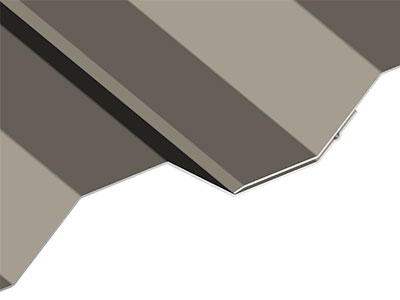

Overlap

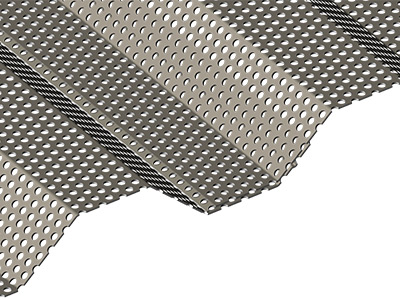

Perforated

Z Box

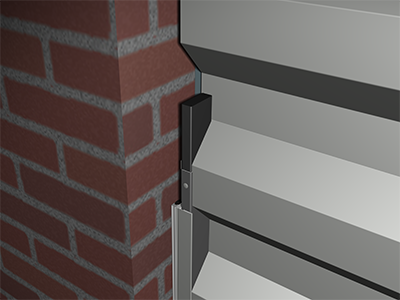

Closure Angle

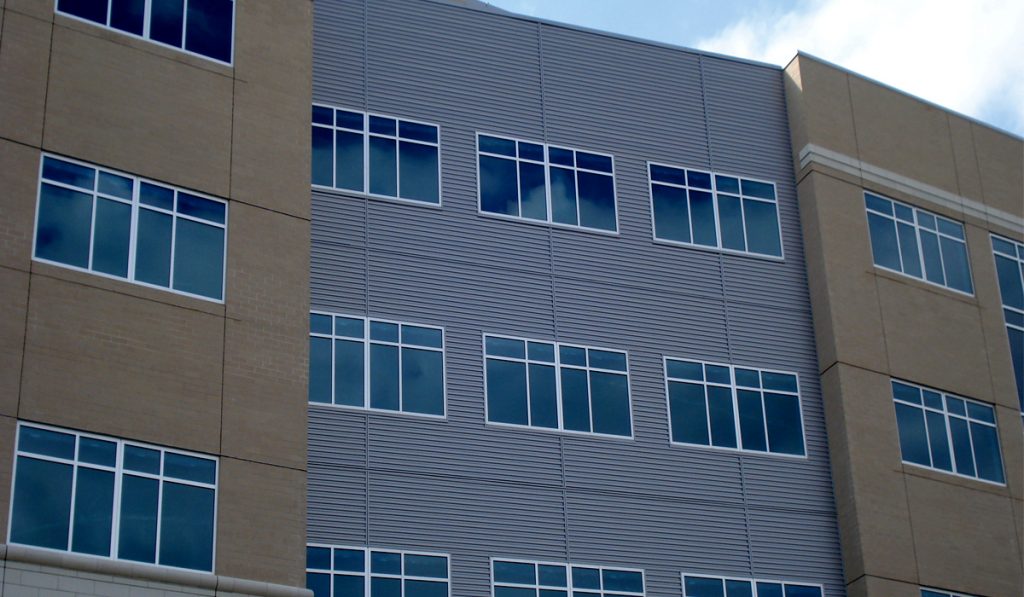

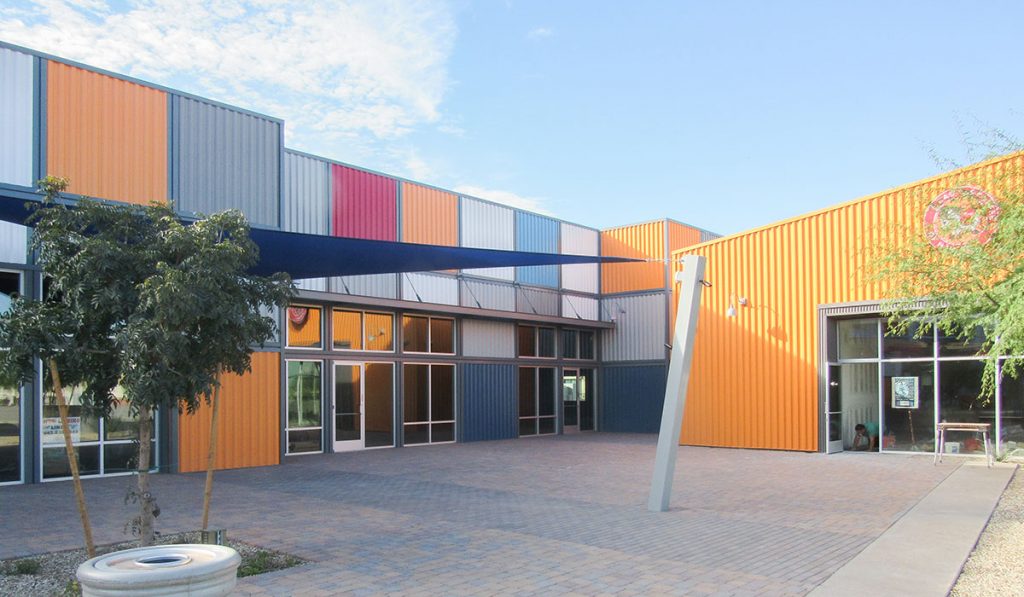

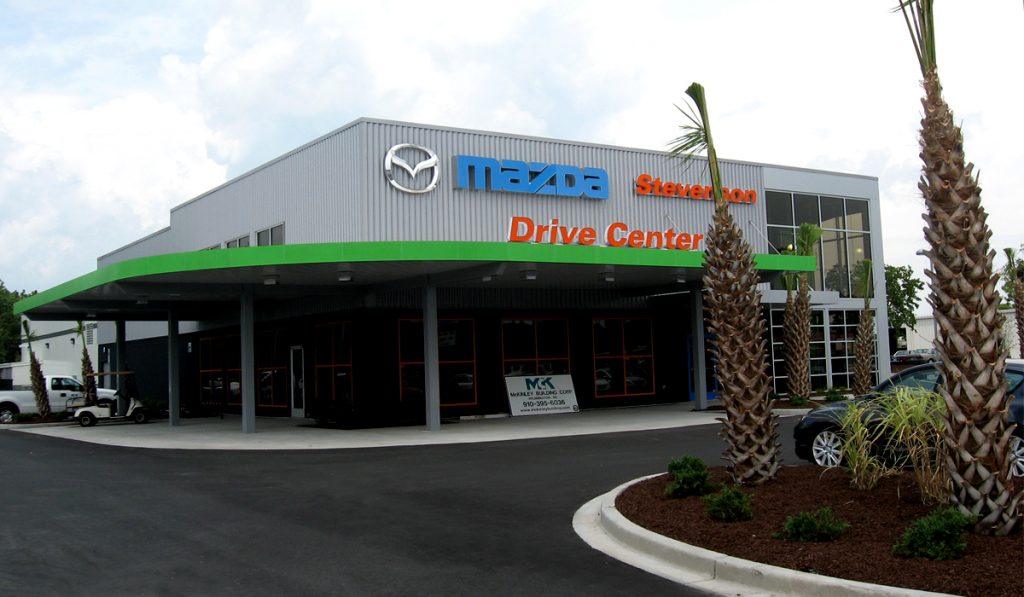

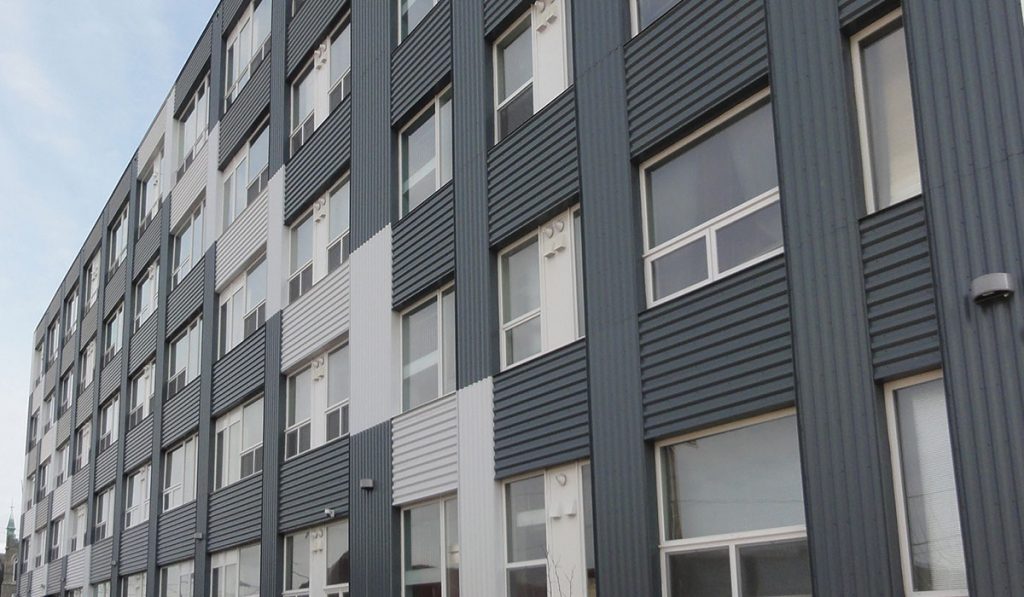

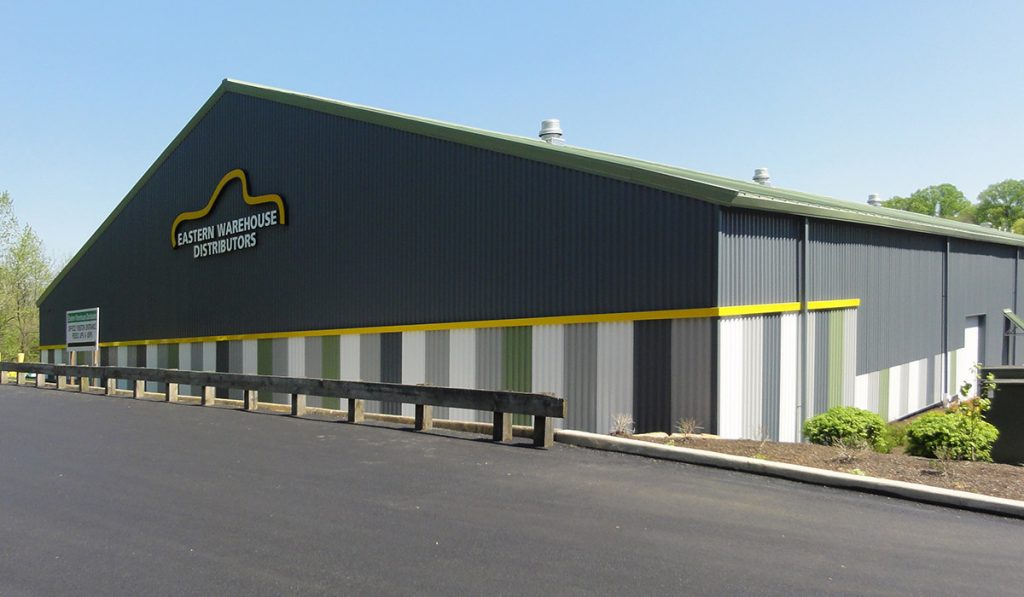

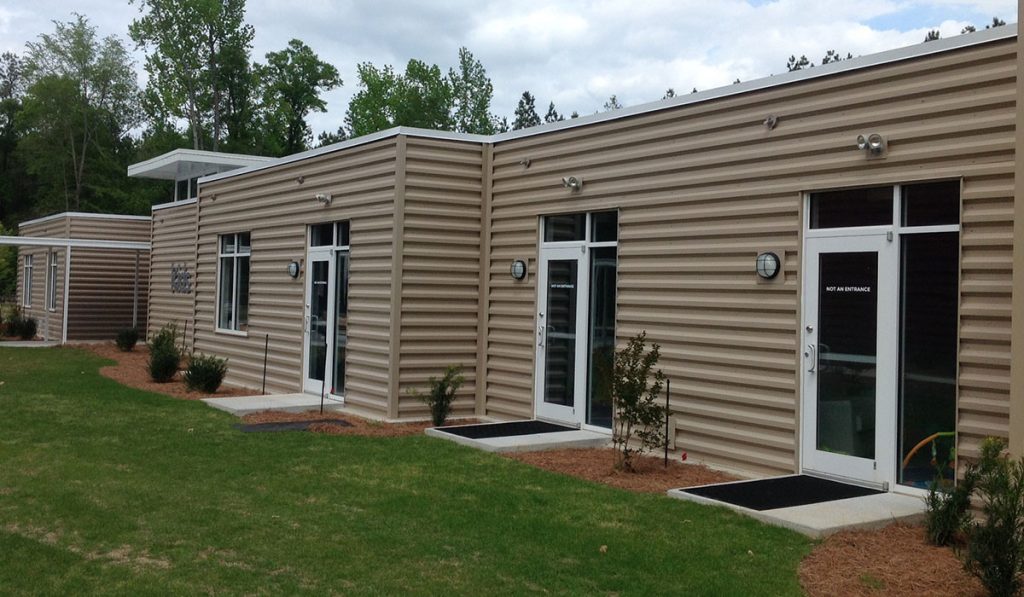

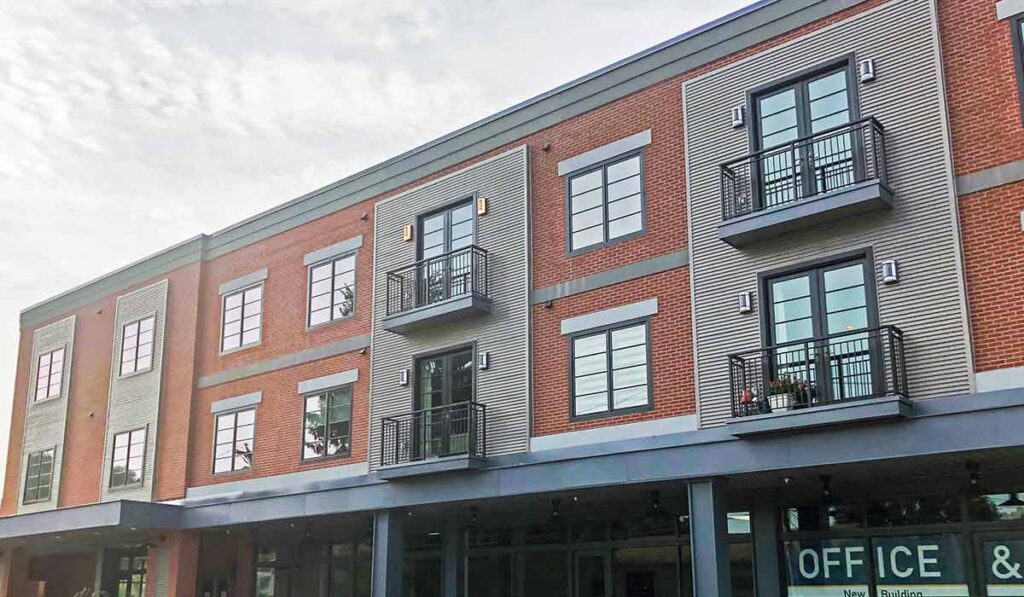

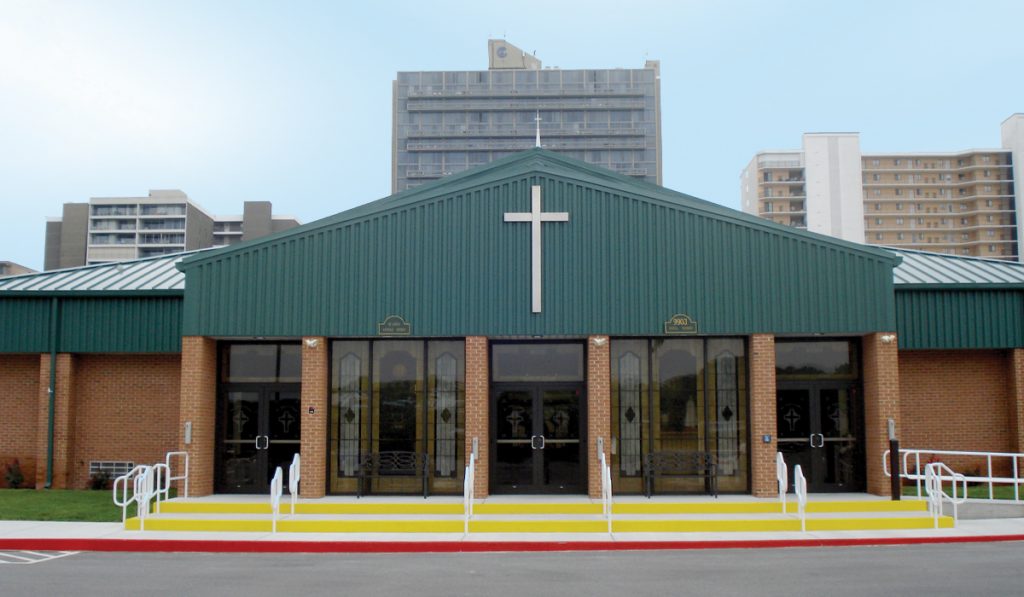

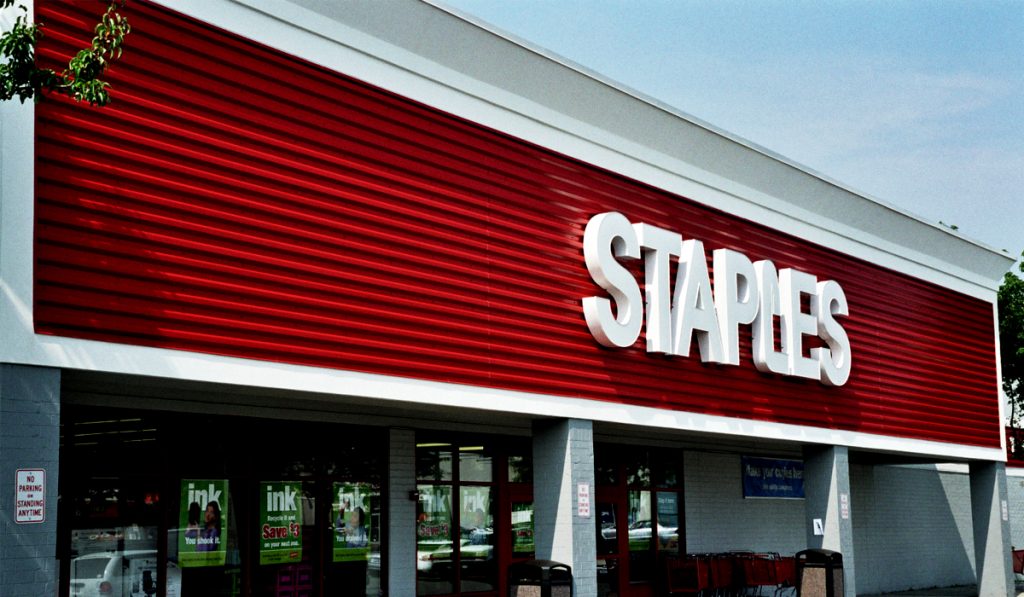

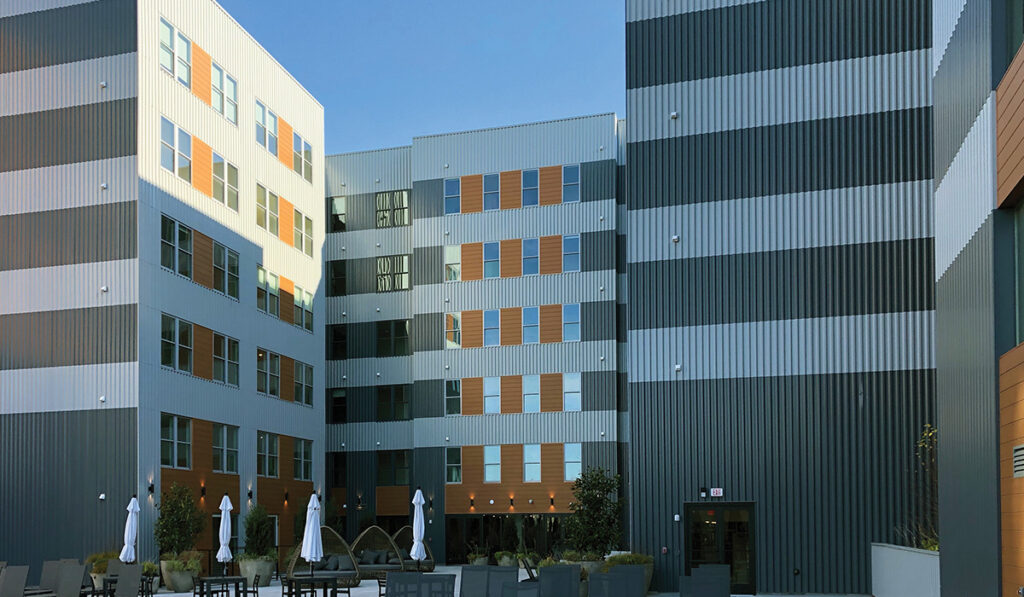

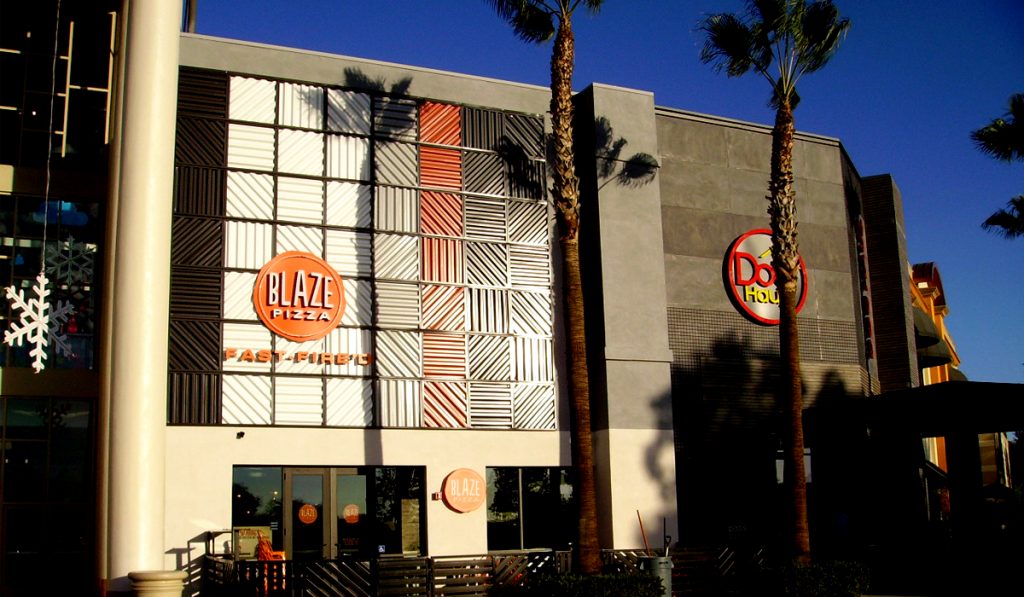

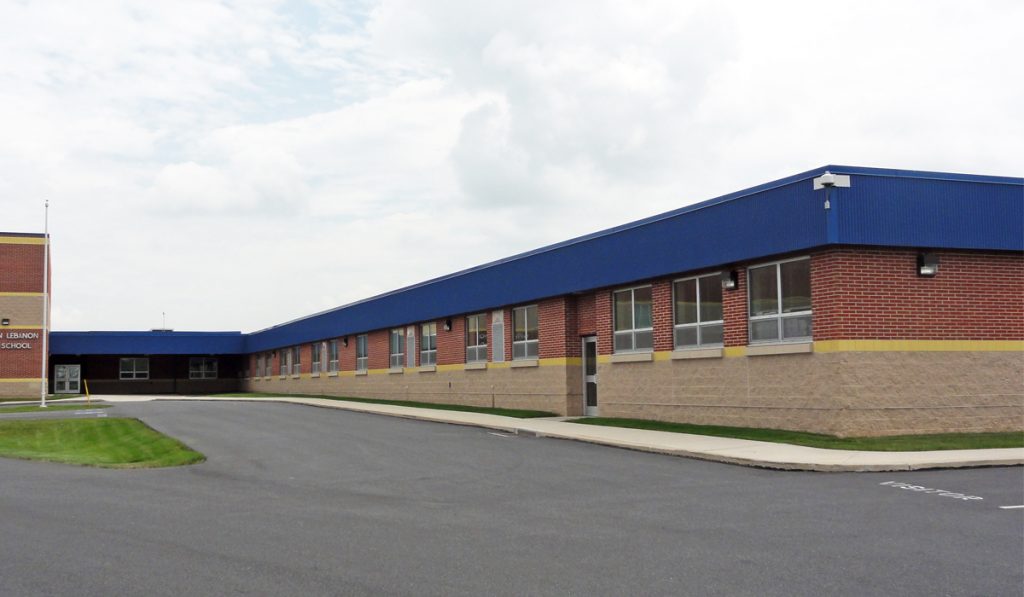

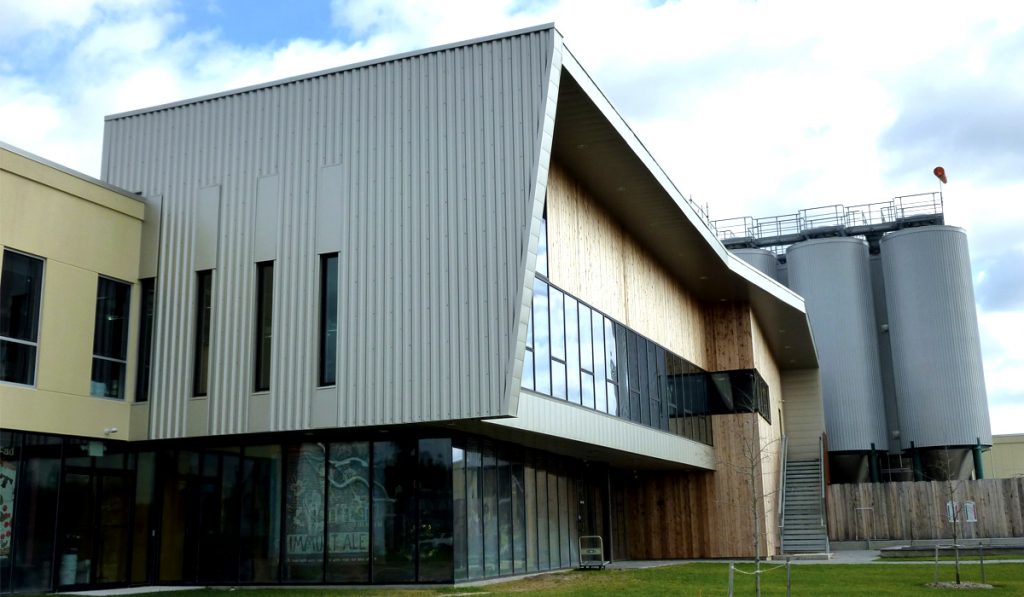

Belvedere 7.2″ Rib

Belvedere™ 7.2″ Rib wall panels are structural in nature and can be installed either on solid substrate or open framing. It is a structural wall panel that offers design freedom for all types of buildings. This panel can be installed vertically or horizontally with exposed fasteners.

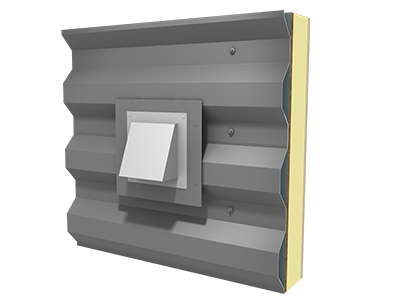

You can also enhance aesthetics of Belvedere™ 7.2″ Rib by using factory fabricated Elite Series, including the Z Box and Closure Angle shown.

Florida Building Product Approval: FL 30777.1 (Steel), FL 30777.2 (Aluminum)

Line Drawing
Product Info
SKU:

BWR360

Material:

.032, .040, .050 aluminum
24, 22*, 20*, 18* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn coated steel with acrylic coating

Panel Coverage:

36″

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

1½”

Texture:

Smooth
Stucco Embossed

Perforations Available:
Curving Available:

Crimp-Curved (convex & concave)

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Florida Building Code Approval:

FL 30777.1 (steel)

FL 30777.2 (aluminum)

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability
