Crimp Curved Span Wall

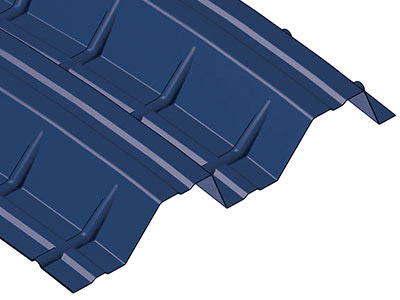

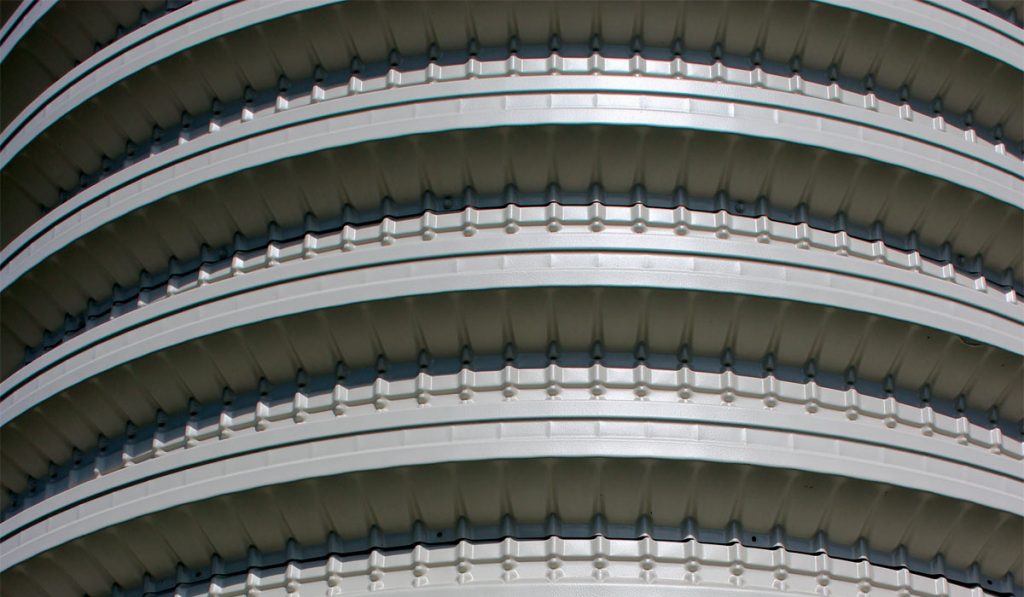

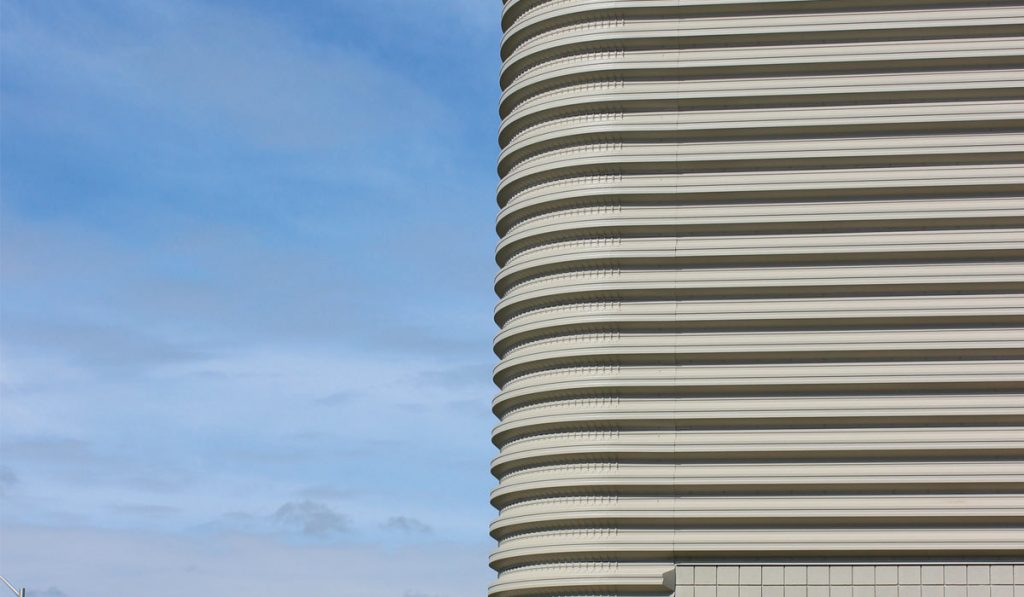

Span Wall™ is a structural wall panel that offers design freedom for all types of buildings. The panel can be installed horizontally or vertically on solid substrate or spaced framing. The texture is either smooth or embossed, depending on gauge of material. Typical applications for Span Wall™ are walls, equipment screens and mansards. Curved trims available.
BWS240
.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn coated steel with acrylic coating
24″
6’-0”
Transportation limitations and/or product and project design considerations
4″

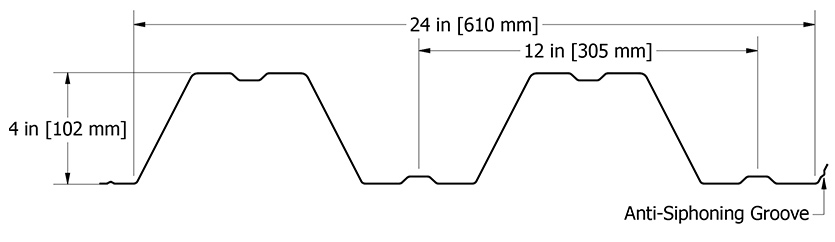

24″ W x 4″ D x 12″ Pitch
Convex and/or Concave
4 ft O.S. rad. min. 24 ga.
6 ft O.S. rad. min. 22 ga.
10 ft O.S. rad. min. 24 ga.
15 ft O.S. rad. min. 18 to 20 ga.
Smooth
Stucco Embossed
70% PVDF
Choice of over 40 stock colors
Custom colors and finishes available*
A complete line of curved trims available in matching colors, gauge and finish or as specified.
View the list of Crimp Curved Accessories.
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
