ScanRoof

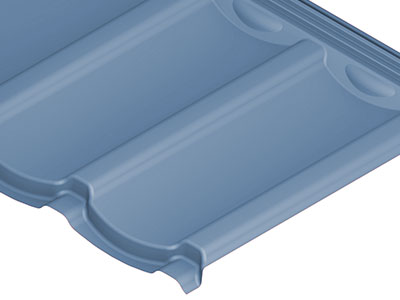

ScanRoof^™, a scalloped tile with a Northern European flair, is an easy-to-install metal roof panel. The panels are structural, practical and unique, making it ideal for steep slope roof projects. ScanRoof^™ is the ideal roof system to stand up against Mother Nature’s storms, typhoons, hurricanes, damaging winds and driving rains. The panel is installed horizontally, from eave to ridge. ScanRoof^™ has a 2” high integral Z purlin allowing for air flow between the panel and substrate. It is lightweight, allowing installation over an existing roof without the need for tear-off and disposal*. Typical applications for ScanRoof^™ are commercial and residential roofing with a recommended minimum slope of 3:12. It also is suitable for mansards.

Florida Building Product Approval: FL 3162.1

*Subject to local building codes

Line Drawing
Product Info
CAD Details

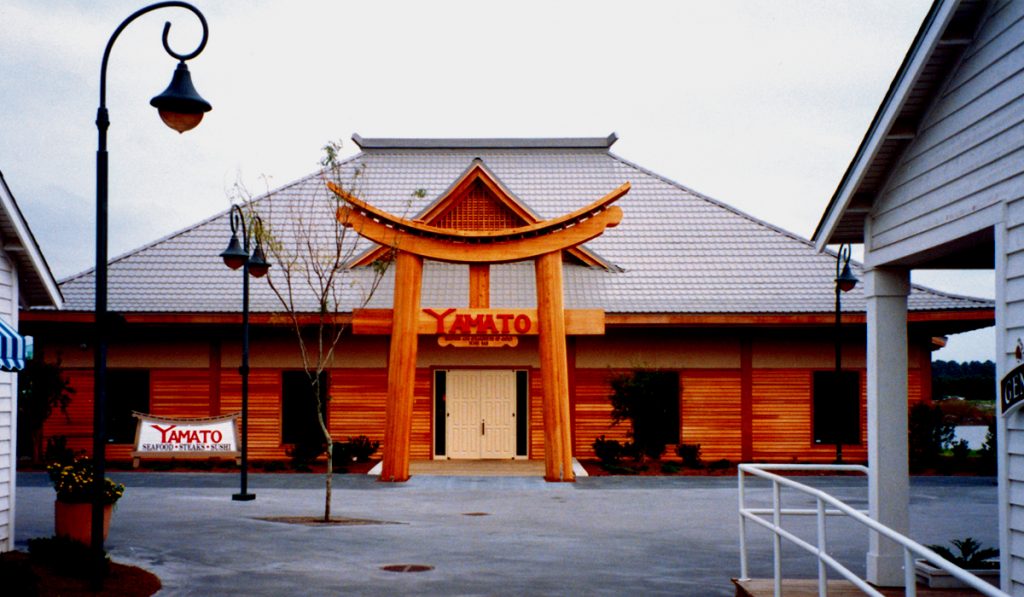

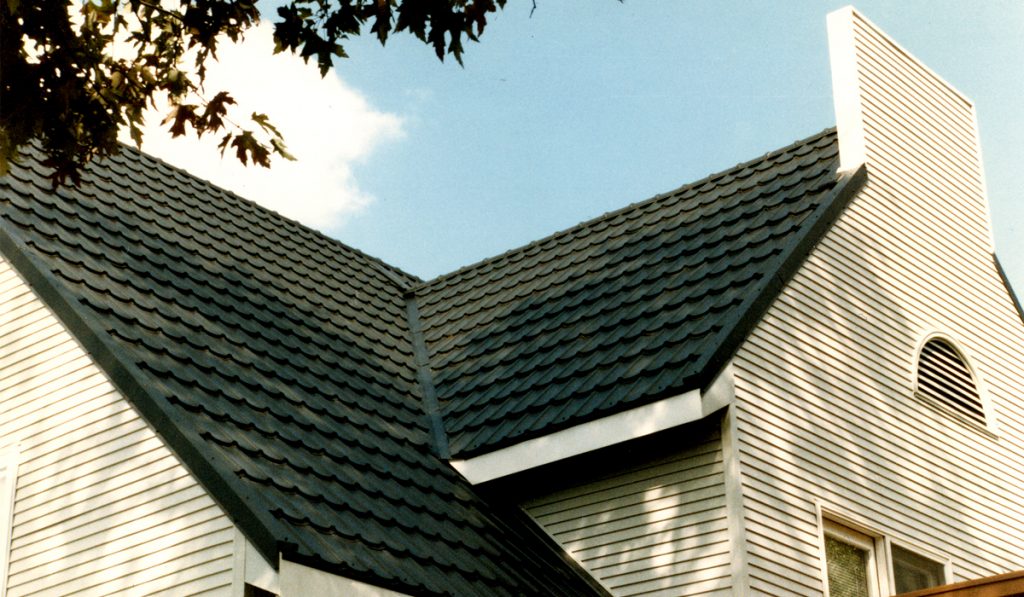

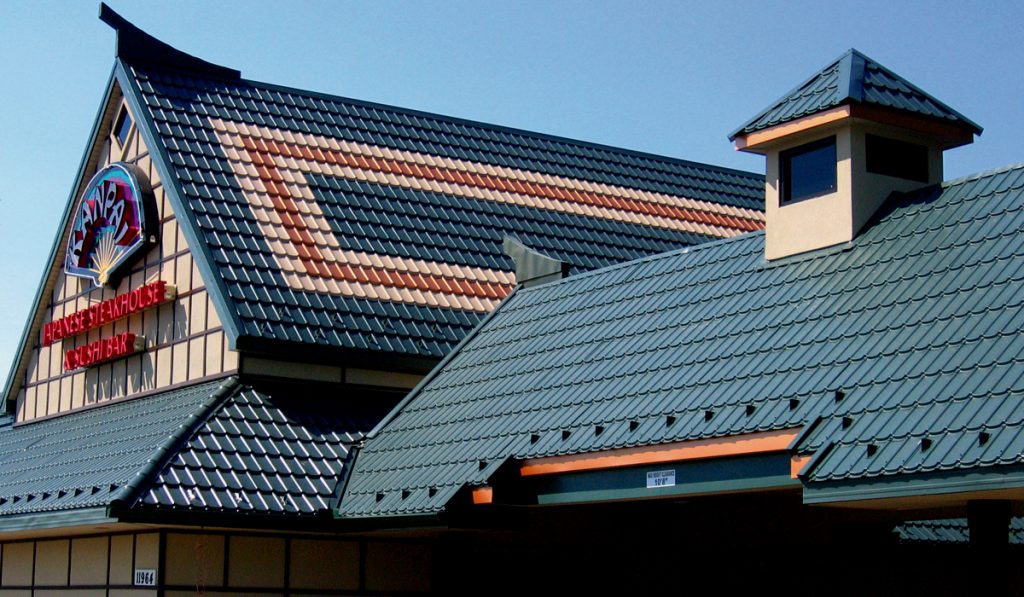

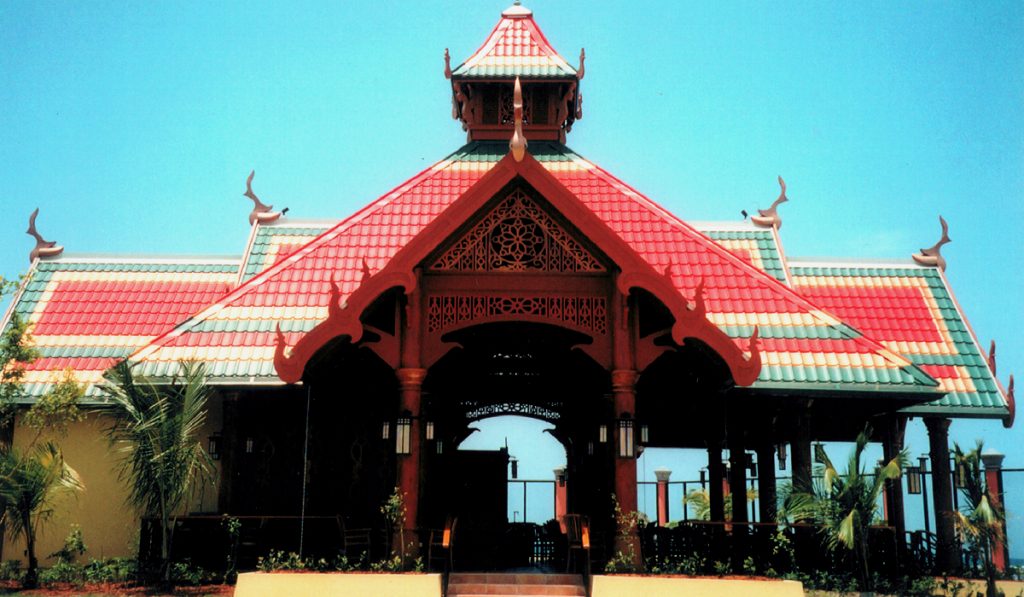

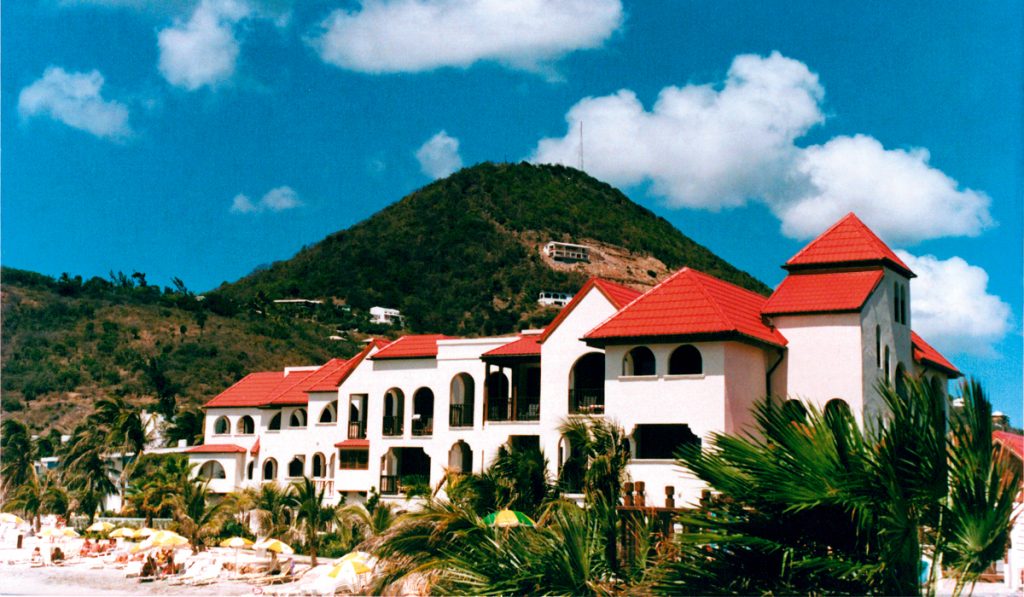

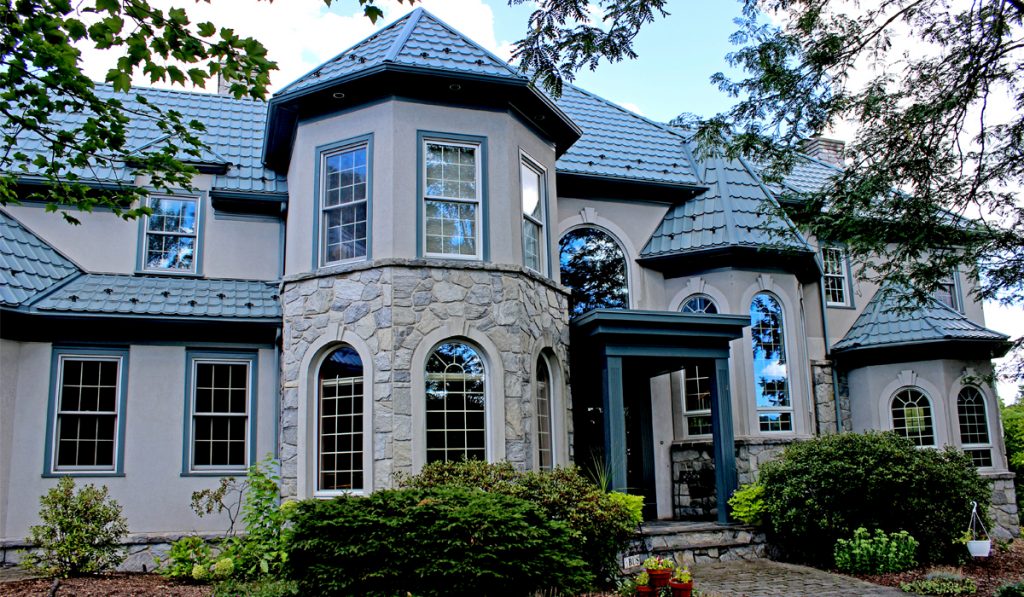

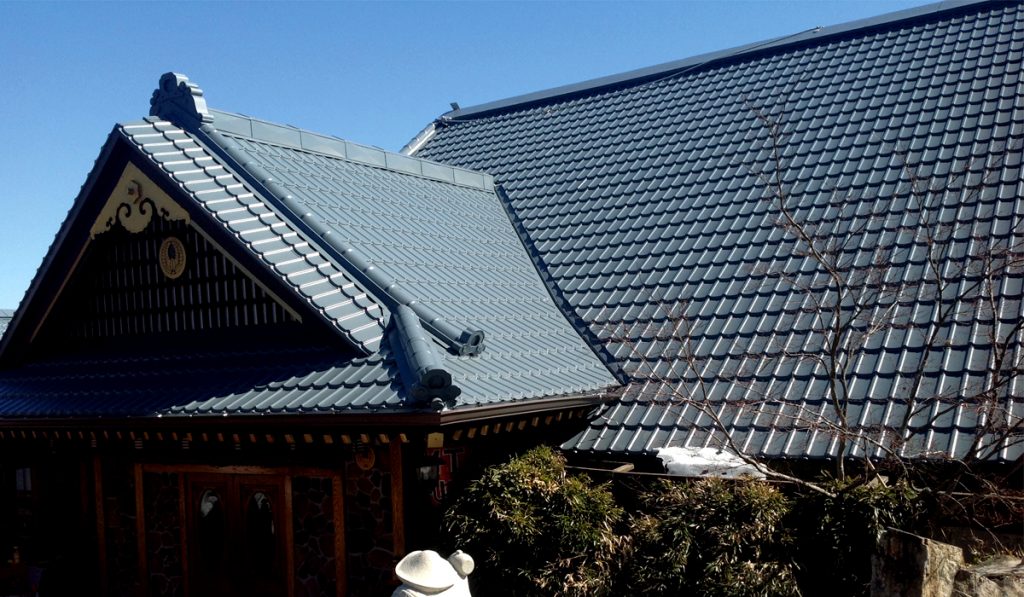

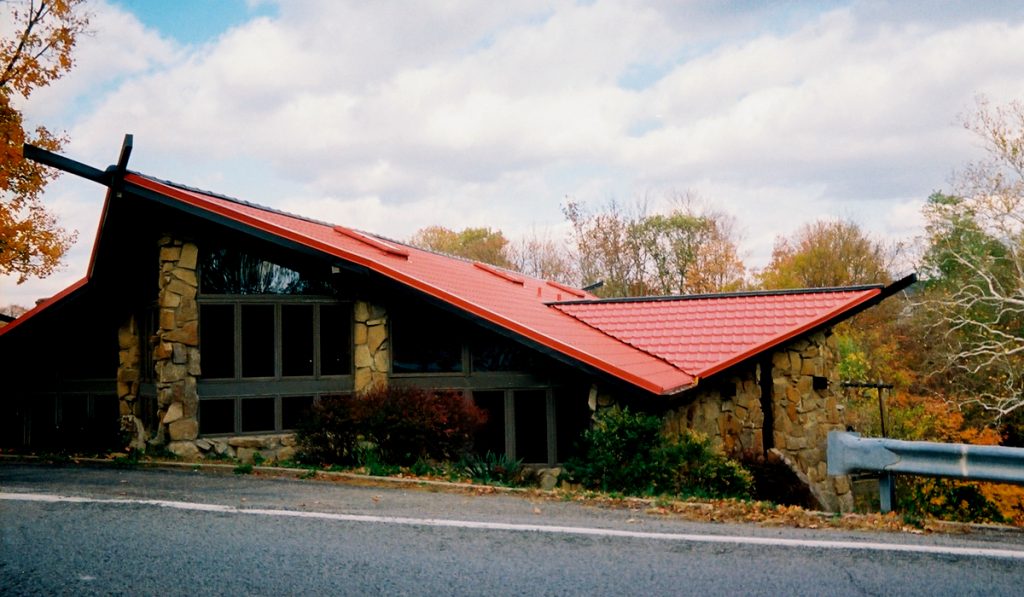

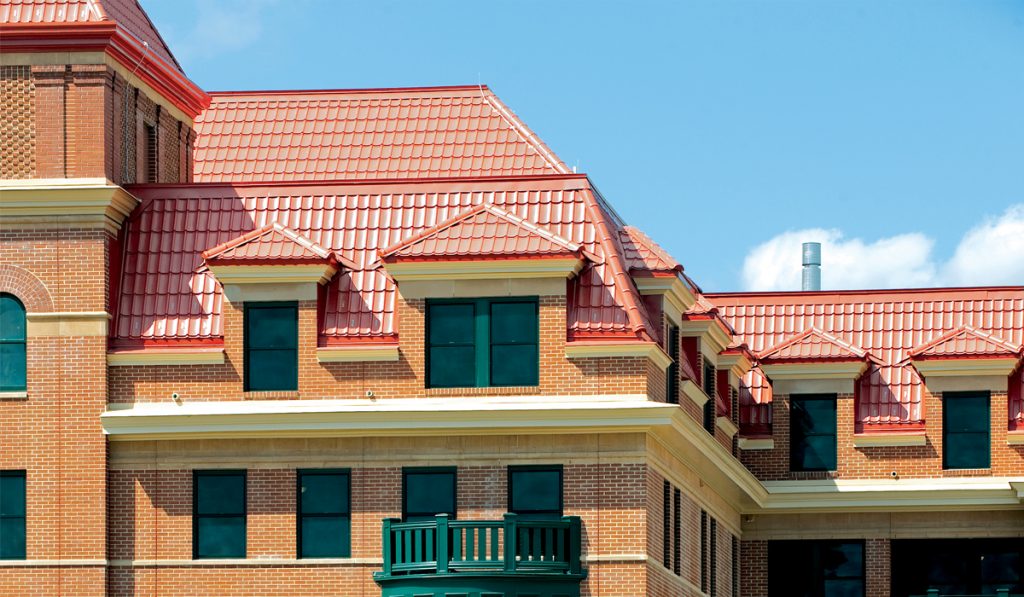

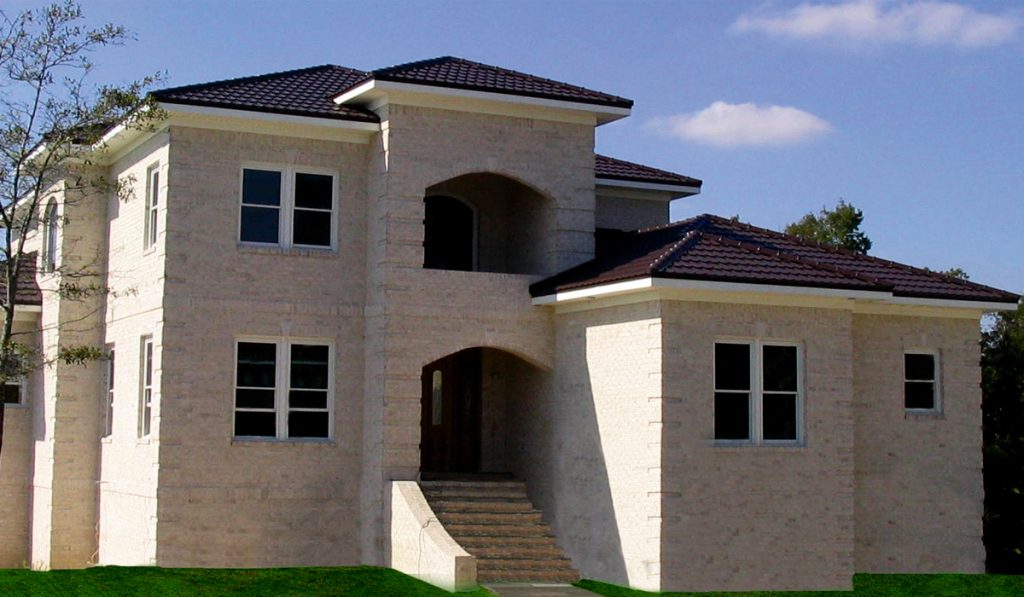

Gallery
Documents

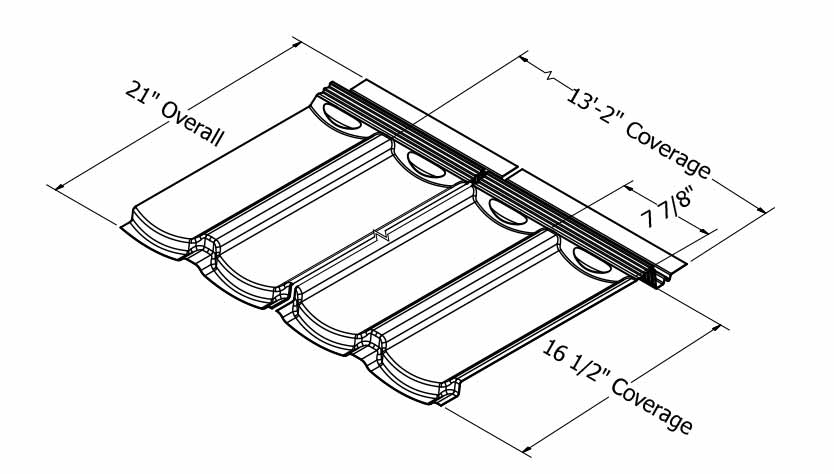

Line Drawing

Product Info

SKU:

SCP163

Material:

24 ga. metallic coated steel

Tile Coverage:

16½” x 13′-2″

Texture:

Smooth

Finish:

70% PVDF

Colors:

Choice of 35 stock colors
Premium colors are not recommended
Custom colors available*

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Minimum Slope:

3:12

Florida Building Product Approval:

FL 3162.1

MCA Certification:

Premium Painted

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
