Profile Options

Overview

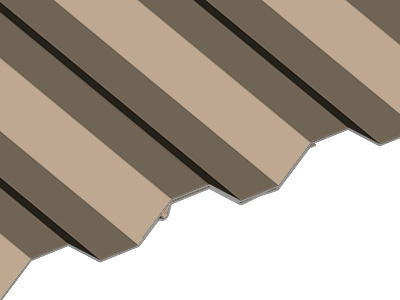

Panel Overlap

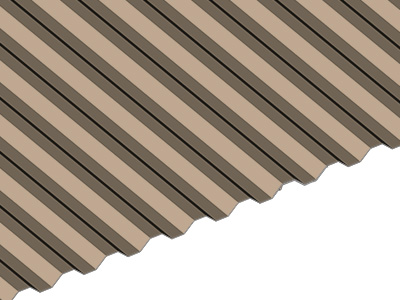

Grand C

The Grand C Panels provide an unique solution for today’s metal roofing needs. Panels are designed for use over solid substrates or open framing with support members spaced a maximum of 24 inches on center. Typical applications include walls, fascias, mansards, equipment screens and some limited roofing with a minimum slope of 3:12.

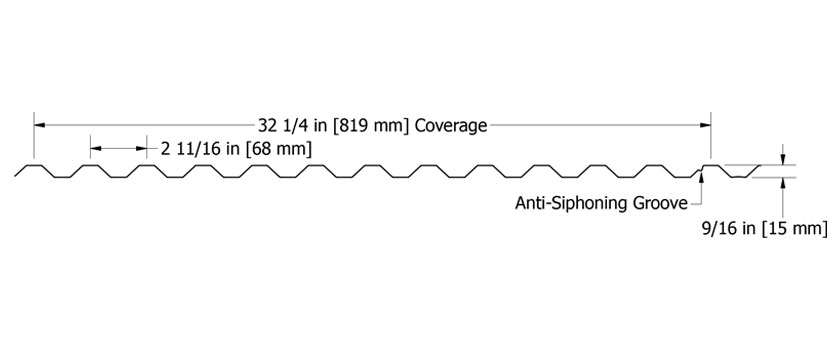

Line Drawing
Product Info
SKU:

BWF324

Material:

.032 aluminum

Panel Coverage:

32¼”

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Height:

9⁄16″

Texture:

Smooth

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge and finish or as specified

Minimum Slope:

3:12

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

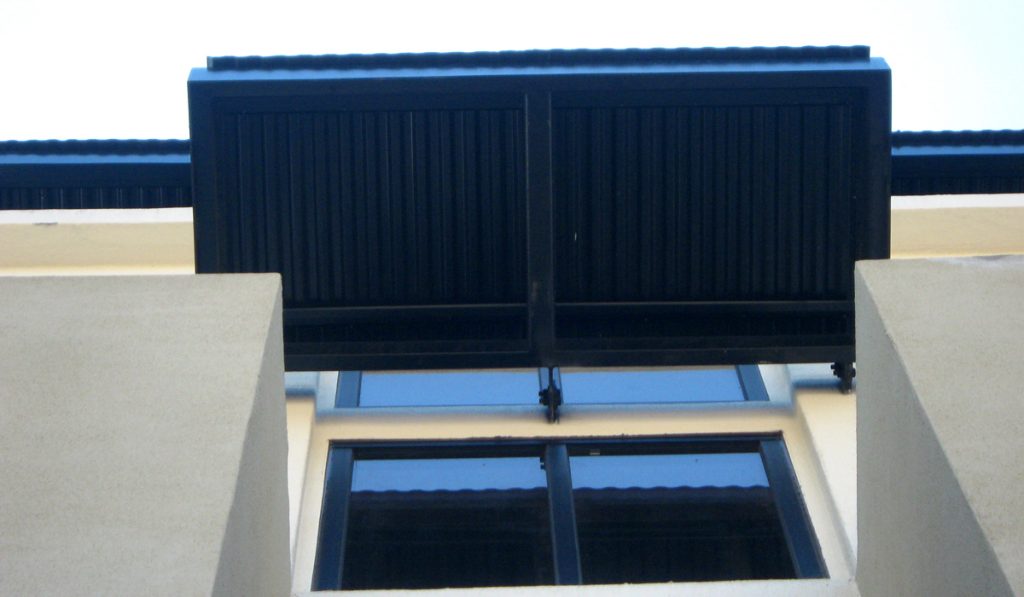

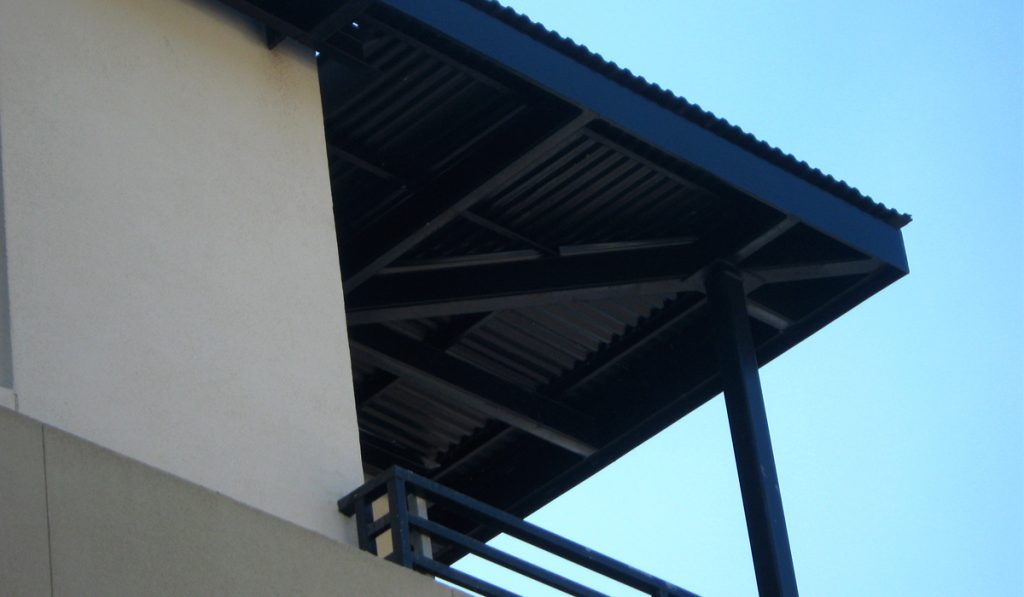

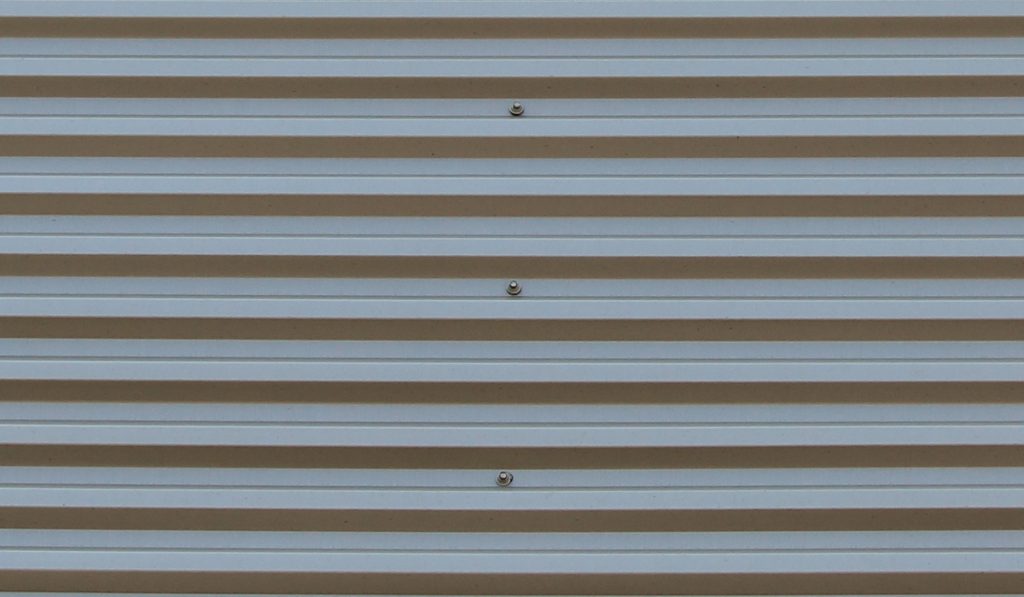

Gallery
