PC System | Standing Seam

The PC™ Systems consist of three parts, the pan, a separate seam or batten, and a clip. The seam is snapped over the clips concealing the fastening system. With the batten style, the system is installed with a spacer clip and is snapped in place. The PC™ Systems are not structural panels and must be applied to a solid substrate. PC™ System panels can be used for tapered and curved installations.

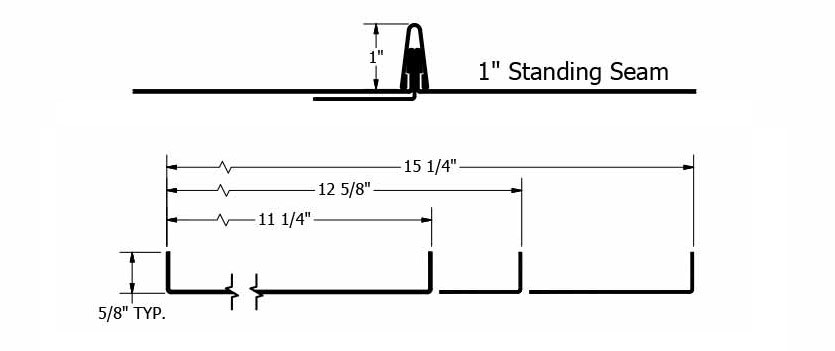

Line Drawing
Product Info
Panel SKU:

PCP110
PCP120
PCP150
PCP999

PC Seam SKU:

PCS114

PC Copper SKU:

PCP147

Material:

.032, .040 aluminum
24, 22* ga. metallic coated steel
16 oz. copper* (PCP147 only)
24 ga. 55% Al-Zn alloy coated steel with acrylic coating

Panel Coverage:

11¼”
12⅝”
14⅝”*
15¼”
Custom widths available*
*Copper and Dark Bronze Anodized Only

Minimum Panel Length:

2’-0”

Maximum Panel Length:

Transportation limits and/or product and project design considerations

Seam Height:

1″

Available:

Straight
Tapered
Curved (Convex & Concave)

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Minimum Slope:

3:12

MCA Certification:

0057PCP

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

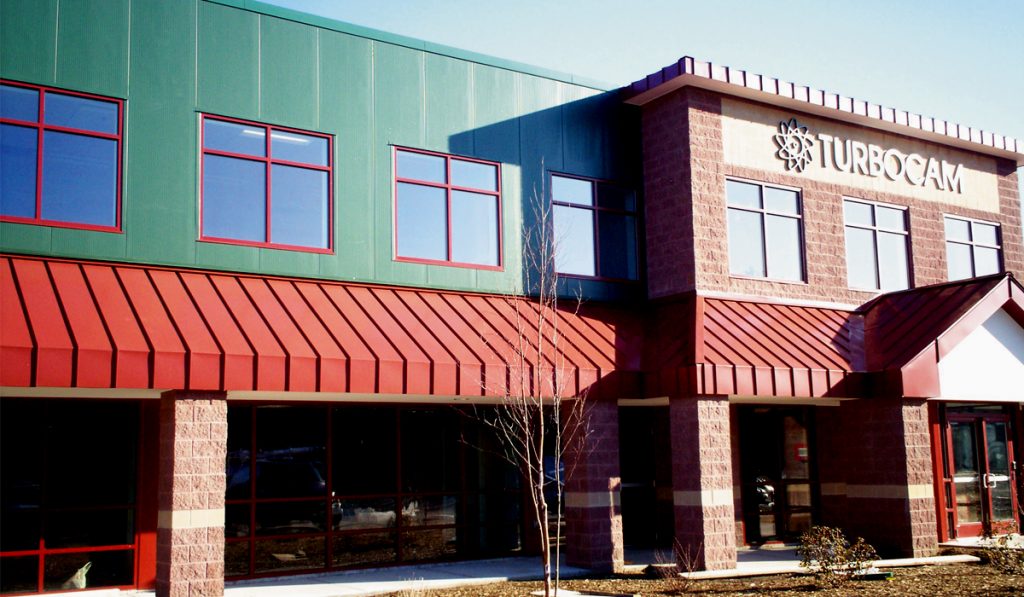

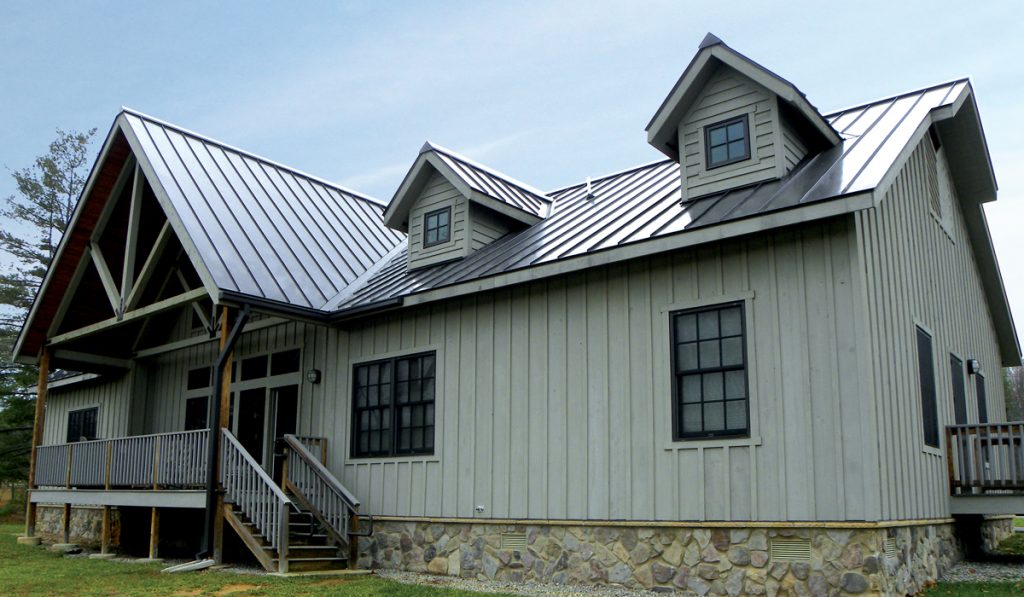

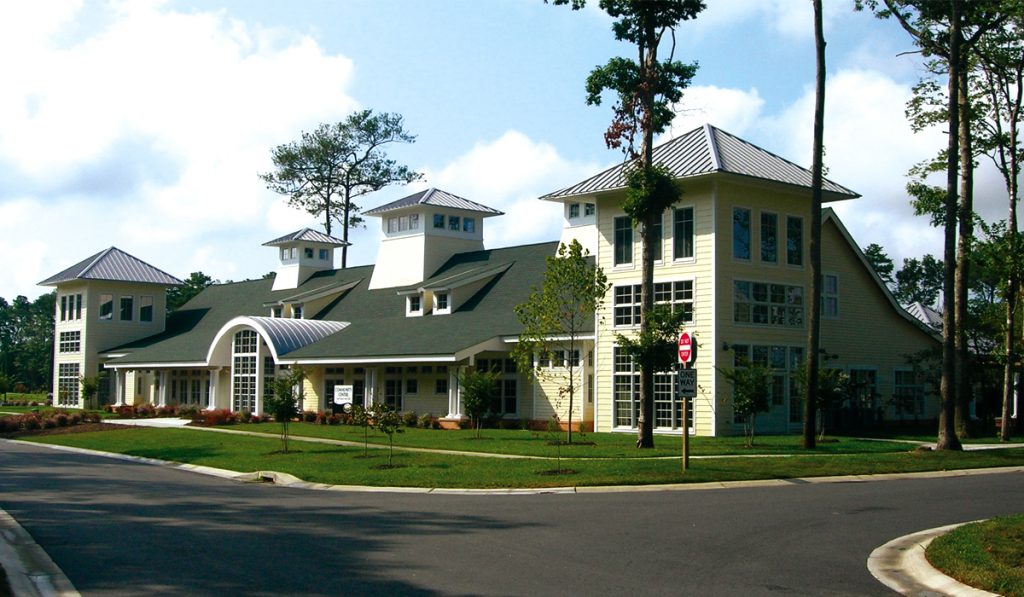

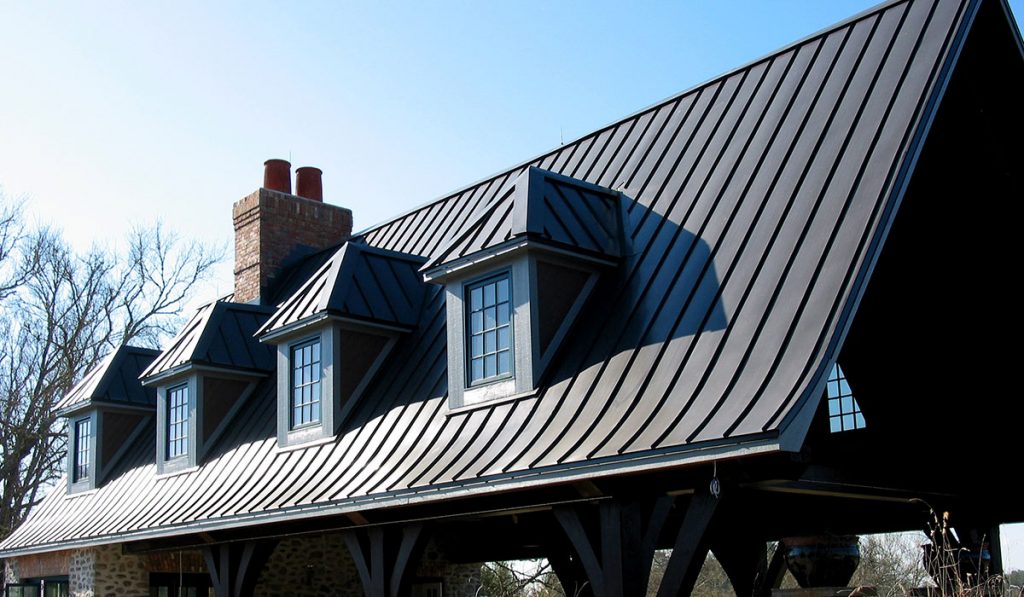

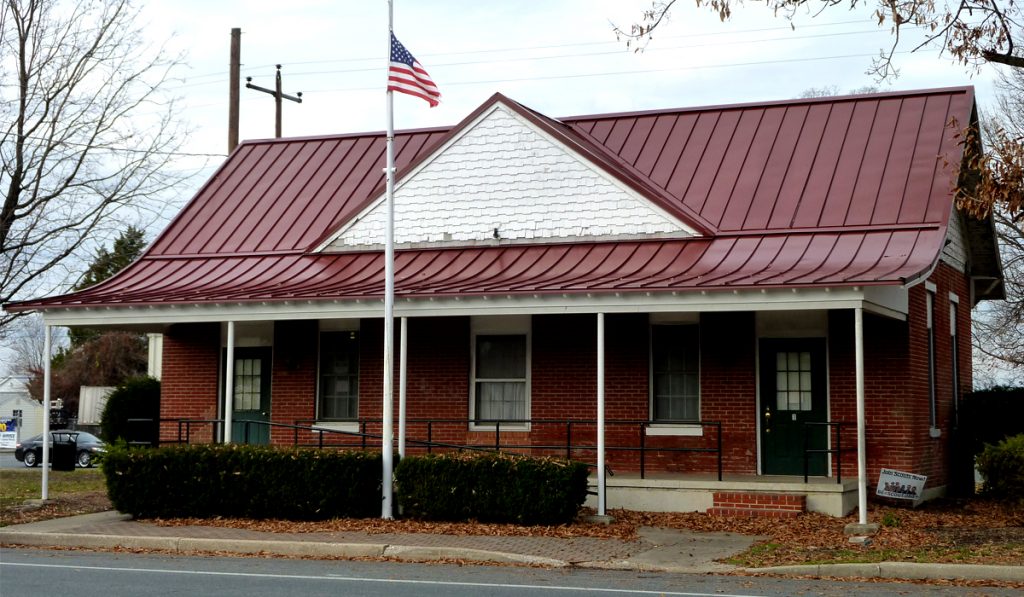

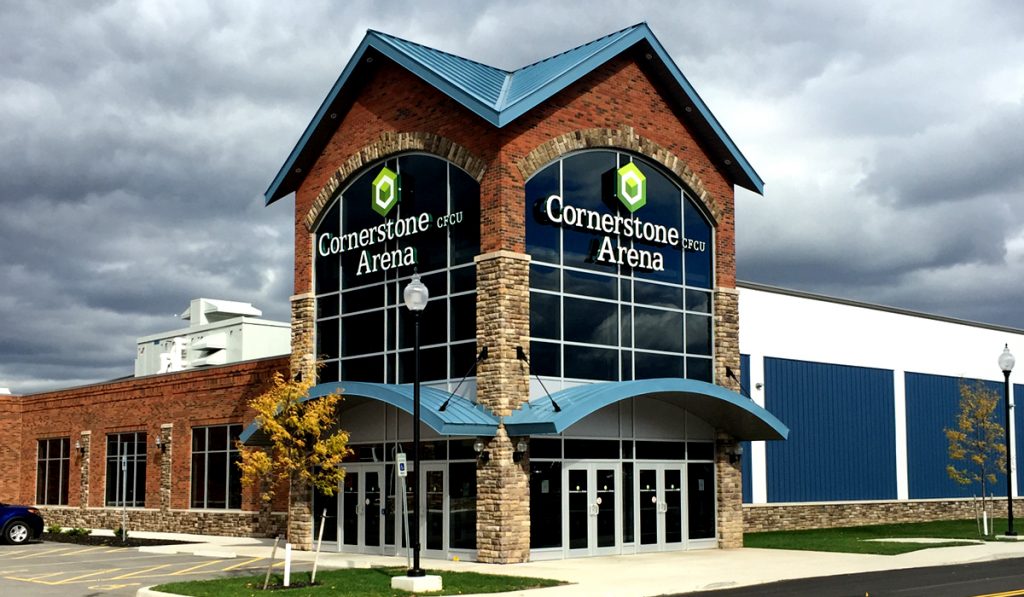

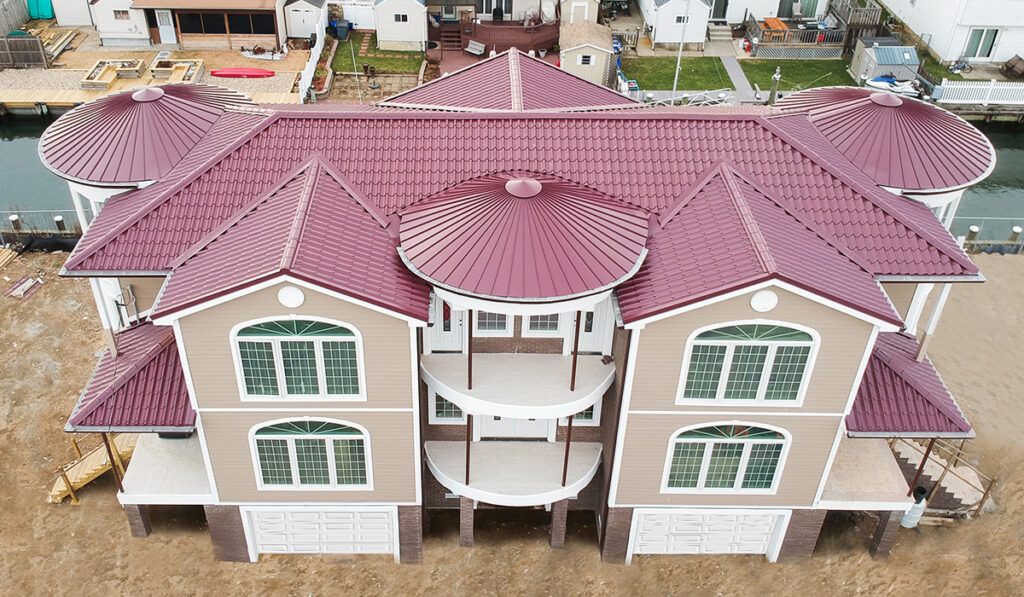

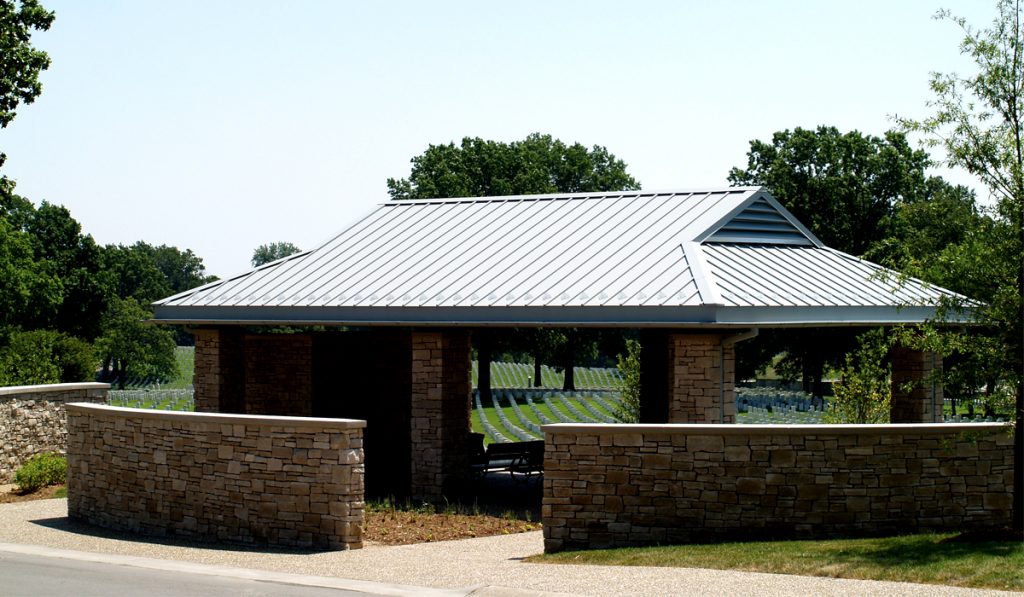

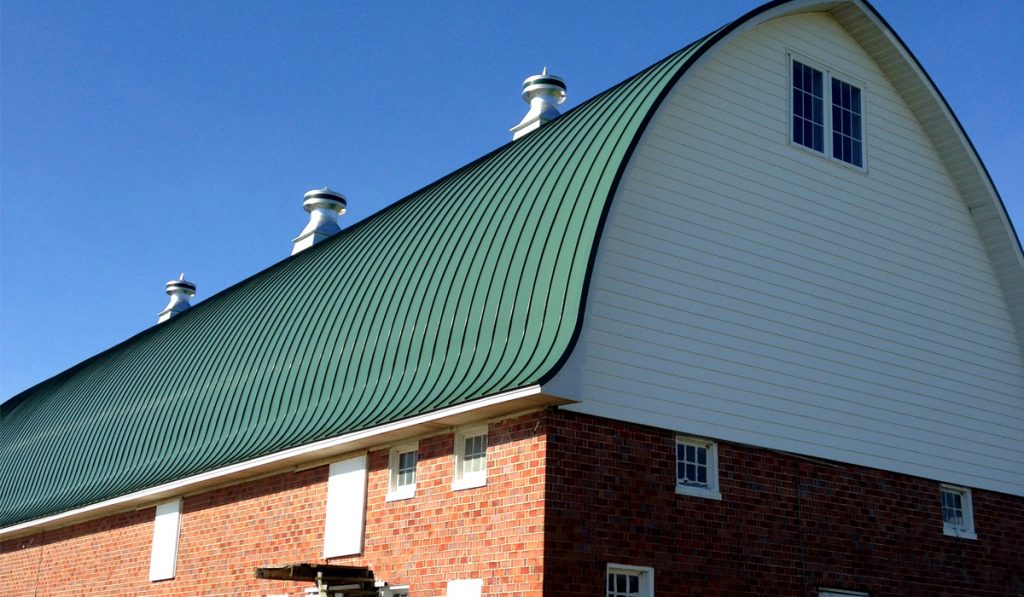

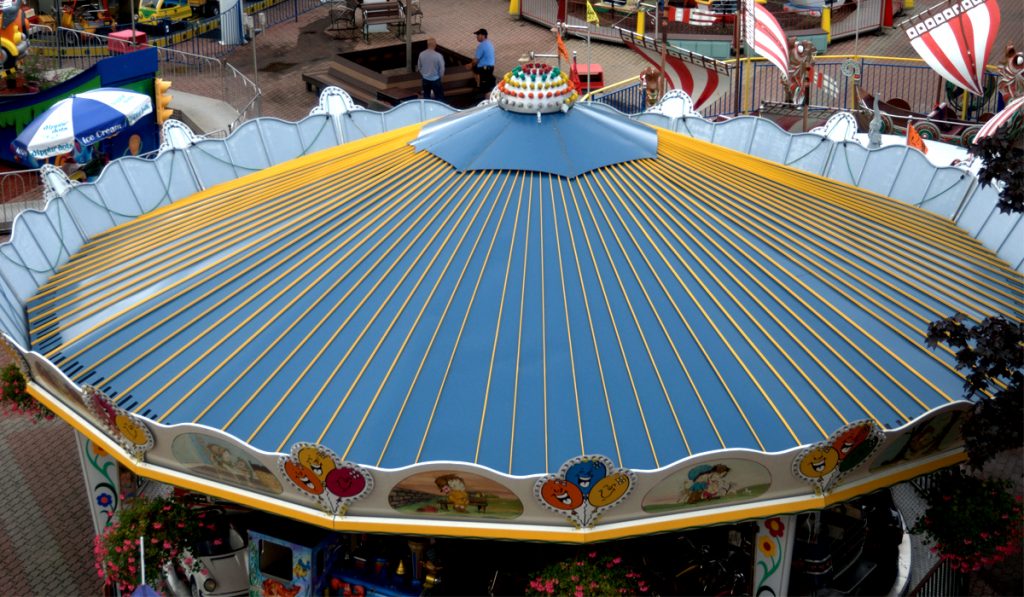

Gallery
