Profile Options

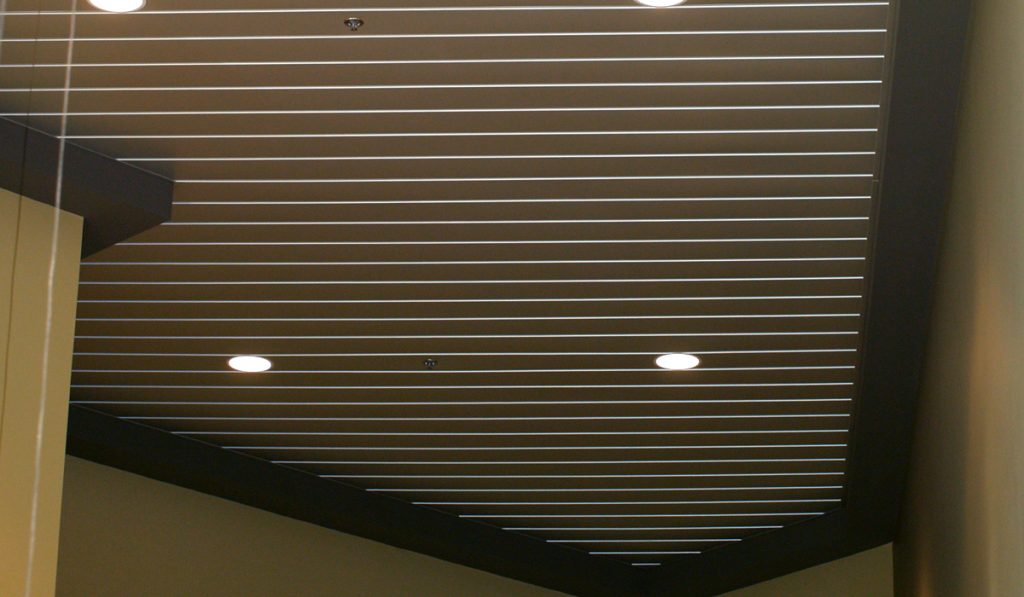

Flush Lineair Opaline (OPF) Ceiling with Snap In Carrier

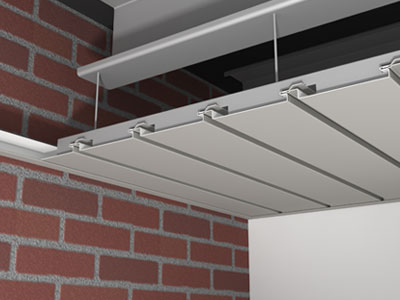

Reveal Lineair Opaline (OPW) Ceiling with Snap In Carrier

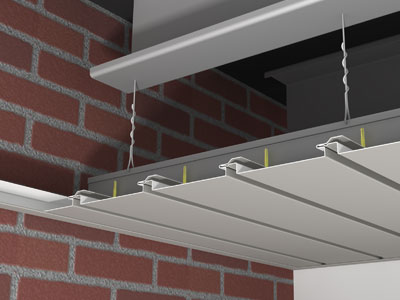

Reveal Lineair Opaline (OPW) Ceiling *Mechanically Attached

Lineair Opaline

Lineair Opaline™ is a premium and flexible panel that can be snapped into a suspension carrier to create a complete system, or mechanically attached to most standard substrates. The Lineair Opaline™ system is available in four distinct profiles: OPF, OPM, OPN, OPW. Microperforations are available and recommended for interior use only.

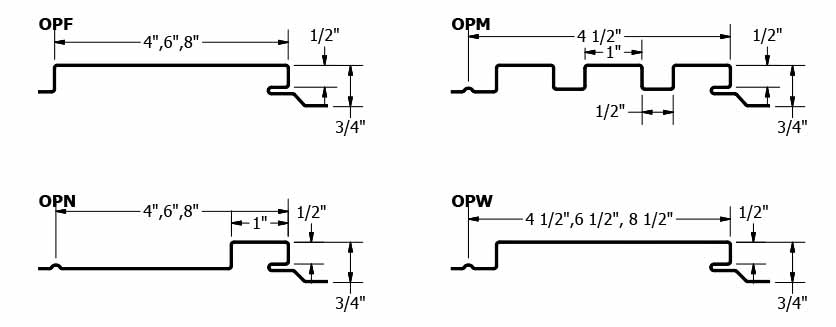

Line Drawing
Product Info
SKU

OPF, OPM, OPN, OPW

Material:

.032, .040 aluminum (OPM is .032 only),
24 ga. metallic coated steel

Panel Coverage:

OPF: 4”, 6”, 8”
OPM: 4½”
OPN: 4”, 6”, 8”
OPW: 4½”, 6½”, 8½”

Minimum Panel Length:

1’-6”

Maximum Panel Length:

20′-0″

Panel Depth:

¾”

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed (24 ga. metallic coated steel, .032 aluminum & .040 aluminum only)

Finish:

70% PVDF, Wood Grain Finishes

Colors:

Choice of over 40 stock colors
Custom colors available*

Carrier

Opaline is available with a suspended snap-in carrier or is mechanically attached.

* Subject to minimum quantities and extended lead time.
Inquire for availability.

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

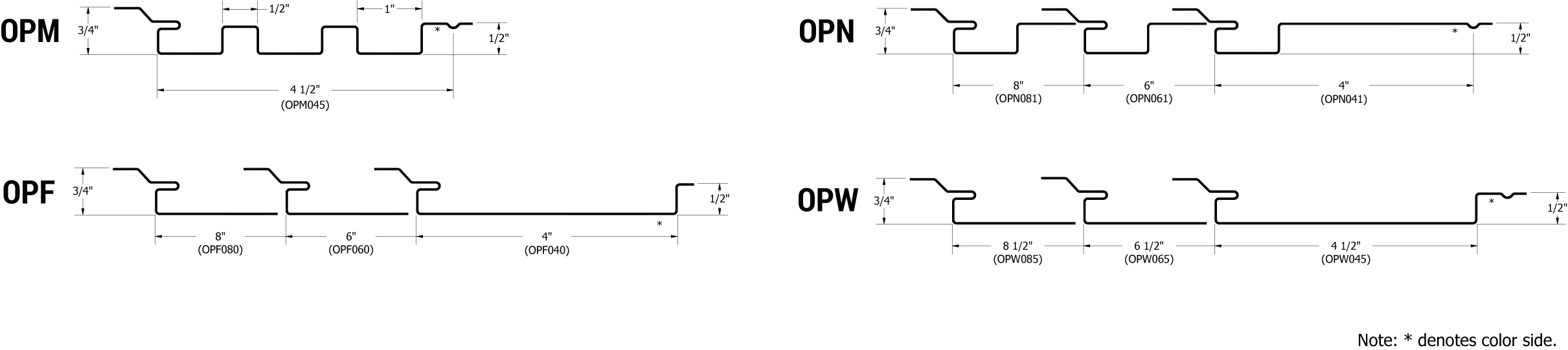

DWG File Format - Lineair Opaline Carrier Details
