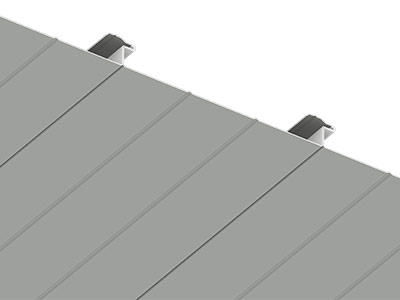

DSF

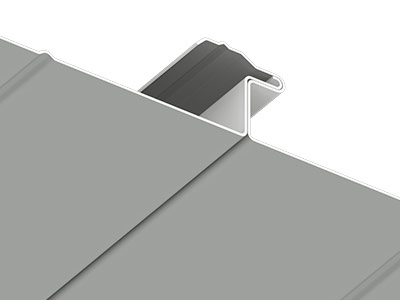

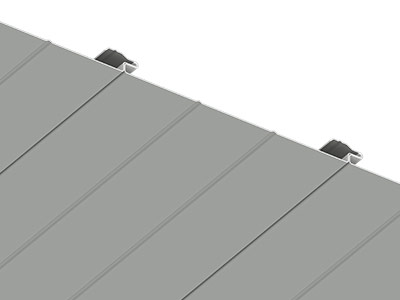

DSF Interlock

DWF

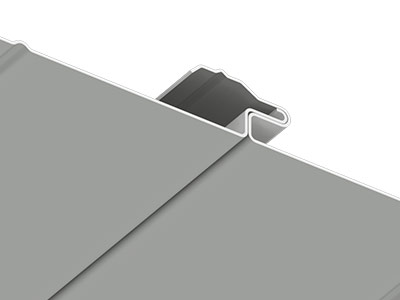

DWF Interlock

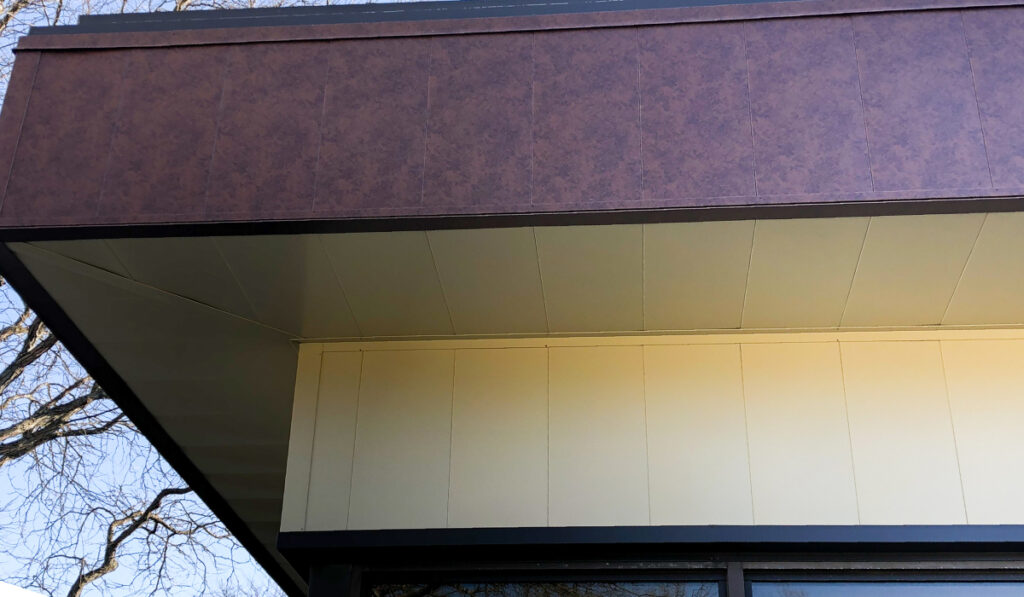

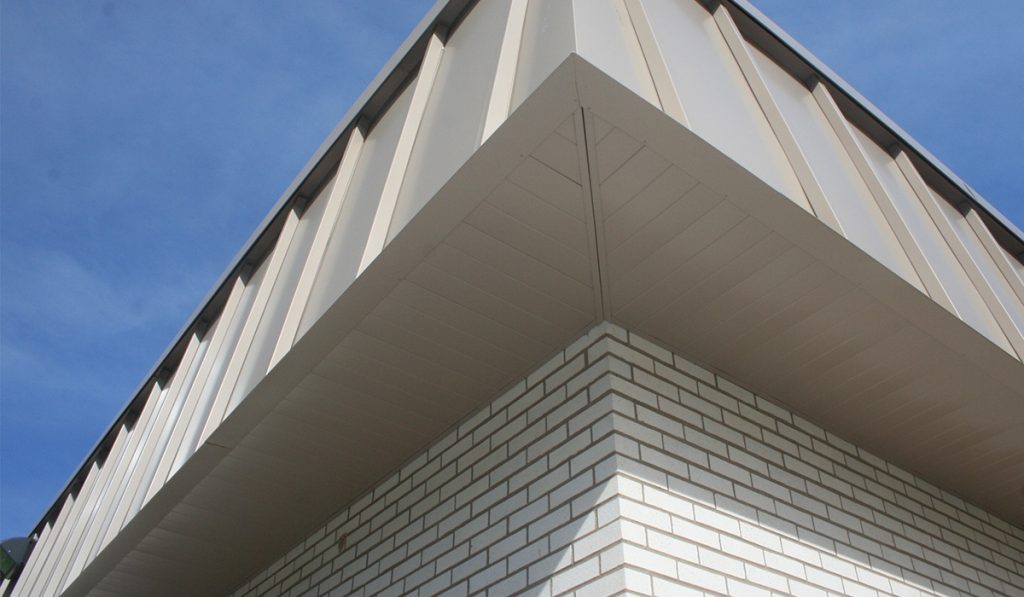

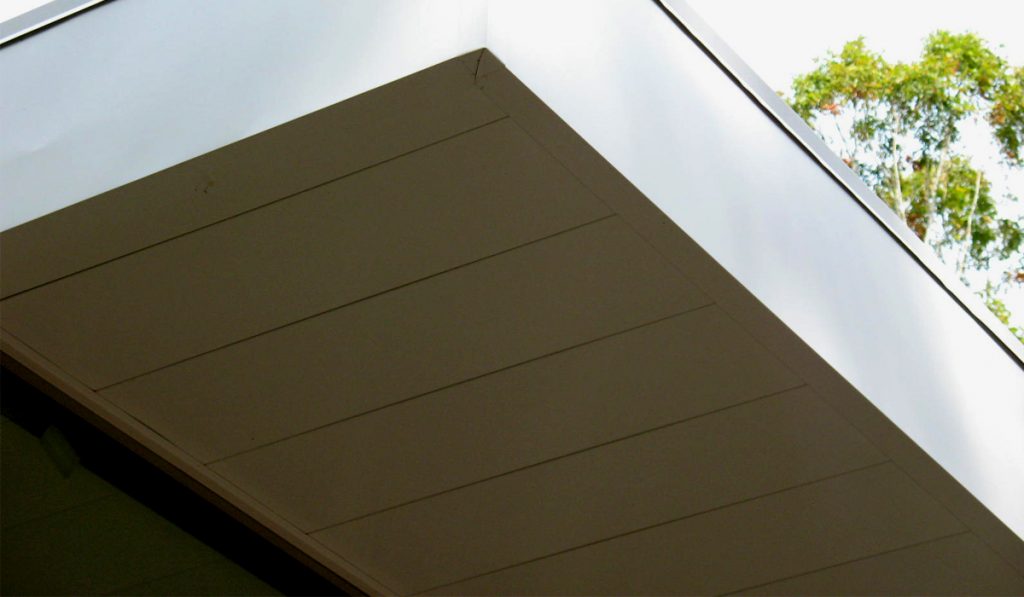

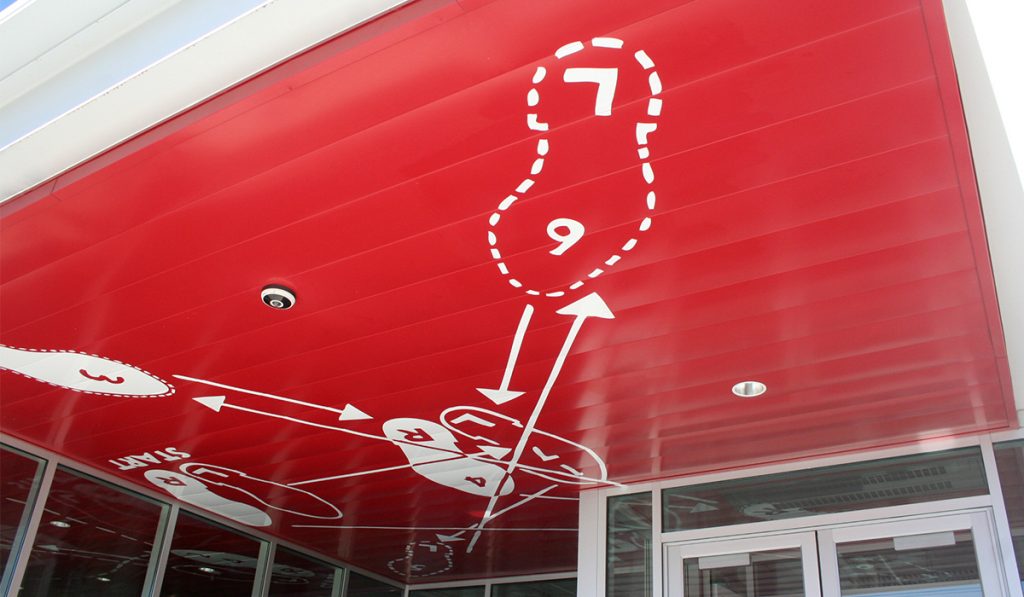

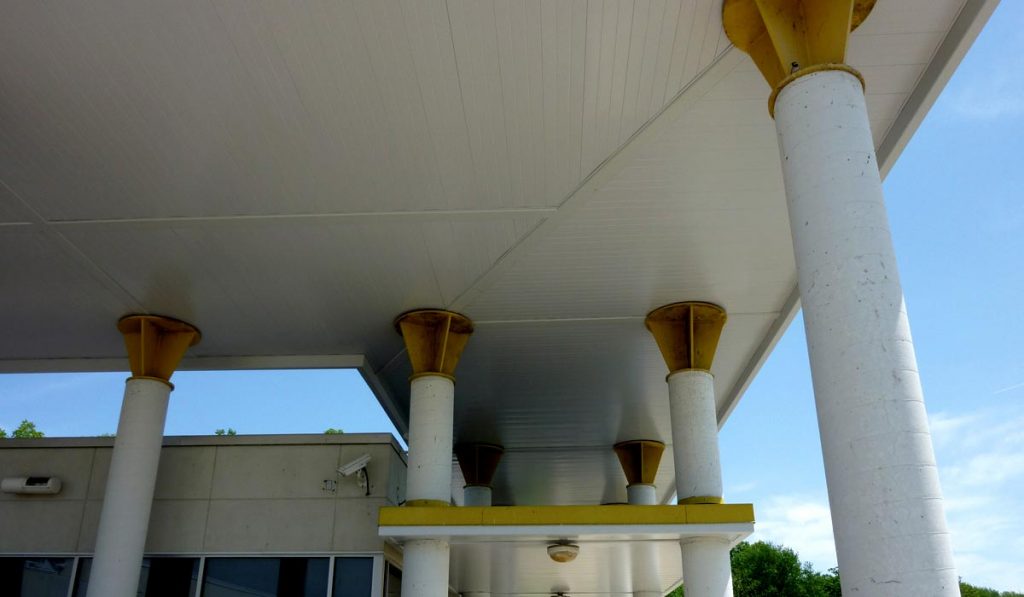

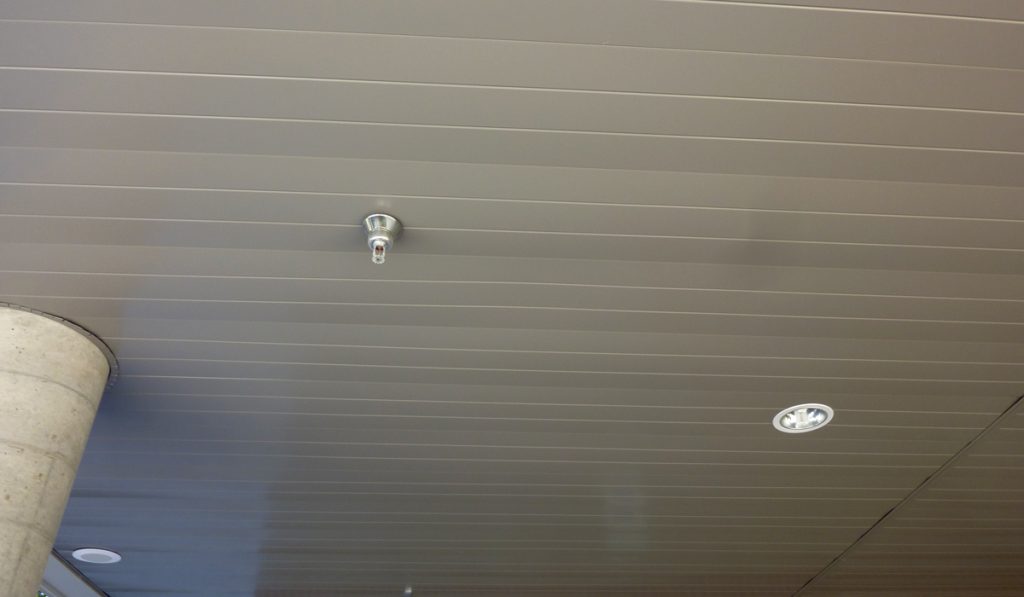

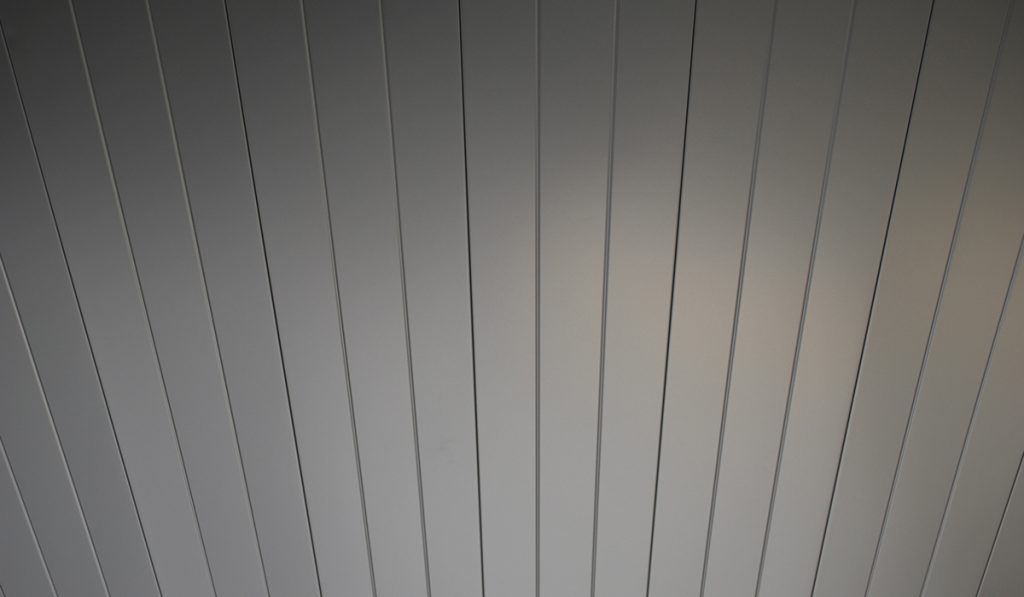

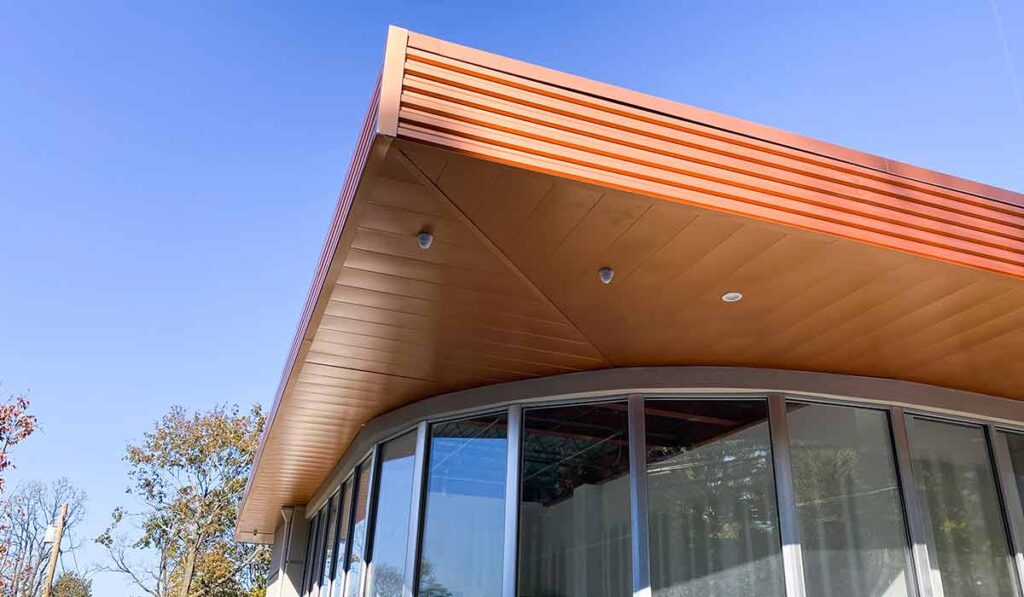

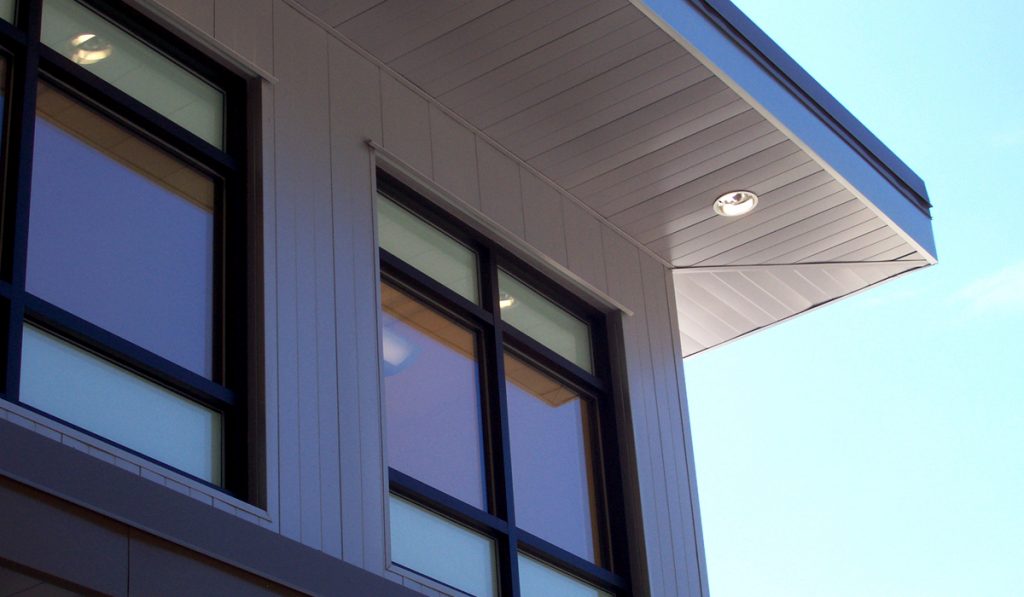

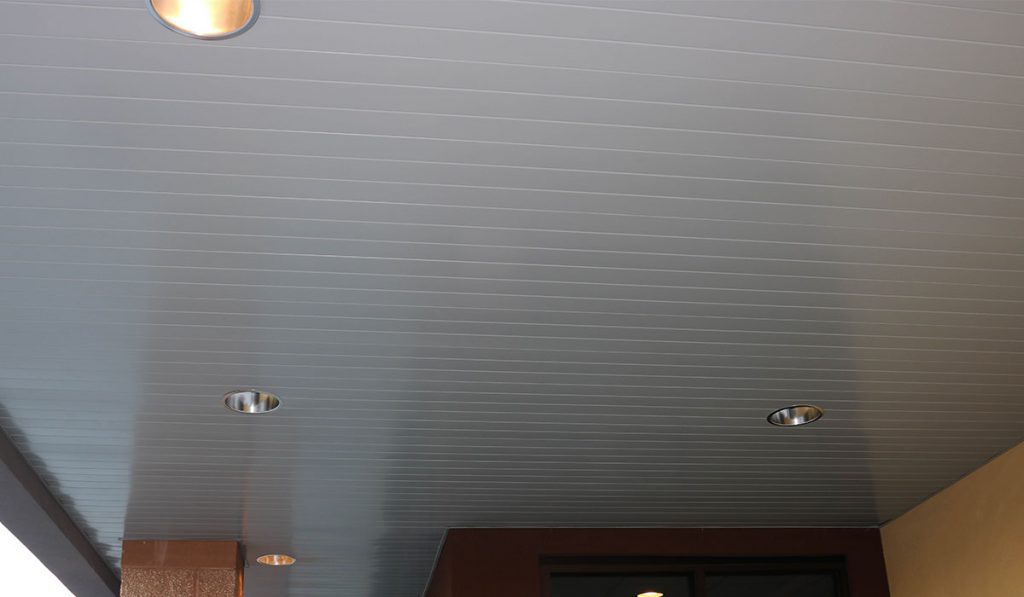

Design Wall | DSF, DWF

The Design Wall™ System is a structural panel with optional louvered style venting. It may be installed horizontally or vertically. Typical applications for this panel are walls, soffits, fascia or equipment screens.

Florida Building Product Approval: FL 39332.1, FL 39332.2, FL 39332.3, FL 39332.4

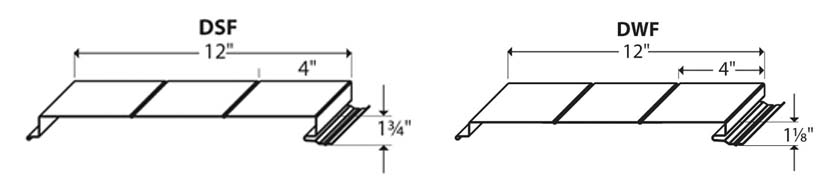

Line Drawing
Product Info
SKU:

DSF
DWF

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22* ga. 55% Al-Zn alloy coated steel with acrylic coating
.8, 1.0 mm zinc* (DWF only)
16, 20 oz. copper*

Panel Coverage:

12”
(Stiffening ribs standard, specify without)

Minimum Panel Length:

3’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

1¾”
1⅛”

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed (DWF only)

Available:

Louvered/Vented

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Florida Building Code (DSF)

FL 39332.2, FL 39332.4 (steel)

FL 39332.1, FL 39332.3 (aluminum)

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
