Profile Options

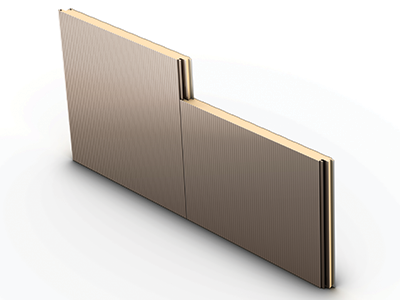

Panel

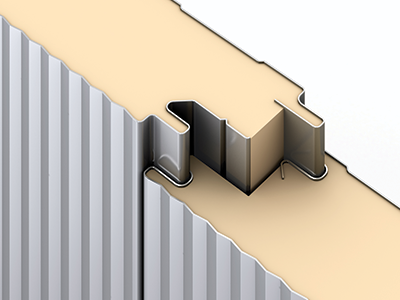

Interlock

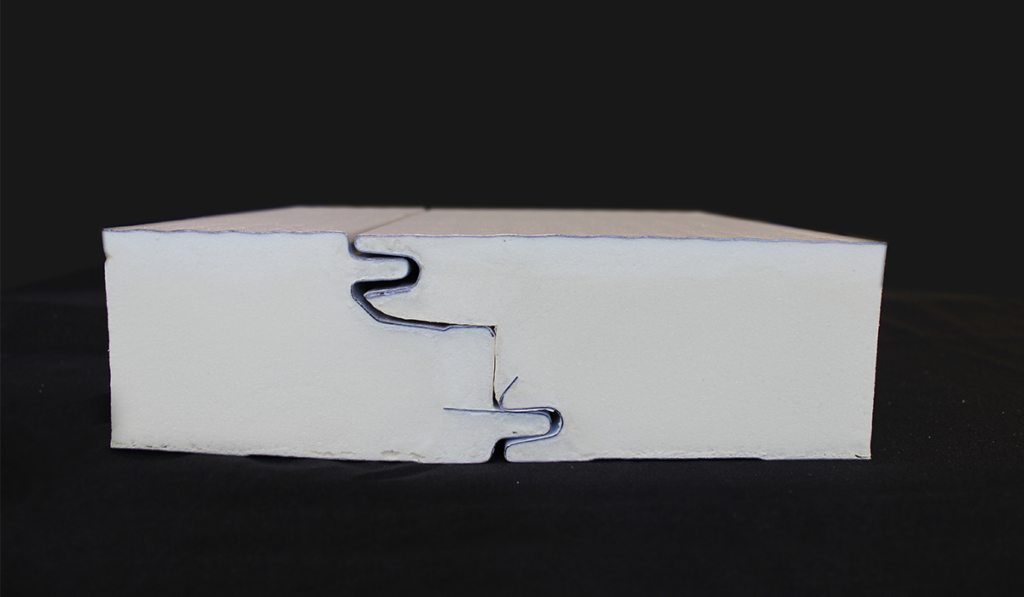

Sidelap

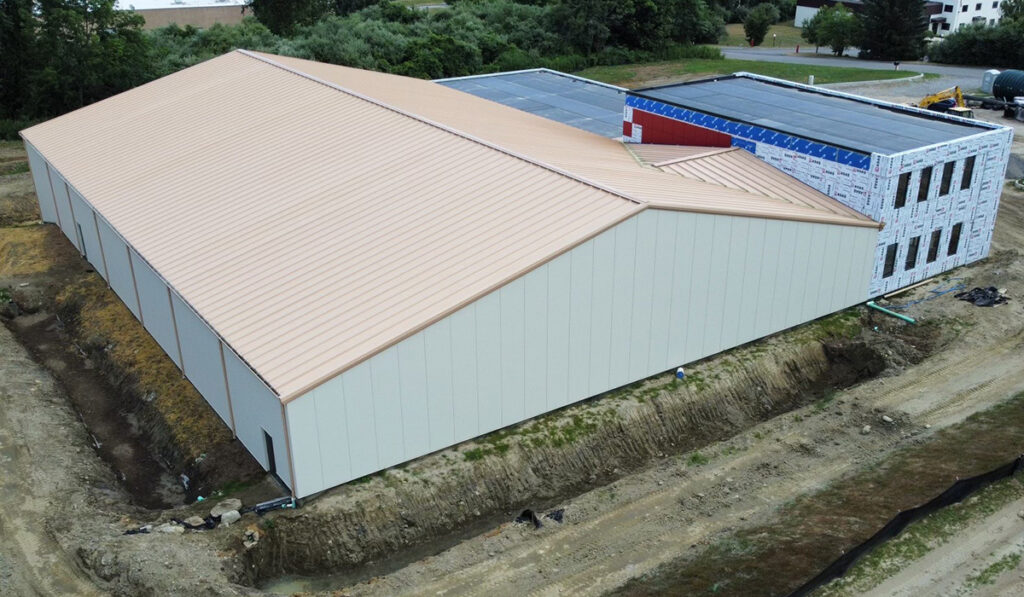

Isoleren WL

Striated insulated metal wall panel that appears relatively flat, yet provides texture to enhance the functionality and aesthetics of this multi-use panel.

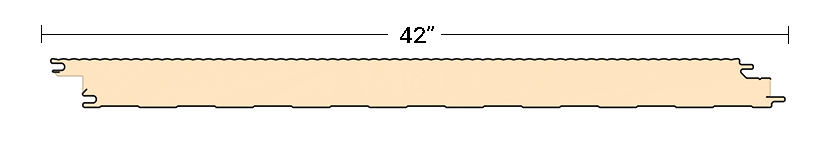

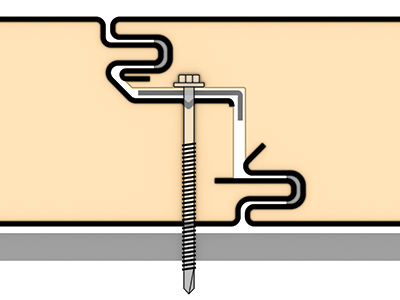

Line Drawing
Product Info
SKU:

IWL422
IWL421
IWL423
IWL424

Exterior Profile:

Isoleren WL

Interior Profile:

Isoleren ML

Exterior Gauge:

24
22

Interior Gauge:

26
24
22

Substrate:

55% Al-Zn Alloy Coated Steel with Acrylic Coating
Metallic Coated Steel
Stainless Steel

Exterior Finish:

70% PVDF
Low Gloss
Siliconized Polyester

Interior Finish:

Polyester
Siliconized Polyester
70% PVDF
Standard Gloss (USDA White)

Panel Coverage:

42″

Thickness (A):

2″
2.5″
3″
4″

Exterior Texture:

Smooth
Embossed

Interior Texture:

Smooth
Stucco Embossed

Core:

Continuously poured-in-place, polyisocyanurate, insulating foam

R-Value:

R-8 per inch of thickness (nominal)

Reveal:

Also available in a 1 1/4″ reveal at panel interlock

Standard Lengths:

8′-0″ to 40′-0″

Note:

All information subject to change without notice

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

Aluminum Extrusion and Non-standard Details are available upon request.  Please contact your local product representative for more information.

PDF File Format - Vertical Wall - Sheet Metal Flashing Details

PDF File Format - Horizontal Wall - Sheet Metal Flashing Details

DWG File Format - Vertical Wall - Sheet Metal Flashing Details

DWG File Format - Horizontal Wall - Sheet Metal Flashing Details
