Rapid-Lok Extruded Fascia

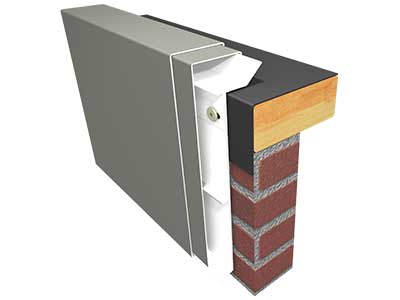

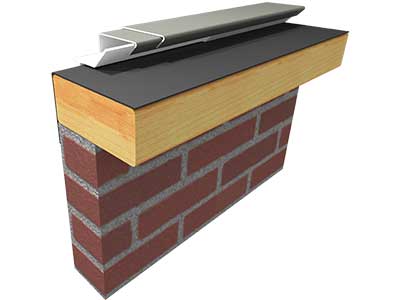

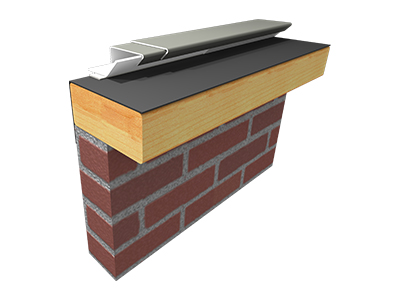

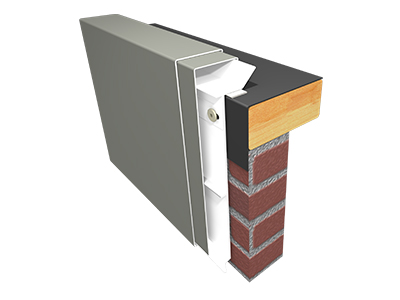

Rapid-Lok Extruded provides all the versatility, performance, and installation ease of Rapid-Lok with the added benefit of a continuous extruded aluminum retainer. The extruded aluminum retainer is offered in six standard sizes all pre-punched with slotted holes for the provided screws. The snap-on cover is available in a wide variety of materials, gauges, and colors in 12’-0” lengths, with interior splice plates. Rapid-Lok Extruded has a 30-year 150 mph windstorm warranty and has been tested per ES-1 as required by International Building Code for low-slope perimeter edge systems.

Job-Specific Fabrications:

In addition to our full line of stock standard items, ATAS International offers a wide range of custom fabrication capabilities to fit any project’s needs. Radiused sections and accessories including miters, T-miters, end caps, and end closures are available for all perimeter edge products. Options include fabricated and sealed or welded and PVDF painted to match. Available in over 40 PVDF stock colors, our products come equipped with industry expertise and technical support, including design and development assistance, product specification guidance, and installation support.

Product Info
CAD Details
Documents

Product Info

ACCESSORIES

Inside & Outside Miters

View Accessories Sheet

Z Miters

View Accessories Sheet

Left & Right End Closures

View Accessories Sheet

Left & Right End Terms

View Accessories Sheet

Peak Miters

View Accessories Sheet

Valley Miters

View Accessories Sheet

Concave & Convex Radius Fascia

View Accessories Sheet

Concave & Convex Vaulted Fascia

View Accessories Sheet

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

Rapid-Lok Extruded Fascia - Product Detail
