Rapid-Lok Ultra Coping

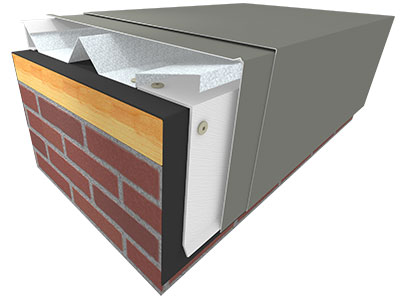

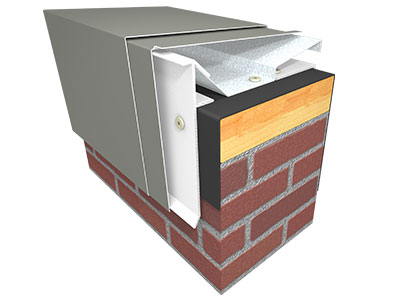

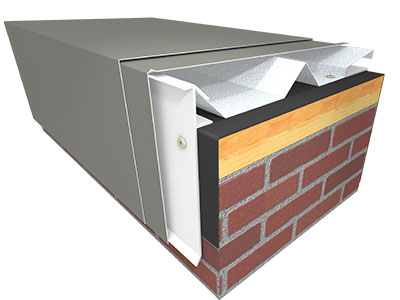

Rapid-Lok Ultra Coping is designed for the highest wind performance and longevity. The system includes continuous extruded aluminum cleats at the face and back, and a snap-on coping cap offered in a wide variety of materials, gauges and colors in 12’-0” lengths. The system has guttered internal splices that eliminate the need for caulks or tapes at the joints, and includes the screws required for a complete high performing installation. Rapid-Lok Ultra Coping has a 30-year 150 mph windstorm warranty, and has been tested per ES-1 as required by International Building Code for low-slope perimeter edge systems.

Job-Specific Fabrications:

In addition to our full line of stock standard items, ATAS International offers a wide range of custom fabrication capabilities to fit any project’s needs. Radiused sections and accessories including miters, T-miters, end caps, and end closures are available for all perimeter edge products. Options include fabricated and sealed or welded and PVDF painted to match. Available in over 40 PVDF stock colors, our products come equipped with industry expertise and technical support, including design and development assistance, product specification guidance, and installation support.

Product Info

Accessories

Inside & Outside Miters
Z Miters
Transitions
End Closures
End Terms
Inside & Outside Tee Miters
Step Miters
Peak Miters
Valley Miters
Concave & Convex Radius Copings
Vaulted Copings
CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
