Profile Options

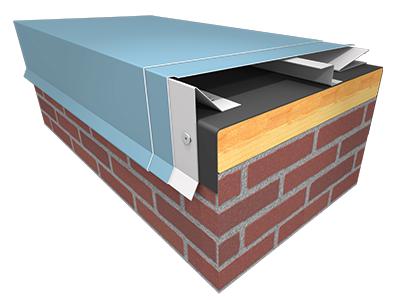

Greater than 18" Wall - Front

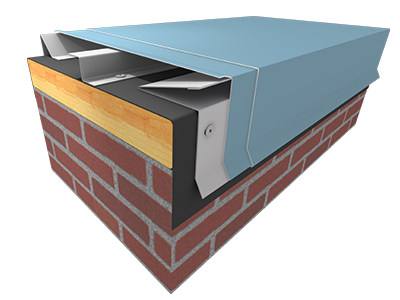

Greater than 18" Wall - Back

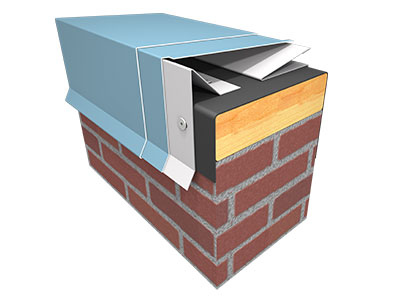

Less than 18" Wall - Front

Less than 18" Wall - Back

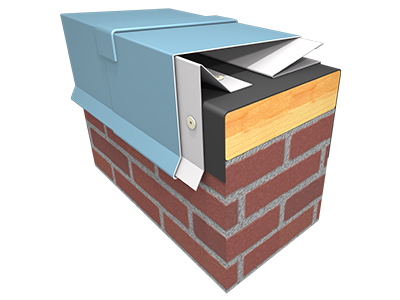

Drive Cleat Less than 18" Wall - Front

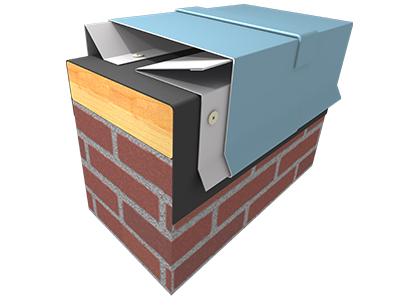

Drive Cleat Less than 18" Wall - Back

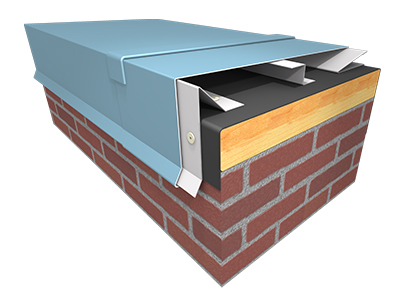

Drive Cleat Greater than 18" Wall - Front

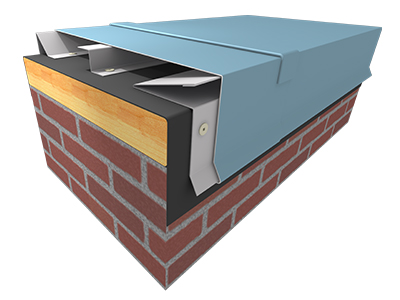

Drive Cleat Greater than 18" Wall - Back

Rapid-Lok SL Coping

Rapid-Lok SL Coping is a snap-on system with continuous cleats front and back with no exposed fasteners. The system includes the coping cover offered in a wide variety of materials, gauges, and colors in 12’-0” lengths; a continuous 22 gauge canted front cleat to provide slope and spring rear cleat to snap-on; and guttered internal splices that eliminate the need for caulk or tape at the joints. Rapid-Lok SL Coping has a 20-year 120 mph windstorm warranty and has been tested per ES-1 as required by International Building Code for low-slope perimeter edge systems. Factory fabricated miters, end caps, and other accessories are available for a complete Rapid-Lok SL Coping installation.

Rapid Lock SL coping is offered with two different coping splice options. Conventional internal splices are standard while the unique drive cleat option allows for greater water resistance and increased strength of the coping at splice locations. Customer must specify splice option desired at time of inquiry and/or order placement.

Product Info
CAD Details
Documents

Product Info

Accessories

Inside & Outside Miters:

View Accessories Sheet

Z Miters:

View Accessories Sheet

Transitions:

View Accessories Sheet

End Closures:

View Accessories Sheet

End Terms:

View Accessories Sheet

Inside & Outside Tee Miters:

View Accessories Sheet

Step Miters:

View Accessories Sheet

Peak Miters:

View Accessories Sheet

Valley Miters:

View Accessories Sheet

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
