Profile Options

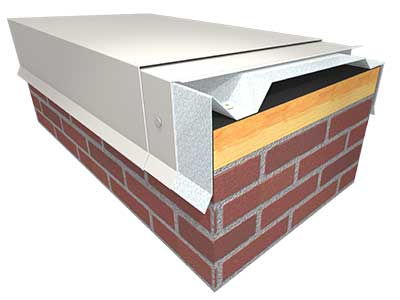

Greater than 12" - Front

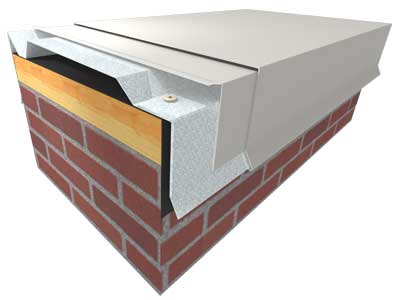

Greater than 12" - Back

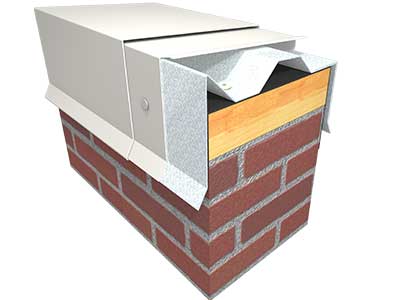

Less than 12" - Front

Less than 12" - Back

Rapid-Lok Coping

Rapid-Lok Coping is an easy to install snap-on system with no exposed fasteners. The system includes the coping cover offered in a wide variety of materials, gauges and colors in 12’-0” lengths; heavy 20 ga chairs; guttered internal splices that eliminate the need for caulks or tapes at the joints; and all the nails and screws required for a complete and quick installation. Rapid-Lok Coping has a 20-year 120 mph windstorm warranty, and has been tested per ES-1 as required by International Building Code for low-slope perimeter edge systems.

Job-Specific Fabrications:

In addition to our full line of stock standard items, ATAS International offers a wide range of custom fabrication capabilities to fit any project’s needs. Radiused sections and accessories including miters, T-miters, end caps, and end closures are available for all perimeter edge products. Options include fabricated and sealed or welded and PVDF painted to match. Available in over 40 PVDF stock colors, our products come equipped with industry expertise and technical support, including design and development assistance, product specification guidance, and installation support.

Florida Building Product Approval:
7 1/2″ front face height, 5 1/2″ back face height, 12 3/4″ wide – 24 ga. steel: FL 20821.13 | .040 aluminum: FL 20821.14
7 1/2″ front face height, 5 1/2″ back face height, 32″ wide – 24 ga. steel: FL 20821.15 | .040 aluminum: FL 20821.16

Product Info
CAD Details
Gallery
Documents

Product Info

Accessories

Inside & Outside Miters:

View Accessories Sheet

Z Miters:

View Accessories Sheet

Transitions:

View Accessories Sheet

End Closures:

View Accessories Sheet

End Terms:

View Accessories Sheet

Inside & Outside Tee Miters:

View Accessories Sheet

Step Miters:

View Accessories Sheet

Peak Miters:

View Accessories Sheet

Valley Miters:

View Accessories Sheet

Concave & Convex Radius Copings:

View Accessories Sheet

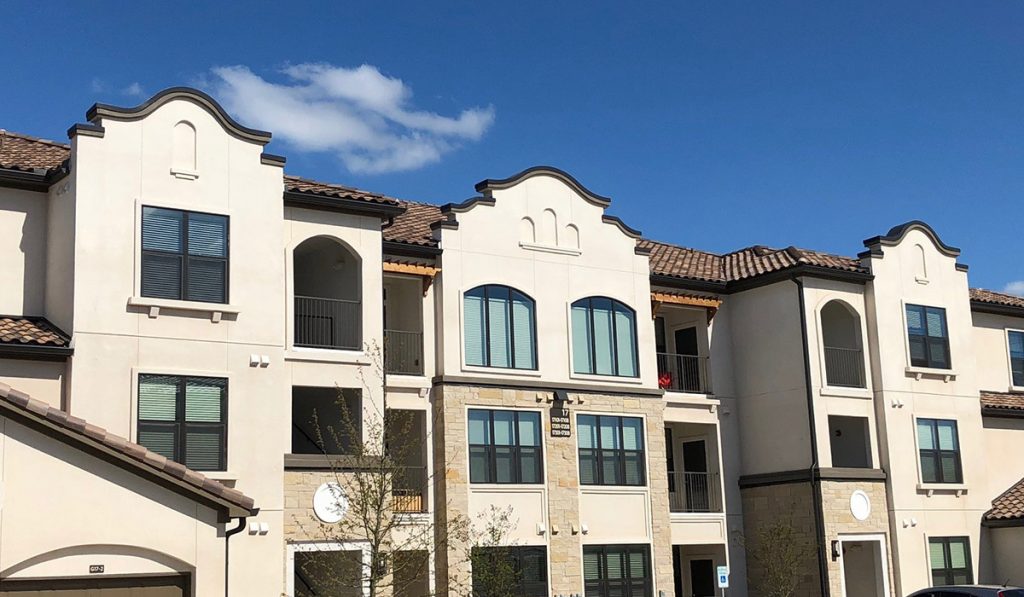

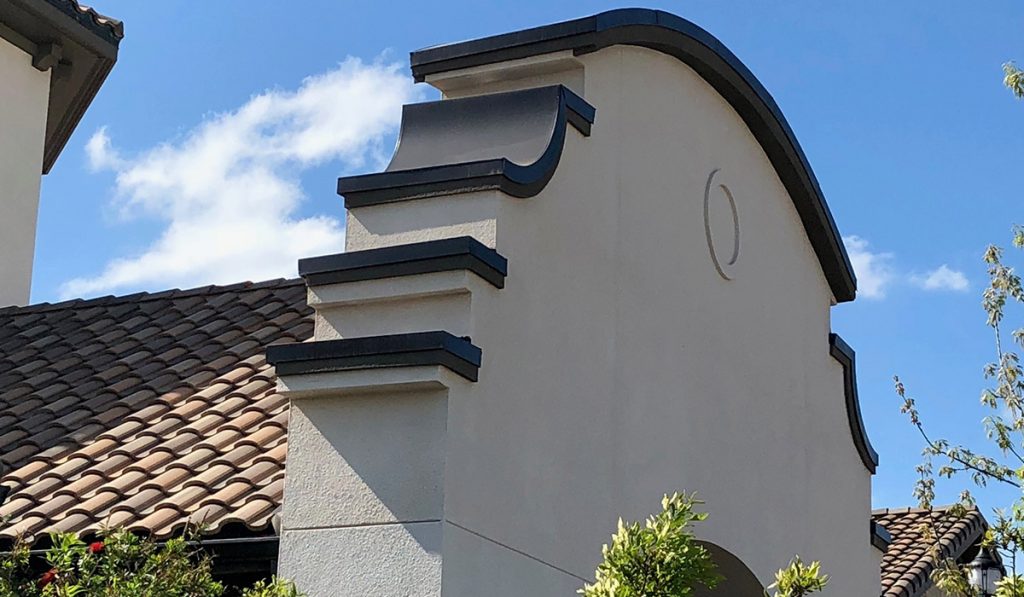

Vaulted Copings:

View Accessories Sheet

Florida Building Product Approval:

FL 20821

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

Rapid-Lok Coping - Product Detail

DWG File Format

Rapid-Lok Coping - Product Detail

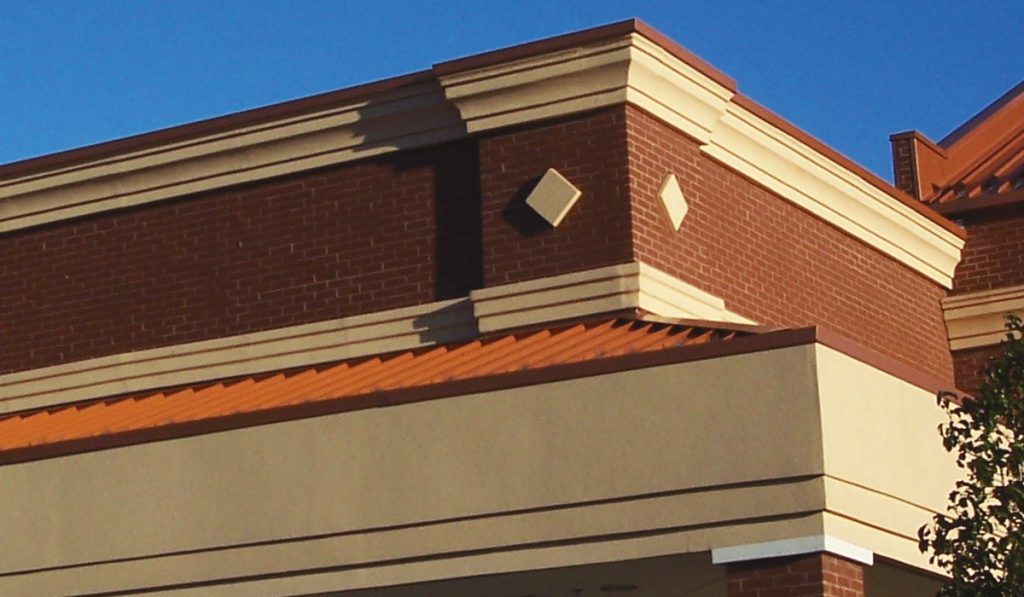

Gallery
