Econowall
Econowall is a cost-effective, dry-set rainscreen cladding system featuring interlocking joints and rigid finished end conditions. It offers high design flexibility with broad finish, profile, size, and perforation options, providing custom capabilities that roll-formed products can’t match at a similar price. It installs over standard wall assemblies or open framing, making it ideal for both exterior walls and unconditioned areas like soffits, canopies, and screens.
Aluminum .080, .050, .063, & .090
Stainless Steel: 18 & 16 ga.
Zinc: .059 & .047
Widths: 6” to 36” *
Lengths: 12” to 160” *
Depth: 1.5” minimum
* Maximum panel size depends upon plate material,
gauge, finish, and geometry.

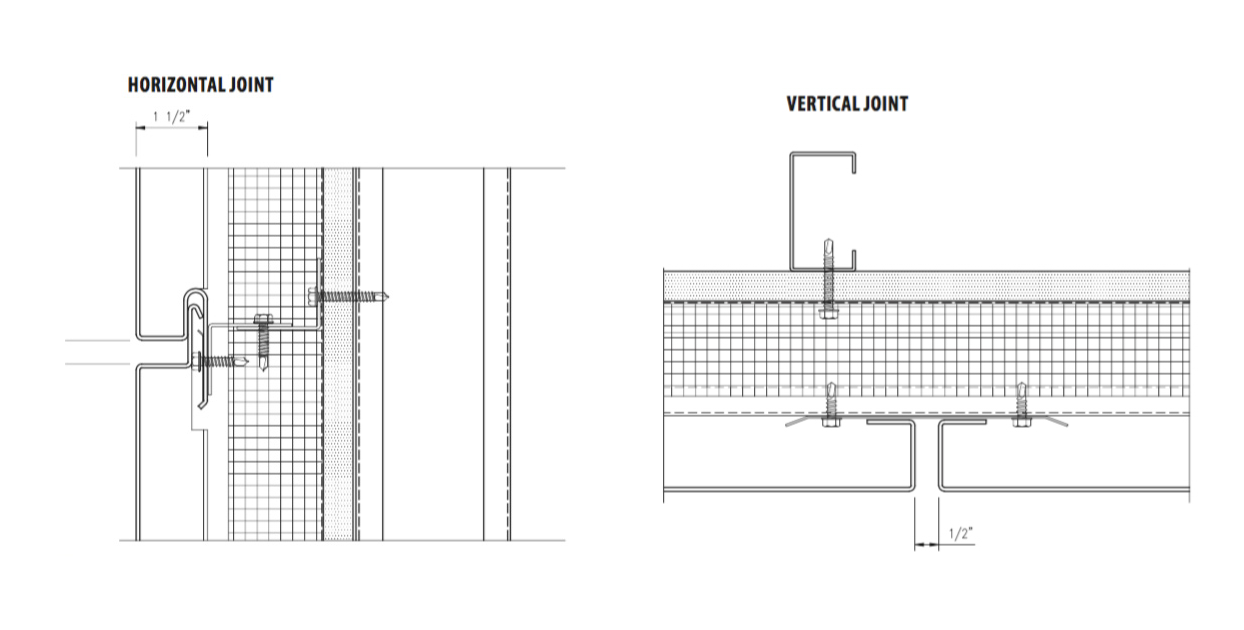

Horizontal .125” – 2”
Vertical .25” – 6”
6″
160″
1.5” minimum
?
Yes
Aluminum: 70% PVDF
#4, #6, #8, and non-directional finishes for stainless steel
Choice of over 40 stock colors
Custom colors and finishes available*
Optional: Contact ATAS for specifying
A complete line of trims available in matching colors, gauge, and finish or as specified
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
