Arcwall™ Spline
Arcwall™ Spline utilizes solid metal plate to create durable, floating-effect panels with customizable geometries and variable joints. Factory assembled for efficiency, these panels can be flat or curved and are installed with concealed fasteners over continuous insulation and weather barriers. Their high impact resistance makes them especially suitable for pedestrian areas and high-end rainscreen wall systems.
0.125, .188, & .25 aluminum
11, 12, 8, 7 ga. stainless steel*
Widths: 12” (305 mm) to 72” (1,829 mm)*
Lengths: 12” (305 mm) to 240” (6,096 mm)*
Depth: 2” (50.8 mm)
* Maximum panel size depends upon plate material, gauge, finish, and geometry.
12″
240″
Aluminum: 2.62 – 4.42lbs./ft2
Stainless Steel: 4lbs./ft2
(dependent upon gauge and geometry)
2″
Flat
Curved
??
Yes
Aluminum: 70% PVDF
Stainless Steel: 4, #6, #8,and non-directional satin in smooth
Choice of over 40 stock colors
Custom colors and finishes available*
Optional contact ATAS for specifying
A complete line of trims available in matching colors, gauge, and finish or as specified

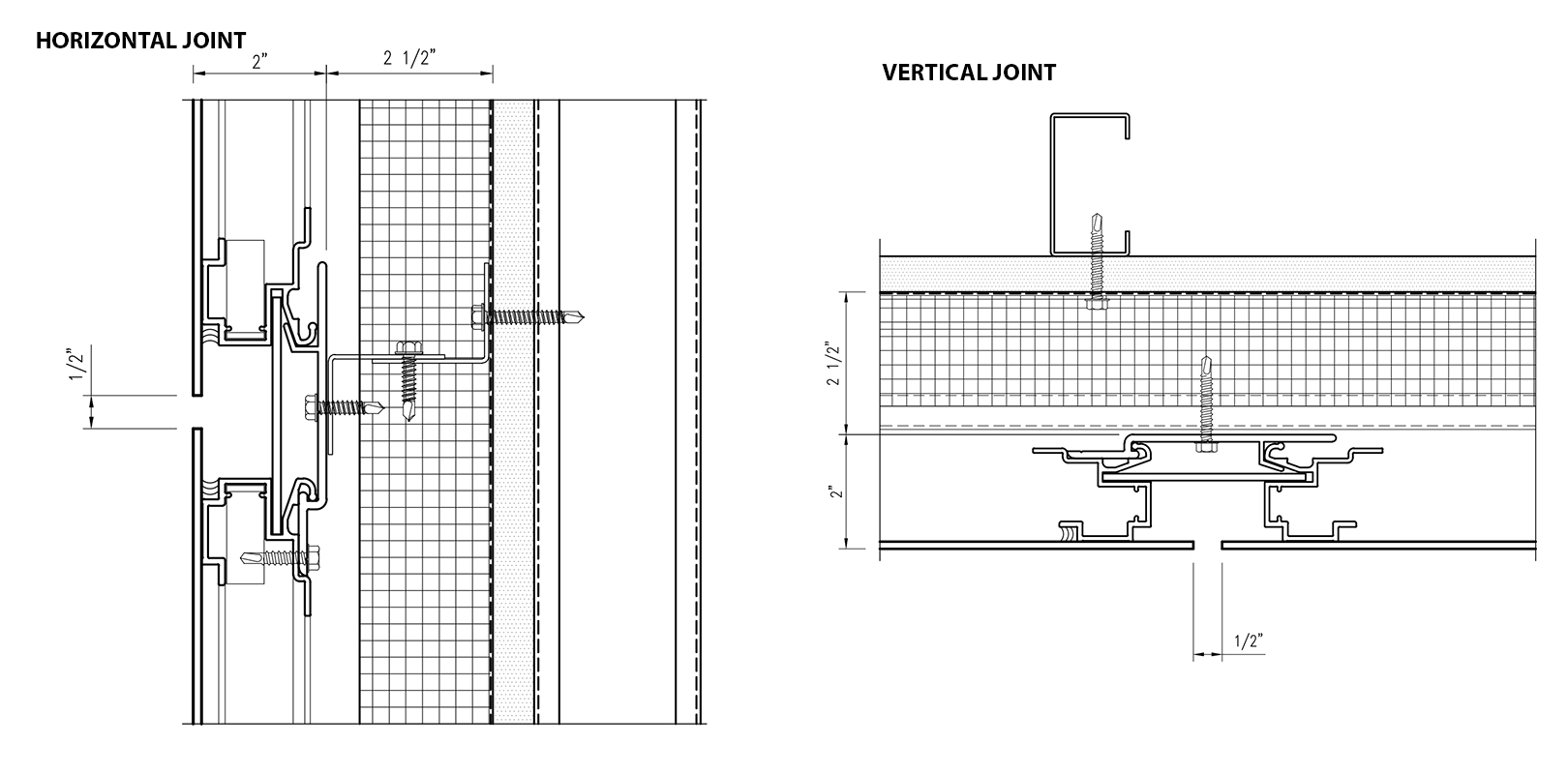

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF FILE FORMAT
DWG FILE FORMAT
- Spec Data Sheet
- 3-Part Specification
