Arcwall Ship Lap

Arcwall Ship Lap is a high-performance, solid metal rain screen wall system featuring a distinctive recessed frame design that creates deep reveals and shadow lines. It offers superior wind and impact resistance, as well as excellent drainage when installed horizontally. Designed for quick progressive installation with concealed fasteners, it provides an efficient, durable, and visually appealing solution for both flat and curved surfaces.

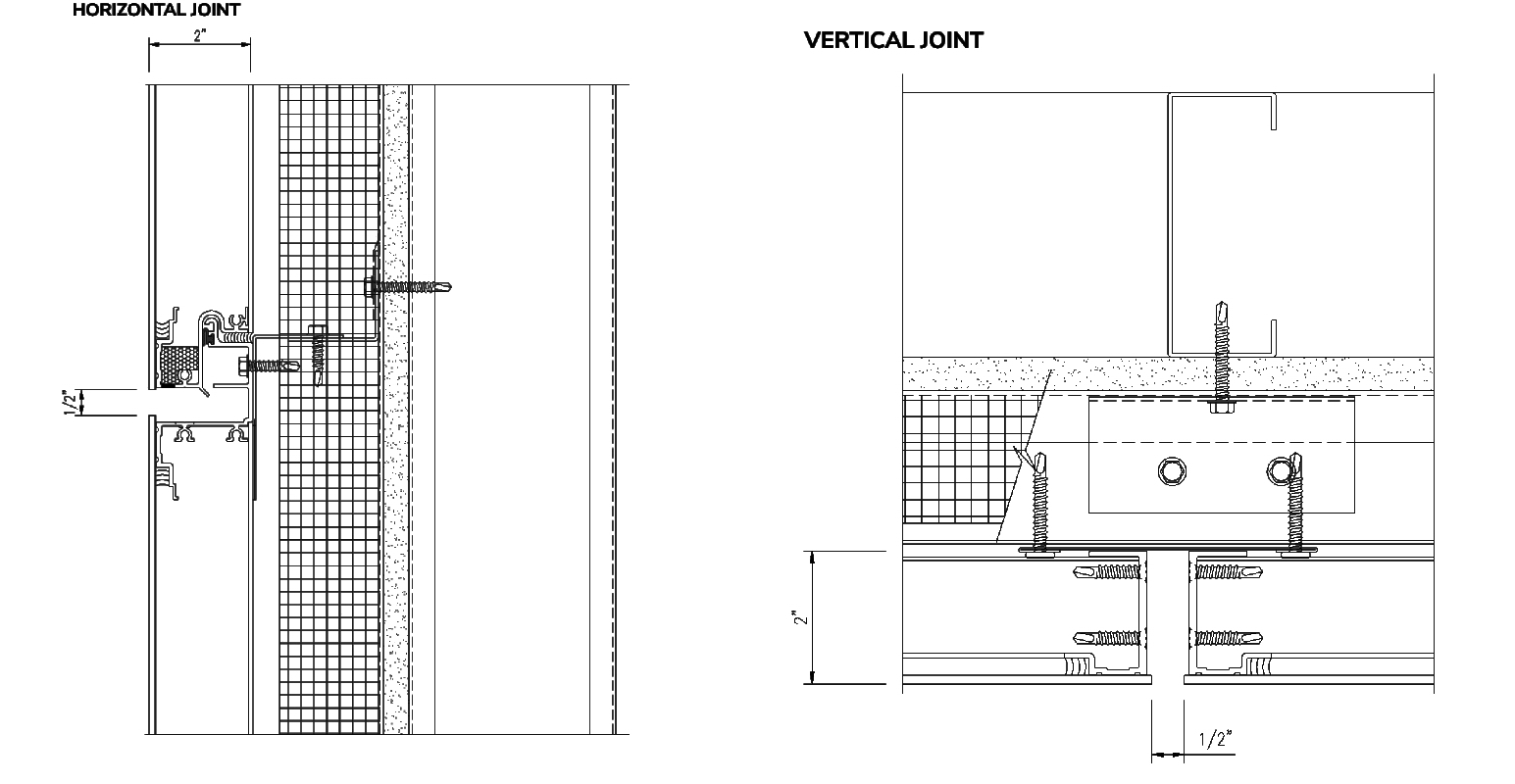

Line Drawing
Product Info
SKU:
MATERIAL:

.125, .188, & .25 aluminum

11, 12, 8, & 7 ga. stainless steel

Panel Coverage:

Widths: 12” to 72” *
Lengths: 12” to 240” *
Depth: 2.25”

* Maximum panel size depends upon plate material, gauge, finish, and geometry.

Minimum Panel Width:

12″

Maximum Panel Length:

240″

Panel Depth:

2.25”

AVAILABLE:

Flat
Curved

Texture:
Perforations Available:

Yes

Finish:

Aluminum: 70% PVDF
#4, #6, #8, and non-directional finishes for stainless steel plate

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Optional contact ATAS for specifying

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
