Arcwall Advanced

Arcwall Advanced is a high-performance, pressure-equalized rainscreen system that provides certified water management by instantly balancing interior and exterior pressure to block moisture drive. Installed horizontally with a dry-joint design, it can compartmentalize the wall cavity to baffle lateral airflow and prevent capillary action. It installs seamlessly over various wall structures, including masonry, concrete, and insulated stud assemblies.

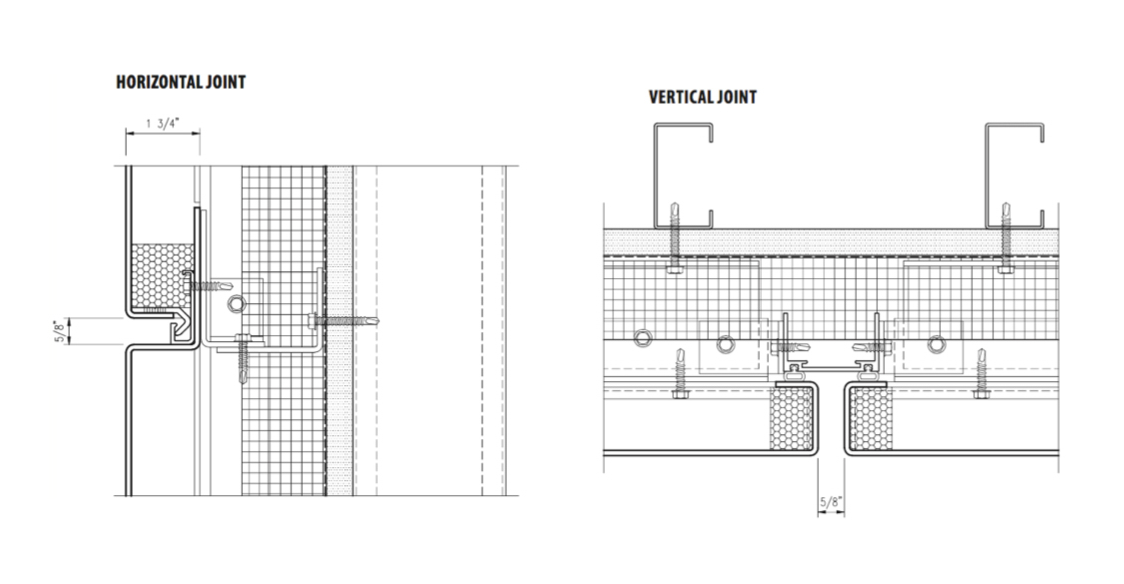

Line Drawing
Product Info
SKU:
Material:

.125 & .188 aluminum

14 & 12 ga. stainless steel

Panel Coverage:

Widths: 12” to 65” *
Lengths: 12” to 160” *
Depth: 3.75” minimum

* Maximum panel size depends upon plate material, gauge, finish, and geometry.

Minimum Panel Width:

12″

Maximum Panel Length:

160″

Panel Depth:

3.75” minimum

Available:

Flat
Curved
Custom 3D profiles

Texture:
Perforation Available:

Yes

Finish:

Aluminum: 70% PVDF
#4, #6, #8, and non-directional finishes for stainless plate

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Optional: Contact ATAS for specifying

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
