Arcwall
Optional back-cuts on formed panel edges
Arcwall

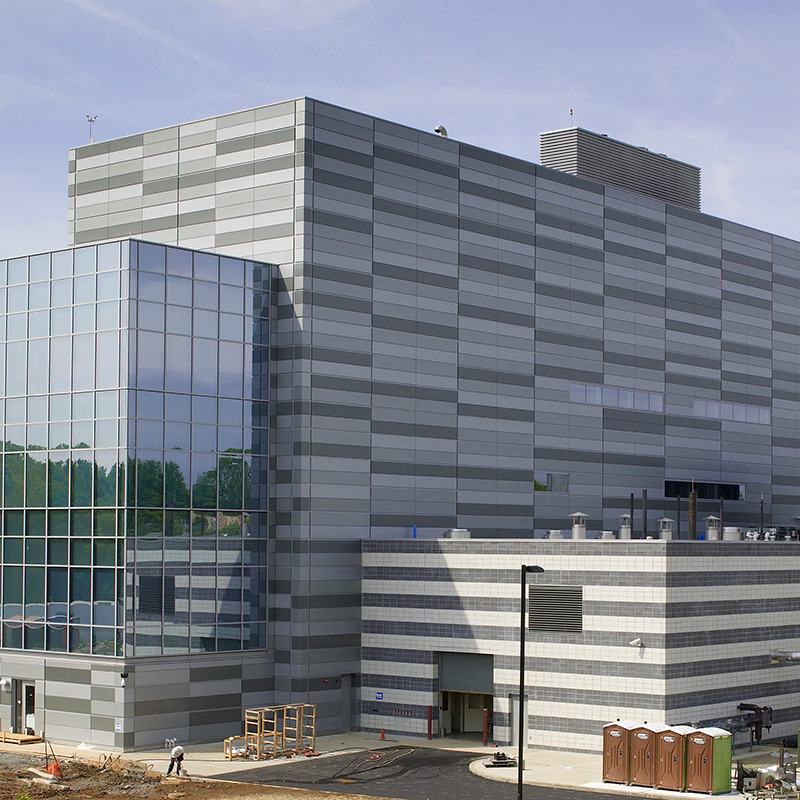

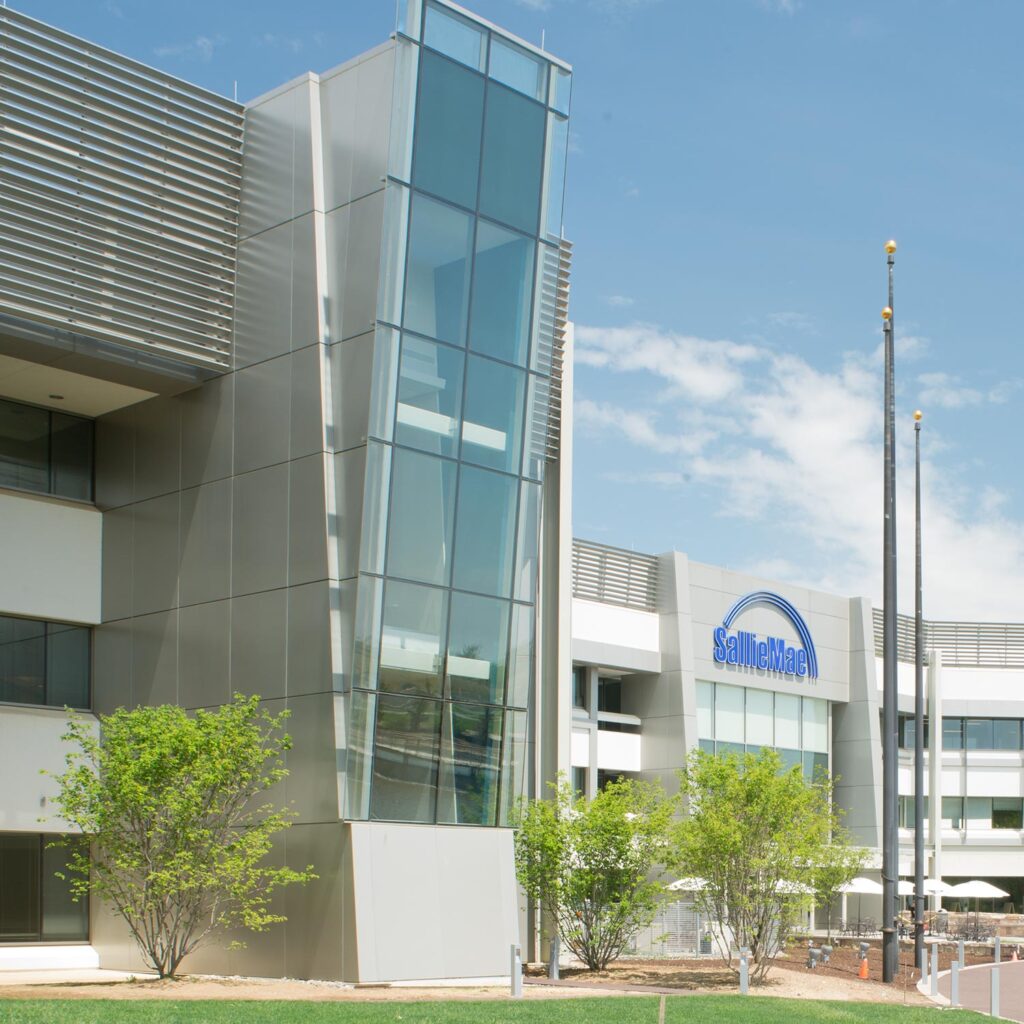

Arcwall is an economical drained and back-ventilated rainscreen system for both walls and soffits manufactured from formed aluminum or stainless plate.
The system combines excellent performance with a high design flexibility.
Arcwall panels can be flat, curved, or formed into custom 3D profiles and can be installed both horizontally and vertically. Horizontal reveals are also available in varying heights from 5/8” to 2”.
The system is entirely dry-set with integrally formed interlocking longitudinal joints and simplified backup guttering. This includes formed panels with welded corners and factory-mounted j-hook extrusions for male-female engagement.
Arcwall may be installed over stud/sheathed walls, continuous masonry, concrete, or as the outer cladding in a wall assembly that incorporates continuous insulation and a suitable air and water barrier.
???
ALUMINUM 3003-H14 aluminum alloy-temper Thickness: 0.080” min (2 mm) and 0.188” (4.78 mm) option Finishes: Kynar®, architectural TGIC Polyester powder coating, or anodized
STAINLESS STEEL T304 or T316 Thickness: 14 gauge (0.078”) (1.98 mm) standard, 16 gauge (0.063”) (1.60 mm), 12 gauge (0.109”) (2.78 mm) options Finishes: #4, #6, #8, and non-directional satin in smooth or custom embossed patterns
——————————
.080 & .188 aluminum
16, 14 & 12 ga. stainless steel*
Widths: 12” to 65”
Lengths: 12” to 160”
Depth: 1.75” minimum
Maximum panel size depends upon plate material, gauge, finish, and geometry
Horizontal 0.625” – 2”
Vertical 0.25” – 2”
12″
160″
Aluminum: 2.62 – 3.52 lbs./ft2
Stainless Steel: 4.64 – 5.913 lbs./ft2
(dependent upon gauge and geometry)
Ranges provided for clarification. Consult with an ATAS product rep for further options.
Depth: 1.75” minimum
Flat
Curved
Custom 3D profiles
Aluminum: Kynar®, architectural TGIC Polyester powder coating, or anodized
Stainless Steel: #4, #6, #8, and non-directional satin in smooth or custom embossed patterns
Yes
Aluminum: 70% PVDF
Stainless Steel: #4, #6, #8, and non-directional
Choice of over 40 stock colors
Custom colors and finishes available* ( Aluminum only )
A complete line of trims available in matching colors, gauge, and finish or as specified
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
