Omniplate 2510
Omniplate 2510 is a premium, dry-sealed barrier wall system that uses structural aluminum framing to create sharp panel edges without exposed sealants or gaskets. Designed primarily for horizontal orientations, the system features integrated vertical gutters that efficiently shed water while showcasing a deep, customizable reveal between panels. It is engineered for high wind resistance and installs with concealed fasteners over various substrates, making it ideal for both flat and curved surfaces.
Aluminum Plate: .125, .188, & .25
Stainless Steel: 11, 14, 12, 8, & 7 ga.
Widths: 12” to 72” *
Lengths: 12” to 240” *
Depth: 2.25”
* Maximum panel size depends upon plate material, gauge, finish, and geometry.

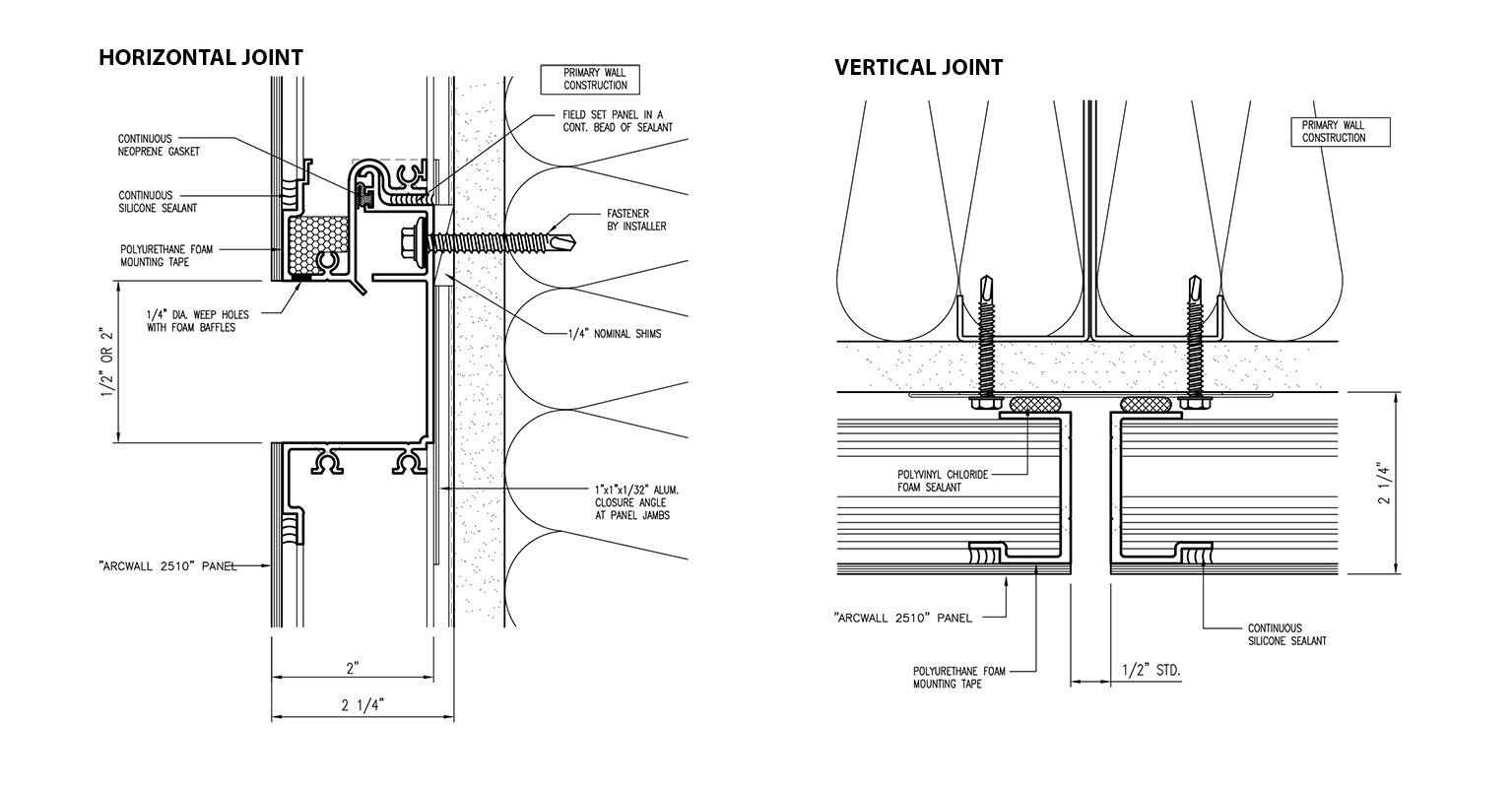

Horizontal .5” – 2”
Vertical .25” – 6”
12″
240″
2.25”
Flat
Curved
Yes
Aluminum: 70% PVDF
#4, #6, #8, and non-directional finishes for stainless plate
Choice of over 40 stock colors
Custom colors and finishes available*
Optional: Contact ATAS for specifying
A complete line of trims available in matching colors, gauge, and finish or as specified
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format
DWG File Format
- Spec Data Sheet
- 3-Part Specification
